IDEAL
BK FIRE - (Control Box Ass)
Appliance Code: 37-391-23

Appliance Diagram


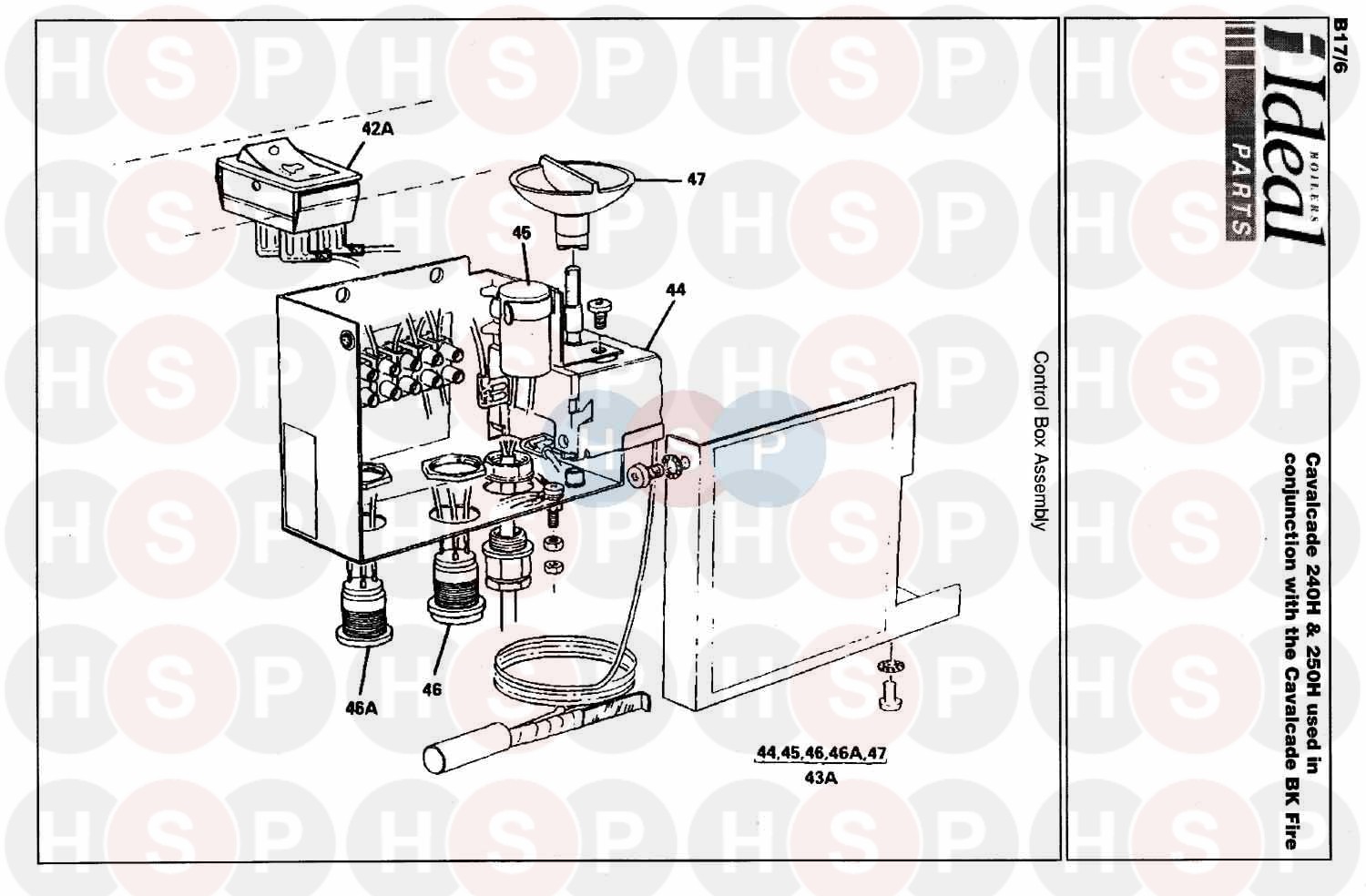

Control Box Ass diagram for Ideal BK FireClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE HT EXCHANGER ASSY CAV 250H.
Ideal part no. 078626

1   OBSOLETE HT EXCHANGER ASSY CAV 240H.
Ideal part no. 078625

3   OBSOLETE RH END PLT W/GSKT CAV
Ideal part no. 078628

4   OBSOLETE LH END PLT &GSKT CAV 240/250
Ideal part no. 078629

5   OBSOLETE END PLATE GASKET CAVALCADE
Ideal part no. 055348

6   OBSOLETE 4-M8 TDOM RODS W/FTGS CAV
Ideal part no. 078303

7 Part number 055865, T/STAT POCKET ASS 6339004 T/STAT POCKET ASS 6339004
Ideal part no. 055865
£25.42
8   OBSOLETE FLUEWAY BAFFLE CAV 250H
Ideal part no. 059035

8   OBSOLETE FLUEWAY BAFFLE CAV 240H
Ideal part no. 059032

9   OBSOLETE DISTRIBUTOR TUBE CAV 340/350
Ideal part no. 132805

10   OBSOLETE BASE PLATE ASS CAVLCD 240/250H
Ideal part no. 059036

11   OBSOLETE RH FIRE SUPPORT BRACKET GS/GLS
Ideal part no. 058976

12   OBSOLETE LH FIRE SUPPORT BRACKET GS/GLS
Ideal part no. 058977

13   OBSOLETE DIVERTER ASSY CAV
Ideal part no. 059129

14   OBSOLETE DIVERTER REAR BAFFL CAV 240/50
Ideal part no. 025592

15   OBSOLETE DIVERTER FRT BAFFLE CAV
Ideal part no. 025596

16   OBSOLETE BACK PANEL ASSY CAV250H
Ideal part no. 059132

17   OBSOLETE DOWN DRAUGHT PNL CAV
Ideal part no. 059030

18   OBSOLETE BNR & FRT PLT ASSY CAV 250
Ideal part no. 059094

18   OBSOLETE BNR & FRT PLT ASSY CAV 240
Ideal part no. 059093

20   OBSOLETE SIGHT GLASS ASSY - BNR BOX
Ideal part no. 079333

21   OBSOLETE MAIN BURNER AC19/123226
Ideal part no. 013152

22   OBSOLETE INJECTOR BNR 9.37 X 1.25 CAV 40
Ideal part no. 012854

22   OBSOLETE INJECTOR BNR 1.35 CAV 50
Ideal part no. 012789

24   OBSOLETE MAIN BNR GAUZE MEX 2 CF 50
Ideal part no. 013987

25   OBSOLETE END CAPS(AEROMATIC BNR 36)XL 30/
Ideal part no. 065691

26   OBSOLETE PILOT BURNER - HONEYWELL W/FXG
Ideal part no. 078315

27 Part number 000069, INJECTOR PILOT HONEYWELL 390686-4B INJECTOR PILOT HONEYWELL 390686-4B
Ideal part no. 000069

29 Part number 003777, OBSOLETE IGN ELECTRODE 60877 MX2 100-140 OBSOLETE IGN ELECTRODE 60877 MX2 100-140
Ideal part no. 003777

30   OBSOLETE IGNITOR VERNITRON PT 60038 SPARK GEN
Ideal part no. 052288

31   OBSOLETE H T LEAD ASSY CAVALCADE
Ideal part no. 056571

32   OBSOLETE PILOT PIPE CAV (ALL)
Ideal part no. 078317

33 Part number 002700, NOW USE Q309A2747 THERMOCOUPLE 750MM NOW USE Q309A2747 THERMOCOUPLE 750MM
Ideal part no. 002700

33 Part number Q309A2747, Q309A2747 - thermocouple Q309A2747 - THERMOCOUPLE
Baxi part no. Q309A2747
£9.18
34 Part number 173345, GAS VALVE V4600C 1086 TRADELINE GAS VALVE V4600C 1086 TRADELINE
Ideal part no. 173345
£249.32
34 Part number 053239, NOW USE 173345 1/2IN V4600C1029U COMPACT NOW USE 173345 1/2IN V4600C1029U COMPACT
Ideal part no. 053239

35 Part number 003248, O-RING 25.0 I/D X 4.0 DES 0038 MN70 O-RING 25.0 I/D X 4.0 DES 0038 MN70
Ideal part no. 003248
£8.80
36   OBSOLETE GAS COCK ASSY 004915/921/919
Ideal part no. 077010

37   OBSOLETE GAS VALVE LEAD ASSY CAV
Ideal part no. 056556

40   OBSOLETE INSTALLATION PACKAGE
Ideal part no. 078631

41   OBSOLETE TOP PNL/CTRL BOX ASS:CAV BKRL
Ideal part no. 059634

42   OBSOLETE TOP PANEL ASS:CAV BLACK KNIGHT
Ideal part no. 059637

42   OBSOLETE DOUBLE POLE ROCKER SWITCH C145
Ideal part no. 003870

43   OBSOLETE CONTROL BOX CAV EL/B
Ideal part no. 078636

44 Part number 003209, OBSOLETE T/STAT CL6 PO 105 W 48IN C OBSOLETE T/STAT CL6 PO 105 W 48IN C
Ideal part no. 003209

45   OBSOLETE PLASTIC CAN SUPPRESSOR STC NO
Ideal part no. 004033

46   OBSOLETE SOCKET + BK NUT 3 POLE SA2024
Ideal part no. 003435

46   OBSOLETE SOCKET ASSY BULGIN CAV (A)
Ideal part no. 055861

47   OBSOLETE CONTROL KNOB T/STAT :CAVALCADE
Ideal part no. 012787

48   OBSOLETE RH SIDE RELIEF GRILLE ASSY CAV
Ideal part no. 059640

49   OBSOLETE LH SIDE RELIEF GRILLE ASSY (CA
Ideal part no. 059639

50   OBSOLETE FIRE DUCT ASSY BK:CAV
Ideal part no. 059593

51   OBSOLETE TOP PANEL SUPPORT ANGLE:CAV
Ideal part no. 059636

52   OBSOLETE GAS FIRE PIPE-BK.
Ideal part no. 059485

54   OBSOLETE CANOPY ASSEMBLY BK PT 996593.
Ideal part no. 065427

55   OBSOLETE CANOPY TRIM ASSY CODE 996592 C
Ideal part no. 065542

56   OBSOLETE LOUVRE CAV BK (996704).
Ideal part no. 065640

57   OBSOLETE DRESSGUARD BK PT 996779.
Ideal part no. 065414

58   OBSOLETE FIBREGLASS LOGS BK PT 996703.
Ideal part no. 065424

59   OBSOLETE OUTER CASING ASSY CAV BK 99634
Ideal part no. 065241

60   OBSOLETE BASE ASSY (966587) CAV BK.
Ideal part no. 065670

61   OBSOLETE BRASS TRIM CAV BK CODE 996810.
Ideal part no. 065543

62   OBSOLETE LAMP HOUSING ASSY CAV BK 99679
Ideal part no. 065651

63   OBSOLETE SPINNER SUPPORT BRACKET
Ideal part no. 065242

64   OBSOLETE SPINNER LH D(45) RW 820465
Ideal part no. 065219

65   OBSOLETE SPINNER RH D(45) RW 820466
Ideal part no. 065220

67   OBSOLETE LAMP 60W FYRGLO RED 8200402
Ideal part no. 065320

68   OBSOLETE LAMP HOLDER COVER ASSY(996733).
Ideal part no. 065430

69   OBSOLETE FRT LEG ASSY LH CAV BK 996341.
Ideal part no. 065604

70   OBSOLETE FRT LEG ASSY RH CAV BK 996340.
Ideal part no. 065605

71   OBSOLETE CONTROL KNOB PT 996595 BK.
Ideal part no. 065415

72   OBSOLETE RADIANT FS/BK PT 996844.
Ideal part no. 065405

73   OBSOLETE RADIANT SUPPORT PLT 996629
Ideal part no. 065709

74   OBSOLETE FIRE BNR ASSY 820715 BK
Ideal part no. 065710

75   OBSOLETE FIRE BURNER AB 9200(820512) BK
Ideal part no. 065712

76   OBSOLETE ELECTRODE FS/BK PT 820513.
Ideal part no. 065406

77   OBSOLETE ELECTRODE LEAD ASSY PT 820514.
Ideal part no. 065407

78   OBSOLETE GAS TAP/IGNITER ASSY FS/BK PT
Ideal part no. 065408

79   OBSOLETE IGNITER VERNITRON 66129 PT 820
Ideal part no. 065423

81   OBSOLETE INJECTOR BRAY 99/150 PT 820538
Ideal part no. 065409

82   OBSOLETE INJECTOR BRAY CAT 47 SIZE 75 .
Ideal part no. 065410

83   OBSOLETE INJECTOR BRAY 28/140A PT 82054
Ideal part no. 065411

84   OBSOLETE FIREBOX ASSEMBLY 996714
Ideal part no. 065724

86   OBSOLETE BACK PLATE BK 996339
Ideal part no. 065654

87   OBSOLETE CONCEALMENT PNL RH:CAV BK
Ideal part no. 025729

88   OBSOLETE CONCEALMENT PNL LH:CAV BK
Ideal part no. 025728
