IDEAL
24 COMBI ESP1 - (Controls)
Appliance Code: 47-349-21

Appliance Diagram

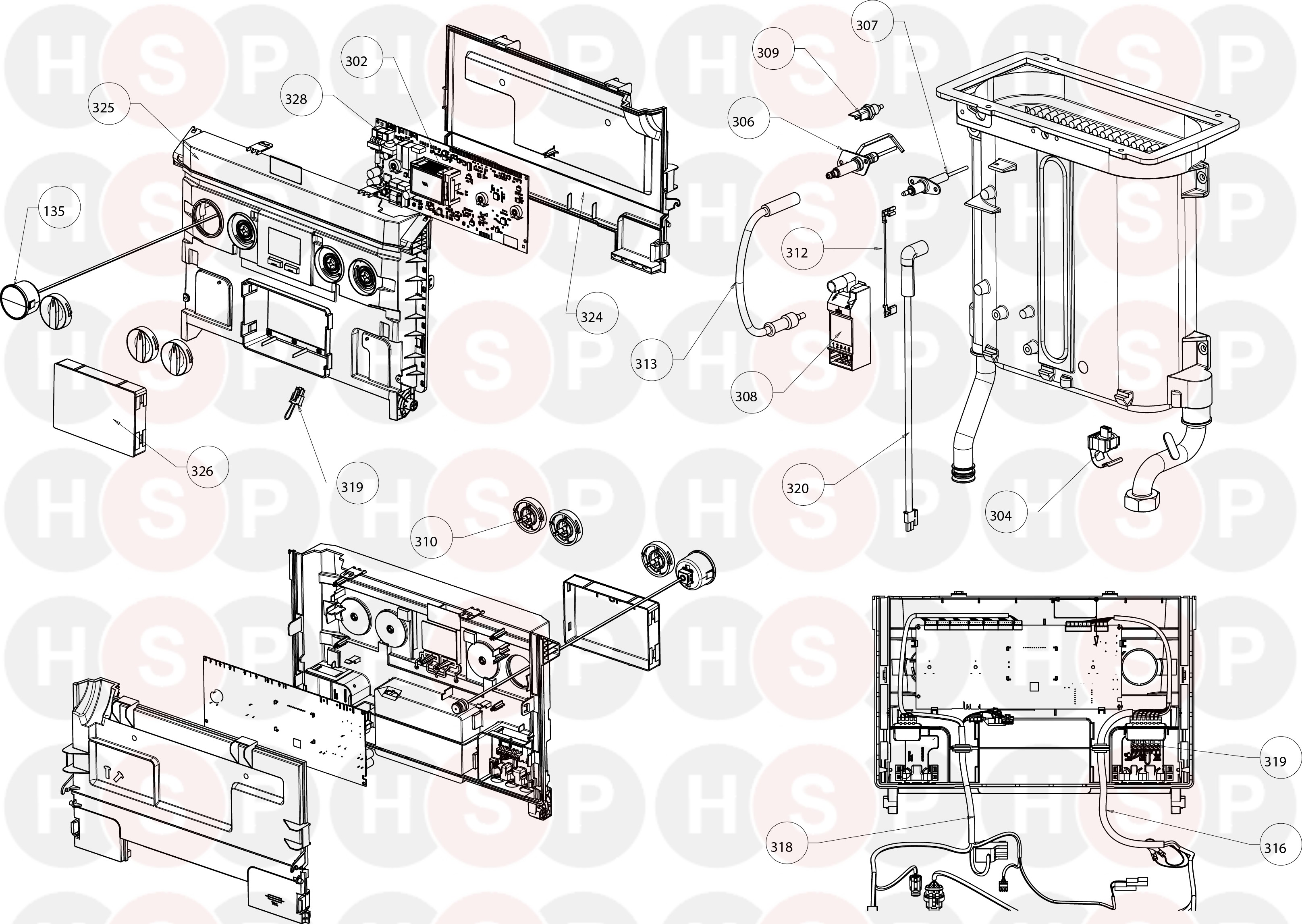

Controls diagram for Ideal 24 Combi ESP1Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

135 Part number 179031, PRESSURE GAUGE KIT PRESSURE GAUGE KIT
Ideal part no. 179031
£17.21
302 Part number 179038, PCB KM821 I2 KIT PCB KM821 I2 KIT
Ideal part no. 179038
£131.22
304 Part number 176432, CONTROL THERMISTOR CONTROL THERMISTOR
Ideal part no. 176432
£10.53
306 Part number 175591, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ideal part no. 175591
£23.26
306 Part number 178950, GASKET IGNITION ELECTRODE GASKET IGNITION ELECTRODE
Ideal part no. 178950
£3.59
307 Part number 175592, ELECTRODE - DETECTION ELECTRODE - DETECTION
Ideal part no. 175592
£16.88
307   GASKET DETECTION ELECTRODE
Ideal part no. 178949
£3.59
308 Part number 178205, IGNITOR UNIT CLIP ON (ADP ONWARDS) IGNITOR UNIT CLIP ON (ADP ONWARDS)
Ideal part no. 178205
£33.25
309 Part number 175594, THERMISTOR - NO FLOW THERMISTOR - NO FLOW
Ideal part no. 175594
£10.81
310   WRIST STRAP
Ideal part no. 175595
£15.48
310 Part number 179043, KNOB POTENTIOMETER WHITE KNOB POTENTIOMETER WHITE
Ideal part no. 179043
£4.23
312   HARNESS EARTH HT (ADP ONWARDS)
Ideal part no. 178207
£9.55
313 Part number 175598, IGNITION LEAD IGNITION LEAD
Ideal part no. 175598
£16.74
316 Part number 179048, HARNESS MAINS HARNESS MAINS
Ideal part no. 179048
£27.30
318 Part number 179048, HARNESS MAINS HARNESS MAINS
Ideal part no. 179048
£27.30
319 Part number 179050, HARNESS ROOM STAT LINK HARNESS ROOM STAT LINK
Ideal part no. 179050
£5.77
319 Part number 179052, HARNESS TIMER OPTION LINK HARNESS TIMER OPTION LINK
Ideal part no. 179052
£3.59
320 Part number 175604, HARNESS - DETECTION earth lead no longer required HARNESS - DETECTION EARTH LEAD NO LONGER REQUIRED
Ideal part no. 175604
£14.54
324 Part number 179072, CONTROL BOX LID KIT CONTROL BOX LID KIT
Ideal part no. 179072
£31.76
325 Part number 179171, CONTROL BOX FRONT KIT CONTROL BOX FRONT KIT
Ideal part no. 179171
£122.57
325   CONTROL BOX FRONT KIT
Ideal part no. 179173
£47.49
326 Part number 179165, PROGRAMMER BLANK INSERT PROGRAMMER BLANK INSERT
Ideal part no. 179165
£5.18
328 Part number 175627, PCB FUSE PCB FUSE
Ideal part no. 175627
£3.79
