IDEAL
+C30 - (Water Management ABK Onwards)
Appliance Code: 47-348-86

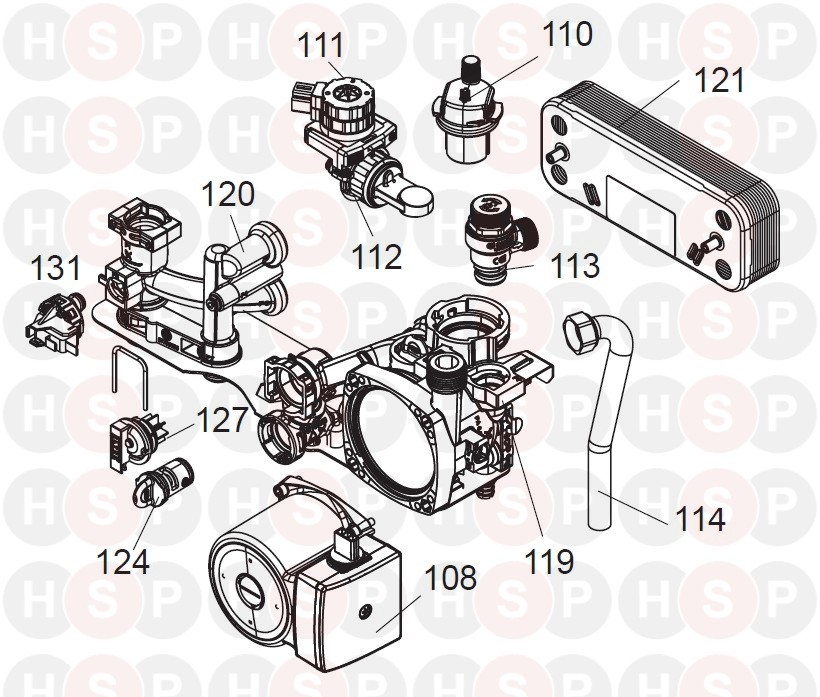

Appliance Diagram


Water Management ABK Onwards diagram for Ideal +C30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

108 Part number 175670, PUMP HEAD KIT (AAC & AAB ONLY) PUMP HEAD KIT (AAC & AAB ONLY)
Ideal part no. 175670		 £211.22
108 Part number 176455, NOW USE 182357 PUMP HEAD KIT - GRUNDFOS 59200322 (ABS & ABY ONWARDS) NOW USE 182357 PUMP HEAD KIT - GRUNDFOS 59200322 (ABS & ABY ONWARDS)
Ideal part no. 176455
108 Part number 177925, PUMP HEAD KIT ErP 98927074 ( ACQ ONWARDS - 2015 ERP) PUMP HEAD KIT ERP 98927074 ( ACQ ONWARDS - 2015 ERP)
Ideal part no. 177925		 £285.72
108   PUMP HEAD KIT
Ideal part no. 182357		 £204.87
110 Part number 174894, AIR VENT (PUMP) AIR VENT (PUMP)
Ideal part no. 174894		 £38.59
110 Part number 175804, KIT-AUTO AIR VENT WITH O RING 12.0113 (PRE ABY) KIT-AUTO AIR VENT WITH O RING 12.0113 (PRE ABY)
Ideal part no. 175804		 £48.00
110 Part number 176457, AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS) AUTO AIR VENT - GRUNDFOS 59200320 (ABY ONWARDS)
Ideal part no. 176457		 £44.94
111 Part number 174813, DIVERTER VALVE HEAD DIVERTER VALVE HEAD
Ideal part no. 174813		 £55.20
111 Part number 176458, DIV VALVE MOTOR KIT-GRUNDFOS 59200713 DIV VALVE MOTOR KIT-GRUNDFOS 59200713
Ideal part no. 176458		 £51.79
112 Part number 175668, DIVERTER VALVE CARTRIDGE DIVERTER VALVE CARTRIDGE
Ideal part no. 175668		 £84.06
112 Part number 176550, DIVERTER VALVE ASSY-GRUNDFOS 59200318 DIVERTER VALVE ASSY-GRUNDFOS 59200318
Ideal part no. 176550		 £47.16
113 Part number 175413, PRESSURE RELIEF VALVE KIT (AAC & AAB ONLY) PRESSURE RELIEF VALVE KIT (AAC & AAB ONLY)
Ideal part no. 175413		 £16.43
113 Part number 176610, PRV KIT (ABS & ABY ONWARDS) PRV KIT (ABS & ABY ONWARDS)
Ideal part no. 176610		 £41.91
114 Part number 175545, PIPE - PRV OUTLET (AAC & AAB ONLY) PIPE - PRV OUTLET (AAC & AAB ONLY)
Ideal part no. 175545		 £18.16
114 Part number 177536, PIPE PRV OUTLET (ABS & ABY ONWARDS) PIPE PRV OUTLET (ABS & ABY ONWARDS)
Ideal part no. 177536		 £19.30
119 Part number 175552, RETURN GROUP KIT (MANIFOLD ONLY AAC ONLY) RETURN GROUP KIT (MANIFOLD ONLY AAC ONLY)
Ideal part no. 175552		 £101.36
119 Part number 176603, RETURN GROUP KIT (ABS ONWARDS) RETURN GROUP KIT (ABS ONWARDS)
Ideal part no. 176603		 £70.59
120 Part number 175553, FLOW GROUP KIT (INCLUDES CARTRIDGE AAC ONLY) FLOW GROUP KIT (INCLUDES CARTRIDGE AAC ONLY)
Ideal part no. 175553		 £353.19
120 Part number 176466, FLOW GROUP KIT (ABS ONWARDS) FLOW GROUP KIT (ABS ONWARDS)
Ideal part no. 176466		 £73.36
121 Part number 175418, PLATE HEAT EXCHANGER KIT 30KW (AAC ONLY) PLATE HEAT EXCHANGER KIT 30KW (AAC ONLY)
Ideal part no. 175418		 £71.40
121 Part number 177529, PLATE HEAT EXCHANGER KIT 59200622 (ACE ONWARDS) PLATE HEAT EXCHANGER KIT 59200622 (ACE ONWARDS)
Ideal part no. 177529		 £109.32
121 Part number 177530, PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS) PLATE HEAT EXCHANGER KIT 59200623 (ABS ONWARDS)
Ideal part no. 177530		 £123.40
124 Part number 175605, FLOW REGULATOR HE30 FLOW REGULATOR HE30
Ideal part no. 175605		 £10.62
124 Part number 176471, FLOW REGULATOR HE30 - GRUNDFOS 59200314 FLOW REGULATOR HE30 - GRUNDFOS 59200314
Ideal part no. 176471		 £30.49
127 Part number 175590, FLOW SENSOR HALL EFFECT FLOW SENSOR HALL EFFECT
Ideal part no. 175590		 £12.86
127 Part number 176473, FLOW SENSOR/TURBINE KIT- 59200311 FLOW SENSOR/TURBINE KIT- 59200311
Ideal part no. 176473		 £42.85
