HAMWORTHY
PUREWELL VARIHEAT 65,85,105,125(HE) 70,95,110,140,180 (C) - (Base Assembly - Condensing Models - PV70c, PV95c, PV110c, PV140c, PV180c)
Appliance Code: VARIHEAT

Appliance Diagram

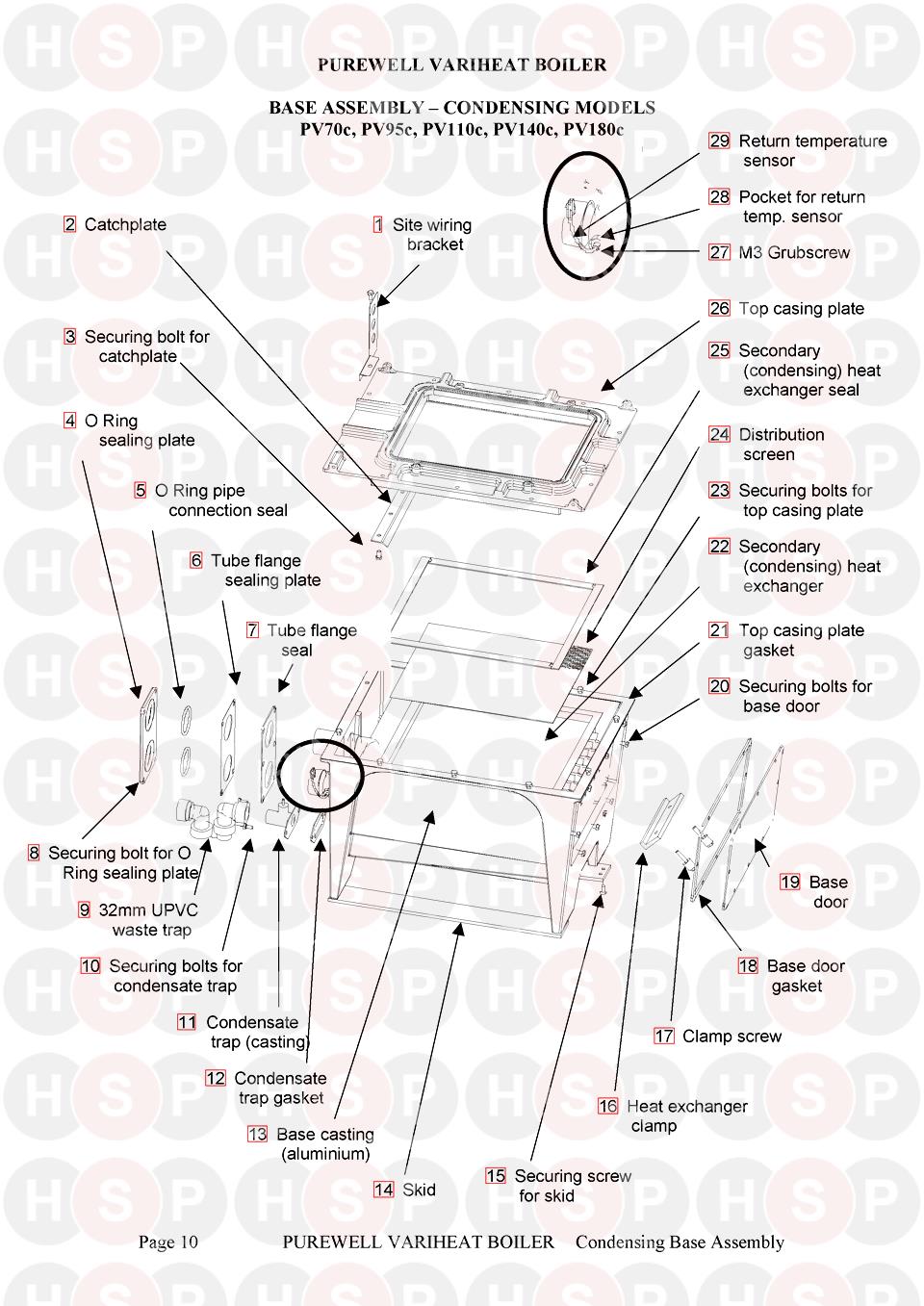

Base Assembly - Condensing Models - PV70c, PV95c, PV110c, PV140c, PV180c diagram for Hamworthy Purewell Variheat 65,85,105,125(HE) 70,95,110,140,180 (C)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3   FIXING BOLT
Hamworthy part no. 748214084
£0.20
5   O RING WYKO
Hamworthy part no. 742132084
£12.95
6   TUBE FLANGE SEALING PLATE
Hamworthy part no. 530801023
£24.48
7   TUBE FLANGE SEAL
Hamworthy part no. 531201119
£13.77
8   FIXING BOLT
Hamworthy part no. 748214084
£0.20
9   CONDENSATE TRAP -SR10
Hamworthy part no. 530105095
£38.69
10   FIXING BOLT
Hamworthy part no. 748214084
£0.20
11   CONDENSATE TRAP
Hamworthy part no. 530105094
£103.41
12   GASKET CONDENSATE TRAP MOUNT TO CAN WS
Hamworthy part no. 531201076
£20.61
13   PV CASE BASE GRAVITY DIE EXECUTION
Hamworthy part no. 524120053
£440.17
18   HE DOOR SEAL
Hamworthy part no. 531201117
£19.27
20   FIXING BOLT
Hamworthy part no. 748214084
£0.20
21   GASKET REAR TUBE PLATE WELDED BAFFLES
Hamworthy part no. 531201115
£25.93
21   GASKET FOR HORIZONTAL MANIFOLD WSXM
Hamworthy part no. 531201145
£28.90
22   CONDENSING HEAT EXCHANGER
Hamworthy part no. 532420011
£1,018.53
23   FIXING BOLT
Hamworthy part no. 748214084
£0.20
24   DISTRIBUTION SCREEN
Hamworthy part no. 530818003
£53.84
25   PWELL CASE SEAL
Hamworthy part no. 531201116
£84.15
27   SCREW - M3 X 8 SOCKET
Hamworthy part no. 748013353
£12.34
28   TEMPERATURE SENSOR SOCKET 1/4" BSP
Hamworthy part no. 531050011
£29.02
29   TEMP SENSOR 10K NTC 6 X 45
Hamworthy part no. 533901431
£20.96
