GLOWWORM
ULTRACOM 30 SXI - (Combustion Box)
Appliance Code: 41-019-08

Appliance Diagram

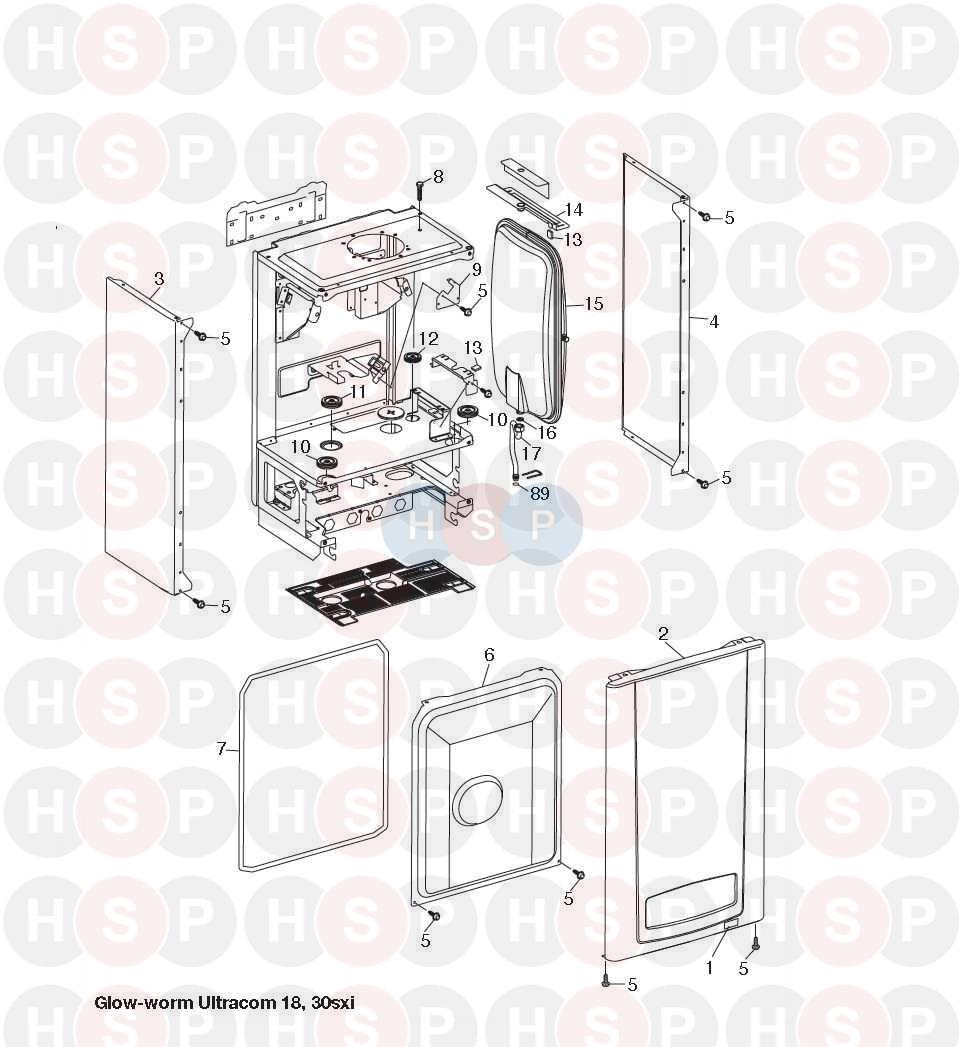

Combustion Box diagram for Glowworm Ultracom 30 SXI Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	COMPANY PLAQUE Glowworm part n^o. 0020037282	£7.14
2	FRONT PANEL KIT (BASIC) Glowworm part n^o. 2000802454	£58.45
3	SIDE PANEL LH Glowworm part n^o. 801681	£59.97
4	SIDE PANEL R/H Glowworm part n^o. 2000802126	£56.67
5	SCREW 4.2X13.5MM Glowworm part n^o. 801700	£6.61
6	DOOR Glowworm part n^o. 801682	£45.36
7	INNER DOOR SEAL, 1765MM Glowworm part n^o. 2000801843	£10.78
8	SCREW M8X40 Glowworm part n^o. 2000801671	£6.61
9	ZIG IGNITOR BRACKET Glowworm part n^o. 801654	£11.45
10	SEAL - PIPE Glowworm part n^o. 801658	£6.61
11	GROMMET Glowworm part n^o. 801656	£6.61
12	SEAL - PIPE Glowworm part n^o. 801657	£6.61
13	END TIP Glowworm part n^o. 801660	£6.61
14	FIXING BRACKET-EXPANSION VESSEL Glowworm part n^o. 801667	£12.83
15	NOW USE 0020020744 EXPANSION VESSEL 8 LT Glowworm part n^o. 801666
15	EXPANSION VESSEL Glowworm part n^o. 0020020744	£102.11
16	WASHER (PK10) Glowworm part n^o. 0020247022	£8.19
16	NOW USE 0020247022 WASHER Glowworm part n^o. S208342
17	PIPE Glowworm part n^o. 0020037298	£9.09
18	NOW USE 0020038076 FLUE SEAL Glowworm part n^o. 2000801616
18	GASKET EXCHANGER / FLUE Glowworm part n^o. 0020038076	£7.89
19	FLUE ADAPTER Glowworm part n^o. 801614	£114.80
20	GASKET HEAT EXCHANGER Glowworm part n^o. 2000801615	£20.69
21	NOW USE 0020057359 FLEXIBLE HOSE 120MM WITH SEAL Glowworm part n^o. 801617
21	SIPHON ADAPTER Glowworm part n^o. 0020057359	£21.09
22	SIPHON ADAPTER Glowworm part n^o. 0020057359	£21.09
22	NOW USE 0020057359 SIPHON ADAPTER Glowworm part n^o. 801624
23	NOW USE 0020057359 HOSE CONNECTOR Glowworm part n^o. 801732
23	SIPHON ADAPTER Glowworm part n^o. 0020057359	£21.09
25	O RING 18 X 3 Glowworm part n^o. 801625	£6.61
26	O RING 15.6 ID X 2.4 SECT DIA Glowworm part n^o. 801626	£6.61
28	NOW USE 00200587359 SIPHON ADAPTER Glowworm part n^o. 2000802784
28	SIPHON ADAPTER Glowworm part n^o. 0020057359	£21.09
29	SIPHON ADAPTER Glowworm part n^o. 0020057359	£21.09
29	NOW USE 0020057359 SEALING SYPHON ADAPTER Glowworm part n^o. 2000802152
30	FLOAT Glowworm part n^o. 0020013712	£6.61
31	SIPHON Glowworm part n^o. 0020013711	£31.95
32	PIPE, CONDENSE DRAIN Glowworm part n^o. 0020020726	£10.55
33	FAN Glowworm part n^o. 0020037309	£199.47
34	SEAL FAN Glowworm part n^o. 801689	£8.17
35	O-RING FOR VENTURI PLATE Glowworm part n^o. 801648	£6.61
36	VENTURI PLATE FAN Glowworm part n^o. 801647	£35.51
37	SCREW M4X10MM Glowworm part n^o. S014277	£6.61
38	GAS SECTION Glowworm part n^o. 2000802664	£207.80
39	O RING Glowworm part n^o. S208040	£6.61
40	CONNECTOR GAS VALVE Glowworm part n^o. 801650	£43.27
41	SCREW M4X12MM Glowworm part n^o. S12780	£6.61
42	PIPE Glowworm part n^o. 0020037296	£56.67
43	O-RING Glowworm part n^o. 0020037297	£6.61
44	CLIP GAS PIPE Glowworm part n^o. 2000801653	£6.61
45	NOW USE 0020018831 SCREW FAN ASSEMBLY Glowworm part n^o. 801644
45	SCREW M6X20 (PK10) Glowworm part n^o. 0020018831	£6.61
46	SCREW ( M5X14MM ) Glowworm part n^o. S208294	£6.61
46	NOW USE S208294 SCREW EJOT M5X16 Glowworm part n^o. 801646
47	MANIFOLD FAN (ASSEMBLY) Glowworm part n^o. 801641	£146.90
48	NOW USE 0020152564 IGNITION ROD Glowworm part n^o. 2000802462
48	ELECTRODE (KIT) Glowworm part n^o. 0020152564	£41.16
49	GASKET ELECTRODE Glowworm part n^o. 801638	£6.39
50	SCREW ELECTRODE Glowworm part n^o. 801639	£6.61
51	NOW USE 2000801640 SIGHT GLASS REPLACEMENT KIT Glowworm part n^o. 801640
51	VIEWING GLASS (SET) Glowworm part n^o. 2000801640	£10.98
52	GASKET H/E DOOR/MIXING ARM Glowworm part n^o. 801688	£6.39
53	HEAT EXCHANGER DOOR KIT Glowworm part n^o. 801631	£123.71
54	M6 WASHERED NUT Glowworm part n^o. 801651	£6.61
55	NOW USE 0020038679 SEAL HEAT EXCHANGER DOOR Glowworm part n^o. 801635
55	GASKET KIT Vaillant part n^o. 0020038679	£19.11
56	INSULATION COVER HEAT EXCHANGER Glowworm part n^o. 2000802737	£61.71
57	GASKET, BURNER Glowworm part n^o. 801634	£6.97
58	BURNER, KIT WITH GASKETS, 24KW Glowworm part n^o. 2000802463	£176.61
58	BURNER 35KW Glowworm part n^o. 2000802662	£153.59
59	SCREW, BURNER Glowworm part n^o. 801633	£6.61
60	INSULATION, HEAT EXCHANGER, 10 MM Glowworm part n^o. 0020010866	£42.18
61	HEAT EXCHANGER Glowworm part n^o. 801621	£576.47
61	HEAT EXCHANGER Glowworm part n^o. 2000801701	£652.54
62	PIPE, FLOW Glowworm part n^o. 0020037288	£36.18
62	PIPE, FLOW Glowworm part n^o. 0020037287	£34.84
63	PIPE, RETURN Glowworm part n^o. 0020037295	£29.76
63	PIPE, RETURN Glowworm part n^o. 0020037291	£27.37
64	SEALING WASHER 24.5X18.2MM Glowworm part n^o. S212332	£6.57
65	SCREW M6 X120 POZI PAN Glowworm part n^o. 801692	£6.61
66	SCREW ( M5X8MM ) Glowworm part n^o. S208238	£6.61
67	CLAMP - HEAT EXCHANGER Glowworm part n^o. 801622	£6.61
68	H/E SUPPORT BRACKET - LH Glowworm part n^o. 801618	£21.73
69	H/E SUPPORT BRACKET RH Glowworm part n^o. 801619	£21.73
70	CASING Glowworm part n^o. 0020038062	£25.46
71	DISPLAY Glowworm part n^o. 0020038061	£185.69
72	BACK PANEL Glowworm part n^o. 0020038063	£12.93
73	PCB MAIN Glowworm part n^o. 0020023825	£192.24
74	APPLIANCE INTERFACE HARNESS Glowworm part n^o. 0020025183	£13.27
75	NOW USE 0020079603 FUSE Glowworm part n^o. 0020026405
75	FUSE 2,0 A T2H (PK10) Glowworm part n^o. 0020079603	£14.09
76	ZIG IGNITOR Glowworm part n^o. 801655	£37.25
77	SCREW, M3X6MM Glowworm part n^o. SK7959	£6.61
78	NOW USE S5739800 TEMPERATURE MONITOR Glowworm part n^o. 0020020781
78	TEMPERATURE SENSOR Glowworm part n^o. S5739800	£23.87
79	FITTING Glowworm part n^o. 0020038263	£6.61
80	HOUSING Glowworm part n^o. 0020037300	£60.68
81	BOX Glowworm part n^o. 0020038262	£33.89
82	NOW USE 0020079644 CH PRESSURE SENSOR Glowworm part n^o. 0020014190
82	SENSOR Glowworm part n^o. 0020079644	£26.42
83	CABLE TREE (HARNESS) Glowworm part n^o. 0020037306	£12.35
84	NOW USE 0020152565 ELECTRODE KIT Glowworm part n^o. 0020037302
84	ELECTRODE (KIT) Glowworm part n^o. 0020152565	£44.14
85	CABLE TREE (HARNESS) Glowworm part n^o. 0020037305	£27.37
86	OBSOLETE FITTINGS PACK Glowworm part n^o. 0020053730
87	PIPE PACK Glowworm part n^o. 0020041107	£68.24
88	O-RING (PK10) Glowworm part n^o. 0020014183	£11.19
89	CLIP (PK10) Glowworm part n^o. 0020014176	£12.38
90	TAP, CENTRAL HEATING Glowworm part n^o. 0020026408	£48.27
91	GAS TAP Glowworm part n^o. 0020026409	£45.61
92	O-RING Glowworm part n^o. 801676	£6.61
93	HARNESS Glowworm part n^o. 0020041284	£18.73
94	SCREW (PK10) Glowworm part n^o. 0020014165	£8.41
95	GASKET, C-TYPE, (PK10) Glowworm part n^o. 0020014166	£10.01
96	CONNECTION PIECE Glowworm part n^o. 0020038227	£14.29
97	CONNECTION PIECE Glowworm part n^o. 0020038228	£14.55
98	PIPE Glowworm part n^o. 0020038230	£12.13
99	O-RING (PK10) Glowworm part n^o. 0020038089	£6.61
100	FILTER Glowworm part n^o. 0020038234	£6.61
101	PIPE Glowworm part n^o. 0020038083	£26.09
103	PIPE Glowworm part n^o. 0020038082	£26.09
104	CONNECTION PIECE (DUMMY 3-WAY VALVE) Glowworm part n^o. 0020014191	£82.81
105	BYPASS Glowworm part n^o. 0020014169	£31.19
106	WIRE RETAINING CLIP (PK10) Glowworm part n^o. 0020014164	£8.47
108	NUT (PK4) Glowworm part n^o. 0020014186	£7.49
109	PUMP Glowworm part n^o. 0020014171
110	AUTOMATIC AIR VENT Glowworm part n^o. 0020014161	£21.92
111	NOW USE 0020038628 CLIP Glowworm part n^o. 0020014170
111	CLIP Glowworm part n^o. 0020038628	£5.80
112	CLIP (PK10) Glowworm part n^o. 0020014185	£18.28
113	SUPPORT Glowworm part n^o. 0020014172	£33.12
114	SCREW (PK10) Glowworm part n^o. 0020038080	£6.61
115	SCREW (PK10) Glowworm part n^o. 0020014188	£6.61
116	O-RING (PK10) Glowworm part n^o. 0020014177	£6.61
117	SCREW M5 X 18 MM (PK10) Glowworm part n^o. 0020038225	£6.61
118	NUT Glowworm part n^o. 0020038229	£6.61
119	NOW USE 0020047005 PRESSURE RELIEF VALVE(3 BAR) Glowworm part n^o. 0020014173
119	PRESSURE RELIEF VALVE, 3 BAR Glowworm part n^o. 0020047005	£14.99
120	PRV ACTIVATING LEVER Glowworm part n^o. 2000801844	£6.61
120	NOW USE 2000801844 LEVER Glowworm part n^o. 0020038081
121	PIPE, RETURN Glowworm part n^o. 0020037292	£14.90
