GLOWWORM
ULTIMATE 50 CF 1993 AVA - (Casing 1)
Appliance Code: 41-319-49

Appliance Diagram


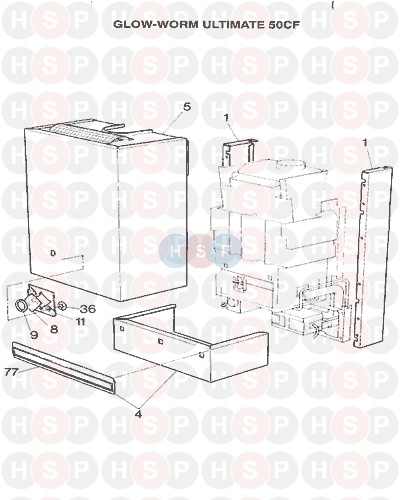

Casing 1 diagram for Glowworm Ultimate 50 CF 1993 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE SIDE SURROUND-PNTD (429501A)
Glowworm part no. 434755
2   OBSOLETE SHIELD - COMBUSTION CHAMBER
Glowworm part no. SAA073M
3 Part number 203264, BURNER GASKET-AEROMATIC 600026 BURNER GASKET-AEROMATIC 600026
Glowworm part no. 203264
3 Part number 203212, BURNER-AC07/052001LR BURNER-AC07/052001LR
Glowworm part no. 203212
3 Part number S203212, Burner BURNER
Glowworm part no. S203212
3 Part number S203264, Gasket - Burner GASKET - BURNER
Glowworm part no. S203264
4   OBSOLETE CASE TRAY ASSY ULT50C
Glowworm part no. 446854
5   OBSOLETE OUTER CASE ASSY-ULTIMATE 50C
Glowworm part no. 2000800385
6 Part number 208243, NOW USE S208243 SCREW-NO.10 X 3/4 REC NOW USE S208243 SCREW-NO.10 X 3/4 REC
Glowworm part no. 208243
6 Part number S208243, Screw ( no.10 X 3/4 ) SCREW ( NO.10 X 3/4 )
Glowworm part no. S208243
8 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
8 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
9 Part number 51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. 51936004
9 Part number S51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. S51936004
11   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
12   OBSOLETE FLUE BAFFLE (NPF) SS5C
Glowworm part no. 418370
13 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
14   NUT - SPIRE CAPT NO8
Glowworm part no. SK9327		 £4.91
17   OBSOLETE CLEANING DOOR ASSY (RVT)
Glowworm part no. 418359
18   NOW USE 2000802764 SCREW-NO.8 X 1/2 REC
Glowworm part no. 208393
18 Part number 2000802764, Screw (PK2) SCREW (PK2)
Glowworm part no. 2000802764		 £6.61
19 Part number SAA003K, OBSOLETE Gasket - heat exchanger OBSOLETE GASKET - HEAT EXCHANGER
Glowworm part no. SAA003K
19   OBSOLETE H/E ASSY-PNTD SS50MK2/2+R
Glowworm part no. 418388
20 Part number 409234, PHIAL POCKET KIT-SPARES PHIAL POCKET KIT-SPARES
Glowworm part no. 409234
20 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
21   OBSOLETE PHIAL RET ANGLE(1XB) SS3456R
Glowworm part no. 429558
22   OBSOLETE COMB CHAMB SPARE SS50MK2+R
Glowworm part no. 800051
25   PIPE - PILOT
Glowworm part no. 429567
26   NUT
Glowworm part no. SK7557
27 Part number 203416, OBSOLETE PILOT BURNER-27T1D1M7215S3X QC OBSOLETE PILOT BURNER-27T1D1M7215S3X QC
Glowworm part no. 203416
27 Part number S203416, OBSOLETE Pilot burner OBSOLETE PILOT BURNER
Glowworm part no. S203416
28 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238		 £6.61
28 Part number 208238, NOW USE S208238 SCREW-M5X8MM MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238
29 Part number 900500, ELECTRODE-ALTERNATIVES ELECTRODE-ALTERNATIVES
Glowworm part no. 900500
29 Part number S900500, Electrode ELECTRODE
Glowworm part no. S900500
30   NUT
Glowworm part no. SK6516
31 Part number SK2674, Thermocouple THERMOCOUPLE
Glowworm part no. SK2674
32 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
33   OBSOLETE INSUL-6MM C/C REAR
Glowworm part no. AA011K
34   OBSOLETE INSUL-6MM C/C FRONT
Glowworm part no. SAA012K
35   SCREW -M5
Glowworm part no. SK8209
36 Part number 208526, NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0 NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0
Glowworm part no. 208526
36 Part number S208526, Push on fix PUSH ON FIX
Glowworm part no. S208526		 £6.61
37 Part number SWW4617, Ignition lead IGNITION LEAD
Glowworm part no. SWW4617
38 Part number 900501, NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE
Glowworm part no. 900501
38 Part number S900501, Piezo generator PIEZO GENERATOR
Glowworm part no. S900501
39   OBSOLETE CONTROL BOX-SPARE-SS345R(B&C)
Glowworm part no. 429548
40   TSTAT&SCRWS-CL6 P0146-000
Glowworm part no. 202519
40 Part number S202519, Thermostat and screws THERMOSTAT AND SCREWS
Glowworm part no. S202519
41 Part number S426526, OBSOLETE Control knob OBSOLETE CONTROL KNOB
Glowworm part no. S426526
41 Part number 426526, OBSOLETE CONTROL KNOB ASSY OBSOLETE CONTROL KNOB ASSY
Glowworm part no. 426526
42 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
42 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
43   BUSH RELIEF
Glowworm part no. S204226
43   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
45 Part number 429568, OBSOLETE Cover-gas valve OBSOLETE COVER-GAS VALVE
Glowworm part no. 429568
47 Part number 429549, Gas section GAS SECTION
Glowworm part no. 429549
48 Part number 208040, NOW USE S208040 O RING-H/WELL 22.0 X 2.5 NOW USE S208040 O RING-H/WELL 22.0 X 2.5
Glowworm part no. 208040
48 Part number S208040, O ring O RING
Glowworm part no. S208040		 £6.61
49 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
49 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
50 Part number 208241, NOW USE S208241 SCREW-M4-GAS MANIFOLD NOW USE S208241 SCREW-M4-GAS MANIFOLD
Glowworm part no. 208241
50 Part number S208241, SCREW-M4-GAS MANIFOLD SCREW-M4-GAS MANIFOLD
Glowworm part no. S208241		 £6.97
51 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
51 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
52   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
52   SCREW
Glowworm part no. S78129
53   OBSOLETE GAS VALVE HARNESS
Glowworm part no. 429519
54   OBSOLETE GAS MANIFOLD QC
Glowworm part no. 203134
55   NOW USE S203009 INJECTOR-3.5MM HOLE
Glowworm part no. 203009
55   INJECTOR
Glowworm part no. S203009		 £4.29
56   SCREW - M4X10MM
Glowworm part no. SK6359
58 Part number SK6469, Washer WASHER
Glowworm part no. SK6469
59   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069
60   CLIP - EDGE CABLE
Glowworm part no. SK6899
61   OBSOLETE SCREW-M8X12MM MS HX HD ZP
Glowworm part no. SFF0003
62 Part number 51062003, NOW USE S51062003 NUT-SPIRE CAPT NO.10 NOW USE S51062003 NUT-SPIRE CAPT NO.10
Glowworm part no. 51062003
62 Part number S51062003, Nut- spire capt no.10 NUT- SPIRE CAPT NO.10
Glowworm part no. S51062003		 £4.29
63   OBSOLETE BLR/SUPP FRAME SPARE SS50RMK2
Glowworm part no. 800052
65   OBSOLETE SCREW-NO.12 X 1 REC
Glowworm part no. 208200
66   OBSOLETE GAS VALVE SUPP BRKT(2XB) SSCR
Glowworm part no. 429569
67   OBSOLETE SCREW-NO.10 X 1/2 REC
Glowworm part no. 50759002
68   OBSOLETE WALL FRAME ASSY-SPARES
Glowworm part no. 429575
73   OBSOLETE SCREW-M6X10MM MS HX HD ZP
Glowworm part no. SFF0006
74 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
76 Part number 203350, OBSOLETE SOLENOID-G/VALVE 45900406.003 OBSOLETE SOLENOID-G/VALVE 45900406.003
Glowworm part no. 203350
76 Part number S203350, OBSOLETE Solenoid-gas valve OBSOLETE SOLENOID-GAS VALVE
Glowworm part no. S203350
77   OBSOLETE CASE TRIM-PRINTED ULT50C
Glowworm part no. 446859
78   OBSOLETE INTERRUPTER-SIT REF 0974404
Glowworm part no. S202441
78   OBSOLETE INTERRUPTER-SIT REF 0974404
Glowworm part no. 202441
79   LEAD
Glowworm part no. SWX5700		 £4.29
80   OBSOLETE THERMOSTAT
Glowworm part no. 2000800756
82   OBSOLETE SCREW-M5 X 12MM HX HD ST/STEEL
Glowworm part no. 208528
83   OBSOLETE NUT-M4 HEX FULL SS
Glowworm part no. 208664
84   OBSOLETE NUT-M5 HEX FULL SS
Glowworm part no. 208667
85   OBSOLETE WASHER-FIBRE 8 O/D X 4.2 I/D
Glowworm part no. 212256
86 Part number 212259, OBSOLETE WASHER-FIBRE 10 O/D X 5.2 I/D OBSOLETE WASHER-FIBRE 10 O/D X 5.2 I/D
Glowworm part no. 212259
87   OBSOLETE SCREW-M4 X 12MM REC PNSSM
Glowworm part no. 403170
87   OBSOLETE SCREW-M4 X 12MM REC PNSSM
Glowworm part no. S403170
88   OBSOLETE CASE TRAY ASSY - ULT50C TTB
Glowworm part no. 452571
