GLOWWORM
ULTIMATE 40 BF 1993 AVA - (Boiler Assembly 1)
Appliance Code: 41-319-52

Appliance Diagram


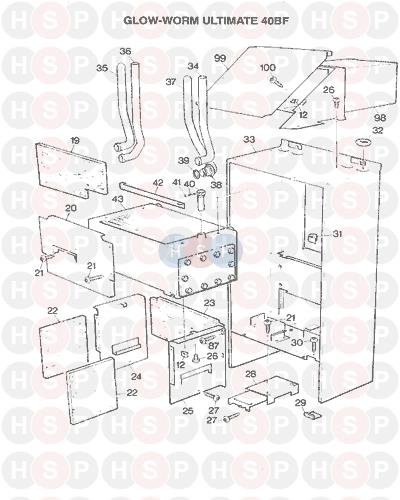

Boiler Assembly 1 diagram for Glowworm Ultimate 40 BF 1993 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FRONT ASSY ULT30-40B
Glowworm part no. 446227
1   OBSOLETE FRONT ASSY ULT30-40B
Glowworm part no. S446227
2   OBSOLETE CONTROLS COVER ASSY ULT30-60B
Glowworm part no. 446004
3   CASE TRIM-PRINTED ULT30-60B
Glowworm part no. 446072
3   CASE TRIM-PRINTED
Glowworm part no. S446072
4 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215
4 Part number 403215, NOW USE S403215 NUT-WING M5 ZP NOW USE S403215 NUT-WING M5 ZP
Glowworm part no. 403215
5   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
6 Part number 51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. 51936004
6 Part number S51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. S51936004
7 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
7 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
8 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
9 Part number S208526, Push on fix PUSH ON FIX
Glowworm part no. S208526		 £6.61
9 Part number 208526, NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0 NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0
Glowworm part no. 208526
10   WALL MNT BRKT (NPF) ULT30-80
Glowworm part no. 446035
10   WALL MOUNTING BRACKET
Glowworm part no. S446035
11   OBSOLETE WALL DUCT ASSY (SW) ULT-B
Glowworm part no. 446006
12 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112
13 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
14   CSE.SEAL BRKT(PCF)MICRON/ULTFF
Glowworm part no. 446082
14   SEAL CASE BRACKET
Glowworm part no. S446082
15 Part number S212195, Seal - case top SEAL - CASE TOP
Glowworm part no. S212195		 £6.39
15 Part number 212195, NOW USE S212195 SEAL - CASE TOP NOW USE S212195 SEAL - CASE TOP
Glowworm part no. 212195
16 Part number 212194, NOW USE S212194 SEAL - CASE SIDE NOW USE S212194 SEAL - CASE SIDE
Glowworm part no. 212194
16 Part number S212194, SEAL - CASE SIDE SEAL - CASE SIDE
Glowworm part no. S212194		 £6.39
17 Part number S212193, SEAL - CASE BOTTOM SEAL - CASE BOTTOM
Glowworm part no. S212193		 £6.39
17 Part number 212193, NOW USE S212193 SEAL - CASE BOTTOM NOW USE S212193 SEAL - CASE BOTTOM
Glowworm part no. 212193
19 Part number S210189, Insulation-combustion chamber front INSULATION-COMBUSTION CHAMBER FRONT
Glowworm part no. S210189		 £6.62
19 Part number 210189, NOW USE S210189 INSUL-C/C FRONT NOW USE S210189 INSUL-C/C FRONT
Glowworm part no. 210189
20 Part number 446022, C/C.FRONT (NPF) ULT30-60B/FF C/C.FRONT (NPF) ULT30-60B/FF
Glowworm part no. 446022
20 Part number S446022, Front -combustion chamber FRONT -COMBUSTION CHAMBER
Glowworm part no. S446022
21   NOW USE S12993 SCREW-NO.8 X 1/2 REC
Glowworm part no. 12993
21 Part number S12993, Screw ( no.8 X 1/2 ) SCREW ( NO.8 X 1/2 )
Glowworm part no. S12993		 £6.61
22 Part number 210191, NOW USE S210191 INSULATION - C/C SIDE NOW USE S210191 INSULATION - C/C SIDE
Glowworm part no. 210191
22 Part number S210191, Insulation-combustion chamber side INSULATION-COMBUSTION CHAMBER SIDE
Glowworm part no. S210191
23 Part number S210188, Insulation-combustion chamber rear INSULATION-COMBUSTION CHAMBER REAR
Glowworm part no. S210188
23 Part number 210188, NOW USE S210188 INSUL-C/C REAR NOW USE S210188 INSUL-C/C REAR
Glowworm part no. 210188
24   INS.CLIP-C/C LH ASSY(SW) ULT34
Glowworm part no. 446231
24   INS.CLIP-C/C LH
Glowworm part no. S446231
25   INS.CLIP C/C RH
Glowworm part no. S446230
25   INS.CLIP C/C RH ASSY(SW) ULT34
Glowworm part no. 446230
26 Part number 411402, NOW USE S411402 SCREW-M6X10MM MS PN REC BZP NOW USE S411402 SCREW-M6X10MM MS PN REC BZP
Glowworm part no. 411402
26 Part number S411402, Screw - M6X10mm SCREW - M6X10MM
Glowworm part no. S411402
27 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
27 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
28   OBSOLETE CONTROL BOX TOP SUB ASSY
Glowworm part no. 446091
29 Part number S432915, Gland plate GLAND PLATE
Glowworm part no. S432915
29 Part number 432915, NOW USE S432915 GLAND PLATE ASSY - MICRON NOW USE S432915 GLAND PLATE ASSY - MICRON
Glowworm part no. 432915
30 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
31   CLIP - EDGE CABLE
Glowworm part no. SK6899
32 Part number 204289, NOW USE S204289 GROMMET-22MM DIA OFFSET NOW USE S204289 GROMMET-22MM DIA OFFSET
Glowworm part no. 204289
32 Part number S204289, GROMMET-22MM DIA OFFSET GROMMET-22MM DIA OFFSET
Glowworm part no. S204289
33   OBSOLETE OUTER CASE&PIPES KIT-ULT30/40B
Glowworm part no. 800398
34   OBSOLETE PUMPED FLOW PIPE (BEAD) ULT
Glowworm part no. 446214
35 Part number 446220, GRAVITY FLOW PIPE (T-BRZE) ULT GRAVITY FLOW PIPE (T-BRZE) ULT
Glowworm part no. 446220
35 Part number S446220, Gravity flow pipe GRAVITY FLOW PIPE
Glowworm part no. S446220
36   PUMPED RETURN + DIST TUBE
Glowworm part no. S446213
36   PUMPED RETURN & DIST TUBE ASSY
Glowworm part no. 446213
37   GRAVITY RET.PIPE (T/BRAZE) ULT
Glowworm part no. 446218
37   GRAVITY RET. PIPE
Glowworm part no. S446218
38 Part number 204912, OBSOLETE NUT-TUBING M33 OBSOLETE NUT-TUBING M33
Glowworm part no. 204912
38 Part number S204912, OBSOLETE NUT-TUBING M33 OBSOLETE NUT-TUBING M33
Glowworm part no. S204912
39 Part number S212192, Washer sealing WASHER SEALING
Glowworm part no. S212192		 £6.61
39 Part number 212192, OBSOLETE WASHER-SEALING OBSOLETE WASHER-SEALING
Glowworm part no. 212192
40   OBSOLETE PHIAL POCKET&SPLIT PIN SSCOMP
Glowworm part no. 800333
41 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
41 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
42   OBSOLETE HEAT EXCH BAFF (S&F) ULT40-50B
Glowworm part no. 446109
43 Part number 800401, NOW USE 2000800435 HEAT EXCH&PIPES KIT ULT30-50FF NOW USE 2000800435 HEAT EXCH&PIPES KIT ULT30-50FF
Glowworm part no. 800401
43 Part number 2000800435, Heat exch + pipes kit HEAT EXCH + PIPES KIT
Glowworm part no. 2000800435
44 Part number S208568, MICA-PILOT SHIELD MICA-PILOT SHIELD
Glowworm part no. S208568
44 Part number 208568, NOW USE S208568 MICA-PILOT SHIELD NOW USE S208568 MICA-PILOT SHIELD
Glowworm part no. 208568
45   PILOT SHIELD + MICA
Glowworm part no. 2000800396
46   OBSOLETE KABURNER-AC07/052056 ULT30-40BF
Glowworm part no. 205606
47   BRACKET-BURNER SUPPORT
Glowworm part no. S446088		 £5.07
47   NOW USE S446088 BURNER SUPP BRKT(NPF/I) ULT
Glowworm part no. 446088
48   NUT
Glowworm part no. SK6516
49 Part number 2000800399, OBSOLETE Thermostat OBSOLETE THERMOSTAT
Glowworm part no. 2000800399
50   SCREW - M4X10MM
Glowworm part no. SK6359
51   OBSOLETE TERMINAL BLOCK-3 WAY-732 PF3/3
Glowworm part no. SK8541
52   SCREW - M3X16MM
Glowworm part no. SK8706
53   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
54   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
55 Part number 900501, NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE
Glowworm part no. 900501
55 Part number S900501, Piezo generator PIEZO GENERATOR
Glowworm part no. S900501
56   OBSOLETE GAS VALVE HARNESS
Glowworm part no. 446080
57   OBSOLETE G/V GROMT PLT-H/W 45003674-002
Glowworm part no. 203343
58   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
58   BUSH RELIEF
Glowworm part no. S204226
59   SCREW-GAS CONTROL
Glowworm part no. S203306		 £4.91
59   NOW USE S203306 GAS CONTROL SCREW
Glowworm part no. 203306
60 Part number 429568, OBSOLETE Cover-gas valve OBSOLETE COVER-GAS VALVE
Glowworm part no. 429568
61 Part number S203350, OBSOLETE Solenoid-gas valve OBSOLETE SOLENOID-GAS VALVE
Glowworm part no. S203350
61 Part number 203350, OBSOLETE SOLENOID-G/VALVE 45900406.003 OBSOLETE SOLENOID-G/VALVE 45900406.003
Glowworm part no. 203350
62 Part number 429549, Gas section GAS SECTION
Glowworm part no. 429549
63 Part number 208040, NOW USE S208040 O RING-H/WELL 22.0 X 2.5 NOW USE S208040 O RING-H/WELL 22.0 X 2.5
Glowworm part no. 208040
63 Part number S208040, O ring O RING
Glowworm part no. S208040		 £6.61
64 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
64 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
65 Part number 208241, NOW USE S208241 SCREW-M4-GAS MANIFOLD NOW USE S208241 SCREW-M4-GAS MANIFOLD
Glowworm part no. 208241
65 Part number S208241, SCREW-M4-GAS MANIFOLD SCREW-M4-GAS MANIFOLD
Glowworm part no. S208241		 £6.97
66   OBSOLETE THERMOCOUPLE-24 QC
Glowworm part no. SK4860
67   CORD GRIP
Glowworm part no. S204239
67   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
68   NOW USE S204240 LOCKNUT-ELKAY CAT 92
Glowworm part no. 204240
68   LOCKNUT
Glowworm part no. S204240
69   GROMMET
Glowworm part no. S204220
69   NOW USE S204220 GROMMET-ROBERT MOSS
Glowworm part no. 204220
70 Part number 2000800400, Control knob with clip CONTROL KNOB WITH CLIP
Glowworm part no. 2000800400
71 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
71 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
72   OBSOLETE CONTROL BOX SUB ASSY ULT30-60B
Glowworm part no. 446042
73 Part number 800397, Pilot pipe + nuts + olives PILOT PIPE + NUTS + OLIVES
Glowworm part no. 800397
74 Part number 204185, NOW USE S204185 ADAPTER OLIVE-REDUCER NOW USE S204185 ADAPTER OLIVE-REDUCER
Glowworm part no. 204185
74 Part number S204185, ADAPTER OLIVE-REDUCER ADAPTER OLIVE-REDUCER
Glowworm part no. S204185		 £6.97
75 Part number S204923, Nut -M4 NUT -M4
Glowworm part no. S204923
75 Part number 204923, NUT-M4 JOHNSON CONTROLS P252 NUT-M4 JOHNSON CONTROLS P252
Glowworm part no. 204923
76 Part number 204853, NOW USE S204853 TB NUT-4MM-H/W 45.004.388-001 NOW USE S204853 TB NUT-4MM-H/W 45.004.388-001
Glowworm part no. 204853
76 Part number S204853, Tubing nut -4mm TUBING NUT -4MM
Glowworm part no. S204853		 £8.27
77 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
78 Part number 203516, OBSOLETE PILOT INJTR-SPARE-JOHNSON 7215 OBSOLETE PILOT INJTR-SPARE-JOHNSON 7215
Glowworm part no. 203516
78 Part number S203516, OBSOLETE Injector - Pilot OBSOLETE INJECTOR - PILOT
Glowworm part no. S203516
79 Part number SWW4609, Ignition lead IGNITION LEAD
Glowworm part no. SWW4609
80   NOW USE S202621 ELECTRODE-JOHNSONS-P620
Glowworm part no. 202621
80 Part number S202621, Electrode ELECTRODE
Glowworm part no. S202621
81 Part number S203429, Pilot burner PILOT BURNER
Glowworm part no. S203429
81 Part number 203429, PILOT BURNER-28T2D2L7215C1X PILOT BURNER-28T2D2L7215C1X
Glowworm part no. 203429
82   OBSOLETE MANIFOLD ASSY-PNTD ULT30-60B
Glowworm part no. 442083
83 Part number 205708, NOW USE S205708 INJECTOR-2.9MM NOW USE S205708 INJECTOR-2.9MM
Glowworm part no. 205708
83 Part number S205708, Injector INJECTOR
Glowworm part no. S205708
84   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
84   SCREW
Glowworm part no. S78129
85 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
85 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
86   GASKET - MANIFOLD
Glowworm part no. 210196
86   GASKET MANIFOLD
Glowworm part no. S210196
87   SCREW -M5X20MM
Glowworm part no. S208544
87   SCREW-M5X20+5MM MS PN REC ZP
Glowworm part no. 208544
88   OBSOLETE TERM END PLATE (NPF) ULT30-60B
Glowworm part no. 446070
89   NOW USE S208378 SCREW-M5X10MM S/ST WSHD
Glowworm part no. 208378
89   SCREW ( M5X10MM )
Glowworm part no. S208378		 £4.91
90   CORNER POST-123MM LG
Glowworm part no. S209054		 £4.91
90   NOW USE S209054 CORNER POST-123MM LG
Glowworm part no. 209054
91   OBSOLETE NUT-FLAT N0.6
Glowworm part no. 208575
92   OBSOLETE TP&BTM O/GUARD ASY (SW) HA45B
Glowworm part no. 424669
93   OBSOLETE SIDE O/LET GD ASSY HA45100120B
Glowworm part no. 424670
94   OBSOLETE TP&BTM INLT GUARD (SW) HA456B
Glowworm part no. 424605
95   OBSOLETE SD INLET GUARD ASSY(SW) HA456B
Glowworm part no. 424606
96   OBSOLETE T/BAFF & F/DCT ASY(SW) ULT-B
Glowworm part no. 446005
97   OBSOLETE T/FRM&I/DUCT ASSY (SW) HA4568B
Glowworm part no. 424636
97   OBSOLETE T/FRM&I/DUCT ASSY (SW) HA4568B
Glowworm part no. S424636
98   OBSOLETE FLUE HOOD/DUCT ASSY (SW) ULT40
Glowworm part no. S446204
98   OBSOLETE FLUE HOOD/DUCT ASSY (SW) ULT40
Glowworm part no. 446204
99   OBSOLETE T FLUE HOOD CVR (5XB) ULT30-40
Glowworm part no. 446205
100 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
