GLOWWORM
ULTIMATE 2 25R 2015 ONWARDS - (03 Pipe Work)
Appliance Code: 41-019-43

Appliance Diagram

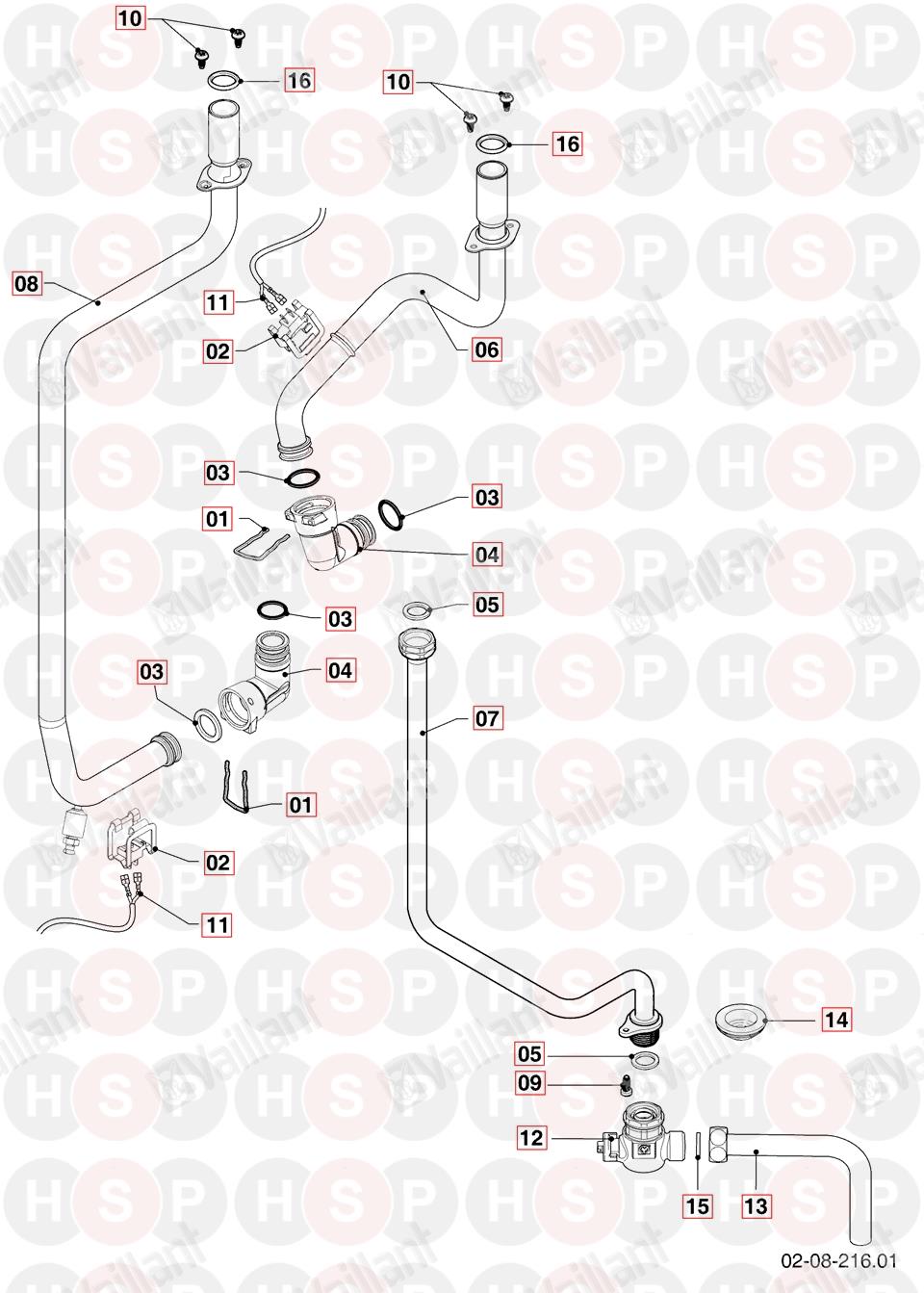

03 Pipe Work diagram for Glowworm Ultimate 2 25r 2015 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020014176, Clip (PK10) CLIP (PK10)
Glowworm part no. 0020014176
£12.38
3 Part number 0020018487, O-ring (PK10) O-RING (PK10)
Glowworm part no. 0020018487
£7.40
4 Part number 0020203978, Elbow ELBOW
Glowworm part no. 0020203978
£6.86
5   SEALING RING 1/2 (PK10)
Glowworm part no. 0020160380
£6.61
6 Part number 0020195617, Tube TUBE
Glowworm part no. 0020195617
£26.55
7   GAS PIPE
Glowworm part no. 0020195618
£30.50
8 Part number 0020195620, Tube TUBE
Glowworm part no. 0020195620
£65.52
9 Part number S1045900, Screw M4x12 (PK10) SCREW M4X12 (PK10)
Glowworm part no. S1045900
£6.39
10 Part number 0020014719, Screw (PK25) SCREW (PK25)
Glowworm part no. 0020014719
£7.16
11 Part number 0020195571, Wiring harness, heat engine OV WIRING HARNESS, HEAT ENGINE OV
Glowworm part no. 0020195571
£22.01
12 Part number 0020211096, Gas valve GAS VALVE
Glowworm part no. 0020211096
£45.83
13 Part number 0020211101, Gas pipe GAS PIPE
Glowworm part no. 0020211101
£12.14
14 Part number 0020044964, Gasket (PK10) GASKET (PK10)
Glowworm part no. 0020044964
£11.27
15   SEALING RING 1/2 (PK10)
Glowworm part no. 0020160380
£6.61
