GLOWWORM
SPACE SAVER 60BF MKII 1983 AVA - (Burner & Controls 2)
Appliance Code: 41-313-02

Appliance Diagram


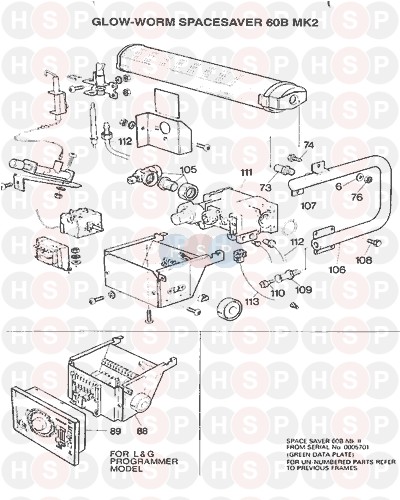

Burner & Controls 2 diagram for Glowworm Space Saver 60BF MKII 1983 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FLUE COLL COVER PLT(DNPF) SS6C
Glowworm part no. 418047
1   OBSOLETE USER INSTR-SSMK2/2 SERIES 5/88
Glowworm part no. 206488
1   OBSOLETE BOOK-INSTL-SSM2/2-L&G 3/85
Glowworm part no. 206502
1   OBSOLETE FITTERS INSTR-SS60BMK2/2 8/87
Glowworm part no. 206496
1   OBSOLETE USER INSTR - L&G-SSMK2 2/84
Glowworm part no. 206253
1   OBSOLETE USER CARD-SS MK2 SERIES
Glowworm part no. 206252
1   OBSOLETE BOOKLET-INSTL-SS60BMK2
Glowworm part no. 206400
1   OBSOLETE BOOKLET-INSTL-SSMK2-L&G
Glowworm part no. 206255
2 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
3   OBSOLETE FLUE COLL S/A(SW2) SS6B
Glowworm part no. 418053
4   NUT - SPIRE CAPT NO8
Glowworm part no. SK9327		 £4.91
5   OBSOLETE SCREW-M6X10MM MS HX HD ZP
Glowworm part no. SFF0006
6 Part number SK6469, Washer WASHER
Glowworm part no. SK6469
7   OBSOLETE TSTAT-RANCO CL6 P0123-000
Glowworm part no. 202503
8 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
8 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
8 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
9   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. S403283
9   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. 403283
12   OBSOLETE SCREW-M8X12MM MS HX HD ZP
Glowworm part no. SFF0003
13   OBSOLETE WALL FRAME ASSY
Glowworm part no. 418127
14   OBSOLETE SCREW-M6X16MM HX HD BZP
Glowworm part no. SK6471
15   OBSOLETE SCREW-NO.12 X 1 REC
Glowworm part no. 208200
16   OBSOLETE GASKET-3MM S/SPNGE GLND-BTM QC
Glowworm part no. SAA035K
17   OBSOLETE GASKET-3MM S/SPNG GLAND-TOP QC
Glowworm part no. SAA034K
18   OBSOLETE GLAND PLATE-LH (PCF)
Glowworm part no. SAA032M
19   OBSOLETE GLAND PLATE-RH (PCF)
Glowworm part no. SAA033M
20   OBSOLETE NUT-WING DOTLOC-M6
Glowworm part no. SK6302
21   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069
22   SHAKE PROOF WASHER (M6)
Glowworm part no. SK7315		 £4.29
23   INSUL-6MM C/C REAR
Glowworm part no. 210000
23   INSULATION -6MM COMBUSTION CHAMBER REAR
Glowworm part no. S210000
24   OBSOLETE INSUL-6MM C/C FRONT
Glowworm part no. 210001
25 Part number M8877, OBSOLETE GLAND PLATE ASSY OBSOLETE GLAND PLATE ASSY
Glowworm part no. M8877
26 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
27   SCREW -M5
Glowworm part no. SK8209
29 Part number SK6219, Nut NUT
Glowworm part no. SK6219
30   OBSOLETE COMB CHAMBER SHIELD (NPF) SS6B
Glowworm part no. 418096
33   OBSOLETE WASHER-SPRING 1/4
Glowworm part no. SFF0452
34   OBSOLETE OUTER CASE ASSY-SS60BMK2
Glowworm part no. 418076
35   NOW USE S58921016 PUSH ON FIX-SPIRE-SF02938/17/4
Glowworm part no. 58921016
35   PUSH ON FIX
Glowworm part no. S58921016
36   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
37 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
37 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
38 Part number S51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. S51936004
38 Part number 51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. 51936004
39   OBSOLETE NAME PLATE-SPACE SAVER
Glowworm part no. SAA046K
40   OBSOLETE CASE SURRD-LH-SGBL
Glowworm part no. 418077
41   OBSOLETE CASE SURRD-RH-SGBL
Glowworm part no. 418078
42   OBSOLETE CONTROLS CABINET ASSY-LH
Glowworm part no. 418063
43   OBSOLETE CONTROLS CABINET ASSY-RH
Glowworm part no. 418125
44   OBSOLETE CLIP-SPIRE
Glowworm part no. SK9329
45   OBSOLETE CTRLS CAB BRIDGE (PC)
Glowworm part no. 418069
46 Part number 411402, NOW USE S411402 SCREW-M6X10MM MS PN REC BZP NOW USE S411402 SCREW-M6X10MM MS PN REC BZP
Glowworm part no. 411402
46 Part number S411402, Screw - M6X10mm SCREW - M6X10MM
Glowworm part no. S411402
47   OBSOLETE CTRLS CVR/BASE ASSY-BASIC
Glowworm part no. 418067
48   OBSOLETE HINGE-NATURAL COLOR
Glowworm part no. SFF2287
50   OBSOLETE BURNER-7/52008 QC
Glowworm part no. 203200
51   OBSOLETE ELECTRODE-BUCCLEUCH BE/3158/SI
Glowworm part no. SFF2143
51 Part number 900500, ELECTRODE-ALTERNATIVES ELECTRODE-ALTERNATIVES
Glowworm part no. 900500
51 Part number S900500, Electrode ELECTRODE
Glowworm part no. S900500
52 Part number S203416, OBSOLETE Pilot burner OBSOLETE PILOT BURNER
Glowworm part no. S203416
52 Part number 203416, OBSOLETE PILOT BURNER-27T1D1M7215S3X QC OBSOLETE PILOT BURNER-27T1D1M7215S3X QC
Glowworm part no. 203416
52   OBSOLETE PILOT BURNER-SINGLE PBRNR
Glowworm part no. SK8356
53 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
54   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
55   NUT
Glowworm part no. SK6516
57   OBSOLETE PILOT WINDOW-MICA(BS5804)
Glowworm part no. 412855
58 Part number SK2674, Thermocouple THERMOCOUPLE
Glowworm part no. SK2674
59 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
61   OBSOLETE PILOT TUBE-SPARE-SS60BMK2
Glowworm part no. 800079
62 Part number SWW4617, Ignition lead IGNITION LEAD
Glowworm part no. SWW4617
63   SCREW -M4X6MM
Glowworm part no. SK6212
64 Part number SK8968, Transformer 240/24V TRANSFORMER 240/24V
Glowworm part no. SK8968
65   OBSOLETE PIEZO GENERATOR SPARK QC
Glowworm part no. SK6587
66   OBSOLETE PIEZO BRACKET (PCF)
Glowworm part no. SAA141M
67 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
68 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
70   OBSOLETE G/VALVE-1/2 BSP
Glowworm part no. SK9049
71   OBSOLETE SPACER-VALVE SCREWS
Glowworm part no. SK5098
72   OBSOLETE SCREW-NO8 X 5/8 32UNC PNMST
Glowworm part no. SK3806
73   INJECTOR-3.7MM HOLE
Glowworm part no. 203001
73 Part number S203001, Injector INJECTOR
Glowworm part no. S203001
74   OBSOLETE SCREW-M6 X 12MM
Glowworm part no. SK6290
77   OBSOLETE GASKET-1MM BRNR M/FOLD
Glowworm part no. SFF2047
79 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
79 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
80   CONTROL KNOB/CLIP
Glowworm part no. FF2228
81 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
81 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
82   OBSOLETE CTRLS DRAWER ASSY-BASIC SS68BC
Glowworm part no. 409750
83 Part number SK9221, Clip - strain relief CLIP - STRAIN RELIEF
Glowworm part no. SK9221		 £4.91
84   SCREW - M4X10MM
Glowworm part no. SK6359
87   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
88   OBSOLETE CTRLS DRAWER ASSY-L&G SS68BC2
Glowworm part no. 409751
92   OBSOLETE BAL FLUE TERM-SS60BMK2+R
Glowworm part no. 418094
93   OBSOLETE OUTER WALL SLEEVE ASSY
Glowworm part no. SM6605
94   OBSOLETE SCREW-M5 X 10MM REC PNSST
Glowworm part no. SFF0053
97   OBSOLETE TERMINAL GUARD ASSY (SW) SS6BR
Glowworm part no. 418091
98   OBSOLETE CORNER POST-108MM LG
Glowworm part no. 209006
99   OBSOLETE TERM SLV & BAFF ASSY (SW) SS6B
Glowworm part no. 418088
100   OBSOLETE OUTER TERM BAFFLE(NPF) SS60BR
Glowworm part no. 418095
102   OBSOLETE CASE SUR-LH-SGBL SS68BC
Glowworm part no. 418150
103   OBSOLETE CASE SUR-RH-SGBL SS68BC
Glowworm part no. 418151
104   OBSOLETE WALL FRAME ASSY
Glowworm part no. 418208
105 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
105 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
106   OBSOLETE MANIFOLD-BURNER-HRBL
Glowworm part no. 418311
107 Part number 208068, NOW USE S208068 O RING-25IDX4.0MM SECT NOW USE S208068 O RING-25IDX4.0MM SECT
Glowworm part no. 208068
107 Part number S208068, O ring-25IDX4.0mm O RING-25IDX4.0MM
Glowworm part no. S208068		 £4.91
108   OBSOLETE SCREW-M5X10MM MS HX HD ZP
Glowworm part no. SK6475
110   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
110   SCREW
Glowworm part no. S78129
113   OBSOLETE T/COUPLE RE-ROUTE CONNECTOR
Glowworm part no. 202403
