GLOWWORM
SPACE SAVER 60 CF MKII 1983 AVA - (Casing)
Appliance Code: 41-313-08

Appliance Diagram

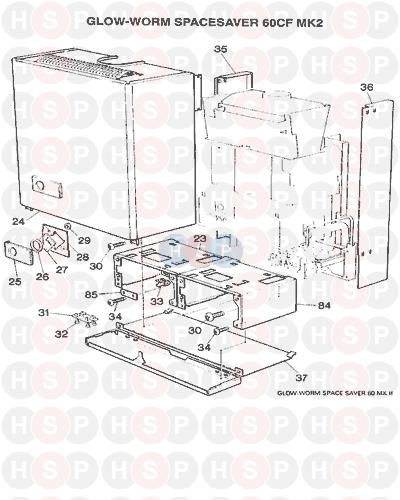

Casing diagram for Glowworm Space Saver 60 CF MKII 1983 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FITTERS INSTR-SS60MK2/2 11/87
Glowworm part no. 206494
1   OBSOLETE USER INSTR - L&G-SSMK2 2/84
Glowworm part no. 206253
1   OBSOLETE USER INSTR-SSMK2/2 SERIES 5/88
Glowworm part no. 206488
1   OBSOLETE BOOK-INSTL-SSM2/2-L&G 3/85
Glowworm part no. 206502
1   OBSOLETE CLEANING DOOR ASSY
Glowworm part no. 418459
2   OBSOLETE D/DIVERTER ASY. (SW) SS6C
Glowworm part no. 418457
3 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
4   NUT - SPIRE CAPT NO8
Glowworm part no. SK9327		 £4.91
5   OBSOLETE SCREW-M6X10MM MS HX HD ZP
Glowworm part no. SFF0006
6 Part number SK6469, Washer WASHER
Glowworm part no. SK6469
7   OBSOLETE FLUE BAFFLE (NPF) SS6C
Glowworm part no. 418470
9   OBSOLETE BOILER SUPPORT FRAME ASSY
Glowworm part no. 418455
10   OBSOLETE WALL FRAME ASSY
Glowworm part no. 418464
11   OBSOLETE SCREW-NO.12 X 1 REC
Glowworm part no. 208200
12   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. 208375
12   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. S208375
13   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. S403283
13   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. 403283
14   OBSOLETE SCREW-M8X12MM MS HX HD ZP
Glowworm part no. SFF0003
15 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
15 Part number 409234, PHIAL POCKET KIT-SPARES PHIAL POCKET KIT-SPARES
Glowworm part no. 409234
15 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
15 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
16   OBSOLETE TSTAT-RANCO CL6 P0123-000
Glowworm part no. 202503
17   OBSOLETE INSUL-6MM C/C FRONT
Glowworm part no. 210001
17   OBSOLETE INSUL-6MM C/C FRONT
Glowworm part no. S210001
18   INSULATION -6MM COMBUSTION CHAMBER REAR
Glowworm part no. S210000
18   INSUL-6MM C/C REAR
Glowworm part no. 210000
19   SCREW -M5
Glowworm part no. SK8209
21 Part number SK6219, Nut NUT
Glowworm part no. SK6219
22   OBSOLETE COMB CHAMBER SHIELD (NPF) SS6B
Glowworm part no. 418096
23   OBSOLETE CONTROLS CABINET ASSY-LH
Glowworm part no. 418063
24   OBSOLETE OUTER CASE ASSY-SS60CMK2/2
Glowworm part no. 418469
25   OBSOLETE NAME PLATE-SPACE SAVER
Glowworm part no. SAA046K
26 Part number 51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. 51936004
26 Part number S51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. S51936004
27 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
27 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
28   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
29   NOW USE S58921016 PUSH ON FIX-SPIRE-SF02938/17/4
Glowworm part no. 58921016
29   PUSH ON FIX
Glowworm part no. S58921016
30 Part number S411402, Screw - M6X10mm SCREW - M6X10MM
Glowworm part no. S411402
30 Part number 411402, NOW USE S411402 SCREW-M6X10MM MS PN REC BZP NOW USE S411402 SCREW-M6X10MM MS PN REC BZP
Glowworm part no. 411402
31   OBSOLETE HINGE-NATURAL COLOR
Glowworm part no. SFF2287
33   OBSOLETE CLIP-SPIRE
Glowworm part no. SK9329
34 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
35   OBSOLETE CASE SUR-LH-SGBL SS68BC
Glowworm part no. 418150
36   OBSOLETE CASE SUR-RH-SGBL SS68BC
Glowworm part no. 418151
37   OBSOLETE CTRLS CVR/BASE ASSY-BASIC
Glowworm part no. 418210
39   OBSOLETE BURNER-AERO AC07/052008LR
Glowworm part no. 203216
39 Part number 203264, BURNER GASKET-AEROMATIC 600026 BURNER GASKET-AEROMATIC 600026
Glowworm part no. 203264
39 Part number S203264, Gasket - Burner GASKET - BURNER
Glowworm part no. S203264
39   OBSOLETE BURNER-AERO AC07/052008LR
Glowworm part no. S203216
40 Part number S900500, Electrode ELECTRODE
Glowworm part no. S900500
40 Part number 900500, ELECTRODE-ALTERNATIVES ELECTRODE-ALTERNATIVES
Glowworm part no. 900500
40   OBSOLETE ELECTRODE-BUCCLEUCH BE/3158/SI
Glowworm part no. SFF2143
41   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
42 Part number SK2674, Thermocouple THERMOCOUPLE
Glowworm part no. SK2674
43 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
44   OBSOLETE PILOT BURNER-SINGLE PBRNR
Glowworm part no. SK8356
44 Part number 203416, OBSOLETE PILOT BURNER-27T1D1M7215S3X QC OBSOLETE PILOT BURNER-27T1D1M7215S3X QC
Glowworm part no. 203416
44 Part number S203416, OBSOLETE Pilot burner OBSOLETE PILOT BURNER
Glowworm part no. S203416
45   NUT
Glowworm part no. SK6516
47 Part number SWW4617, Ignition lead IGNITION LEAD
Glowworm part no. SWW4617
49   SCREW -M4X6MM
Glowworm part no. SK6212
50   OBSOLETE PIEZO BRACKET (PCF)
Glowworm part no. SAA141M
52 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
53 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
54 Part number SK8968, Transformer 240/24V TRANSFORMER 240/24V
Glowworm part no. SK8968
57   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
58   OBSOLETE CTRLS DRAWER ASSY-BASIC SS68BC
Glowworm part no. 409750
59 Part number SK9221, Clip - strain relief CLIP - STRAIN RELIEF
Glowworm part no. SK9221		 £4.91
60   CONTROL KNOB/CLIP
Glowworm part no. FF2228
61 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
61 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
62   SCREW - M4X10MM
Glowworm part no. SK6359
63 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
63 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
65   INJECTOR
Glowworm part no. S203009		 £4.29
65   NOW USE S203009 INJECTOR-3.5MM HOLE
Glowworm part no. 203009
67   OBSOLETE MANIFOLD-BURNER-HRBL
Glowworm part no. 418311
70   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069
71 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
71 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
72   SCREW
Glowworm part no. S78129
72   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
73   OBSOLETE CTRLS DRAWER ASSY-L&G SS68BC2
Glowworm part no. 409751
78 Part number 208068, NOW USE S208068 O RING-25IDX4.0MM SECT NOW USE S208068 O RING-25IDX4.0MM SECT
Glowworm part no. 208068
78 Part number S208068, O ring-25IDX4.0mm O RING-25IDX4.0MM
Glowworm part no. S208068		 £4.91
79   OBSOLETE SCREW-M5X10MM MS HX HD ZP
Glowworm part no. SK6475
80   OBSOLETE T/COUPLE RE-ROUTE CONNECTOR
Glowworm part no. 202403
81   OBSOLETE INSUL-5MM H/SHIELD
Glowworm part no. 210031
82 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
83   OBSOLETE SCREW-M6 X 12MM
Glowworm part no. SK6290
84   OBSOLETE CONTROLS CABINET ASSY-RH
Glowworm part no. 418125
85   OBSOLETE CTRLS CAB BRIDGE (PC)
Glowworm part no. 418069
87   OBSOLETE PILOT WINDOW-MICA(BS5804)
Glowworm part no. 412855
