GLOWWORM
SPACE SAVER 60 BR MKII 1988 AVA - (Casing)
Appliance Code: 41-313-56

Appliance Diagram


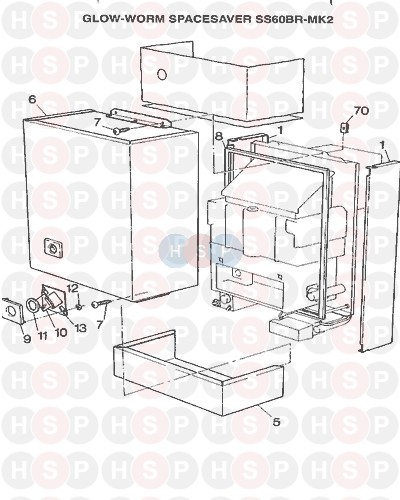

Casing diagram for Glowworm Space Saver 60 BR MKII 1988 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FITT INSTR- SS60/80BRMK2 4/91
Glowworm part no. 206795
1   OBSOLETE USER INSTR- SSMK2R 9/92
Glowworm part no. 206799
1   OBSOLETE SIDE SURROUND-PNTD SS6BC8BR
Glowworm part no. 429759
2   OBSOLETE COMB CHAMBER SHIELD (NPF) SS6B
Glowworm part no. 418096
3   OBSOLETE BURNER-7/52008 QC
Glowworm part no. 203200
4   OBSOLETE POLY BAG KIT-SS30>60RMK2B&C
Glowworm part no. 429564
5   OBSOLETE CASE TRAY ASSY - SS60R&BR
Glowworm part no. 429772
6   OBSOLETE OUTER CASE ASSY-SS60BRMK2
Glowworm part no. 429771
7 Part number 208243, NOW USE S208243 SCREW-NO.10 X 3/4 REC NOW USE S208243 SCREW-NO.10 X 3/4 REC
Glowworm part no. 208243
7 Part number S208243, Screw ( no.10 X 3/4 ) SCREW ( NO.10 X 3/4 )
Glowworm part no. S208243
8   OBSOLETE SEAL-12X4MM OUTER CASE QC
Glowworm part no. 212120
10 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
10 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
11 Part number 51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. 51936004
11 Part number S51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. S51936004
12   NOW USE S58921016 PUSH ON FIX-SPIRE-SF02938/17/4
Glowworm part no. 58921016
12   PUSH ON FIX
Glowworm part no. S58921016
13   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
15 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
16   NUT - SPIRE CAPT NO8
Glowworm part no. SK9327		 £4.91
17   OBSOLETE FLUE COLL S/A(SW2) SS6B
Glowworm part no. 418053
18 Part number 411402, NOW USE S411402 SCREW-M6X10MM MS PN REC BZP NOW USE S411402 SCREW-M6X10MM MS PN REC BZP
Glowworm part no. 411402
18 Part number S411402, Screw - M6X10mm SCREW - M6X10MM
Glowworm part no. S411402
19   OBSOLETE H/E ASSY-PNTD SS60BRMK2&65-75F
Glowworm part no. 418171
20 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
21 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
21 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
22   OBSOLETE COMBUSTION CHAMB ASSY-SPARE
Glowworm part no. 429787
23   OBSOLETE PILOT COVER PLT(PCF) SSMK2B
Glowworm part no. 418643
24   OBSOLETE WASHER-SPRING 1/4
Glowworm part no. SFF0452
25 Part number SK6296, Washer WASHER
Glowworm part no. SK6296
26   OBSOLETE SCREW-M5X10MM MS HX HD ZP
Glowworm part no. SK6475
27 Part number SK6219, Nut NUT
Glowworm part no. SK6219
28   OBSOLETE PILOT PIPE-SPARE-SS60B&C+R&BR
Glowworm part no. 429788
29   NUT
Glowworm part no. SK7557
30 Part number 203416, OBSOLETE PILOT BURNER-27T1D1M7215S3X QC OBSOLETE PILOT BURNER-27T1D1M7215S3X QC
Glowworm part no. 203416
30 Part number S203416, OBSOLETE Pilot burner OBSOLETE PILOT BURNER
Glowworm part no. S203416
31 Part number 208238, NOW USE S208238 SCREW-M5X8MM MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238
31 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238		 £6.61
32 Part number 900500, ELECTRODE-ALTERNATIVES ELECTRODE-ALTERNATIVES
Glowworm part no. 900500
32 Part number S900500, Electrode ELECTRODE
Glowworm part no. S900500
35 Part number SK2674, Thermocouple THERMOCOUPLE
Glowworm part no. SK2674
36 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
37   OBSOLETE PILOT SHIELD ASSY
Glowworm part no. SAA029S
38   OBSOLETE PILOT WINDOW-MICA(BS5804)
Glowworm part no. 412855
39   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
40 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
41   OBSOLETE INSUL-6MM C/C FRONT
Glowworm part no. 210001
41   OBSOLETE INSUL-6MM C/C FRONT
Glowworm part no. S210001
42   INSUL-6MM C/C REAR
Glowworm part no. 210000
42   INSULATION -6MM COMBUSTION CHAMBER REAR
Glowworm part no. S210000
43   SCREW -M5
Glowworm part no. SK8209
44 Part number SWW4617, Ignition lead IGNITION LEAD
Glowworm part no. SWW4617
45 Part number M8877, OBSOLETE GLAND PLATE ASSY OBSOLETE GLAND PLATE ASSY
Glowworm part no. M8877
46 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
47 Part number 900501, NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE
Glowworm part no. 900501
47 Part number S900501, Piezo generator PIEZO GENERATOR
Glowworm part no. S900501
48   OBSOLETE CNTRL BOX-SPARE-SS60R(B&C)&80B
Glowworm part no. 429662
49   TSTAT&SCRWS-CL6 P0146-000
Glowworm part no. 202519
49 Part number S202519, Thermostat and screws THERMOSTAT AND SCREWS
Glowworm part no. S202519
50 Part number 426526, OBSOLETE CONTROL KNOB ASSY OBSOLETE CONTROL KNOB ASSY
Glowworm part no. 426526
50 Part number S426526, OBSOLETE Control knob OBSOLETE CONTROL KNOB
Glowworm part no. S426526
51 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
51 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
52   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
52   BUSH RELIEF
Glowworm part no. S204226
53 Part number 429568, OBSOLETE Cover-gas valve OBSOLETE COVER-GAS VALVE
Glowworm part no. 429568
54 Part number 429549, Gas section GAS SECTION
Glowworm part no. 429549
55 Part number 208040, NOW USE S208040 O RING-H/WELL 22.0 X 2.5 NOW USE S208040 O RING-H/WELL 22.0 X 2.5
Glowworm part no. 208040
55 Part number S208040, O ring O RING
Glowworm part no. S208040		 £6.61
56 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
56 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
57 Part number 208241, NOW USE S208241 SCREW-M4-GAS MANIFOLD NOW USE S208241 SCREW-M4-GAS MANIFOLD
Glowworm part no. 208241
57 Part number S208241, SCREW-M4-GAS MANIFOLD SCREW-M4-GAS MANIFOLD
Glowworm part no. S208241		 £6.97
58 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
58 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
59   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
59   SCREW
Glowworm part no. S78129
60   OBSOLETE GAS VALVE HARNESS
Glowworm part no. 429778
62   INJECTOR-3.7MM HOLE
Glowworm part no. 203001
62 Part number S203001, Injector INJECTOR
Glowworm part no. S203001
63   OBSOLETE GAS MANIFOLD SEAL QC
Glowworm part no. 212118
64   OBSOLETE GAS MAN SEAL PLATE(PC) SSBR
Glowworm part no. 429514
65   OBSOLETE SCREW-M6X10MM MS HX HD ZP
Glowworm part no. SFF0006
66 Part number SK6469, Washer WASHER
Glowworm part no. SK6469
67   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069
68   CLIP - EDGE CABLE
Glowworm part no. SK6899
69   OBSOLETE SCREW-M8X12MM MS HX HD ZP
Glowworm part no. SFF0003
70 Part number 51062003, NOW USE S51062003 NUT-SPIRE CAPT NO.10 NOW USE S51062003 NUT-SPIRE CAPT NO.10
Glowworm part no. 51062003
70 Part number S51062003, Nut- spire capt no.10 NUT- SPIRE CAPT NO.10
Glowworm part no. S51062003		 £4.29
71   OBSOLETE MAIN PANEL ASSY-SPARE
Glowworm part no. 429789
72   OBSOLETE WALL FRAME ASSY
Glowworm part no. 418208
73   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. 403283
73   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. S403283
74   OBSOLETE SCREW-NO.12 X 1 REC
Glowworm part no. 208200
75   OBSOLETE BAL FLUE TERM-SS60BMK2+R
Glowworm part no. 418094
76   OBSOLETE TERM SLV & BAFF ASSY (SW) SS6B
Glowworm part no. 418088
77   OBSOLETE TERM I/SLEEVE & FRAME ASSY(SW)
Glowworm part no. 429783
78   OBSOLETE CORNER POST-108MM LG
Glowworm part no. 209006
79   OBSOLETE TERMINAL GUARD ASSY (SW) SS6BR
Glowworm part no. 418091
80   OBSOLETE OUTER TERM BAFFLE(NPF) SS60BR
Glowworm part no. 418095
81   NOW USE S208378 SCREW-M5X10MM S/ST WSHD
Glowworm part no. 208378
81   SCREW ( M5X10MM )
Glowworm part no. S208378		 £4.91
82   OBSOLETE SEALG PACK-SSMK2/2+R(B/F)
Glowworm part no. 418098
