GLOWWORM
SPACE SAVER 50/60 FF 1989 AVA - (Burner & Controls)
Appliance Code: 41-313-69

Appliance Diagram

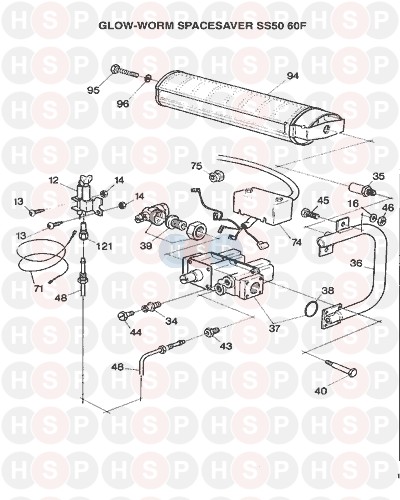

Burner & Controls diagram for Glowworm Space Saver 50/60 FF 1989 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE USER INSTR- SS30>75F 9/89
Glowworm part no. 206832
1   OBSOLETE FITTERS INSTR- SS30>60F 3/89
Glowworm part no. 206878
1   OBSOLETE REAR SURR SIDE LH-PNTD
Glowworm part no. 419705
2   OBSOLETE REAR SURR SIDE RH-PNTD
Glowworm part no. 419706
3   OBSOLETE COMB CHAMBER SHIELD (NPF) S6F
Glowworm part no. 419019
5   NOW USE S50754002 SCREW-NO.6X1/4 REC BZP
Glowworm part no. 50754002
5   OBSOLETE CASE TRAY ASSY-SSRF
Glowworm part no. 419701
5   SCREW - NO.6X1/4
Glowworm part no. S50754002
6 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
6 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
6 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
7   OBSOLETE COMB CHAMBER ASSY - SPARE
Glowworm part no. 419073
8   OBSOLETE INSUL-6MM C/C REAR
Glowworm part no. AA011K
9   OBSOLETE INSUL-6MM C/C FRONT
Glowworm part no. SAA012K
10 Part number SK6219, Nut NUT
Glowworm part no. SK6219
11   SCREW -M5
Glowworm part no. SK8209
12   OBSOLETE P/BRNR ASY-27T3D1M4212C1A QC
Glowworm part no. 203420
12 Part number 203509, NOW USE S203509 PILOT INJTR-SPARE-JOHNSON 4212 NOW USE S203509 PILOT INJTR-SPARE-JOHNSON 4212
Glowworm part no. 203509
12 Part number S203509, Injector, pilot INJECTOR, PILOT
Glowworm part no. S203509		 £11.80
13 Part number 208238, NOW USE S208238 SCREW-M5X8MM MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238
13 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238		 £6.61
14   NUT
Glowworm part no. SK6516
15   OBSOLETE SCREW-M6X10MM MS HX HD ZP
Glowworm part no. SFF0006
16 Part number SK6469, Washer WASHER
Glowworm part no. SK6469
18   OBSOLETE BULKHEAD COUPLING M90/A
Glowworm part no. 204189
19   OBSOLETE WASHER-S/PROOF M8
Glowworm part no. 403219
20   OBSOLETE TOP FLUE SENSING TUBE(F)
Glowworm part no. 419066
21   OBSOLETE BTM FLUE SENSING TUBE(FORMED)
Glowworm part no. 419041
22   OBSOLETE PIPE CLIP (PCF) FSF&CMF+
Glowworm part no. 417199
23 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
24   CLIP - EDGE CABLE
Glowworm part no. SK6899
25   OBSOLETE SEAL-8X13.5X2200MM-SA74 LOOP
Glowworm part no. 212067
26   OBSOLETE F/BLANK.PLT (NPF) FS3/5F/S4F
Glowworm part no. 417154
27   OBSOLETE GASKET-3MM FLUE
Glowworm part no. 208044
28 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
28 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
29   OBSOLETE FLUE BOX COVER & GASKET-SPARE
Glowworm part no. 419083
32   OBSOLETE NUT-SPIRE CAPT NO8
Glowworm part no. 208403
33   OBSOLETE SCREW-M8X12MM MS HX HD ZP
Glowworm part no. SFF0003
34 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
34 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
35   OBSOLETE INJECTOR-3.9MM HOLE
Glowworm part no. 203051
36   OBSOLETE GAS MAN-Z/P & CLEAR PASS
Glowworm part no. 203131
37   OBSOLETE GAS VALVE ASSY-SPARE-SSF&RF
Glowworm part no. 419069
39   OBSOLETE GCOCK-GASCON 1/2 930 3/8S
Glowworm part no. 203629
40 Part number 208241, NOW USE S208241 SCREW-M4-GAS MANIFOLD NOW USE S208241 SCREW-M4-GAS MANIFOLD
Glowworm part no. 208241
40 Part number S208241, SCREW-M4-GAS MANIFOLD SCREW-M4-GAS MANIFOLD
Glowworm part no. S208241		 £6.97
41   OBSOLETE SEAL-3MM SILICONE SPONGE
Glowworm part no. 212071
42   OBSOLETE GLAND PLATE (PCF) SSF
Glowworm part no. 419044
43   OBSOLETE ADAPTER
Glowworm part no. 61571742
43   OBSOLETE ADAPTER
Glowworm part no. S61571742
44   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
44   SCREW
Glowworm part no. S78129
45   OBSOLETE SCREW-M6X12MM+5DG MS HX HD
Glowworm part no. SK7681
46   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069
47 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
48   OBSOLETE PILOT PIPE ASSY - SPARE
Glowworm part no. 419071
50   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
50   CORD GRIP
Glowworm part no. S204239
51   NOW USE S204240 LOCKNUT-ELKAY CAT 92
Glowworm part no. 204240
51   LOCKNUT
Glowworm part no. S204240
52   OBSOLETE CTRL BOX ASSY-SS30>60F
Glowworm part no. 419717
53   OBSOLETE PCB SPACER-RICHCO PS-10-01
Glowworm part no. 204248
53 Part number 204225, NOW USE S204225 PCB SUPPORT-RICHCO CBS-10N NOW USE S204225 PCB SUPPORT-RICHCO CBS-10N
Glowworm part no. 204225
53 Part number S204225, Support SUPPORT
Glowworm part no. S204225		 £4.29
54   TSTAT&SCRWS-CL6 P0146-000
Glowworm part no. 202519
54 Part number S202519, Thermostat and screws THERMOSTAT AND SCREWS
Glowworm part no. S202519
55   OBSOLETE CLIP(PCF) ALLFS/SS/GW/VG/B
Glowworm part no. SM4939
56   OBSOLETE SCREW-M3X6MM MS PN REC
Glowworm part no. 12712
57   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
58   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
59 Part number 202015, OBSOLETE FUSE-1A 20MM 151490 OBSOLETE FUSE-1A 20MM 151490
Glowworm part no. 202015
59 Part number S202015, Fuse-1A 20mm FUSE-1A 20MM
Glowworm part no. S202015
60   NOW USE S204220 GROMMET-ROBERT MOSS
Glowworm part no. 204220
60   GROMMET
Glowworm part no. S204220
61 Part number 416144, Control knob CONTROL KNOB
Glowworm part no. 416144		 £5.10
62   OBSOLETE FAN HARNESS
Glowworm part no. 419029
63   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
63   BUSH RELIEF
Glowworm part no. S204226
64   OBSOLETE GAS CONTROL HARNESS
Glowworm part no. 419042
65   OBSOLETE PRESSURE SWITCH HARNESS
Glowworm part no. 419051
66   OBSOLETE AIR PRESSURE SWTCH SS40-60F
Glowworm part no. 800852
67   OBSOLETE SCREW-M4X20MM MS PN REC
Glowworm part no. 208281
67   BUSH RELIEF
Glowworm part no. S204226
67   OBSOLETE SCREW-M4X20MM MS PN REC
Glowworm part no. S208281
68 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
69 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
70   OBSOLETE GROMT-R/MOSS 11181 BLACK PVC
Glowworm part no. 204250
70   OBSOLETE BLANKING PLUG-11321 PVC SR1750
Glowworm part no. 204262
71 Part number SWW4606, OBSOLETE Ignition lead OBSOLETE IGNITION LEAD
Glowworm part no. SWW4606
72   OBSOLETE WIRE TIE-RICHCO OR HEYCO
Glowworm part no. 204253
73   OBSOLETE TERMINAL BLOCK-3 WAY-732 PF3/3
Glowworm part no. SK8541
73   OBSOLETE EDGE STRIP-HELLERMAN PSI-BK
Glowworm part no. 204263
74   NOW USE S203333 G/VALVE COVER & SCREWS-JOHNSON
Glowworm part no. 203333
74   GAS VALVE COVER & SCREWS
Glowworm part no. S203333		 £11.30
75   NOW USE S204228 BUSH-RELIEF SR6N34
Glowworm part no. 204228
75   BUSH RELIEF
Glowworm part no. S204228
76   OBSOLETE AIR PRESSURE SWITCH COVER ASSY
Glowworm part no. 202046
77   SCREW - NO 6 X 5/16
Glowworm part no. SFF0653
78   PIPE CLIP
Glowworm part no. 204221
78   CLIP - PIPE
Glowworm part no. S204221
79   OBSOLETE CASE SENSING TUBE(FORMED)
Glowworm part no. 419017
80   OBSOLETE FLEXIBLE TUBE-22MM LONG
Glowworm part no. 203809
81   PIN-PIPE CLIP-FASTEX
Glowworm part no. 204222
81   PIN-PIPE CLIP
Glowworm part no. S204222
82 Part number M8877, OBSOLETE GLAND PLATE ASSY OBSOLETE GLAND PLATE ASSY
Glowworm part no. M8877
83   OBSOLETE AIR RESTRICTOR
Glowworm part no. 204803
84   OBSOLETE FLEXIBLE TUBE 41MM LONG
Glowworm part no. 203831
86 Part number SK6296, Washer WASHER
Glowworm part no. SK6296
87 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112
88   OBSOLETE FLUE HOOD (SW) SS4F
Glowworm part no. 419605
90 Part number 208382, OBSOLETE FAN-ITT RL 108/0042-3030LH OBSOLETE FAN-ITT RL 108/0042-3030LH
Glowworm part no. 208382
90   OBSOLETE GASKET-1.6MM-SPG 1100
Glowworm part no. 212068
91   OBSOLETE SCREW-M5X10MM BRASS REC
Glowworm part no. 208416
92   OBSOLETE G/FIBRE ROPE-6DIAX235MMLOOP QC
Glowworm part no. 212069
94   OBSOLETE BURNER-AERO AC07/05 2033 QC
Glowworm part no. 203279
95   NOW USE S208394 SCREW-M5X30MM MS HX HD
Glowworm part no. 208394
95   SCREW ( M5X30MM )
Glowworm part no. S208394		 £4.29
96 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
97   OBSOLETE SCREW-NO.10 X 3 3/4 REC
Glowworm part no. 208381
97   OBSOLETE O RING-4.1X1.6MM
Glowworm part no. 204209
97 Part number 51062003, NOW USE S51062003 NUT-SPIRE CAPT NO.10 NOW USE S51062003 NUT-SPIRE CAPT NO.10
Glowworm part no. 51062003
97 Part number S51062003, Nut- spire capt no.10 NUT- SPIRE CAPT NO.10
Glowworm part no. S51062003		 £4.29
99 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
99 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
100   OBSOLETE GASKET-1.78MM WEBGLASS
Glowworm part no. 212112
101   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
102   NOW USE S58921016 PUSH ON FIX-SPIRE-SF02938/17/4
Glowworm part no. 58921016
102   PUSH ON FIX
Glowworm part no. S58921016
103   OBSOLETE GAS SUPPLY KIT-SPARES ONLY
Glowworm part no. 419027
106   OBSOLETE FITTINGS PACK-SS20-30/30-40F
Glowworm part no. 419804
107   OBSOLETE STANDARD FLUE DUCT ASSY
Glowworm part no. 417645
108   OBSOLETE AIR DUCT ASSY-APPLIANCE
Glowworm part no. 417601
109   OBSOLETE T/AIR DUCT ASSY-STD (SW) FS8F
Glowworm part no. 417608
110   OBSOLETE TERMINAL ASSY(SW) FS8F
Glowworm part no. 417670
111   OBSOLETE NUT-SPIRE CAPT NO6
Glowworm part no. 51173003
111   SCREW-NO.6X3/4 REC BZP
Glowworm part no. 50812002
111   SCREW - NO.6X3/4
Glowworm part no. S50812002
112   SCREW ( NO.10 X 1 1/2 )
Glowworm part no. S208225
112   NOW USE S208225 SCREW-NO.10 X 1 1/2 REC
Glowworm part no. 208225
113   OBSOLETE THERM TAPE-LOW TEMP-1.95M ROLL
Glowworm part no. 412734
113   OBSOLETE THERM TAPE-LOW TEMP-1.95M ROLL
Glowworm part no. S412734
114   OBSOLETE SEAL-20X18X550MM TERMINAL
Glowworm part no. 208065
115   OBSOLETE GSKT-3MM THMTX 500/ALTEC
Glowworm part no. 212075
116   OBSOLETE WALL FRAME ASSY
Glowworm part no. 418276
117   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. 403283
117   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. S403283
118   OBSOLETE SCREW-NO.12 X 1 REC
Glowworm part no. 208200
