GLOWWORM
SPACE SAVER 45-60 CF MKI 1979 AVA - (Flue)
Appliance Code: 41-315-63

Appliance Diagram

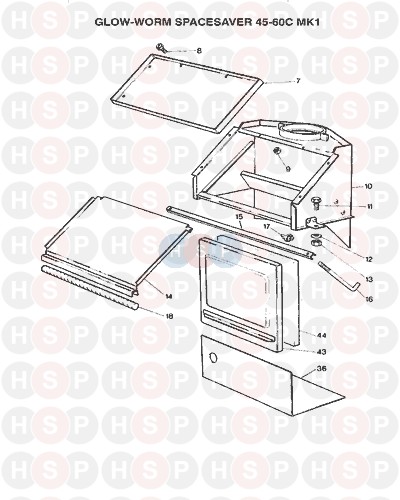

Flue diagram for Glowworm Space Saver 45-60 CF MKI 1979 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE H/E ASSY-SS45-60C-PAINTED
Glowworm part no. M10147

2   OBSOLETE SUPP MEMBER-LH-NUTR SS6C 79/397
Glowworm part no. M8346

3   OBSOLETE SUPP MEMBER-RH-NUTR SS6C
Glowworm part no. M8347

5   OBSOLETE SCREW-5/16BSWX1/2 +DG
Glowworm part no. SK7253

7   OBSOLETE FLUE CLEAN DOOR(4XB) SS6C
Glowworm part no. M8348

8   OBSOLETE SCREW-2BAX3/8 MS HX SLT
Glowworm part no. SK2452

9   OBSOLETE NUT-2BA HEX FULL
Glowworm part no. SK1120

10   OBSOLETE FLUE COLLECTOR ASSEMBLY
Glowworm part no. M10148

11   OBSOLETE SCREW-1/4X7/8 HEX
Glowworm part no. SK7679

12 Part number SK6469, Washer WASHER
Glowworm part no. SK6469

13   OBSOLETE NUT-1/4 BSW HEX ZP
Glowworm part no. SK2347

14   OBSOLETE INTER BAFF ASSY(SW) SS6C
Glowworm part no. M8349

15   OBSOLETE INT BAF SEC CHNL(PF) SS6C
Glowworm part no. M8350

16   OBSOLETE BOLT-HOOK 3/16 BSW
Glowworm part no. SK6153

17   OBSOLETE NUT-WING DOTLC 3/16
Glowworm part no. SK4044

18   OBSOLETE SEAL-365MM LONG SEALS
Glowworm part no. K8974

19   OBSOLETE PANELS PACK-SS45-60C
Glowworm part no. M10151

20   OBSOLETE NUT-WING 1/4 BSW
Glowworm part no. SK94

21   OBSOLETE GLASS AND FRAME ASY
Glowworm part no. M5214

22   OBSOLETE GASKET-1.5MM THMTX SGT GLS
Glowworm part no. SK5618

23   OBSOLETE SCREW-4BA X 1/2 SLT RDMSB
Glowworm part no. SK2453

24   OBSOLETE CONTROL PANEL (NPF) SS6BC
Glowworm part no. M8332

24 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112

25 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330

26   OBSOLETE CONTROL COVER-NUTR SS6BC
Glowworm part no. SM8333

27   OBSOLETE PILT BRNR BRKT(SW)GW3&4BS
Glowworm part no. M8170

28   OBSOLETE SCREW-3/16BSWX3/8
Glowworm part no. SK4643

29   OBSOLETE NUT-3/16 BSW HEX ZP
Glowworm part no. SK2346

30   OBSOLETE WASHER-2BA S/PROOF ZP
Glowworm part no. SK4558

31   OBSOLETE WALL BRACKET (NPF) SS6C
Glowworm part no. M8351

32   OBSOLETE SCREW-5/16BSWX1/2
Glowworm part no. SK5232

33   OBSOLETE NUT-5/16 BSW HEX ZP
Glowworm part no. SK1520

34   OBSOLETE CON TRAY&P/PLT(5XB) SS6C
Glowworm part no. M8352

35   OBSOLETE REAR PROT PLATE(NPF) SS6C
Glowworm part no. M8353

36   OBSOLETE BTM & FRT P/PLT(1XB)SS6BC
Glowworm part no. M8326

38   OBSOLETE SPACER ANGLE (F) SS6BC
Glowworm part no. M8335

39   OBSOLETE TIE ROD (THRD) SS6C
Glowworm part no. M8354

40   OBSOLETE SPACER-TUBE (CUT) SS6C
Glowworm part no. M8355

42   OBSOLETE REAR INSUL TRAY (NF) SS6C
Glowworm part no. M8360

43   OBSOLETE FRT INSUL TRAY(SW)SS6BC 79/383
Glowworm part no. M8331

45   OBSOLETE PHIAL POCKET C/W SPLIT PIN
Glowworm part no. 800200

45 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390

45 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390

46   OBSOLETE PLUG-1/2 RECESSED
Glowworm part no. SK166

47   OBSOLETE SPARK ELECTRODE
Glowworm part no. SK8948

48 Part number SWW4612, Ignition lead IGNITION LEAD
Glowworm part no. SWW4612

49   OBSOLETE PIEZO GENERATOR SPARK QC
Glowworm part no. SK6587

50   SCREW -M4X6MM
Glowworm part no. SK6212

51 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218
£6.61
52   OBSOLETE INSUL-6MM C/C SIDE QC
Glowworm part no. SK5228

53   SCREW -M5
Glowworm part no. SK8209

54 Part number SK6219, Nut NUT
Glowworm part no. SK6219

55   GROMMET
Glowworm part no. SFF2285

56   OBSOLETE GROMMET
Glowworm part no. SK4071

57   OBSOLETE G/VALVE-1/2 BSP
Glowworm part no. SK9049

58   OBSOLETE SCREW-NO8 X 5/8 32UNC PNMST
Glowworm part no. SK3806

59   OBSOLETE SPACER-VALVE SCREWS
Glowworm part no. SK5098

60   INJECTOR-3.8MM HOLE
Glowworm part no. SK8277

61   OBSOLETE SCREW-PRESSURE PT
Glowworm part no. 403050

61   OBSOLETE 1/2 ELBOW & SCREW
Glowworm part no. 800890

62   OBSOLETE NUT
Glowworm part no. SK4737

63   OBSOLETE TUBING OLIVE 1/4
Glowworm part no. SK4741

64   OBSOLETE ELBOW-1/2 BSP M/F
Glowworm part no. SK739

65 Part number 900313, OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE
Glowworm part no. 900313

65 Part number S900313, OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE
Glowworm part no. S900313

66   OBSOLETE SCREW-1/4BSW X 1/2
Glowworm part no. SK1492

67   OBSOLETE BURNER-7/51993 BRNRS
Glowworm part no. K8311

68   OBSOLETE NUT-WING M6 BRASS
Glowworm part no. SK6303

70   OBSOLETE PILOT BURNER-SINGLE PBRNR
Glowworm part no. SK8356

73   NUT
Glowworm part no. SK6516

74   OBSOLETE THERMOCOUPLE-ALTERNATIVES QC
Glowworm part no. SK5509

75 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580
£6.61
77   OBSOLETE CONTROLS ASSY
Glowworm part no. SM10406

78 Part number SK8968, Transformer 240/24V TRANSFORMER 240/24V
Glowworm part no. SK8968

81   SCREW - M4X10MM
Glowworm part no. SK6359

82   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558

83 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361

84   OBSOLETE THERMOSTAT
Glowworm part no. SK8717

85   OBSOLETE KNOB ASSY-K4226DISC
Glowworm part no. SM5616

86 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095

86 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095

87   OBSOLETE FUSE-INLINE 0.5A 151-538
Glowworm part no. SK4644

88   OBSOLETE FLUE BAFFLE SS6C (F)
Glowworm part no. M9932
