GLOWWORM
SPACE SAVER 30 BF MKII 1988 AVA - (Casing 2)
Appliance Code: 41-315-94

Appliance Diagram


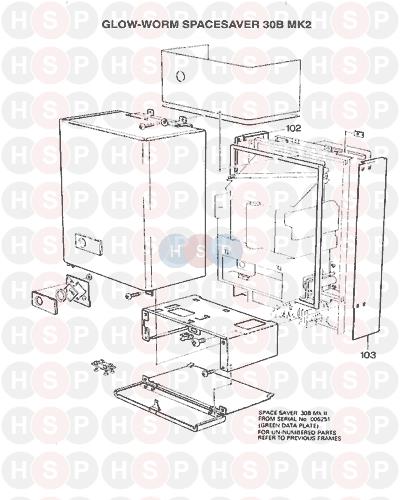

Casing 2 diagram for Glowworm Space Saver 30 BF MKII 1988 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE USER INSTR-SSMK2/2 SERIES 5/88
Glowworm part no. 206488
1   OBSOLETE FITTERS INSTR-SS30BMK2/2 6/87
Glowworm part no. 206492
1   OBSOLETE BOOK-INSTL-SSM2/2-L&G 3/85
Glowworm part no. 206502
1   OBSOLETE BOOKLET-INSTL-SS30BMK2
Glowworm part no. 206333
2   OBSOLETE USER CARD-SSMK2 SERIES
Glowworm part no. 206474
5   OBSOLETE INSUL-6MM C/C REAR
Glowworm part no. SAG081K
6   SCREW -M5
Glowworm part no. SK8209
7   OBSOLETE INSUL-6MM C/C FRONT
Glowworm part no. SAG082K
8 Part number SK6219, Nut NUT
Glowworm part no. SK6219
9   OBSOLETE SCREW-M6 X 12MM
Glowworm part no. SK6290
10 Part number SK6469, Washer WASHER
Glowworm part no. SK6469
12   OBSOLETE CASE SURRD-LH-SGBL
Glowworm part no. SAA139M
13   OBSOLETE CASE SURRD-RH-SGBL
Glowworm part no. SAA140M
14   OBSOLETE SEAL-12X8MM SECTN CASE-EPDM QC
Glowworm part no. SAG088K
15   OBSOLETE GROMMET-HEYCO
Glowworm part no. SK9242
16   GROMMET
Glowworm part no. SFF2285
18   OBSOLETE PILOT WINDOW-MICA(BS5804)
Glowworm part no. 412855
19   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
20 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
21   NUT -SPIRE CAPT NO6
Glowworm part no. SK8270
22   OBSOLETE SCREW-M6X10MM MS HX HD ZP
Glowworm part no. SFF0006
23   OBSOLETE GLAND PLATE-LH (PCF)
Glowworm part no. SAA032M
24   OBSOLETE GLAND PLATE-RH (PCF)
Glowworm part no. SAA033M
25   OBSOLETE GASKET-3MM S/SPNG GLAND-TOP QC
Glowworm part no. SAA034K
26   OBSOLETE GASKET-3MM S/SPNGE GLND-BTM QC
Glowworm part no. SAA035K
27 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
28   OBSOLETE WALL FRAME ASSY
Glowworm part no. AG103S
30   WASHER
Glowworm part no. SK6297
31   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. 403283
31   OBSOLETE NUT-SPIRE CAPT NO12
Glowworm part no. S403283
32   OBSOLETE WASHER-SPRING 1/4
Glowworm part no. SFF0452
34   OBSOLETE HINGE-NATURAL COLOR
Glowworm part no. SFF2287
36   OBSOLETE OUTER CASE ASSY-SS30&40BMK2/2
Glowworm part no. AG107S
39 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
39 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
40   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
41 Part number 51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. 51936004
41 Part number S51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. S51936004
42   OBSOLETE NAME PLATE-SPACE SAVER
Glowworm part no. SAA046K
43   NOW USE S58921016 PUSH ON FIX-SPIRE-SF02938/17/4
Glowworm part no. 58921016
43   PUSH ON FIX
Glowworm part no. S58921016
44   OBSOLETE FLUE COLL-CVR ASSY (SW)
Glowworm part no. SAG094S
46   OBSOLETE SCREW-M6X25MM HX HD ZP
Glowworm part no. SK6291
47   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069
48   OBSOLETE NUT-WING DOTLOC-M6
Glowworm part no. SK6302
52   OBSOLETE GASKET-1MM BRNR M/FOLD
Glowworm part no. SFF2047
53 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
53 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
54   OBSOLETE INJECTOR-2.8MM HOLE
Glowworm part no. 203000
56   OBSOLETE G/VALVE-1/2 BSP
Glowworm part no. SK9049
57   OBSOLETE SPACER-VALVE SCREWS
Glowworm part no. SK5098
58   OBSOLETE SCREW-NO8 X 5/8 32UNC PNMST
Glowworm part no. SK3806
59 Part number 203416, OBSOLETE PILOT BURNER-27T1D1M7215S3X QC OBSOLETE PILOT BURNER-27T1D1M7215S3X QC
Glowworm part no. 203416
59 Part number S203416, OBSOLETE Pilot burner OBSOLETE PILOT BURNER
Glowworm part no. S203416
60 Part number S900500, Electrode ELECTRODE
Glowworm part no. S900500
60 Part number 900500, ELECTRODE-ALTERNATIVES ELECTRODE-ALTERNATIVES
Glowworm part no. 900500
60   OBSOLETE ELECTRODE-BUCCLEUCH BE/3158/SI
Glowworm part no. SFF2143
61   NUT
Glowworm part no. SK6516
63 Part number SK2674, Thermocouple THERMOCOUPLE
Glowworm part no. SK2674
64 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
66   OBSOLETE TSTAT-RANCO CL6 P0102-000
Glowworm part no. SFF2130
67 Part number SK8968, Transformer 240/24V TRANSFORMER 240/24V
Glowworm part no. SK8968
68   OBSOLETE PIEZO GENERATOR SPARK QC
Glowworm part no. SK6587
69   SCREW -M4X6MM
Glowworm part no. SK6212
70 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
71   OBSOLETE SCREW-M5 X 10MM SLT
Glowworm part no. SK8757
72 Part number SWW4617, Ignition lead IGNITION LEAD
Glowworm part no. SWW4617
73   SCREW - M4X10MM
Glowworm part no. SK6359
74 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
75   CONTROL KNOB/CLIP
Glowworm part no. FF2228
76 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
76 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
77   COMBUSTION CHAMBER SHIELD
Glowworm part no. SAG124M		 £5.70
78 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
78 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
78 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
79   OBSOLETE BAL FLUE TERM-SS30/40BMK2+R
Glowworm part no. AG142S
81   OBSOLETE CORNER POST-89MM LG
Glowworm part no. SAA095K
82   OBSOLETE SCREW-M5 X 10MM REC PNSST
Glowworm part no. SFF0053
85   OBSOLETE OUTER TERM BAFFLE (NPF) SS5B
Glowworm part no. SAA097M
87   OBSOLETE SCREW-M8X12MM MS HX HD ZP
Glowworm part no. SFF0003
88   OBSOLETE CTRL COVER/BASE ASSY-L&G
Glowworm part no. SAG174S
91   OBSOLETE USER INSTR - L&G-SSMK2 2/84
Glowworm part no. 206253
92   OBSOLETE BOOKLET-INSTL-SSMK2-L&G
Glowworm part no. 206255
99   OBSOLETE CLIP-SPIRE
Glowworm part no. SK9329
100 Part number 411402, NOW USE S411402 SCREW-M6X10MM MS PN REC BZP NOW USE S411402 SCREW-M6X10MM MS PN REC BZP
Glowworm part no. 411402
100 Part number S411402, Screw - M6X10mm SCREW - M6X10MM
Glowworm part no. S411402
102   OBSOLETE CAS SURR-LH-SGBL SS345B&C
Glowworm part no. 418148
103   OBSOLETE CAS SURR-RH-SGBL SS345B&C
Glowworm part no. 418149
104   OBSOLETE WALL FRAME ASSY
Glowworm part no. 418178
105 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
105 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
106 Part number S208068, O ring-25IDX4.0mm O RING-25IDX4.0MM
Glowworm part no. S208068		 £4.91
106 Part number 208068, NOW USE S208068 O RING-25IDX4.0MM SECT NOW USE S208068 O RING-25IDX4.0MM SECT
Glowworm part no. 208068
107   OBSOLETE MANIFOLD-BURNER-HRBL
Glowworm part no. 418310
109   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
109   SCREW
Glowworm part no. S78129
112   OBSOLETE SCREW-M5X10MM MS HX HD ZP
Glowworm part no. SK6475
113   OBSOLETE T/COUPLE RE-ROUTE CONNECTOR
Glowworm part no. 202403
114   OBSOLETE INJECTOR-2.7MM HOLE
Glowworm part no. 203013
115   OBSOLETE CTRLS DRAWER ASY-BASIC SS345BC
Glowworm part no. 409754
116   OBSOLETE CTRLS DRAWER ASSY-L&G SS345BC2
Glowworm part no. 409755
