GLOWWORM
SPACE SAVER 22-30 BF 1971 AVA - (Burner & Controls)
Appliance Code: 41-315-69

Appliance Diagram


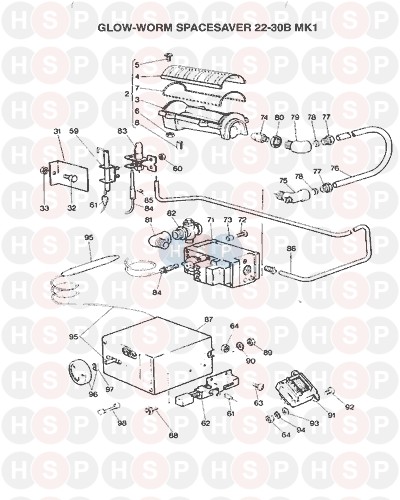

Burner & Controls diagram for Glowworm Space Saver 22-30 BF 1971 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE BURNER ASSY SS30/38BMK1
Glowworm part no. M10153
3   OBSOLETE BRNR BODY-SS30/38B (M/C)
Glowworm part no. 79/166
4   OBSOLETE BURNER TOP-7/51932
Glowworm part no. SK5318
5   OBSOLETE BOLT-1/4 BSW MUSH
Glowworm part no. SK8077
6   OBSOLETE NUT-1/4 BSW HEX GC
Glowworm part no. SK5310
7   OBSOLETE G/FIBRE ROPE 4MM DIA
Glowworm part no. SFF0826
8   OBSOLETE PIN-SELF LOCK 3/4 ZP
Glowworm part no. SK3322
9   OBSOLETE T/FRAME-SS30/38B&GW30/40B
Glowworm part no. 79/179
10   OBSOLETE SCREW-M6X25MM HX HD ZP
Glowworm part no. SK6291
11 Part number SK6469, Washer WASHER
Glowworm part no. SK6469
12   OBSOLETE SPACR-ANG FRT SS3/8BC
Glowworm part no. SM7880
13   OBSOLETE SCREW-1/4BSW X 1/2
Glowworm part no. SK1492
14   OBSOLETE NUT-1/4 BSW HEX ZP
Glowworm part no. SK2347
15   OBSOLETE MAIN SUPPORT PANEL ASSY
Glowworm part no. M10157
16   OBSOLETE SCREW-5/16BSWX1/2 +DG
Glowworm part no. SK7253
18   OBSOLETE BTM&FRT P.PLT(1XB)
Glowworm part no. SM5348
20   OBSOLETE SCREW-5/16BSWX3/4
Glowworm part no. SK1363
21   OBSOLETE NUT-5/16 BSW HEX ZP
Glowworm part no. SK1520
22   OBSOLETE SEAL-10DIAX440MM LOOP
Glowworm part no. SK5412
23   OBSOLETE SEAL-10DIAX576MM LOOP
Glowworm part no. SK5415
24   OBSOLETE FLUE COLL ASSY(SW) SS3B 79/70
Glowworm part no. M8965
25   OBSOLETE SEAL-20DIAX460MM LOOP
Glowworm part no. SK5418
26   OBSOLETE FLUE SEC ANGLE(1XB) SS3/8B
Glowworm part no. SM5328
27   OBSOLETE TIE BAR-FLUE(1XB)SS3/8B 79/170
Glowworm part no. SM5329
28   OBSOLETE WING NUT
Glowworm part no. K4157
29   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. 208375
29   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. S208375
30   OBSOLETE FRT INS.TRAY(4XB)SS3/8BC
Glowworm part no. SM5349
31   OBSOLETE PLT SHD FRT(PF) SS357C&37B
Glowworm part no. SM5237
32   OBSOLETE SCREW-3/16BSWX3/8
Glowworm part no. SK4643
33   OBSOLETE NUT-3/16 BSW HEX GC
Glowworm part no. SK5309
34   OBSOLETE PANELS PACK-SS22-30 & 38B
Glowworm part no. M10161
35   OBSOLETE GASKET-1.5MM THMTX SGT GLS
Glowworm part no. SK5618
36   OBSOLETE NUT-WING 1/4 BSW
Glowworm part no. SK94
37   OBSOLETE SEAL-6DIAX1865 SILICONE CASE
Glowworm part no. SK5444
38   OBSOLETE GLASS AND FRAME ASY
Glowworm part no. M5214
39   OBSOLETE SCREW-4BA X 1/2 SLT RDMSB
Glowworm part no. SK2453
40   OBSOLETE CONTROL PANEL ASSY
Glowworm part no. M5332
41   GROMMET
Glowworm part no. SFF2285
43   OBSOLETE CONT.COVER-NUTR SS3/8BC
Glowworm part no. SM5333
44   OBSOLETE GLAND PLATE-(PF) SS3/5B
Glowworm part no. SM5287
45   OBSOLETE SCREW-1/4BSW X 3/4
Glowworm part no. SK1153
46 Part number M8877, OBSOLETE GLAND PLATE ASSY OBSOLETE GLAND PLATE ASSY
Glowworm part no. M8877
47   OBSOLETE SCREW-3/16BSWX1/2
Glowworm part no. SK2972
48   OBSOLETE OUTER WALL SLEEVE ASSY 79/150
Glowworm part no. SM5368
49   OBSOLETE BALANCED FLUE TERMINAL-GWSUP
Glowworm part no. M5367
50   OBSOLETE FL O/LT TRM(SW)SGW3&4BS 79/141
Glowworm part no. SM5377
51   OBSOLETE GUARD ASSY (BW) 79/127
Glowworm part no. SM5376
52   OBSOLETE OTR BAFFLE(BUFF) SGW3&4BS
Glowworm part no. SM5381
53   OBSOLETE TIE ROD 1/4 DIA X 108MM 79/131
Glowworm part no. SM5241
54   OBSOLETE NUT-DOME 1/4 WHIT
Glowworm part no. SK2181
55   OBSOLETE WASHER-PLAIN 1/4 PWALI
Glowworm part no. SK8719
56   OBSOLETE SPACER-FLUE BAFFLE 3/8 X44MM
Glowworm part no. SK8423
57   OBSOLETE PHIAL POCKET C/W SPLIT PIN
Glowworm part no. 800200
57 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25mm NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
57 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
58   OBSOLETE PLUG-1/2 RECESSED
Glowworm part no. SK166
59   OBSOLETE SPARK ELECTRODE
Glowworm part no. SK8948
60   NUT
Glowworm part no. SK6516
61   OBSOLETE IGNITION LEAD ASSY 600MM
Glowworm part no. SWW4611
62   OBSOLETE PIEZO GENERATOR SPARK QC
Glowworm part no. SK6587
63   SCREW -M4X6MM
Glowworm part no. SK6212
64 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
65   OBSOLETE INSUL-6MM TRAY
Glowworm part no. SK8865
66   OBSOLETE INSUL-6MM C/C SIDE QC
Glowworm part no. SK5228
67   SCREW -M5
Glowworm part no. SK8209
68 Part number SK6219, Nut NUT
Glowworm part no. SK6219
69   OBSOLETE SILICONE SEALING COLLAR
Glowworm part no. SK5436
70   OBSOLETE SILICONE SEALING COLLAR
Glowworm part no. SK5437
71   OBSOLETE G/VALVE-1/2" BSP
Glowworm part no. SK9049
72   OBSOLETE SCREW-NO8 X 5/8 32UNC PNMST
Glowworm part no. SK3806
73   OBSOLETE SPACER-VALVE SCREWS
Glowworm part no. SK5098
74   OBSOLETE INJECTOR-2.6MM HOLEINJTR QC
Glowworm part no. K8843
75   OBSOLETE 1/2 ELBOW & SCREW
Glowworm part no. 800890
75   OBSOLETE SCREW-PRESSURE PT
Glowworm part no. 403050
76   OBSOLETE BRNR GAS FEED TUBE (F) SSMK1
Glowworm part no. M5220
77   OBSOLETE NUT
Glowworm part no. SK4737
78   OBSOLETE TUBING OLIVE 1/4
Glowworm part no. SK4741
79   OBSOLETE ELBOW INJECTOR
Glowworm part no. SK4908
80   OBSOLETE NUT-BACK 1/2" BSP
Glowworm part no. SK3017
81   OBSOLETE ELBOW-1/2" BSP M/F
Glowworm part no. SK739
82 Part number 900313, OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE
Glowworm part no. 900313
82 Part number S900313, OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE
Glowworm part no. S900313
83   OBSOLETE PILOT BURNER-SINGLE PBRNR
Glowworm part no. SK8356
84 Part number SK2674, Thermocouple THERMOCOUPLE
Glowworm part no. SK2674
85 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
86   OBSOLETE SPARES PILOT PIPE-SS30/38B&C
Glowworm part no. 800013
87   OBSOLETE CONTROLS ASSY
Glowworm part no. SM10129
88   OBSOLETE SCREW-2BAX3/8 MS HX SLT
Glowworm part no. SK2452
89   OBSOLETE NUT-2BA HEX FULL
Glowworm part no. SK1120
90   OBSOLETE WASHER-2BA S/PROOF ZP
Glowworm part no. SK4558
91 Part number SK8968, Transformer 240/24V TRANSFORMER 240/24V
Glowworm part no. SK8968
92   SCREW - M4X10MM
Glowworm part no. SK6359
93   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
94 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
95   OBSOLETE THERMOSTAT
Glowworm part no. SK8717
96   OBSOLETE KNOB ASSY-K4226DISC
Glowworm part no. SM5616
97 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
97 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
98   OBSOLETE FUSE-INLINE 0.5A 151-538
Glowworm part no. SK4644
