GLOWWORM
PROTHERM 40-50 CI FROM SERIAL NO 0204001 - (Fan)
Appliance Code: 41-047-53

Appliance Diagram

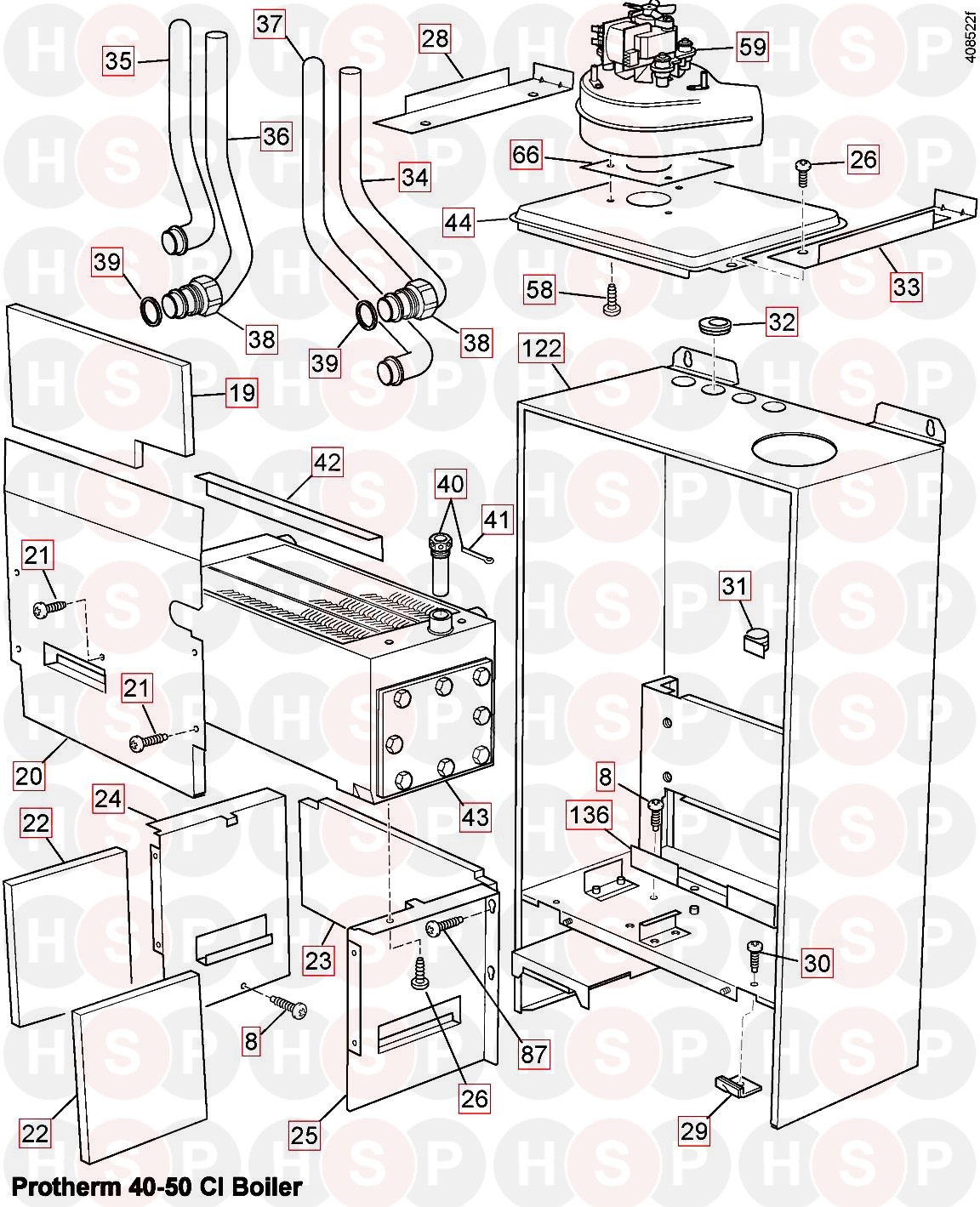

Fan diagram for Glowworm Protherm 40-50 CI From Serial No 0204001Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   FRONT
Glowworm part no. S461215
3   CONTROLS COVER ASSEMBLY
Glowworm part no. S461281
4 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215
5 Part number S208753, Foil gasket FOIL GASKET
Glowworm part no. S208753
7 Part number S208568, MICA-PILOT SHIELD MICA-PILOT SHIELD
Glowworm part no. S208568
8 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
10   WALL MOUNTING BRACKET
Glowworm part no. S446035
11 Part number SK6219, Nut NUT
Glowworm part no. SK6219
14 Part number S212359, SEAL - CASE BOTTOM SEAL - CASE BOTTOM
Glowworm part no. S212359
15   SEAL - CASE TOP
Glowworm part no. S212358
16 Part number S212194, SEAL - CASE SIDE SEAL - CASE SIDE
Glowworm part no. S212194		 £6.39
18 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
19 Part number S210189, Insulation-combustion chamber front INSULATION-COMBUSTION CHAMBER FRONT
Glowworm part no. S210189		 £6.62
20 Part number S446022, Front -combustion chamber FRONT -COMBUSTION CHAMBER
Glowworm part no. S446022
21 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
22 Part number S210191, Insulation-combustion chamber side INSULATION-COMBUSTION CHAMBER SIDE
Glowworm part no. S210191
23 Part number S210188, Insulation-combustion chamber rear INSULATION-COMBUSTION CHAMBER REAR
Glowworm part no. S210188
24   INS.CLIP-C/C LH
Glowworm part no. S446231
25   INS.CLIP C/C RH
Glowworm part no. S446230
26 Part number S411402, Screw - M6X10mm SCREW - M6X10MM
Glowworm part no. S411402
28   FLUE HOOD GUIDE L.H.
Glowworm part no. S458091
29 Part number S432915, Gland plate GLAND PLATE
Glowworm part no. S432915
30 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
31   CLIP - EDGE CABLE
Glowworm part no. SK6899
32 Part number S204289, GROMMET-22MM DIA OFFSET GROMMET-22MM DIA OFFSET
Glowworm part no. S204289
33   FLUE HOOD GUIDE R.H.
Glowworm part no. S458092
34   PUMPED FLOW PIPE
Glowworm part no. S461275
35 Part number S446220, Gravity flow pipe GRAVITY FLOW PIPE
Glowworm part no. S446220
36   PUMPED RETURN + DIST TUBE
Glowworm part no. S446213
37   GRAVITY RETURN PIPE
Glowworm part no. S461271
38 Part number S204912, OBSOLETE NUT-TUBING M33 OBSOLETE NUT-TUBING M33
Glowworm part no. S204912
39 Part number S212192, Washer sealing WASHER SEALING
Glowworm part no. S212192		 £6.61
40 Part number 800425, NOW USE 2000800425 PHIAL POCKET C/W SPLIT PIN NOW USE 2000800425 PHIAL POCKET C/W SPLIT PIN
Glowworm part no. 800425
40 Part number 2000800425, Phial pocket with split pin PHIAL POCKET WITH SPLIT PIN
Glowworm part no. 2000800425
41 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
42   FLUEWAY BAFFLE - PRE SEDBUK
Glowworm part no. S446421
43 Part number S801382, HEAT EXCHANGER INC. PIPES HEAT EXCHANGER INC. PIPES
Glowworm part no. S801382
44   FLUE HOOD
Glowworm part no. S461223
45 Part number S446066, Pilot shield PILOT SHIELD
Glowworm part no. S446066
46 Part number S205610, Burner BURNER
Glowworm part no. S205610
47   BRACKET-BURNER SUPPORT
Glowworm part no. S446088		 £5.07
48   NUT
Glowworm part no. SK6516
50   SCREW - M4X10MM
Glowworm part no. SK6359
52   LEAD
Glowworm part no. SWW4405
53 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
54 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
56 Part number S446375, Plug + cable PLUG + CABLE
Glowworm part no. S446375		 £31.19
58   SCREW -NO.8 X 1/2
Glowworm part no. S213015
59 Part number 801380, NOW USE 2000801380 FAN ASSY IKON/PROT 40-50 NOW USE 2000801380 FAN ASSY IKON/PROT 40-50
Glowworm part no. 801380
59 Part number 2000801380, Fan assembly FAN ASSEMBLY
Glowworm part no. 2000801380		 £276.22
61 Part number S800375, Double solenoid DOUBLE SOLENOID
Glowworm part no. S800375
62 Part number 801020, NOW USE 2000801020 GAS VALVE SPARE - SIT - ULT FF NOW USE 2000801020 GAS VALVE SPARE - SIT - ULT FF
Glowworm part no. 801020
62 Part number 2000801020, Gas valve GAS VALVE
Glowworm part no. 2000801020		 £135.13
63 Part number S208040, O ring O RING
Glowworm part no. S208040		 £6.61
64 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
65 Part number S208241, SCREW-M4-GAS MANIFOLD SCREW-M4-GAS MANIFOLD
Glowworm part no. S208241		 £6.97
66 Part number S212361, FLUE/HOOD GASKET FLUE/HOOD GASKET
Glowworm part no. S212361
67   CORD GRIP
Glowworm part no. S204239
68   LOCKNUT
Glowworm part no. S204240
69   GROMMET
Glowworm part no. S204220
70 Part number 800400, CONTROL KNOB C/W CLIP-ULTBF CONTROL KNOB C/W CLIP-ULTBF
Glowworm part no. 800400
70 Part number 2000800400, Control knob with clip CONTROL KNOB WITH CLIP
Glowworm part no. 2000800400
71 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
73 Part number 800441, Pipe assembly-pilot PIPE ASSEMBLY-PILOT
Glowworm part no. 800441		 £24.06
74 Part number S204185, ADAPTER OLIVE-REDUCER ADAPTER OLIVE-REDUCER
Glowworm part no. S204185		 £6.97
75 Part number S204923, Nut -M4 NUT -M4
Glowworm part no. S204923
76 Part number S417019, Nut - Compression 4mm NUT - COMPRESSION 4MM
Glowworm part no. S417019
77 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
79 Part number S451193, OBSOLETE CONTROL BOX ASSY ULT30-50FF OBSOLETE CONTROL BOX ASSY ULT30-50FF
Glowworm part no. S451193
80 Part number S202626, ELECTRODE ELECTRODE
Glowworm part no. S202626		 £23.67
81 Part number S203431, Pilot burner PILOT BURNER
Glowworm part no. S203431		 £36.89
82   MANIFOLD
Glowworm part no. S442089
83 Part number S203096, Injector INJECTOR
Glowworm part no. S203096
84 Part number S204902, Restrictor - Pilot pipe RESTRICTOR - PILOT PIPE
Glowworm part no. S204902		 £6.80
85 Part number S202015, Fuse-1A 20mm FUSE-1A 20MM
Glowworm part no. S202015
86   GASKET MANIFOLD
Glowworm part no. S210196
87   SCREW -M5X20MM
Glowworm part no. S208544
88   TOP OUTLET FLUE PACK
Glowworm part no. 230534
88   TOP OUTLET FLUE PACK
Glowworm part no. S230534
89 Part number S208540, HOSE CLIP SIZE 70 HOSE CLIP SIZE 70
Glowworm part no. S208540		 £7.97
93   CLAMP - PIPE
Glowworm part no. S446369		 £4.91
94   NUT-SPIRE CAPT NO.6
Glowworm part no. S208520
95   SCREW - NO.6X3/4
Glowworm part no. S50812002
98 Part number S443104, Harness - Pressure switch HARNESS - PRESSURE SWITCH
Glowworm part no. S443104
102 Part number S230335, Silicone tube -430mm red SILICONE TUBE -430MM RED
Glowworm part no. S230335
103   SILICONE TUBE -430MM
Glowworm part no. S230336
105   AIR PRESSURE PIPE & GROMMET
Glowworm part no. 800424
105   PIPE + GROMMET - AIR PRESSURE
Glowworm part no. 2000800424
107 Part number 800272, O/Heat stat + heat O/HEAT STAT + HEAT
Glowworm part no. 800272		 £59.97
108 Part number S800849, Control stat (2 pin) CONTROL STAT (2 PIN)
Glowworm part no. S800849		 £36.63
109 Part number S900847, PCB (inc tpo 7 wire-2 fuse) PCB (INC TPO 7 WIRE-2 FUSE)
Glowworm part no. S900847		 £176.01
110   TERMINAL BLOCK
Glowworm part no. S446378
111 Part number S443106, Harness - Fan HARNESS - FAN
Glowworm part no. S443106
112   OBSOLETE CONTROL BOX BODY SUB ASSY
Glowworm part no. S446441
113   BUSH RELIEF
Glowworm part no. S204226
114   SCREW -NO.4X3/4 PLASTITE
Glowworm part no. S230226
115 Part number S202201, NOW USE 0020248909 AIR PRESSURE SWITCH NOW USE 0020248909 AIR PRESSURE SWITCH
Glowworm part no. S202201
115 Part number 0020248909, AIR PRESSURE SWITCH AIR PRESSURE SWITCH
Glowworm part no. 0020248909		 £21.53
116   CLIP CABLE
Glowworm part no. S204200
117 Part number S204259, Bush-cord grip BUSH-CORD GRIP
Glowworm part no. S204259
118   LOCKNUT
Glowworm part no. S204260
120 Part number S230246, Silicone tube-230mm red SILICONE TUBE-230MM RED
Glowworm part no. S230246
121   SILICONE TUBE -380MM
Glowworm part no. S230334
122   NOW USE 2000801381 MAIN PANEL ASSY IKON 40-50
Glowworm part no. 801381
122   MAIN PANEL
Glowworm part no. 2000801381		 £259.64
124   SUPPORT
Glowworm part no. S204294
125   SCREW - NO.6X1/4
Glowworm part no. S50754002
126   BUSH RELIEF
Glowworm part no. S204228
136   OBSOLETE BURN TRAY BASE BAFF (NPF) ULT
Glowworm part no. S446063
199   OBSOLETE FITTINGS PACK PRO 40-50CI
Glowworm part no. S461279
