GLOWWORM
OPUS BBU FIRE ONLY 1993 AVA - (Fire Assembly 2)
Appliance Code: 37-315-17

Appliance Diagram


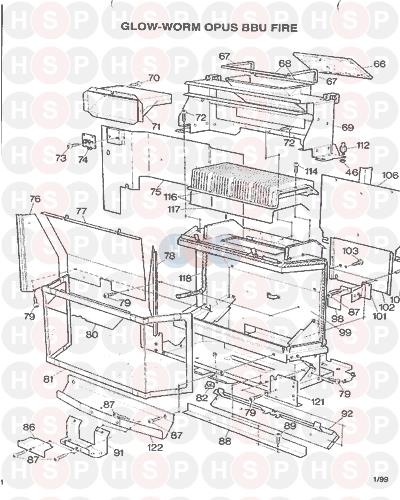

Fire Assembly 2 diagram for Glowworm Opus BBU Fire Only 1993 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE CANOPY ASSY OPUS
Glowworm part no. 448101
2   OBSOLETE UPPER SIDE ASSY - RH OPUS
Glowworm part no. 448107
3   OBSOLETE UPPER SIDE ASSY - LH OPUS
Glowworm part no. 448106
4   OBSOLETE LOWER FRONT ASSY OPUS
Glowworm part no. 448102
5   OBSOLETE LOWER FRONT REFLECTOR-PNTD OP
Glowworm part no. 448097
6   OBSOLETE LOWER FRONT PIN
Glowworm part no. 208577
7   SCREW-M4 X 6MM REC
Glowworm part no. 208365
7   SCREW ( M4 X 6MM )
Glowworm part no. S208365
8   OBSOLETE UPPER SIDE RETAINING SCREW
Glowworm part no. 208579
9 Part number 208342, NOW USE 0020247022 WASHER-SEALING-AF2000-15ODX6ID NOW USE 0020247022 WASHER-SEALING-AF2000-15ODX6ID
Glowworm part no. 208342
9 Part number S208342, NOW USE 0020247022 Washer NOW USE 0020247022 WASHER
Glowworm part no. S208342
9 Part number 0020247022, Washer (PK10) WASHER (PK10)
Glowworm part no. 0020247022		 £8.19
10   OBSOLETE REAR SURR SIDE EXTN-PNTD OP
Glowworm part no. 448127
11   OBSOLETE LOWER SIDE LH - PWDR OPUS
Glowworm part no. 448035
12 Part number 208238, NOW USE S208238 SCREW-M5X8mm MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238
12 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238		 £6.61
13   OBSOLETE PLINTH ASSY OPUS
Glowworm part no. 448092
14   OBSOLETE FOOT-GREY METALLIC - PNTD OPUS
Glowworm part no. 209195
15   OBSOLETE LEG SUB-ASSY LH - PTD OPUS
Glowworm part no. 209216
16   OBSOLETE LEG SUB-ASSY RH - PTD OPUS
Glowworm part no. 209217
17   OBSOLETE FINAL ASSY OPUS
Glowworm part no. 209198
18   OBSOLETE LOWER SIDE RH - PWDR OPUS
Glowworm part no. 448036
19   OBSOLETE UPPER SIDE SUB ASS RH-PNT OPUS
Glowworm part no. 448087
20 Part number 208526, NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0 NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0
Glowworm part no. 208526
20 Part number S208526, Push on fix PUSH ON FIX
Glowworm part no. S208526		 £6.61
21   SWITCH - CENTRAL HEATING SELECTOR
Glowworm part no. S202250
21   SWITCH-C.H. SELECTOR SFLOW E
Glowworm part no. 202191
22   OBSOLETE BEZEL - PRINTED OPUS
Glowworm part no. 448124
25 Part number 210214, NOW USE S210214 FUEL EFFECT PIECE NO 1 OPUS NOW USE S210214 FUEL EFFECT PIECE NO 1 OPUS
Glowworm part no. 210214
25 Part number S210214, Fuel effect piece no 1 FUEL EFFECT PIECE NO 1
Glowworm part no. S210214		 £40.28
26   FUEL EFFECT PIECE NO 2
Glowworm part no. S210215		 £40.28
26   NOW USE S210215 FUEL EFFECT PIECE NO 2 OPUS
Glowworm part no. 210215
27 Part number 210216, NOW USE S210216 FUEL EFFECT PIECE NO 3 OPUS NOW USE S210216 FUEL EFFECT PIECE NO 3 OPUS
Glowworm part no. 210216
27 Part number S210216, Fuel effect piece no 3 FUEL EFFECT PIECE NO 3
Glowworm part no. S210216		 £40.28
28 Part number S210217, Fuel effect piece no 4 FUEL EFFECT PIECE NO 4
Glowworm part no. S210217		 £40.28
28 Part number 210217, NOW USE S210217 FUEL EFFECT PIECE NO 4 OPUS NOW USE S210217 FUEL EFFECT PIECE NO 4 OPUS
Glowworm part no. 210217
29 Part number 210218, NOW USE S210218 FUEL EFFECT PIECE NO 5 OPUS NOW USE S210218 FUEL EFFECT PIECE NO 5 OPUS
Glowworm part no. 210218
29 Part number S210218, Fuel effect piece no 5 FUEL EFFECT PIECE NO 5
Glowworm part no. S210218		 £40.28
30   OBSOLETE FUEL EFFECT BED
Glowworm part no. S210211
30   OBSOLETE FUEL EFFECT BED PACK-SEE REMS
Glowworm part no. 210211
31   OBSOLETE CONTROL KNOB ASSY BLKASH
Glowworm part no. 448103
32   CLIP-CTRL KNOB-TRW 17020-07
Glowworm part no. 204631
32   CLIP
Glowworm part no. S204631
33   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
34   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
35   OBSOLETE INSULATION PLATE-MARANYL AD197
Glowworm part no. 210074
36   MICRO SWITCH-OTEHALL 383190
Glowworm part no. 202014
36   MICRO SWITCH
Glowworm part no. S202014
38   OBSOLETE PUSH ON FIX-MECHFAST M/F 6493
Glowworm part no. 208582
39   OBSOLETE CAM (NPF) FBL/OPUS
Glowworm part no. 440469
40 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
41   OBSOLETE CONTROL TAP ASSY OPUS/OPULENCE
Glowworm part no. 2000800449
42   NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. S204848		 £4.29
42   NOW USE S204848 NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. 204848
43   OBSOLETE OLIVE-3/16
Glowworm part no. SK3022
44   OBSOLETE THERMOCOUPLE-ALTERNATIVES QC
Glowworm part no. 900005
45   OBSOLETE SCREW-M3X20MM MS PN REC ZP
Glowworm part no. K6675
46 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
47 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
48   OBSOLETE ELECTRODE-BUCCLEUCH BE3375/SI
Glowworm part no. 202623
49   OBSOLETE WASHER-S/PROOF M8
Glowworm part no. 403219
50   OBSOLETE NUT-M8X1MM HEX LOCK BZP
Glowworm part no. 403225
51 Part number SWW4617, Ignition lead IGNITION LEAD
Glowworm part no. SWW4617
52   OBSOLETE BURNER ASSY OPUS/OPULENCE
Glowworm part no. 2000800448
53   OBSOLETE BULKHEAD CONNECTOR
Glowworm part no. 204925
54   OBSOLETE INLET SUPPLY TUBE ASSY OPUS
Glowworm part no. 448053
55   OBSOLETE NUT-UNION 3/8 TUBE
Glowworm part no. SK8149
56   OBSOLETE SUPPLY TUBE (NUT&FORM) OPUS
Glowworm part no. 448098
57   OBSOLETE BLEED RESTRICTOR
Glowworm part no. 204926
58   OBSOLETE AERATION PLATE ASSY (SW) OPUS
Glowworm part no. 448050
59   UNION NUT 3/8 BSPF
Glowworm part no. 12248
59   UNION NUT 3/8 BSPF
Glowworm part no. S12248
60   OLIVE - 3/8 DIA
Glowworm part no. SK4740
61   OBSOLETE BLEED TUBE (F) OPUS
Glowworm part no. 448059
62 Part number 448055, OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS
Glowworm part no. 448055
62 Part number S448055, OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS
Glowworm part no. S448055
63   OBSOLETE SUPPLY TUBE ASSY-TOP INJ OPUS
Glowworm part no. 448057
64   OBSOLETE INJECTOR-BRAY CAT18/180 QC
Glowworm part no. 230169
64   OBSOLETE INJECTOR-BRAY CAT18/180 QC
Glowworm part no. S230169
65   OBSOLETE INJECTOR 18/320 QC
Glowworm part no. S230201
65   OBSOLETE INJECTOR 18/320 QC
Glowworm part no. 230201
66   OBSOLETE WALL PROTECT. PLATE SEAL 264MM
Glowworm part no. 212201
66   OBSOLETE INSULATION-WALL PROTECT. PLATE
Glowworm part no. 210201
67   OBSOLETE WALL PROTECT. PLATE SEAL 160MM
Glowworm part no. 212202
69   OBSOLETE H/EXCH CANOPY PNTD OPUS/OPUL
Glowworm part no. 2000800450
70 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
70   OBSOLETE SCREW-M5X10MM+5DG MS PN
Glowworm part no. 208245
71   OBSOLETE FLUE SPIGOT ASSY(SW) HGB/OPUS
Glowworm part no. 433300
72   OBSOLETE SCREW-M4 X 10MM REC PNMST
Glowworm part no. SK8043
73   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014
73   SCREW - M4X8MM
Glowworm part no. S403014
74   OBSOLETE BRACKET-ELKAY ALL-1
Glowworm part no. 202083
75   OBSOLETE WALL SEAL PLATE ASSY (SW) OPUS
Glowworm part no. 448075
76   OBSOLETE SIDE REFLECTOR-LH(NPF)OPUS/VIC
Glowworm part no. 448046
77   OBSOLETE BACK REFLECTOR(2ST NPF)OPUS/VI
Glowworm part no. 448048
78   OBSOLETE SIDE REFLECTOR-RH(NPF)OPUS/VIC
Glowworm part no. 448047
80   OBSOLETE C.CHAMB BTM PLT(1XB) VPC/OPUS
Glowworm part no. 448074
81 Part number 448093, GLASS FRAME ASSY OPUS GLASS FRAME ASSY OPUS
Glowworm part no. 448093
82   OBSOLETE CLIP-JETPRESS 29510-11
Glowworm part no. 208521
83   OBSOLETE LAMP-ORANGE LACQ TYPE SES E14
Glowworm part no. 202242P
83   OBSOLETE LAMP-WARM ORANGE-PIGMY15WBCCAP
Glowworm part no. 202190
84   OBSOLETE SCREW-M3X10MM MS PN REC BZP
Glowworm part no. SK8859
85   OBSOLETE LAMP HOLDER-TYPE SES E14 - BJB
Glowworm part no. 202241
85   OBSOLETE LAMP HOLDER-HACKNEY REF 117140
Glowworm part no. 202189
85   OBSOLETE OPUS/OPUL FRONT LIGHTING ASSY
Glowworm part no. 800647
86   OBSOLETE LAMP HOLDER BRKT COVER (NPF) OP
Glowworm part no. 448073
87 Part number 208308, NOW USE S208308 SCREW-M4X10mm+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
87 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
88   OBSOLETE BURNER BAFFLE(1XBEND) OPUS/VIC
Glowworm part no. 448061
89   SCREW -M4X6MM
Glowworm part no. SK6212
90   OBSOLETE STRAIN/RLF BUSH HEYCO 301.1374
Glowworm part no. 204291
91   OBSOLETE FRONT LAMP HOLDER BRACKET ASSY
Glowworm part no. 448122
92   OBSOLETE AIR GUIDE ASSY (SW) OPUS/VIC
Glowworm part no. 448014
94   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
95   OBSOLETE WIRE TIE-RICHCO OR HEYCO
Glowworm part no. 204253
97   OBSOLETE LAMP-240V40W-BCCAP WARM 0RANGE
Glowworm part no. 202065
98   OBSOLETE REAR LAMP R SHIELD NPF OPUS
Glowworm part no. 448066
99   OBSOLETE BDY ASS OPUS/OPULENCE BBU
Glowworm part no. 2000800453
100   OBSOLETE GROMMET-ROBERT MOSS 15069
Glowworm part no. 204243
102   OBSOLETE LAMP HOLDER SHIELD & METAL LABEL
Glowworm part no. 2000800452
103   NOW USE S208608 SCREW-NO8 X 1/4 REC PAN B ZP
Glowworm part no. 208608
103   SCREW - NO8 X 1/4
Glowworm part no. S208608
105   CLIP - EDGE CABLE
Glowworm part no. SK6899
107 Part number S230293, Electrical Plug ELECTRICAL PLUG
Glowworm part no. S230293		 £5.99
107 Part number 230293, NOW USE S230293 PLUG-ELKAY EAL 18.10 NOW USE S230293 PLUG-ELKAY EAL 18.10
Glowworm part no. 230293
108   OBSOLETE CABLE/SOCKET ASSY OPUS
Glowworm part no. 448120
109   OBSOLETE SOCKET-ELKAY EAL 18.20
Glowworm part no. 230294
110   NOW USE S204240 LOCKNUT-ELKAY CAT 92
Glowworm part no. 204240
110   LOCKNUT
Glowworm part no. S204240
111   CORD GRIP
Glowworm part no. S204239
111   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
112   OBSOLETE HINGE PIN
Glowworm part no. 208578
114 Part number SK5877, Screw, no8 x 5/8 SCREW, NO8 X 5/8
Glowworm part no. SK5877
116   OBSOLETE HEAT EXCH & PRESTIK OPUS/OPUL
Glowworm part no. 2000800451
117 Part number SFF0828, OBSOLETE HYLOMAR SILICONE - 40ML TUBE OBSOLETE HYLOMAR SILICONE - 40ML TUBE
Glowworm part no. SFF0828
118   GLASS FRAME SEAL
Glowworm part no. S212204
118   GLASS FRAME SEAL QC
Glowworm part no. 212204
120   OBSOLETE LOWER FRONT PANEL-PWDR OPUS
Glowworm part no. 448096
