GLOWWORM
OPULENCE 2 BBU FIRE ONLY 1996 AVA - (Fire Assembly 3)
Appliance Code: 37-314-15

Appliance Diagram


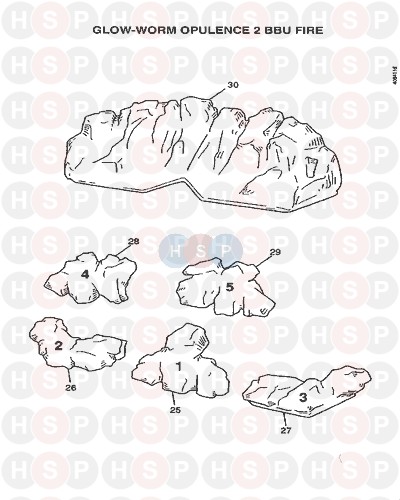

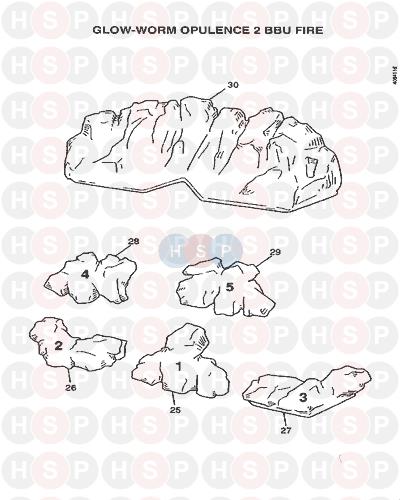

Fire Assembly 3 diagram for Glowworm Opulence 2 BBU Fire Only 1996 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE CANOPY ASSY OPULENCE
Glowworm part no. 448221
1   OBSOLETE INSTALLATION INSTRUCTIONS
Glowworm part no. 220756
1   OBSOLETE USER INSTRUCTIONS
Glowworm part no. 220757
2   OBSOLETE UPPER SIDE ASSY-RH OPULENCE2
Glowworm part no. 2000448243
3   OBSOLETE UPPER SIDE ASSY-LH OPULENCE2
Glowworm part no. 2000448242
4   OBSOLETE LOWER FRONT ASSY OPULENCE
Glowworm part no. 2000800447
5   OBSOLETE LOWER FRONT REFLT PNTD OPUL
Glowworm part no. 2000800445
6   OBSOLETE LOWER FRONT PIN
Glowworm part no. 208577
7   SCREW-M4 X 6MM REC
Glowworm part no. 208365
7   SCREW ( M4 X 6MM )
Glowworm part no. S208365
8   OBSOLETE KNURLED SCREW
Glowworm part no. 208665
9 Part number 208342, NOW USE 0020247022 WASHER-SEALING-AF2000-15ODX6ID NOW USE 0020247022 WASHER-SEALING-AF2000-15ODX6ID
Glowworm part no. 208342
9 Part number S208342, NOW USE 0020247022 Washer NOW USE 0020247022 WASHER
Glowworm part no. S208342
9 Part number 0020247022, Washer (PK10) WASHER (PK10)
Glowworm part no. 0020247022		 £8.19
10   OBSOLETE REAR SURR SIDE EXTN-PNTD OPUL
Glowworm part no. 448237
11   OBSOLETE LOWER SIDE ASSY LH OPULENCE
Glowworm part no. 448230
12 Part number 208238, NOW USE S208238 SCREW-M5X8MM MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238
12 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238		 £6.61
13   OBSOLETE PLINTH ASSY OPUS
Glowworm part no. 448092
14   OBSOLETE FOOT-BRASS LACQUERED OPUL
Glowworm part no. 209203
15   OBSOLETE LEG - SUB ASSY LH OPUL
Glowworm part no. 209222
16   OBSOLETE LEG - SUB ASSY RH OPUL
Glowworm part no. 209223
17   OBSOLETE FINIAL ASSY OPUL
Glowworm part no. 209208
18   OBSOLETE LOWER SIDE ASSY RH OPULENCE
Glowworm part no. 448231
19   OBSOLETE UPP SIDE S/ASSY RH-PNT OPUL
Glowworm part no. 448226
20 Part number 208526, NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0 NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0
Glowworm part no. 208526
20 Part number S208526, Push on fix PUSH ON FIX
Glowworm part no. S208526		 £6.61
21   OBSOLETE ARCOLETRIC BLANK - AO 434AT
Glowworm part no. 202213
22   OBSOLETE BEZEL-PRINTED OPULENCE2
Glowworm part no. 448239
23   OBSOLETE PUSH ON FIX-ARMSTRONG-SFP1833
Glowworm part no. 208612
24   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
25 Part number S210214, Fuel effect piece no 1 FUEL EFFECT PIECE NO 1
Glowworm part no. S210214		 £40.28
25 Part number 210214, NOW USE S210214 FUEL EFFECT PIECE NO 1 OPUS NOW USE S210214 FUEL EFFECT PIECE NO 1 OPUS
Glowworm part no. 210214
26   NOW USE S210215 FUEL EFFECT PIECE NO 2 OPUS
Glowworm part no. 210215
26   FUEL EFFECT PIECE NO 2
Glowworm part no. S210215		 £40.28
27 Part number S210216, Fuel effect piece no 3 FUEL EFFECT PIECE NO 3
Glowworm part no. S210216		 £40.28
27 Part number 210216, NOW USE S210216 FUEL EFFECT PIECE NO 3 OPUS NOW USE S210216 FUEL EFFECT PIECE NO 3 OPUS
Glowworm part no. 210216
28 Part number 210217, NOW USE S210217 FUEL EFFECT PIECE NO 4 OPUS NOW USE S210217 FUEL EFFECT PIECE NO 4 OPUS
Glowworm part no. 210217
28 Part number S210217, Fuel effect piece no 4 FUEL EFFECT PIECE NO 4
Glowworm part no. S210217		 £40.28
29 Part number S210218, Fuel effect piece no 5 FUEL EFFECT PIECE NO 5
Glowworm part no. S210218		 £40.28
29 Part number 210218, NOW USE S210218 FUEL EFFECT PIECE NO 5 OPUS NOW USE S210218 FUEL EFFECT PIECE NO 5 OPUS
Glowworm part no. 210218
30   OBSOLETE FUEL EFFECT BED
Glowworm part no. S210211
30   OBSOLETE FUEL EFFECT BED PACK-SEE REMS
Glowworm part no. 210211
31   OBSOLETE CONTROL KNOB ASSY BLKASH
Glowworm part no. 448103
32   CLIP-CTRL KNOB-TRW 17020-07
Glowworm part no. 204631
32   CLIP
Glowworm part no. S204631
33   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
34   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
35   OBSOLETE INSULATION PLATE-MARANYL AD197
Glowworm part no. 210074
36   MICRO SWITCH-OTEHALL 383190
Glowworm part no. 202014
36   MICRO SWITCH
Glowworm part no. S202014
37   SCREW ( M5X30MM )
Glowworm part no. S208394		 £4.29
37   NOW USE S208394 SCREW-M5X30MM MS HX HD
Glowworm part no. 208394
38   OBSOLETE PUSH ON FIX-MECHFAST M/F 6493
Glowworm part no. 208582
39   OBSOLETE CAM (NPF) FBL/OPUS
Glowworm part no. 440469
40 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
41 Part number 2000800783, Control tap CONTROL TAP
Glowworm part no. 2000800783		 £100.69
42   NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. S204848		 £4.29
42   NOW USE S204848 NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. 204848
43   OBSOLETE OLIVE-3/16
Glowworm part no. SK3022
44 Part number S451457, Sensing tube fittings SENSING TUBE FITTINGS
Glowworm part no. S451457
44 Part number 451457, SENSING TBE MOUNTING BRKT ASSY SENSING TBE MOUNTING BRKT ASSY
Glowworm part no. 451457
45   OBSOLETE SCREW-M3X20MM MS PN REC ZP
Glowworm part no. K6675
46   OBSOLETE 9V BATTERY-ALTERNATIVES
Glowworm part no. 900822
47   UNION NUT-6MM FLARED
Glowworm part no. S204810
47   UNION NUT-6MM FLARED
Glowworm part no. 204810
49   OBSOLETE WASHER-S/PROOF M8
Glowworm part no. 403219
50   OBSOLETE NUT-M8X1MM HEX LOCK BZP
Glowworm part no. 403225
51 Part number SWW4617, Ignition lead IGNITION LEAD
Glowworm part no. SWW4617
52   OBSOLETE BURNER ASSY OPUS/OPULENCE
Glowworm part no. 2000800448
53   OBSOLETE BULKHEAD FITTING-CHAR/OPUS/OPL
Glowworm part no. 204972
54   OBSOLETE INLET SUPPLY TUBE ASSY OPUS
Glowworm part no. 448053
55   OBSOLETE NUT-UNION 3/8 TUBE
Glowworm part no. SK8149
56   OBSOLETE SUPPLY TUBE (NUT&FORM) OPUS
Glowworm part no. 448098
57   OBSOLETE BLEED RESTRICTOR
Glowworm part no. 204926
58   OBSOLETE AERATION PLATE ASSY (SW) OPUS
Glowworm part no. 448050
59   UNION NUT 3/8 BSPF
Glowworm part no. 12248
59   UNION NUT 3/8 BSPF
Glowworm part no. S12248
60   OLIVE - 3/8 DIA
Glowworm part no. SK4740
61   OBSOLETE BLEED TUBE (F) OPUS
Glowworm part no. 448059
62 Part number 448055, OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS
Glowworm part no. 448055
62 Part number S448055, OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS
Glowworm part no. S448055
63   OBSOLETE SUPPLY TUBE ASSY-TOP INJ OPUS
Glowworm part no. 448057
64   OBSOLETE INJECTOR-BRAY CAT18/180 QC
Glowworm part no. 230169
64   OBSOLETE INJECTOR-BRAY CAT18/180 QC
Glowworm part no. S230169
65   OBSOLETE INJECTOR 18/320 QC
Glowworm part no. S230201
65   OBSOLETE INJECTOR 18/320 QC
Glowworm part no. 230201
66   OBSOLETE INSULATION-WALL PROTECT. PLATE
Glowworm part no. 210201
67   OBSOLETE WALL PROTECT. PLATE SEAL 160MM
Glowworm part no. 212202
68   OBSOLETE WALL PROTECT. PLATE SEAL 264MM
Glowworm part no. 212201
69   OBSOLETE H/EXCH CANOPY PNTD OPUS/OPUL
Glowworm part no. 2000800450
70   OBSOLETE SCREW-M5X10MM+5DG MS PN
Glowworm part no. 208245
71   OBSOLETE FLUE SPIGOT ASSY(SW) HGB/OPUS
Glowworm part no. 433300
72   OBSOLETE SCREW-M4 X 10MM REC PNMST
Glowworm part no. SK8043
73   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014
73   SCREW - M4X8MM
Glowworm part no. S403014
74   OBSOLETE PILOT MOUNT BRKT OP/OPUL/CH
Glowworm part no. 451448
75   OBSOLETE WALL SEALING PLATE (4XB) OPUS
Glowworm part no. 448076
76   OBSOLETE SIDE REFLECTOR-LH(NPF)OPUS/VIC
Glowworm part no. 448046
77   OBSOLETE BACK REFLECTOR(2ST NPF)OPUS/VI
Glowworm part no. 448048
78   OBSOLETE SIDE REFLECTOR-RH(NPF)OPUS/VIC
Glowworm part no. 448047
79 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
80   OBSOLETE C/CHAMB BTTM PLT (FM)OP/OPL/CH
Glowworm part no. 451479
81 Part number 448093, GLASS FRAME ASSY OPUS GLASS FRAME ASSY OPUS
Glowworm part no. 448093
82   OBSOLETE CLIP-JETPRESS 29510-11
Glowworm part no. 208521
83   OBSOLETE SPARES-PILOT PIPE CHARTWELL BBU
Glowworm part no. 2000800782
84   OBSOLETE SCREW-M3X10MM MS PN REC BZP
Glowworm part no. SK8859
85   OBSOLETE OXYPILOT ASSY CHART BBU
Glowworm part no. 451476
86   OBSOLETE TBE NUT/OLIVE-4MM 45900402-019
Glowworm part no. 204965
87 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
87 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
88   OBSOLETE BURNER BAFFLE(1XBEND) OPUS/VIC
Glowworm part no. 448061
89   SCREW -M4X6MM
Glowworm part no. SK6212
90 Part number S417019, Nut - Compression 4mm NUT - COMPRESSION 4MM
Glowworm part no. S417019
90 Part number 417019, NUT-COMP-4MM-SIT 0.958.030 NUT-COMP-4MM-SIT 0.958.030
Glowworm part no. 417019
91 Part number S204968, Sensing tube Adapter and O rings SENSING TUBE ADAPTER AND O RINGS
Glowworm part no. S204968
91 Part number 204968, NOW USE S204968 SENSING TBE ADPTR C/W O RINGS NOW USE S204968 SENSING TBE ADPTR C/W O RINGS
Glowworm part no. 204968
92   OBSOLETE AIR GUIDE ASSY CHART BBU
Glowworm part no. 451470
93 Part number 202179, OBSOLETE RV IGNITOR(9V) REF RV0681 OO16 OBSOLETE RV IGNITOR(9V) REF RV0681 OO16
Glowworm part no. 202179
93 Part number S202179, OBSOLETE Ignitor (9V) OBSOLETE IGNITOR (9V)
Glowworm part no. S202179
94   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
99   OBSOLETE BDY ASS OPUS/OPULENCE BBU
Glowworm part no. 2000800453
100 Part number S451461, Upper sensing tube UPPER SENSING TUBE
Glowworm part no. S451461
100 Part number 451461, UPPER SENSING TUBE-(F) UPPER SENSING TUBE-(F)
Glowworm part no. 451461
101   OBSOLETE FIREFRONT UPPER SENSG TBE ASSY
Glowworm part no. 451458
102   OBSOLETE SENSING TUBE CONNECTOR
Glowworm part no. 204969
103   NOW USE S208608 SCREW-NO8 X 1/4 REC PAN B ZP
Glowworm part no. 208608
103   SCREW - NO8 X 1/4
Glowworm part no. S208608
104   OBSOLETE WASHER-PLAIN 1/4 PWALI
Glowworm part no. 451475
105   OBSOLETE LOCKNUT-3/8 BSP
Glowworm part no. 204196
105   OBSOLETE LOCKNUT-3/8 BSP
Glowworm part no. S204196
108   LEAD
Glowworm part no. SWX0403		 £4.29
109   OBSOLETE IGNITER BRKT(VEE\INS)OP\OPL\CH
Glowworm part no. 451473
112   OBSOLETE HINGE PIN
Glowworm part no. 208578
114 Part number SK5877, Screw, no8 x 5/8 SCREW, NO8 X 5/8
Glowworm part no. SK5877
116   OBSOLETE HEAT EXCH & PRESTIK OPUS/OPUL
Glowworm part no. 2000800451
117 Part number SFF0828, OBSOLETE HYLOMAR SILICONE - 40ML TUBE OBSOLETE HYLOMAR SILICONE - 40ML TUBE
Glowworm part no. SFF0828
118   GLASS FRAME SEAL QC
Glowworm part no. 212204
118   GLASS FRAME SEAL
Glowworm part no. S212204
120   OBSOLETE LOWER FRONT - PWDR OPUS2
Glowworm part no. 448159
121   OBSOLETE LEG BRACKET R/H OPUS/OPULENCE
Glowworm part no. 2000800682
