GLOWWORM
MIAMI 3 BBU FIRE FRONT(MAHOGANY) - (Casing 2)
Appliance Code: 37-047-07A

Appliance Diagram


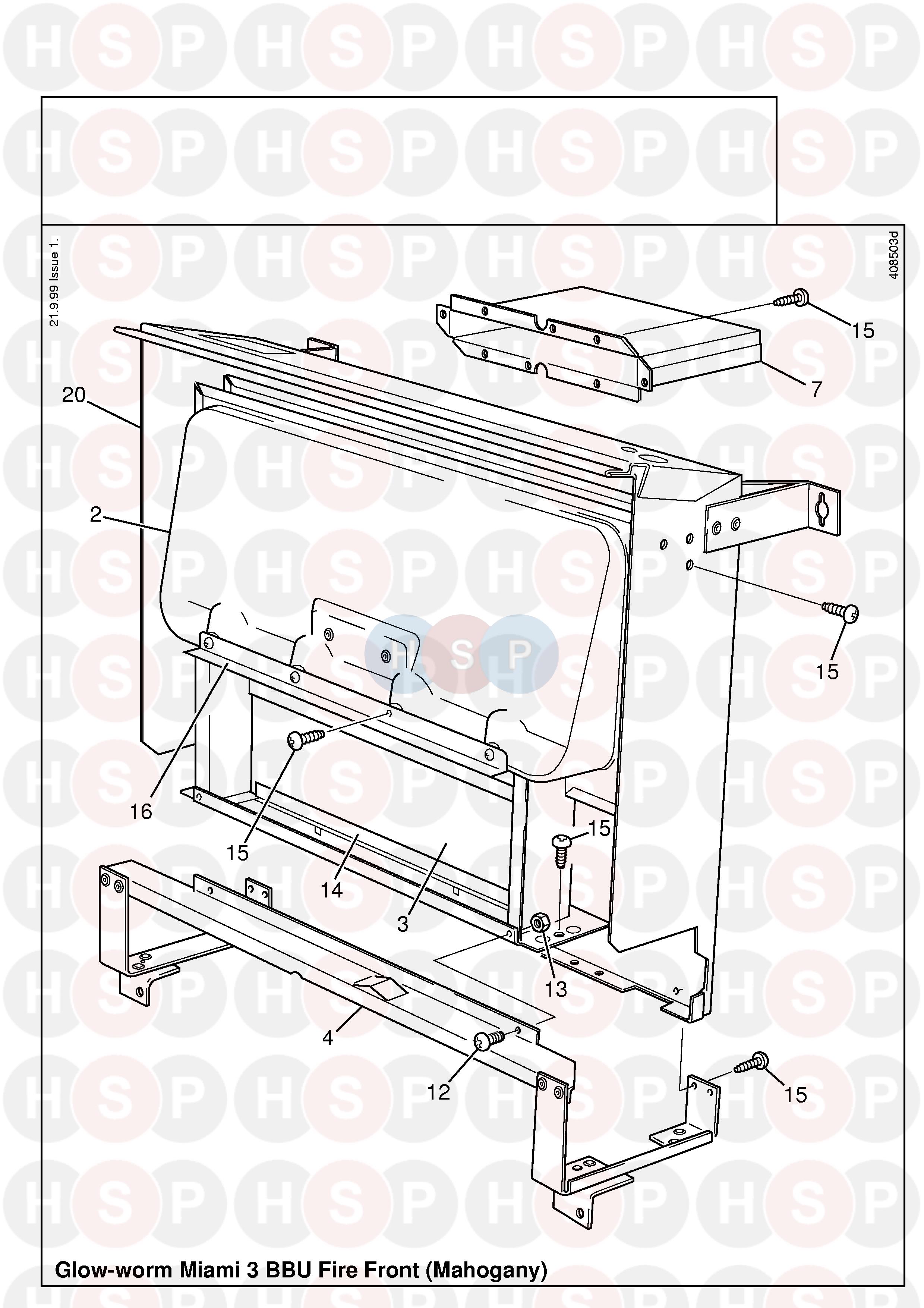

Casing 2 diagram for Glowworm Miami 3 BBU Fire Front(Mahogany)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE HEAT EXCHANGER
Glowworm part no. 2000800763
2   OBSOLETE HEAT EXCHANGER
Glowworm part no. 2000800763
3   INSULATION - CASING BOARD
Glowworm part no. S411932
3   INSUL-CASING BOARD
Glowworm part no. 411932
3   INSUL-CASING BOARD
Glowworm part no. 411932
4   OBSOLETE REAR PANEL & BRACKETS
Glowworm part no. 800769
4   OBSOLETE SPARES-AIR GUIDE +FEET
Glowworm part no. 2000800765
5 Part number 203746, NOW USE S203746 RADIANT PACK(203701 PACKED) NOW USE S203746 RADIANT PACK(203701 PACKED)
Glowworm part no. 203746
5   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
6 Part number 203746, NOW USE S203746 RADIANT PACK(203701 PACKED) NOW USE S203746 RADIANT PACK(203701 PACKED)
Glowworm part no. 203746
6 Part number S203746, Radiant pack RADIANT PACK
Glowworm part no. S203746
6 Part number 427504, DRESS GUARD DRESS GUARD
Glowworm part no. 427504
7   OBSOLETE FLUE SPIGOT ASY (SW) GLSGLG
Glowworm part no. 427024
7 Part number SK6219, Nut NUT
Glowworm part no. SK6219
8   RADIANT SPACER (NPF) CTGLG+
Glowworm part no. 423011
8   OBSOLETE PLINTH ASSY MIAMI3/MEL BBU
Glowworm part no. 459077
8   RADIANT SPACER
Glowworm part no. S423011
9 Part number 427524, CONTROL KNOB ASSY CONTROL KNOB ASSY
Glowworm part no. 427524
9 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
10   H/E FRONT TRIM (DE-BURR)CTGLG+
Glowworm part no. 423071
10   FRONT TRIM-HEAT EXCHANGER
Glowworm part no. S423071
11 Part number 2000801477, DRESS GUARD DRESS GUARD
Glowworm part no. 2000801477
11 Part number 427504, DRESS GUARD DRESS GUARD
Glowworm part no. 427504
11 Part number 2000800713, Supply tube with nuts & olives SUPPLY TUBE WITH NUTS & OLIVES
Glowworm part no. 2000800713
12   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
12   CLOSURE PLATE
Glowworm part no. 427553		 £21.22
13   OBSOLETE FLUE SPIGOT ASSY(SW) ALLGRO-G
Glowworm part no. 427554
13 Part number SK6219, Nut NUT
Glowworm part no. SK6219
14   RADIANT SPACER (NPF) CTGLG+
Glowworm part no. 423011
14   OBSOLETE COOLER PLATE (NPST)
Glowworm part no. 427570
15   OBSOLETE CLIP-IGNITION LEAD
Glowworm part no. 208289
15 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
16   SILENCER
Glowworm part no. S423029
16   H/E FRONT TRIM (DE-BURR)CTGLG+
Glowworm part no. 423071
16   SILENCER ASSY--PH CTGLG+
Glowworm part no. 423029
17   NOW USE S208283 SCREW-M4X16MM+5DG MS PN
Glowworm part no. 208283
17   SCREW ( M4X16MM )
Glowworm part no. S208283
18 Part number S204718, CONNECTING ROD CONNECTING ROD
Glowworm part no. S204718
18   SILENCER ASSY--PH CTGLG+
Glowworm part no. 423029
18 Part number 204718, CONNECTING ROD CONNECTING ROD
Glowworm part no. 204718
19 Part number SK5148, Split pin -3/32 dia X 3/4 SPLIT PIN -3/32 DIA X 3/4
Glowworm part no. SK5148
19   NOW USE S208283 SCREW-M4X16MM+5DG MS PN
Glowworm part no. 208283
20   OBSOLETE SPARES-REAR PANEL MONARCH BBU
Glowworm part no. 2000800764
20   OBSOLETE FRONT LEG ASSY
Glowworm part no. 427575
21   OBSOLETE WASHER-S/PROOF 5/16
Glowworm part no. 11549
21 Part number 204718, CONNECTING ROD CONNECTING ROD
Glowworm part no. 204718
22 Part number SK5148, Split pin -3/32 dia X 3/4 SPLIT PIN -3/32 DIA X 3/4
Glowworm part no. SK5148
22   OBSOLETE NUT-5/16 BSW SQUARE
Glowworm part no. 12503
23   OBSOLETE CASING SUB ASSY-MIAMI FIRE MAH
Glowworm part no. 451255
23   INJECTOR-BRAY CAT 19/130
Glowworm part no. 205735
24   INJECTOR-BRAY CAT 22/240
Glowworm part no. 205736
24   OBSOLETE REAR LEG - UNPTD MIAMI FIRE
Glowworm part no. 451219
25 Part number 2000800772, Oxypilot OXYPILOT
Glowworm part no. 2000800772
25   NOW USE 2000802764 SCREW-NO.8 X 1/2 REC
Glowworm part no. 208393
25 Part number 2000802764, Screw (PK2) SCREW (PK2)
Glowworm part no. 2000802764		 £6.61
26 Part number S203653, CONTROL TAP-C/W ELBOW CONTROL TAP-C/W ELBOW
Glowworm part no. S203653
26 Part number 203653, CONTROL TAP-C/W ELBOW CONTROL TAP-C/W ELBOW
Glowworm part no. 203653
26   NUT - SPIRE CAPT NO8
Glowworm part no. SK9327		 £4.91
27   OBSOLETE CLAMP (PCF) FLCOHSGAG
Glowworm part no. 410745
27 Part number S417019, Nut - Compression 4mm NUT - COMPRESSION 4MM
Glowworm part no. S417019
27 Part number 417019, NUT-COMP-4MM-SIT 0.958.030 NUT-COMP-4MM-SIT 0.958.030
Glowworm part no. 417019
28 Part number S208737, SILICONE TUBE-40MM CLEAR SILICONE TUBE-40MM CLEAR
Glowworm part no. S208737		 £6.61
28 Part number 208737, NOW USE S208737 SILICONE TUBE-40MM CLEAR NOW USE S208737 SILICONE TUBE-40MM CLEAR
Glowworm part no. 208737
28   OBSOLETE SENSING TUBE ASSY
Glowworm part no. 451229
29   OBSOLETE SCREW-M4 X 8MM+5DG REC
Glowworm part no. 208379
29   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014
30   INJECTOR
Glowworm part no. S205735
30 Part number 800766, Pilot pipe assembly PILOT PIPE ASSEMBLY
Glowworm part no. 800766
30   INJECTOR-BRAY CAT 19/130
Glowworm part no. 205735
31   INJECTOR-BRAY CAT 22/240
Glowworm part no. 205736
31   OLIVE-5/32 QC
Glowworm part no. 66360012
31   INJECTOR
Glowworm part no. S205736
32   BURNER - ALTERNATIVES
Glowworm part no. 900606
32   NOW USE S451477 SPARES-OXYPILOT FIRE
Glowworm part no. 2000800771
32 Part number S451477, Oxypilot assembly OXYPILOT ASSEMBLY
Glowworm part no. S451477		 £47.41
33   OBSOLETE CONTROL TAP-C/W ELBOW
Glowworm part no. 203654
33   NUT - LOCK M15
Glowworm part no. SK8833
34   IGNITION LEAD
Glowworm part no. SWW4615
34   UNION NUT-5/32 OLIVE
Glowworm part no. S204966
34   UNION NUT-5/32 OLIVE
Glowworm part no. 204966
35 Part number 204968, NOW USE S204968 SENSING TBE ADPTR C/W O RINGS NOW USE S204968 SENSING TBE ADPTR C/W O RINGS
Glowworm part no. 204968
35 Part number S204968, Sensing tube Adapter and O rings SENSING TUBE ADAPTER AND O RINGS
Glowworm part no. S204968
35   OBSOLETE CASING SUB ASSY-MIAMI FIRE MAH
Glowworm part no. 451255
36   OBSOLETE BEZEL - PRINTED MIAMI3 BBU
Glowworm part no. 459074
37   WASHER-SEAL 1/2X3/16X1/16 BSW
Glowworm part no. 69953
37   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014
37   SCREW - M4X8MM
Glowworm part no. S403014
38   OBSOLETE INLET SUPPLY TUBE ASSY-NUT&FL
Glowworm part no. 451218
38   NOW USE S208377 SCREW-NO.6 X 1/2 REC
Glowworm part no. 208377
39   OBSOLETE CONV APERT ASSY-PNTD
Glowworm part no. 427612
39 Part number 800766, Pilot pipe assembly PILOT PIPE ASSEMBLY
Glowworm part no. 800766
40   OLIVE-5/32 QC
Glowworm part no. 66360012
40   SCREW (NO 8X1/2)
Glowworm part no. SK7688
40   OLIVE - 5/32
Glowworm part no. S66360012
41   BURNER
Glowworm part no. S900606
41   RADIANT TRIM ASSY
Glowworm part no. 451206
41   BURNER - ALTERNATIVES
Glowworm part no. 900606
42   NUT - LOCK M15
Glowworm part no. SK8833
42   OBSOLETE FRONT PANEL - PNTD
Glowworm part no. 451204
43   SPRING CLIP
Glowworm part no. 208656
43   IGNITION LEAD
Glowworm part no. SWW4615
44   OBSOLETE SCREW-M5X10MM+5DG MS PN
Glowworm part no. 208245
44 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
45 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
45   OBSOLETE BEZEL - PRINTED MIAMI FIRE
Glowworm part no. 451222
46   NOW USE S208377 SCREW-NO.6 X 1/2 REC
Glowworm part no. 208377
46   CASE CLAMP.PLATE (P) G/ALL-G
Glowworm part no. 427618
46   SCREW ( NO.6 X 1/2 )
Glowworm part no. S208377		 £5.58
46   CASE CLAMP.PLATE
Glowworm part no. S427618
47   WASHER - SEAL 1/2X3/16X1/16
Glowworm part no. S69953
47   REAR SURROUND TOP
Glowworm part no. S427603
47   REAR SURR TOP ASSY G
Glowworm part no. 427603
47   WASHER-SEAL 1/2X3/16X1/16 BSW
Glowworm part no. 69953
48   CASING LOCATION BRKT(PCF) GLG+
Glowworm part no. 427526
49   RR SIDE LOUVRE ASY-PNTD GLSGLG
Glowworm part no. 427025
49   SCREW (NO 8X1/2)
Glowworm part no. SK7688
49   LOUVRE ASSEMBLY-REAR SIDE
Glowworm part no. S427025
50   PLINTH GUIDE
Glowworm part no. S427528
50   RADIANT TRIM
Glowworm part no. S451206
50   RADIANT TRIM ASSY
Glowworm part no. 451206
50   PLINTH GUIDE (NPF) GLSGLG
Glowworm part no. 427528
51   KASEAL-13X4X630MM RA51/PLASMAR
Glowworm part no. 212064
51   OBSOLETE FRONT PANEL ASSY - MIAMI FIRE
Glowworm part no. 451212
52   SPRING CLIP
Glowworm part no. 208656
52   OBSOLETE CASING TOP TRIM (DE-BURR) GLG+
Glowworm part no. 427509
52   SPRING CLIP
Glowworm part no. S208656
53   REINFORCING STRIP(PF)GALALGLG+
Glowworm part no. 427534
53 Part number SK8039, NOW USE SK2330 SCREW-NO8 X 3/8 REC ZP NOW USE SK2330 SCREW-NO8 X 3/8 REC ZP
Glowworm part no. SK8039
54 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
55   OBSOLETE REAR SURROUND TOP ASSY
Glowworm part no. 451256
56   CASING LOCATION BRKT(PCF) GLG+
Glowworm part no. 427526
56   CASING LOCATION BRACKET
Glowworm part no. S427526
57   OBSOLETE CASING TOP TRIM (DE-BURR) GLG+
Glowworm part no. 427509
57   NOW USE S204244 END CAP - DRESS GUARD
Glowworm part no. 204244
58   REINFORCING STRIP(PF)GALALGLG+
Glowworm part no. 427534
58   REINFORCING STRIP
Glowworm part no. S427534
59   OBSOLETE SPARES-AIR GUIDE & FEET MIAMI
Glowworm part no. 2000800773
60 Part number 427524, CONTROL KNOB ASSY CONTROL KNOB ASSY
Glowworm part no. 427524
60 Part number S427524, Control knob CONTROL KNOB
Glowworm part no. S427524
61 Part number S451457, Sensing tube fittings SENSING TUBE FITTINGS
Glowworm part no. S451457
61   NOW USE S204244 END CAP - DRESS GUARD
Glowworm part no. 204244
61   END CAP - DRESS GUARD
Glowworm part no. S204244		 £4.29
61 Part number 451457, SENSING TBE MOUNTING BRKT ASSY SENSING TBE MOUNTING BRKT ASSY
Glowworm part no. 451457
62 Part number S208680, Filter - Sensing tube FILTER - SENSING TUBE
Glowworm part no. S208680
62   SEAL
Glowworm part no. S212064
62   KASEAL-13X4X630MM RA51/PLASMAR
Glowworm part no. 212064
62 Part number 208680, SENSING TUBE FILTER SENSING TUBE FILTER
Glowworm part no. 208680
63   SCREW-M4 X 6MM REC
Glowworm part no. 208365
63   OBSOLETE F/SPIGOT RESTRICTOR(PCF) HSGAG
Glowworm part no. 427568
63   SCREW ( M4 X 6MM )
Glowworm part no. S208365
64   UNION NUT-6MM FLARED
Glowworm part no. S204810
64   UNION NUT-6MM FLARED
Glowworm part no. 204810
66 Part number 451461, UPPER SENSING TUBE-(F) UPPER SENSING TUBE-(F)
Glowworm part no. 451461
66 Part number S451461, Upper sensing tube UPPER SENSING TUBE
Glowworm part no. S451461
67   CLIP
Glowworm part no. S204631
67   CLIP-CTRL KNOB-TRW 17020-07
Glowworm part no. 204631
67   CLIP-CTRL KNOB-TRW 17020-07
Glowworm part no. 204631
68   UNION NUT-5/32 OLIVE
Glowworm part no. 204966
69   UNION NUT 3/8 BSPF
Glowworm part no. 12248
69   UNION NUT 3/8 BSPF
Glowworm part no. S12248
70   OLIVE - 3/8 DIA
Glowworm part no. SK4740


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
