GLOWWORM
HOMEGLOW 2 FIRE ONLY 1996 AVA - (Fire Assembly 3)
Appliance Code: 32-314-52

Appliance Diagram


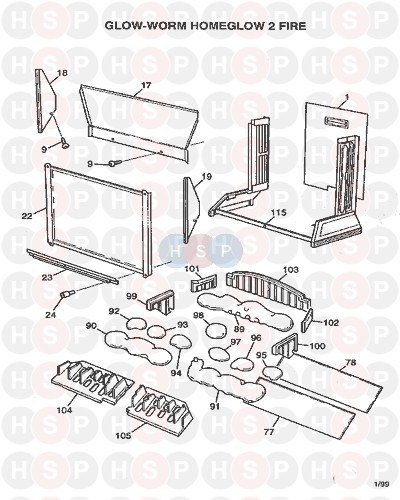

Fire Assembly 3 diagram for Glowworm Homeglow 2 Fire Only 1996 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE CLOSURE PLATE ASSY
Glowworm part no. 2000432569

2   OBSOLETE SCREW-M5X10MM+5DG MS PN
Glowworm part no. 208245

3   OBSOLETE HEAT EXCH CANOPY EXTN-PNTD HGW
Glowworm part no. 432580

4   OBSOLETE DRAUGHT DIVE REAR(SW) HGW
Glowworm part no. 432527

5   OBSOLETE DRAUGHT DIV BAFFLE(3STNPF) HGW
Glowworm part no. 432524

6   OBSOLETE SCREW-NO.8 X 1/2 REC
Glowworm part no. 208003

7   OBSOLETE CANOPY UNDER PANEL-PNTD HGB
Glowworm part no. 433260

8   OBSOLETE INSULATION CLIP (PC) FD
Glowworm part no. 424110

9 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330

10   OBSOLETE UPP WALL MNTNG BRKT(NPFC) HGW
Glowworm part no. 432535

11   OBSOLETE CANOPY SEAL ASSY
Glowworm part no. 432639

12   OBSOLETE FRET & SUPPORT ASSY
Glowworm part no. 432559

13 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308
£6.61
13 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308

14 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019
£6.61
15   OBSOLETE SCREW-M4 X 10MM REC PNMST
Glowworm part no. SK8043

17   OBSOLETE BACK REFLECTOR (3STTF) HGW
Glowworm part no. 432555

18   OBSOLETE SIDE REFLECTOR LH(3STBF) HGW
Glowworm part no. 432556

19   OBSOLETE 1SIDE REFLECTOR RH(3STBF) HGW
Glowworm part no. 432557

20 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112

21   SIDE GLASS
Glowworm part no. 432544
£103.73
22   OBSOLETE FRONT GLASS
Glowworm part no. 432558

23   OBSOLETE LOWER FRT GLASS CLAMP-PNTD HGW
Glowworm part no. 432567

24   OBSOLETE KNURLED NUT
Glowworm part no. S208509

24   OBSOLETE KNURLED NUT
Glowworm part no. 208509

25   OBSOLETE LWR WL MNTNG BRKT(3STNPF) HGW
Glowworm part no. 432550

26   OBSOLETE CONNECTING SLEEVE
Glowworm part no. 203815

29   OBSOLETE CLAMP (PCF) FLCOHSGAG
Glowworm part no. 410745

30 Part number SK5148, Split pin -3/32 dia X 3/4 SPLIT PIN -3/32 DIA X 3/4
Glowworm part no. SK5148

31   OBSOLETE CONNECTING ROD
Glowworm part no. S204713

31   OBSOLETE CONNECTING ROD
Glowworm part no. 204713

32   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. 208375

32   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. S208375

33   OBSOLETE CONTROL KNOB ASSY
Glowworm part no. 452618

34   OBSOLETE INSUL-485X75X25MM -G/FIBRE
Glowworm part no. 210146

35   NOW USE S900813 SEAL-ALTERNATIVES
Glowworm part no. 900813

35   SEAL
Glowworm part no. S900813
£8.93
36   OBSOLETE REAR SURR ASSY RH-PNTD HGW
Glowworm part no. 432587

37   OBSOLETE REAR SURR ASSY LH-PNTD HGW
Glowworm part no. 432586

38   OBSOLETE HEARTH ASSY LH-SPARE-HG+BBU
Glowworm part no. 800023

39   OBSOLETE HEARTH ASSY RH-SPARE-HG+BBU
Glowworm part no. 800024

40   OBSOLETE HRTH SD SUPP ANGLE(DE-BUR) HGW
Glowworm part no. 432592

41   SCREW -M5X10MM
Glowworm part no. SK6214
£6.61
43 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361

44   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558

45   SCREW ( M4 X 8MM )
Glowworm part no. SK7968

46   OBSOLETE CONTROL TAP ASSY
Glowworm part no. 452605

47   OBSOLETE INLET RESTRICTOR-HGW/2 FIRE
Glowworm part no. 204976

48   OBSOLETE EXTENSION NIPPLE QC
Glowworm part no. 204855

49 Part number 432616, OBSOLETE SUPPLY TUBE ASSY-BTM(F) OBSOLETE SUPPLY TUBE ASSY-BTM(F)
Glowworm part no. 432616

49 Part number S432616, OBSOLETE SUPPLY TUBE ASSY-BTM(F) OBSOLETE SUPPLY TUBE ASSY-BTM(F)
Glowworm part no. S432616

51   OBSOLETE UNION NUT-6MM OLIVE TYPE
Glowworm part no. 204846

52   OBSOLETE OLIVE-6MM
Glowworm part no. 204802

53   UNION NUT-6MM FLARED
Glowworm part no. 204810

53   UNION NUT-6MM FLARED
Glowworm part no. S204810

54   OBSOLETE BLEED TUBE-SPARE-HG+BBU
Glowworm part no. 2000800019

55   OBSOLETE UNION NUT-3/16 FLARED
Glowworm part no. 403224

56   NOW USE S204848 NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. 204848

56   NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. S204848
£4.29
57   OBSOLETE OLIVE-3/16
Glowworm part no. SK3022

58   OBSOLETE INLET SUPP TUBE ASSY(F)
Glowworm part no. 432619

59   OBSOLETE ELBOW-1/4 BSPX5/16
Glowworm part no. SK9192

60   OBSOLETE INJECTOR-BRAY 77 130 QC
Glowworm part no. 203087

61   OBSOLETE INJECTOR-BRAY 18 300 GLO QC
Glowworm part no. 12600

62   OBSOLETE SPARES-BURNER H/GLOW 2 FIRE
Glowworm part no. 2000800797

63   ELECTRODE
Glowworm part no. 202607

63 Part number S202607, ELECTRODE ELECTRODE
Glowworm part no. S202607

65 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218
£6.61
66   OBSOLETE THERMOCOUPLE QC
Glowworm part no. S202437

66   OBSOLETE THERMOCOUPLE QC
Glowworm part no. 202437

67   OBSOLETE TSTAT O/HEAT NO 2455R-9214-922
Glowworm part no. 202565

68   OBSOLETE WASHER-S/PROOF M8
Glowworm part no. 403219

69   OBSOLETE NUT-M8X1MM HEX LOCK BZP
Glowworm part no. 403225

70   OBSOLETE AERATION PLATE (NPFSTC) HGW
Glowworm part no. 432610

71   SCREW-M4 X 6MM REC
Glowworm part no. 208365

71   SCREW ( M4 X 6MM )
Glowworm part no. S208365

72 Part number SWW4607, Ignition lead IGNITION LEAD
Glowworm part no. SWW4607

73   CABLE TIE
Glowworm part no. SK5089

74   CLIP
Glowworm part no. S204631

74   CLIP-CTRL KNOB-TRW 17020-07
Glowworm part no. 204631

75   OBSOLETE HEARTH FRONT ASSY-FIRE
Glowworm part no. 432503

76   OBSOLETE SUPPLY TUBE EXTENSION
Glowworm part no. 203921

77   GLASS LAMP COVER (RED)
Glowworm part no. S209131
£16.65
77   NOW USE S209131 GLASS LAMP COVER (RED)
Glowworm part no. 209131

78   OBSOLETE FUEL BED GLASS
Glowworm part no. 209132

78   OBSOLETE FUEL BED GLASS
Glowworm part no. S209132

80   OBSOLETE HEARTH TRIM ASSY(RVT) HGW
Glowworm part no. 432626

81   OBSOLETE SOCKET-1/4 BSP F/F
Glowworm part no. SFF2085

82   NOW USE S58921016 PUSH ON FIX-SPIRE-SF02938/17/4
Glowworm part no. 58921016

82   PUSH ON FIX
Glowworm part no. S58921016

83   OBSOLETE CANOPY TOP-PWDR (146021)
Glowworm part no. 432593

84   OBSOLETE CANOPY TRIM (2XB)-PH HGW
Glowworm part no. 432554

85   OBSOLETE SCR-NO.6X3/8 FLG HD/BR PL B
Glowworm part no. 208543

86   OBSOLETE SCR NO.6X3/8 FLG HD/BR PLT AB
Glowworm part no. 208548

87   OBSOLETE SPARES-REAR SURR TOP H/GLOW2
Glowworm part no. 2000800791

88   OBSOLETE REAR DEFLECTOR (1XB) HGW
Glowworm part no. 432612

89   COAL-REAR
Glowworm part no. 203763

89   COAL REAR
Glowworm part no. S203763

90   OBSOLETE COAL-FRONT LH
Glowworm part no. S203764

90   OBSOLETE COAL-FRONT LH
Glowworm part no. 203764

91 Part number 203765, NOW USE S203765 COAL-FRONT RH NOW USE S203765 COAL-FRONT RH
Glowworm part no. 203765

91 Part number S203765, Coal front RH COAL FRONT RH
Glowworm part no. S203765
£16.65
92   OBSOLETE COAL NO 1
Glowworm part no. 203766

93   OBSOLETE COAL NO.2 (WADE REF260/44)
Glowworm part no. 203767

94   OBSOLETE COAL NO.3
Glowworm part no. 203768

95   OBSOLETE COAL NO.4
Glowworm part no. 203769

96   OBSOLETE COAL NO.5 (WADE REF260/47)
Glowworm part no. 203790

97   OBSOLETE COAL NO.6 (WADE REF260/48)
Glowworm part no. 203791

98   OBSOLETE COAL NO.7
Glowworm part no. 203792

99   OBSOLETE INSULATION-LH SIDE CHEEK NO.1
Glowworm part no. 210136

100   OBSOLETE INSULATION-RH SIDE CHEEK NO.1
Glowworm part no. 210138

101   OBSOLETE INSULATION-LH SIDE CHEEK NO.2
Glowworm part no. 210137

102   OBSOLETE INSULATION-RH SIDE CHEEK NO.2
Glowworm part no. 210139

103   NOW USE S210140 INSULATION-REAR CHEEK
Glowworm part no. 210140

103   INSULATION-REAR CHEEK
Glowworm part no. S210140
£36.87
104   OBSOLETE FUEL GRID LH
Glowworm part no. 203761

105 Part number 203780, NOW USE S203780 FUEL GRID RH NOW USE S203780 FUEL GRID RH
Glowworm part no. 203780

105 Part number S203780, FUEL GRID RH FUEL GRID RH
Glowworm part no. S203780

109   OBSOLETE FLUE SPIGOT ASSY(SW) HGW
Glowworm part no. 432599

110 Part number 208238, NOW USE S208238 SCREW-M5X8MM MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238

110 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238
£6.61
111   OBSOLETE AIR GUIDE ASSY(SW) HGW/2
Glowworm part no. 452627

112   OBSOLETE CASE SECURING BRKT-SPARE-HG
Glowworm part no. 2000800106

113   OBSOLETE COMB CHAMBER-SPARE-H/GLOW FIRE
Glowworm part no. 2000800101

114   OBSOLETE H/EXCH CANOPY-SPARE-HOMEGLOW
Glowworm part no. 800091

115   OBSOLETE FRONT LEG ASSEMBLY-RH
Glowworm part no. 423052

116   OBSOLETE TERMINAL BOX BASE(NPF) FL
Glowworm part no. 424049

117   OBSOLETE TERMINAL BOX TOP (PCF) FL
Glowworm part no. 424050

118   OBSOLETE OVEN LAMP-25W-300CPHILIPS SES14
Glowworm part no. 202056

119   OBSOLETE LAMP HOLDR-LA01
Glowworm part no. 202057

120   OBSOLETE STRAIN RELIEF GLAND
Glowworm part no. 204241

121   GROMMET
Glowworm part no. SFF2285

122   NOW USE S50754002 SCREW-NO.6X1/4 REC BZP
Glowworm part no. 50754002

122   SCREW - NO.6X1/4
Glowworm part no. S50754002

123   OBSOLETE SCREW-M3X20MM MS PN REC ZP
Glowworm part no. K6675

124   OBSOLETE TERMINAL BLOCK-3 WAY-732 PF3/3
Glowworm part no. SK8541

125   SCREW - M4X10MM
Glowworm part no. SK6359

126   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362

127   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363

128   OBSOLETE LIGHT SWITCH-SW04
Glowworm part no. 202068

129   OBSOLETE WIRING HARNESS-HOMEGLOW
Glowworm part no. 432514

130   OBSOLETE NUT-SPIRE CAPT NO6
Glowworm part no. 51173003

137   OBSOLETE PRESSURE TEST SCREW+O RING ASS
Glowworm part no. 203620
