GLOWWORM
HIDEAWAY 120CF 1985 AVA - (Casing)
Appliance Code: 41-313-29

Appliance Diagram

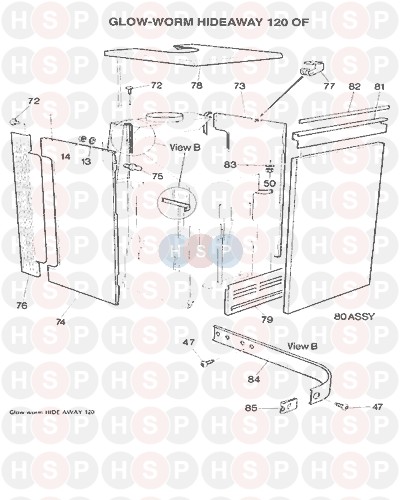

Casing diagram for Glowworm Hideaway 120CF 1985 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BOILER SUB ASSY HA120CF
Glowworm part no. 2000800762
2 Part number 411402, NOW USE S411402 SCREW-M6X10MM MS PN REC BZP NOW USE S411402 SCREW-M6X10MM MS PN REC BZP
Glowworm part no. 411402
2 Part number S411402, Screw - M6X10mm SCREW - M6X10MM
Glowworm part no. S411402
6   INSUL-6MM C/C SIDE
Glowworm part no. 210058
6   INSULATION-6MM-COMBUSTION CHAMBER SIDE
Glowworm part no. S210058
7   SCREW -M5
Glowworm part no. SK8209
11   OBSOLETE SCREW-NO.12 X 1/2 REC
Glowworm part no. 208350
12   OBSOLETE SCREW-M5X16MM MS HX HD ZP
Glowworm part no. SK6533
13 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
14 Part number SK6219, Nut NUT
Glowworm part no. SK6219
15 Part number 403215, NOW USE S403215 NUT-WING M5 ZP NOW USE S403215 NUT-WING M5 ZP
Glowworm part no. 403215
15 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215
17   G/FIBRE ROPE-10X1462MM LOOP
Glowworm part no. 212024
17   G/FIBRE ROPE-10X1462MM LOOP
Glowworm part no. S212024
21   PLUG -1 BSP TAPER - RECESSED
Glowworm part no. SK1092		 £5.15
22   OBSOLETE DIP TUBE ASSY
Glowworm part no. 442068
23   OBSOLETE PLUG-1/2 RECESSED
Glowworm part no. SK166
24 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
24 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
24 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
25   OBSOLETE BASE PROT.TRAY ASSY(SW) HA02C
Glowworm part no. 425550
26   NUT
Glowworm part no. SK6516
27 Part number 203414, PILOT BRACKET PBRNR PILOT BRACKET PBRNR
Glowworm part no. 203414
27 Part number S203414, Bracket - Pilot BRACKET - PILOT
Glowworm part no. S203414
28 Part number 202605, NOW USE S202605 ELECTRODE NOW USE S202605 ELECTRODE
Glowworm part no. 202605
28 Part number S202605, ELECTRODE ELECTRODE
Glowworm part no. S202605		 £20.30
29 Part number 900001, NOW USE S900001 THERMOCOUPLE-ALTERNATIVES NOW USE S900001 THERMOCOUPLE-ALTERNATIVES
Glowworm part no. 900001
29 Part number S900001, Thermocouple THERMOCOUPLE
Glowworm part no. S900001		 £27.04
30 Part number 203508, PLT INJTR-0.27MM-SIT 0.977.113 PLT INJTR-0.27MM-SIT 0.977.113
Glowworm part no. 203508
30 Part number S203508, Injector, pilot INJECTOR, PILOT
Glowworm part no. S203508		 £15.68
31   OBSOLETE PIPE - PILOT
Glowworm part no. 2000800003
32   NOW USE S202606 ELECTRODE RETAINING NUT
Glowworm part no. 202606
32   ELECTRODE RETAINING NUT
Glowworm part no. S202606		 £4.91
33 Part number SWW4609, Ignition lead IGNITION LEAD
Glowworm part no. SWW4609
34 Part number 208093, NOW USE S208093 GASKET-SIGHT GLASS NOW USE S208093 GASKET-SIGHT GLASS
Glowworm part no. 208093
34 Part number S208093, GASKET-SIGHT GLASS GASKET-SIGHT GLASS
Glowworm part no. S208093		 £6.61
35 Part number 208302, NOW USE S208302 SIGHT GLASS NOW USE S208302 SIGHT GLASS
Glowworm part no. 208302
35 Part number S208302, SIGHT GLASS SIGHT GLASS
Glowworm part no. S208302		 £6.61
36   OBSOLETE SIGHT GLASS COV(PC) CV/HABCBBU
Glowworm part no. 424508
37   OBSOLETE CTRL BOX ASSY-HA70>120B&C
Glowworm part no. 424659
38   OBSOLETE CONT.BOX SUPP.BRKT(NPF)HA802BC
Glowworm part no. 424844
39   SCREW - M4X10MM
Glowworm part no. SK6359
40   OBSOLETE PLUG & CABLE ASSY
Glowworm part no. 424860
40   OBSOLETE PLUG + CABLE
Glowworm part no. S424860
41   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
41   BUSH RELIEF
Glowworm part no. S204226
42   NOW USE S202511 TSTAT-RANCO CL6 P0129-000
Glowworm part no. 202511
42 Part number S202511, Thermostat THERMOSTAT
Glowworm part no. S202511		 £139.08
43 Part number 202019, OBSOLETE SOCKET-ELKAY 6603-2 OBSOLETE SOCKET-ELKAY 6603-2
Glowworm part no. 202019
43 Part number S202019, OBSOLETE Electrical Socket OBSOLETE ELECTRICAL SOCKET
Glowworm part no. S202019
44 Part number 202018, PLUG-ELKAY 6603-1 PLUG-ELKAY 6603-1
Glowworm part no. 202018
44 Part number S202018, Electrical Plug ELECTRICAL PLUG
Glowworm part no. S202018
45 Part number 900501, NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE
Glowworm part no. 900501
45 Part number S900501, Piezo generator PIEZO GENERATOR
Glowworm part no. S900501
46   OBSOLETE NUT-SPIRE CAPT NO8
Glowworm part no. 208303
47 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
48   OBSOLETE SCREW-M4X16MM MS PN REC ZP
Glowworm part no. SK6213
49 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
50 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
51   OBSOLETE CONTROL BOX DOOR (NPF) HA802BC
Glowworm part no. 424661
52   CONTROL KNOB/CLIP
Glowworm part no. FF2228
53 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
53 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
54   SCREW (M5X12MM)
Glowworm part no. SK9419
55   OBSOLETE GAS VALVE ELBOW-ALTERNATIVES
Glowworm part no. 900400
55   OBSOLETE ELBOW - GAS VALVE
Glowworm part no. S900400
56 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
56 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
57 Part number 2000800001, Gas section GAS SECTION
Glowworm part no. 2000800001		 £107.59
58   NOW USE S212031 O RING-33MM ID X 2MM SECT
Glowworm part no. 212031
58   O RING -33MM ID X 2MM SECT
Glowworm part no. S212031
59   OBSOLETE MAN.ASSY-PNTD(203125) HA90-120
Glowworm part no. 442023
60   OBSOLETE GAS MANIFOLD BRKT (F) HA8C02BC
Glowworm part no. 424864
61 Part number 203248, BURNER ASSY-AC07/052017 BURNER ASSY-AC07/052017
Glowworm part no. 203248
61 Part number S203248, Burner BURNER
Glowworm part no. S203248
62   OBSOLETE INJECTOR-3.9MM HOLE
Glowworm part no. 203051
63   OBSOLETE AIR BOX COVER (PCF) HA6802C
Glowworm part no. 424786
64 Part number 208309, NOW USE S208309 PAPER FASTENER-TUCKER 063BS3 NOW USE S208309 PAPER FASTENER-TUCKER 063BS3
Glowworm part no. 208309
64 Part number S208309, Paper fastener PAPER FASTENER
Glowworm part no. S208309		 £4.91
65   OBSOLETE BURNER STRAP (P) HA02C
Glowworm part no. 425515
66   OBSOLETE COMBUSTION CHAMBER DOOR
Glowworm part no. 2000800121
67   NOW USE S212026 G/FIBRE ROPE-10DIAX659MM LG
Glowworm part no. 212026
67   G/FIBRE ROPE-10DIAX659MM LG
Glowworm part no. S212026		 £6.84
68 Part number 208294, NOW USE S208294 SCREW-M5X14MM+5DG MS PN NOW USE S208294 SCREW-M5X14MM+5DG MS PN
Glowworm part no. 208294
68 Part number S208294, Screw ( M5X14mm ) SCREW ( M5X14MM )
Glowworm part no. S208294		 £6.61
69   OBSOLETE LINTING BOX ASSY(SW) HA02C
Glowworm part no. 425538
69   OBSOLETE LINTING BOX ASSY(SW) HA02C
Glowworm part no. S425538
70   OBSOLETE LINTING BOX BRKT (PCF) HAC
Glowworm part no. 424782
71   NUT -SPIRE CAPT NO6
Glowworm part no. SK8270
73   OBSOLETE SIDE PANEL ASSY RH
Glowworm part no. 424561
74   OBSOLETE SIDE PANEL ASSY LH
Glowworm part no. 424567
75 Part number 208368, DOOR STUD-FOREST SBV 38471406 DOOR STUD-FOREST SBV 38471406
Glowworm part no. 208368
75   OBSOLETE SIDE PANEL ASSY RH
Glowworm part no. S424561
75 Part number S208368, Door stud DOOR STUD
Glowworm part no. S208368
76 Part number 424530, OBSOLETE LOUVRE-PNTD HABC OBSOLETE LOUVRE-PNTD HABC
Glowworm part no. 424530
77   CLIP - EDGE CABLE
Glowworm part no. SK6899
78   OBSOLETE TOP PANEL ASSY-PNTD HA02C
Glowworm part no. 425561
78   OBSOLETE TOP PANEL ASSY-PNTD HA02C
Glowworm part no. S425561
79   OBSOLETE PLINTH FASCIA-PNTD-PH HA02BC
Glowworm part no. S424772
79   OBSOLETE PLINTH FASCIA-PNTD-PH HA02BC
Glowworm part no. 424772
80   OBSOLETE FRONT PANEL ASSY
Glowworm part no. 424819
81   OBSOLETE DOOR FASCIA
Glowworm part no. 205108
82   OBSOLETE EXTRUSION-DOOR TRIM
Glowworm part no. 209057
83   WASHER
Glowworm part no. SK6297
84   OBSOLETE CASING BRACKET (FORM) HABC
Glowworm part no. 424525
85   NUT - SPIRE CAPT NO8
Glowworm part no. SK9327		 £4.91
86   OBSOLETE SLEEVING-200MM LG
Glowworm part no. SWW1003
120   OBSOLETE SAFETY DEVICE
Glowworm part no. 2000800723
121   OBSOLETE KNURLED NUT
Glowworm part no. 208414
122   LEAD
Glowworm part no. SWX5100		 £9.63
123   OBSOLETE SCREW-M4 X 12MM REC PNSSM
Glowworm part no. 403170
123   OBSOLETE SCREW-M4 X 12MM REC PNSSM
Glowworm part no. S403170
124   OBSOLETE SCREW-M5 X 12MM HX HD ST/STEEL
Glowworm part no. 208528
125   OBSOLETE NUT-M4 HEX FULL SS
Glowworm part no. 208664
126   OBSOLETE NUT-M5 HEX FULL SS
Glowworm part no. 208667
127   INTERRUPTER
Glowworm part no. 202422
127 Part number S202422, INTERRUPTER INTERRUPTER
Glowworm part no. S202422
