GLOWWORM
HIDEAWAY 100B FF - (Electrical)
Appliance Code: 41-047-36

Appliance Diagram


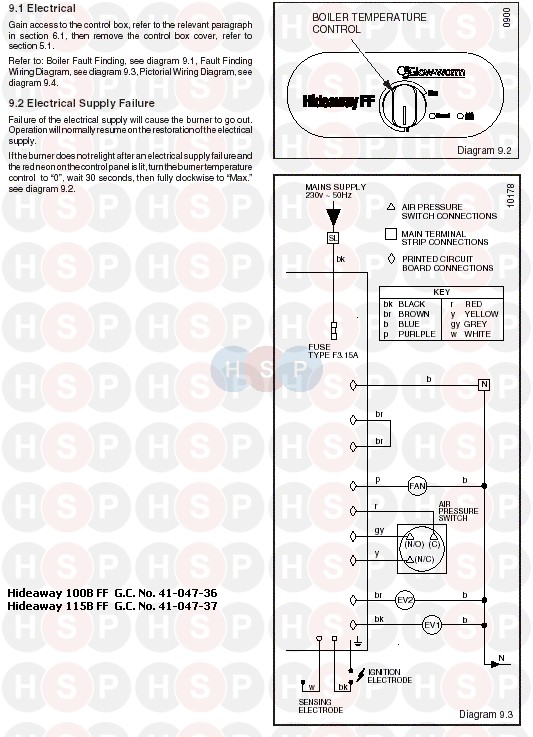

Electrical diagram for Glowworm Hideaway 100B FFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   BOILER SUB-ASSEMBLY
Glowworm part no. 801794
2   INSULATION-COMBUSTION CHAMBER REAR
Glowworm part no. 801791
3   P CLIP
Glowworm part no. 801610
3   P CLIP
Glowworm part no. 2000801610
4   MANIFOLD - GAS
Glowworm part no. 801792
5   INJECTOR
Glowworm part no. 801793
5 Part number 202635, NOW USE S202635 ELECTRODE MICRON30-60FF NOW USE S202635 ELECTRODE MICRON30-60FF
Glowworm part no. 202635
5 Part number S202635, Electrode ELECTRODE
Glowworm part no. S202635		 £7.10
6   BURNER
Glowworm part no. 801796
7   BURNER SUPPORT BRACKET
Glowworm part no. 801588
7   BRACKET - BURNER SUPPORT
Glowworm part no. 2000801588
9 Part number SK7959, Screw, M3x6mm SCREW, M3X6MM
Glowworm part no. SK7959		 £6.61
10   GROMMET 3MM X 22MM
Glowworm part no. S205912
11   SCREW (M5X12MM)
Glowworm part no. SK9419
12 Part number SK6219, Nut NUT
Glowworm part no. SK6219
13 Part number S203604, Gas cock GAS COCK
Glowworm part no. S203604
14 Part number S208040, O ring O RING
Glowworm part no. S208040		 £6.61
15 Part number 801797, Gas section GAS SECTION
Glowworm part no. 801797
16   ELBOW - GAS VALVE
Glowworm part no. S900816
17   OBSOLETE C/CHAMB DOOR-SPARE-HA90100120B
Glowworm part no. 800120
18 Part number S212025, G/FIBRE ROPE-10X1138MM LOOP G/FIBRE ROPE-10X1138MM LOOP
Glowworm part no. S212025
19 Part number S12780, Screw M4x12mm SCREW M4X12MM
Glowworm part no. S12780		 £6.61
20   SCREW -M4 X 30MM
Glowworm part no. S213011
21 Part number 208294, NOW USE S208294 SCREW-M5X14MM+5DG MS PN NOW USE S208294 SCREW-M5X14MM+5DG MS PN
Glowworm part no. 208294
21 Part number S208294, Screw ( M5X14mm ) SCREW ( M5X14MM )
Glowworm part no. S208294		 £6.61
22   CONTROL BOX LID
Glowworm part no. 801756
23   CONTROL BOX CHASSIS
Glowworm part no. 801757
24 Part number 801990, NOW USE 2000801990 PCB - NTPO - MICRON 30-50 NOW USE 2000801990 PCB - NTPO - MICRON 30-50
Glowworm part no. 801990
24 Part number 2000801990, PCB - NTPO PCB - NTPO
Glowworm part no. 2000801990		 £224.44
25 Part number 801758, Control knob CONTROL KNOB
Glowworm part no. 801758		 £13.57
26   TERMINAL BOX BRACKET
Glowworm part no. 801759
27   BUSH RELIEF
Glowworm part no. S204228
28   STRAIN RELIEF BRACKET
Glowworm part no. 801760
29   PCB POST
Glowworm part no. 801761		 £4.91
30   CONTROL BOX HINGE SUPPORT
Glowworm part no. 801752
31   FLUE HOOD ASSY 100FF
Glowworm part no. 801805
31   FLUE HOOD
Glowworm part no. 2000801805
32   SEALING STRIP-FLUE HOOD SIDE
Glowworm part no. 2000801605
32   SEALING STRIP-FLUE HOOD SIDE
Glowworm part no. 801605
33   SEALING STRIP - FRONT/ REAR
Glowworm part no. 802015
33   SEALING STRIP - FRONT/ REAR
Glowworm part no. 2000802015
34 Part number 2000802047, Air press switch AIR PRESS SWITCH
Glowworm part no. 2000802047
34 Part number 802047, AIR PRESS. SWITCH C4065FH1115 AIR PRESS. SWITCH C4065FH1115
Glowworm part no. 802047
35 Part number S208661, Screw - M4X8mm SCREW - M4X8MM
Glowworm part no. S208661
36   OBSOLETE H/E SIDE BAFFLE
Glowworm part no. 801607
36   OBSOLETE H/E SIDE BAFFLE
Glowworm part no. 2000801607
37   BOILER ACCESS DOOR
Glowworm part no. 2000801806
37   BOILER ACCESS DOOR
Glowworm part no. 801806
38   SEALING STRIP-SIDES
Glowworm part no. 2000801601
38   SEALING STRIP-SIDES
Glowworm part no. 801601
39   SEALING STRIP - FRONT/BACK
Glowworm part no. 2000801808
39   SEALING STRIP - FRONT/BACK
Glowworm part no. 801808
40   SEALING STRIP - CORNER
Glowworm part no. 801604
40   SEALING STRIP - CORNER
Glowworm part no. 2000801604
41 Part number 801769, Fan FAN
Glowworm part no. 801769
42   REAR OUTLET FLUE CONNECTOR
Glowworm part no. 801697
43   OBSOLETE SIDE PANEL RH
Glowworm part no. 801608
44   SIDE PANEL LEFT HAND
Glowworm part no. 2000801611
44   SIDE PANEL LH
Glowworm part no. 801611
45   OBSOLETE SIDE PANEL EXTENSION
Glowworm part no. 801612
46   OBSOLETE TOP PANEL - PNTD
Glowworm part no. 801800
47   OBSOLETE FRONT PANEL ASSEMBLY
Glowworm part no. 2000801801
47   OBSOLETE FRONT PANEL ASSEMBLY
Glowworm part no. 801801
48   CORD GRIP
Glowworm part no. S204239
49 Part number S204259, Bush-cord grip BUSH-CORD GRIP
Glowworm part no. S204259
50   SILICONE TUBE -300MM
Glowworm part no. S208589
51   SILICONE TUBE-320MM RED
Glowworm part no. S208605
52 Part number S230335, Silicone tube -430mm red SILICONE TUBE -430MM RED
Glowworm part no. S230335
53 Part number S205926, GAS SAMPLING POINT GAS SAMPLING POINT
Glowworm part no. S205926		 £6.61
54 Part number S213057, Push on fix fastener PUSH ON FIX FASTENER
Glowworm part no. S213057
55 Part number S212128, Washer sealing 15X7X2mm WASHER SEALING 15X7X2MM
Glowworm part no. S212128
56 Part number S205897, End tip END TIP
Glowworm part no. S205897
57 Part number 801788, THERMISTOR THERMISTOR
Glowworm part no. 801788
58   STAND OFF HARNESS CLIP
Glowworm part no. 801754
59   SCREW M5 X 25
Glowworm part no. S208554
60 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
62   HEAT SHIELD
Glowworm part no. 801799
63   SCREW - GAS VALVE
Glowworm part no. S203356
64 Part number S12993, Screw ( no.8 X 1/2 ) SCREW ( NO.8 X 1/2 )
Glowworm part no. S12993		 £6.61
65   CAPTIVE NUT NO.8
Glowworm part no. S226047
66   F/PANEL SECURING BRACKET - PTD
Glowworm part no. 801802
66   FRONT PANEL SECURING BRACKET
Glowworm part no. 2000801802
67   COMB. CHAMB SIDE BAFFLE
Glowworm part no. 801820
67   COMB. CHAMB SIDE BAFFLE
Glowworm part no. 2000801820
68   INSULATION-6MM-COMBUSTION CHAMBER SIDE
Glowworm part no. S210058
69   SCREW -M5
Glowworm part no. SK8209
70   HARNESS - GAS VALVE
Glowworm part no. 802016
71   NOW USE 2000801822 FAN/APS HARNESS
Glowworm part no. 801822
71   HARNESS - FAN / AIR PRESSURE SWITCH
Glowworm part no. 2000801822
72   IGNITION LEAD
Glowworm part no. SWX5506
73   EARTH LEAD
Glowworm part no. SWY0101
74   MAINS HARNESS
Glowworm part no. 801823
74   MAINS HARNESS
Glowworm part no. 2000801823
75   OBSOLETE OVERHEAT LINK
Glowworm part no. 801824
76 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112
77   LOCKNUT
Glowworm part no. S204240
78   LOCKNUT
Glowworm part no. S204260
79   H/E BAFFLE ASSEMBLY - CENTRE
Glowworm part no. 801782
80   FAN SEALING O RING
Glowworm part no. 801592
80   O RING - FAN SEALING
Glowworm part no. 2000801592
81 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
83   EDGE CLIP
Glowworm part no. 801609
84 Part number S208368, Door stud DOOR STUD
Glowworm part no. S208368
85 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215
991   OBSOLETE FRONT/TOP PANELS PACK
Glowworm part no. 801807
991   OBSOLETE FRONT/TOP PANELS PACK
Glowworm part no. 2000801807
997   OBSOLETE DIPTUBE ASSYHA100-120/100-120B
Glowworm part no. S442104
998   CONTROL BOX ASSY
Glowworm part no. 801804
998   CONTROL BOX
Glowworm part no. 2000801804
999   OBSOLETE FITTINGS KIT - HA 100 - 115BFF
Glowworm part no. 2000801803
999   OBSOLETE FITTINGS KIT - HA 100 - 115BFF
Glowworm part no. 801803
