GLOWWORM
GW 52 CF SUPER 1976 AVA - (Burner)
Appliance Code: 41-315-47

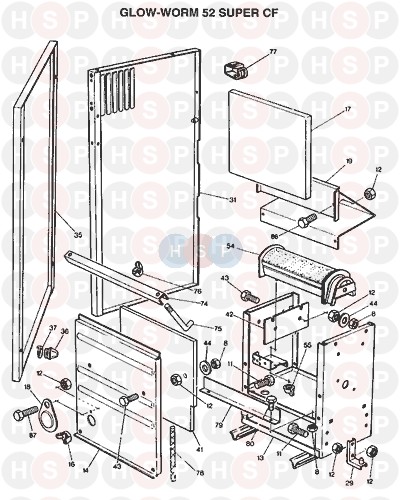

Appliance Diagram


Burner diagram for Glowworm GW 52 CF Super 1976 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE H/E-SS52C GW52CSUP(M/C)
Glowworm part no. 79/512

2   OBSOLETE H/E ASSY GW52C/SS52C-PNTD
Glowworm part no. SM10338

3   OBSOLETE MFLD-LH-GW SUPER CF&SS S(M/C)
Glowworm part no. 79/503

4   OBSOLETE MFLD-RH-GW SUPER CF&SS S M/C
Glowworm part no. 79/504

5   OBSOLETE SCREW-5/16BSWX1 8.8 ZP
Glowworm part no. SK5421

8 Part number SK6219, Nut NUT
Glowworm part no. SK6219

9 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262

11   OBSOLETE SCREW-M6X16MM HX HD BZP
Glowworm part no. SK6471

12   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069

13   OBSOLETE C/C S/ASSY (SW) GW5CS
Glowworm part no. M7234

14   OBSOLETE FRT INSUL PANL(SW)GW5CS 84/266
Glowworm part no. M7178

16   OBSOLETE NUT-WING DOTLOC-M6
Glowworm part no. SK6302

17   OBSOLETE INSUL-6MM REAR TRAY
Glowworm part no. SK5227

17   OBSOLETE INSUL TRAY(4XB) SGW5CS
Glowworm part no. SM6122

18   OBSOLETE SIGHTING DOOR(B/O) ALLCS
Glowworm part no. M4541

19   OBSOLETE RR FLR PRT TRAY(SW) GW5CS
Glowworm part no. M7179

20   OBSOLETE CONTROL BOX BRACKET ASSY
Glowworm part no. M7180

21   OBSOLETE FLUE COLLECTOR ASSEMBLY
Glowworm part no. M10317

22   OBSOLETE SCREW-M6X25MM HX HD ZP
Glowworm part no. SK6291

23   OBSOLETE FLUE COLL SKIRT(PSF)GW5CS
Glowworm part no. M7182

24   OBSOLETE SCREW-M5 X 12MM
Glowworm part no. SK6288

25   OBSOLETE FLUE CLNG DR ASY(SW)GW5CS
Glowworm part no. M7183

26   OBSOLETE SCREW-M6 X 35MM
Glowworm part no. SK6672

28   OBSOLETE UPPER CASG BRKT(PF) ALLGW
Glowworm part no. SM6545

29   OBSOLETE CSG BRKT (PF)GW ALLR
Glowworm part no. SM8708

30 Part number SK6469, Washer WASHER
Glowworm part no. SK6469

31   OBSOLETE LHS PANEL ASSY------PH(I)
Glowworm part no. M8870

32   OBSOLETE RHS PANEL ASSY------PH(I)
Glowworm part no. M8871

33 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330

34   OBSOLETE TOP PANEL ASSY-WH GW5CS
Glowworm part no. M7184

36   OBSOLETE STUD-PANEL FASTENER
Glowworm part no. SK4593

37   OBSOLETE CLIP-PANEL FASTENER
Glowworm part no. SK4594

38   OBSOLETE PHIAL POCKET C/W SPLIT PIN
Glowworm part no. 800200

38 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390

38 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390

39   OBSOLETE GASKET-1/16 AF2000 H/EXCH
Glowworm part no. SK5225

40   OBSOLETE PLUG-1/2 RECESSED
Glowworm part no. SK166

42   OBSOLETE INSUL-6MM C/C SIDE QC
Glowworm part no. SK5228

43   OBSOLETE SCREW-M5X16MM MS HX HD ZP
Glowworm part no. SK6533

44   WASHER
Glowworm part no. SK6297

45   OBSOLETE G/VALVE-1/2 BSP
Glowworm part no. SK9049

48   INJECTOR
Glowworm part no. SK7218

51   OBSOLETE UNION-1/2 BSP F/F
Glowworm part no. SK1850

52 Part number 900313, OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE
Glowworm part no. 900313

52 Part number S900313, OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE
Glowworm part no. S900313

53 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884
£6.52
53   SCREW
Glowworm part no. S78129

53 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621

53   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129

54   OBSOLETE BURNER-7/51949 BRNRS
Glowworm part no. K7176

55   OBSOLETE NUT-WING M6 BRASS
Glowworm part no. SK6303

57   OBSOLETE PILOT BURNER-SINGLE PBRNR
Glowworm part no. SK7214

58   OBSOLETE SCREW-M5 X 10MM SLT
Glowworm part no. SK6287

59   NUT
Glowworm part no. SK6516

60   OBSOLETE THERMOCOUPLE-24 QC
Glowworm part no. SK4860

61 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580
£6.61
62   OBSOLETE PILOT TUBE-SPARE-GW SUPER CF
Glowworm part no. 800041

63   OBSOLETE CONTROLS ASSEMBLY
Glowworm part no. M10284

64   OBSOLETE TSTAT-RANCO C77 P0100-000 P/N SK5426
Glowworm part no. SK5426

64   OBSOLETE TSTAT-RANCO C77 P0108-000
Glowworm part no. SFF2127

65   OBSOLETE KNOB ASSY-K4226DISC
Glowworm part no. SM5616

66 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095

66 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095

67 Part number SK8968, Transformer 240/24V TRANSFORMER 240/24V
Glowworm part no. SK8968

69   SCREW - M4X10MM
Glowworm part no. SK6359

70 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218
£6.61
71   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558

72 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361

73   OBSOLETE FUSE-INLINE 0.5A 151-538
Glowworm part no. SK4644

74   OBSOLETE SECURING CHNL(PF) SGW5CS
Glowworm part no. SM6162

75   OBSOLETE BOLT-HOOK 3/16 BSW
Glowworm part no. SK6153

76   OBSOLETE NUT-WING DOTLC 3/16
Glowworm part no. SK4044

77   CLIP - EDGE CABLE
Glowworm part no. SK6899

78   OBSOLETE SEAL-20DIAX185MM LONG
Glowworm part no. SK7215

79   OBSOLETE C/C BAFFLE (1XB) GW5CS
Glowworm part no. M7233

80   OBSOLETE SCREW-M5X10MM MS HX HD ZP
Glowworm part no. SK6475

84   OBSOLETE MANIFOLD-BURNER-HRBL
Glowworm part no. M10591

85   OBSOLETE FLUE BAFFLE (F) GW5CS
Glowworm part no. M9799

86   OBSOLETE SCREW-M6 X 12MM
Glowworm part no. SK6290

87   OBSOLETE SCREW-M6 X 20MM
Glowworm part no. SK6217

88   SHAKE PROOF WASHER (M6)
Glowworm part no. SK7315
£4.29
89 Part number SK6296, Washer WASHER
Glowworm part no. SK6296
