GW 52 BF SUPER 1976 AVA - (Boiler Assembly)
Appliance Code: 41-315-48

Appliance Diagram

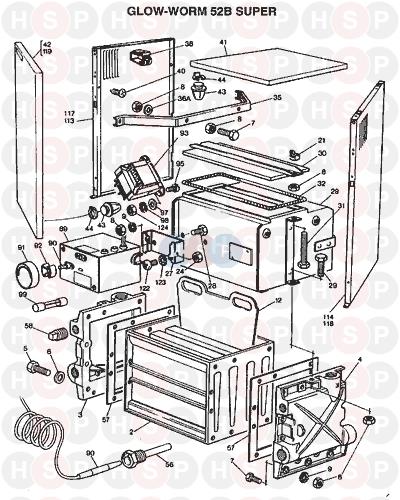

Boiler Assembly diagram for Glowworm GW 52 BF Super 1976 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE H/E ASSY-PNTD GW52BSUP
Glowworm part no. M10304
2   OBSOLETE H/E GW52BSUP(M/C)
Glowworm part no. 84/233
3   OBSOLETE MANIF-LH-GW SUPER BF(M/C)
Glowworm part no. 84/11
4   OBSOLETE MANIF-RH-GW SUPER BF(M/C)
Glowworm part no. 84/12
5   OBSOLETE SCREW-M8 X 25MM 8.8
Glowworm part no. SK6295
6   OBSOLETE WASHER-M8 FORM B MS PLAIN BZP
Glowworm part no. SK6299
7   OBSOLETE SCREW-M6X16MM HX HD BZP
Glowworm part no. SK6471
8   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069
9   SHAKE PROOF WASHER (M6)
Glowworm part no. SK7315		 £4.29
12   OBSOLETE FLUE BAFF-GW52/80B (FET)
Glowworm part no. 63/65
13   OBSOLETE C/CHAMB SUB-ASSY(SW2)GW5B
Glowworm part no. M7298
14   OBSOLETE SEALING PLATE(BF) ALGWB 84/118
Glowworm part no. SM6597
15   OBSOLETE SCREW-M5X16MM MS HX HD ZP
Glowworm part no. SK6533
16   NUT
Glowworm part no. SK6516
17   OBSOLETE PILOT SHIELD(BPF)GW5B 84/283
Glowworm part no. M7203
18   OBSOLETE SCREW-M5 X 12MM
Glowworm part no. SK6288
19   OBSOLETE C/C FRT COVER ASY(SW)GW5B
Glowworm part no. M7204
20   OBSOLETE SCREW-M6 X 30MM
Glowworm part no. SK6293
21   OBSOLETE NUT-WING DOTLOC-M6
Glowworm part no. SK6302
23   OBSOLETE SIGHT FRAME(BF) GW-BBU 84/2
Glowworm part no. SM6379
24 Part number SK6219, Nut NUT
Glowworm part no. SK6219
25   OBSOLETE NUT-WING DOTLOC-M5
Glowworm part no. SK6301
26   OBSOLETE C/C BAFF S/ASSY(SW) GW5BS
Glowworm part no. M7205
27   OBSOLETE CONTROL BOX BRACKET ASSY
Glowworm part no. M7180
28   OBSOLETE SCREW-M6 X 12MM
Glowworm part no. SK6290
29   OBSOLETE SCREW-M6X25MM HX HD ZP
Glowworm part no. SK6291
30   OBSOLETE FLUE CLNG DR ASY(SW)GW5CS
Glowworm part no. M7183
31   OBSOLETE SCREW-M6X45MM HX HD ZP
Glowworm part no. SK6472
33   OBSOLETE PRIMARY AIR DUCT ASSY
Glowworm part no. M10289
34   OBSOLETE PAD SEC BAND(PF) GW5-6B
Glowworm part no. SM6602
35   OBSOLETE UPPER CASG BRKT(PF) ALLGW
Glowworm part no. SM6545
36   OBSOLETE CSG BRKT (PF)GW ALLR
Glowworm part no. SM8708
38   CLIP - EDGE CABLE
Glowworm part no. SK6899
40 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
41   OBSOLETE TOP PANEL-WH GW5BS
Glowworm part no. M7208
43   OBSOLETE STUD-PANEL FASTENER
Glowworm part no. SK4593
44   OBSOLETE CLIP-PANEL FASTENER
Glowworm part no. SK4594
46   OBSOLETE TERM FRAME ASSY(I) GW5-6B
Glowworm part no. SM6604
47   OBSOLETE SPARK GEN BKT(PCF) ALLGWB
Glowworm part no. SM7448
48   OBSOLETE OUTER WALL SLEEVE ASSY
Glowworm part no. SM6605
49   OBSOLETE B/F TERM-SS&GW60B/GW52B
Glowworm part no. M6659
50   OBSOLETE FLUE O/LET TERM(SW)GW5-6B
Glowworm part no. SM6607
51   OBSOLETE GUARD ASSY (BW) GW60B 84/129
Glowworm part no. SM6608
52   OBSOLETE TERM OUTR BAF(BUFF) 84/128 GW5
Glowworm part no. SM6609
53   OBSOLETE SPACER-FLUE BAFFLE 3/8 X44MM
Glowworm part no. SK8423
54   OBSOLETE TIE ROD SS56BGWBS6B QC
Glowworm part no. M9599
55   OBSOLETE NUT-DOME M6 CP
Glowworm part no. SK6593
56 Part number 409234, PHIAL POCKET KIT-SPARES PHIAL POCKET KIT-SPARES
Glowworm part no. 409234
56 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
58   OBSOLETE PLUG-1/2 RECESSED
Glowworm part no. SK166
59 Part number SK5226, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. SK5226
59 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
60   OBSOLETE GASKET-1.5MM SIGHT GLASS QC
Glowworm part no. SK9001
61   OBSOLETE SEAL-20DIAX629MM LOOP
Glowworm part no. SK6588
62   OBSOLETE SEAL-10DIAX746MM LOOP
Glowworm part no. SK6589
66   SCREW -M5
Glowworm part no. SK8209
68   OBSOLETE PIEZO GENERATOR SPARK QC
Glowworm part no. SK6587
69   OBSOLETE SCREW-M4X6MM MS HX HD BZP
Glowworm part no. SK7447
70   OBSOLETE IGNITION LEAD ASSY 350MM
Glowworm part no. SWW4610
71   OBSOLETE G/VALVE-1/2 BSP
Glowworm part no. SK9049
74   INJECTOR
Glowworm part no. SK7218
78   OBSOLETE UNION-1/2 BSP F/F
Glowworm part no. SK1850
79 Part number 900313, OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE
Glowworm part no. 900313
79 Part number S900313, OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE OBSOLETE GAS COCK-1/2 STRGT-ALTERNATIVE
Glowworm part no. S900313
80 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
80   SCREW
Glowworm part no. S78129
80   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
80 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
83   OBSOLETE PILOT BURNER-SINGLE PBRNR
Glowworm part no. SK7214
84   OBSOLETE SCREW-M5 X 10MM SLT
Glowworm part no. SK6287
85 Part number SK6296, Washer WASHER
Glowworm part no. SK6296
86   OBSOLETE THERMOCOUPLE-24 QC
Glowworm part no. SK4860
87 Part number SK3580, Clip - securing CLIP - SECURING
Glowworm part no. SK3580		 £6.61
88   OBSOLETE PILOT TUBE ASSY SPARE-GW345BS
Glowworm part no. 800067
90   OBSOLETE TSTAT-RANCO G1 11675-000
Glowworm part no. SK7090
91   OBSOLETE KNOB ASSY-K4226DISC
Glowworm part no. SM5616
92 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
92 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
93 Part number SK8968, Transformer 240/24V TRANSFORMER 240/24V
Glowworm part no. SK8968
95   SCREW - M4X10MM
Glowworm part no. SK6359
97   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
98 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
99   OBSOLETE FUSE-INLINE 0.5A 151-538
Glowworm part no. SK4644
103   OBSOLETE MANIFOLD-BURNER-HRBL
Glowworm part no. M10590
104   OBSOLETE PILOT BRACKET(SW) GW5BC
Glowworm part no. M7237
105   OBSOLETE SCREW-M5X10MM MS HX HD ZP
Glowworm part no. SK6475
108   OBSOLETE FLUE COLLECTOR DOOR 84/405
Glowworm part no. M8905
109   OBSOLETE SEC ANGLE-FLUE (1XB) SS5B
Glowworm part no. SM5235
111   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. 208375
111   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. S208375
113   OBSOLETE LHS PANEL ASSY------PH(I)
Glowworm part no. M8870
114   OBSOLETE RHS PANEL ASSY------PH(I)
Glowworm part no. M8871
115   OBSOLETE DOOR STRIKE-FASTEX
Glowworm part no. SK8631
116   OBSOLETE DOOR LATCH-FASTEX
Glowworm part no. SK8630
117   OBSOLETE SIDE PANEL LH UWS GW SUPER
Glowworm part no. M8908
121   OBSOLETE FLUE CLEANING ACCESS DOOR
Glowworm part no. M9791
122   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
123 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
124 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
125   OBSOLETE NUT-WING M6 BRASS
Glowworm part no. SK6303
127   OBSOLETE SCREW-M6 X 20MM
Glowworm part no. SK6217
128   OBSOLETE SCREW-M6 X 16MM+5DG
Glowworm part no. SK7937
129   OBSOLETE WING NUT
Glowworm part no. K4157
130   OBSOLETE WASHER-PLAIN 1/4 PWALI
Glowworm part no. SK8719
