GLOWWORM 35CI - (Hydraulics)
Appliance Code: 47-047-28

Appliance Diagram

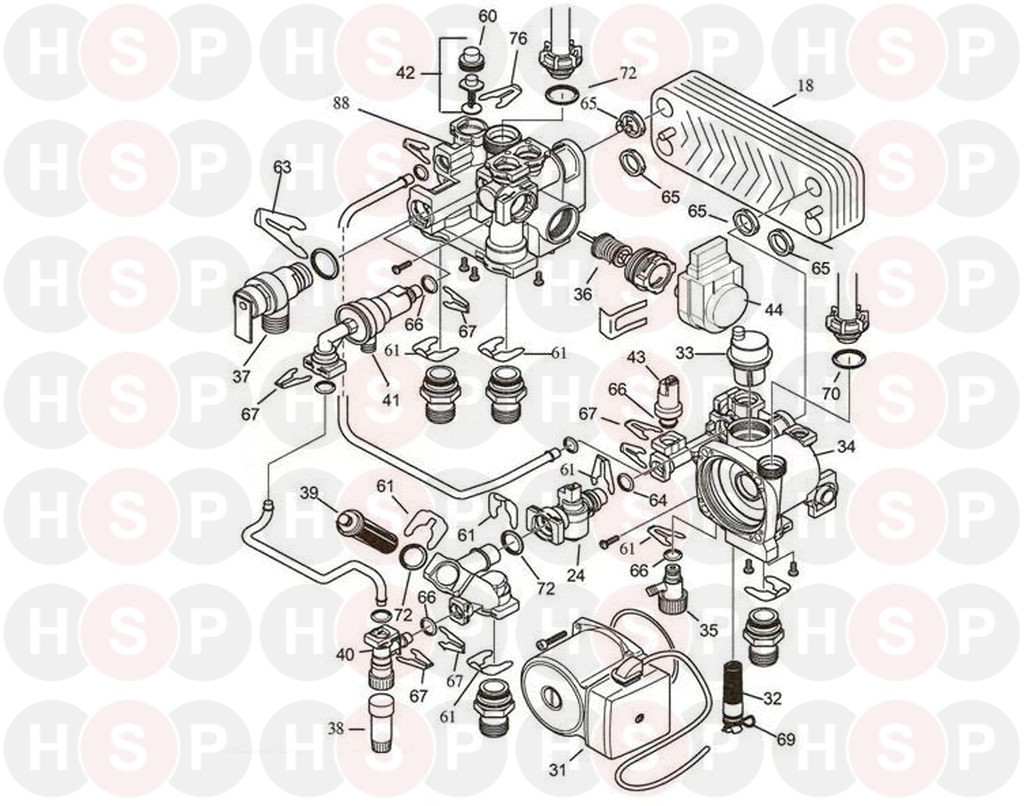

Hydraulics diagram for Glowworm Glowworm 35CIClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FRONT PANEL
Glowworm part no. 2000801849
2   NOW USE S1014300 SIDE PANEL
Glowworm part no. 2000801847
2 Part number S1014300, Side panel SIDE PANEL
Glowworm part no. S1014300
3   CONTROL PANEL
Glowworm part no. 2000801848		 £276.14
5 Part number 2000801874, NOW USE S1009200 retainer (string) control box (5 pieces) NOW USE S1009200 RETAINER (STRING) CONTROL BOX (5 PIECES)
Glowworm part no. 2000801874
5 Part number 801874, NOW USE S1009200 retainer (string) control box (5 piec NOW USE S1009200 RETAINER (STRING) CONTROL BOX (5 PIEC
Glowworm part no. 801874
5 Part number S1009200, Strap (PK5) STRAP (PK5)
Glowworm part no. S1009200		 £6.39
6   FLUE HOOD
Glowworm part no. 2000802469
7 Part number 2000801851, NOW USE S1011800 front panel combustion chamber NOW USE S1011800 FRONT PANEL COMBUSTION CHAMBER
Glowworm part no. 2000801851
7 Part number S1011800, Front panel FRONT PANEL
Glowworm part no. S1011800
8   HEAT EXCHANGER 35 KW
Glowworm part no. 2000802471
9   OBSOLETE COMBUSTION CHAMBER INSUL 35KW
Glowworm part no. 2000802472
10 Part number 2000802473, O-ring heat Ex / Pipe (PK10) O-RING HEAT EX / PIPE (PK10)
Glowworm part no. 2000802473		 £6.61
11 Part number 2000802474, NOW USE S1037900 CLIP HEAT EX / PIPE (X10) NOW USE S1037900 CLIP HEAT EX / PIPE (X10)
Glowworm part no. 2000802474
11 Part number S1037900, Clip, (PK10) CLIP, (PK10)
Glowworm part no. S1037900		 £7.05
12   MANIFOLD - GAS G20
Glowworm part no. 2000802476
12   OBSOLETE GAS MANIFOLD 18 INJ. G30
Glowworm part no. 2000802477
13 Part number 2000801854, Burner BURNER
Glowworm part no. 2000801854
13   NOW USE 2000801854 BURNER 17 BLADES
Glowworm part no. 2000802475
14 Part number 2000801891, NOW USE S1071400 GAS VALVE G20 NOW USE S1071400 GAS VALVE G20
Glowworm part no. 2000801891
14 Part number 2000801978, GAS VALVE G30 GAS VALVE G30
Glowworm part no. 2000801978
14 Part number 801978, NOW USE 2000801978 GAS VALVE G30 NOW USE 2000801978 GAS VALVE G30
Glowworm part no. 801978
14 Part number S1071400, Gas valve G20 GAS VALVE G20
Glowworm part no. S1071400		 £185.39
15 Part number 2000801893, NOW USE 0020160379 Sealing ring pipe/gas valve (PK50) NOW USE 0020160379 SEALING RING PIPE/GAS VALVE (PK50)
Glowworm part no. 2000801893
15 Part number 801893, NOW USE 0020160379 GASKET X 50 PIPE/GAS VALVE NOW USE 0020160379 GASKET X 50 PIPE/GAS VALVE
Glowworm part no. 801893
15   SEALING RING, PIPE/GAS VALVE, (X10)
Saunier Duval part no. 0020160379		 £4.54
16 Part number 2000801892, OBSOLETE stepping motor gas valve OBSOLETE STEPPING MOTOR GAS VALVE
Glowworm part no. 2000801892
16 Part number 2000801979, OBSOLETE MOTOR GAS VALVE G30 OBSOLETE MOTOR GAS VALVE G30
Glowworm part no. 2000801979
16 Part number 801892, OBSOLETE stepping motor gas valve OBSOLETE STEPPING MOTOR GAS VALVE
Glowworm part no. 801892
17 Part number 2000801859, Expansion vessel 8L EXPANSION VESSEL 8L
Glowworm part no. 2000801859		 £304.09
18 Part number 2000802484, NOW USE S1024800 heat exchanger DHW NOW USE S1024800 HEAT EXCHANGER DHW
Glowworm part no. 2000802484
18 Part number S1024800, Heat exchanger - DHW HEAT EXCHANGER - DHW
Glowworm part no. S1024800		 £163.03
19 Part number 2000802037, NOW USE S1072500 FAN WITH TACHYMETER 30KW NOW USE S1072500 FAN WITH TACHYMETER 30KW
Glowworm part no. 2000802037
19 Part number S1072500, FAN FAN
Glowworm part no. S1072500		 £216.23
20   AIR PRESSURE SWITCH
Glowworm part no. 2000802804
21 Part number 2000802038, NOW USE S1047000 PRINTED CIRCUIT BOARD NOW USE S1047000 PRINTED CIRCUIT BOARD
Glowworm part no. 2000802038
21 Part number S1047000, Printed circuit board PRINTED CIRCUIT BOARD
Glowworm part no. S1047000		 £221.33
22   NOW USE S1009300 CONTROL BOX TM3HR/24VR
Glowworm part no. 2000801924
22   NOW USE S1009300 CONTROL BOX TM3HR/24VR
Glowworm part no. 801924
22 Part number S1009300, Electric box ELECTRIC BOX
Glowworm part no. S1009300		 £16.63
23 Part number 2000801925, NOW USE S1009400 control box cover NOW USE S1009400 CONTROL BOX COVER
Glowworm part no. 2000801925
23 Part number S1009400, Cover COVER
Glowworm part no. S1009400		 £17.94
24 Part number 2000801910, NOW USE S5720200 Flow sensor, black with cable NOW USE S5720200 FLOW SENSOR, BLACK WITH CABLE
Glowworm part no. 2000801910
24 Part number S5720200, Flow sensor FLOW SENSOR
Glowworm part no. S5720200		 £41.07
25 Part number 801930, NOW USE S1010100 ON/OFF SWITCH NOW USE S1010100 ON/OFF SWITCH
Glowworm part no. 801930
25 Part number S1010100, Switch - On/Off SWITCH - ON/OFF
Glowworm part no. S1010100		 £22.72
26 Part number 2000801872, KNOB KNOB
Glowworm part no. 2000801872		 £24.80
26 Part number 801872, NOW USE 2000801872 KNOB NOW USE 2000801872 KNOB
Glowworm part no. 801872
27 Part number 2000801932, OBSOLETE fuse 125mA (set of 5) OBSOLETE FUSE 125MA (SET OF 5)
Glowworm part no. 2000801932
27 Part number S5408100, OBSOLETE Fuse 125mA (PK5) OBSOLETE FUSE 125MA (PK5)
Glowworm part no. S5408100
28 Part number 2000801887, SENSING FLAME ELECTRODE SENSING FLAME ELECTRODE
Glowworm part no. 2000801887
29 Part number 2000801888, Ignition Flame Electrode IGNITION FLAME ELECTRODE
Glowworm part no. 2000801888
29 Part number 801888, NOW USE 2000801888 IGNITION FLAME ELECTRODE NOW USE 2000801888 IGNITION FLAME ELECTRODE
Glowworm part no. 801888
30 Part number 0020061368, Hose expansion vessel HOSE EXPANSION VESSEL
Glowworm part no. 0020061368		 £11.78
30 Part number 2000801895, NOW USE 0020061368 Flexible Hose NOW USE 0020061368 FLEXIBLE HOSE
Glowworm part no. 2000801895
31 Part number 2000801857, Motor pump MOTOR PUMP
Glowworm part no. 2000801857
32 Part number 2000801897, Filter central heating FILTER CENTRAL HEATING
Glowworm part no. 2000801897		 £17.68
33 Part number S1005600, Automatic de-aerator AUTOMATIC DE-AERATOR
Glowworm part no. S1005600		 £31.28
34 Part number 2000801901, Pump housing PUMP HOUSING
Glowworm part no. 2000801901		 £192.02
35 Part number 2000801902, NOW USE S1006300 drain valve 24 VR NOW USE S1006300 DRAIN VALVE 24 VR
Glowworm part no. 2000801902
35 Part number S1006300, Tap drain piece TAP DRAIN PIECE
Glowworm part no. S1006300		 £22.64
36 Part number 2000801903, NOW USE S1006400 cartridge 3-way valve NOW USE S1006400 CARTRIDGE 3-WAY VALVE
Glowworm part no. 2000801903
36 Part number S1006400, 3 way valve cartridge 3 WAY VALVE CARTRIDGE
Glowworm part no. S1006400		 £78.71
37 Part number 0020014173, NOW USE 0020047005 pressure relief valve(3 bar) NOW USE 0020047005 PRESSURE RELIEF VALVE(3 BAR)
Glowworm part no. 0020014173
37 Part number 0020047005, Pressure relief valve, 3 bar PRESSURE RELIEF VALVE, 3 BAR
Glowworm part no. 0020047005		 £14.99
38 Part number 2000801905, NOW USE S1006800 FILLING VALVE EXT. TUBING NOW USE S1006800 FILLING VALVE EXT. TUBING
Glowworm part no. 2000801905
38 Part number S1006800, Handle extension adapter HANDLE EXTENSION ADAPTER
Glowworm part no. S1006800		 £6.39
39 Part number 2000801906, NOW USE S1006900 sanitary filter 24 VR NOW USE S1006900 SANITARY FILTER 24 VR
Glowworm part no. 2000801906
39 Part number S1006900, Filter d.h.w FILTER D.H.W
Glowworm part no. S1006900		 £6.62
40 Part number 2000801907, NOW USE S1007000 FILLING COCK NOW USE S1007000 FILLING COCK
Glowworm part no. 2000801907
40 Part number S1007000, Filling cock FILLING COCK
Glowworm part no. S1007000		 £11.11
41 Part number 2000802600, Filling loop FILLING LOOP
Glowworm part no. 2000802600		 £68.33
42 Part number 2000801909, NOW USE S5261700 by-pass NOW USE S5261700 BY-PASS
Glowworm part no. 2000801909
42 Part number S5261700, Bypass BYPASS
Glowworm part no. S5261700		 £8.66
44 Part number 2000801912, NOW USE S5720600 Motor 3-way valve NOW USE S5720600 MOTOR 3-WAY VALVE
Glowworm part no. 2000801912
44 Part number S5720600, Motor diverter valve MOTOR DIVERTER VALVE
Glowworm part no. S5720600		 £46.49
45 Part number 2000801913, overheat thermostat OVERHEAT THERMOSTAT
Glowworm part no. 2000801913
46   DISPLAY MODULE HARNESS
Glowworm part no. 2000801916		 £6.28
47 Part number 2000801918, NOW USE S1211700 SUPPLY HARNESS NOW USE S1211700 SUPPLY HARNESS
Glowworm part no. 2000801918
47 Part number S1211700, Harness - Supply HARNESS - SUPPLY
Glowworm part no. S1211700		 £17.42
48 Part number 0020027897, Printed circuit board PRINTED CIRCUIT BOARD
Glowworm part no. 0020027897		 £209.88
48 Part number 2000801919, IGNITION LEAD IGNITION LEAD
Glowworm part no. 2000801919
48 Part number 2000801922, NOW USE 0020027897 INTERFACE CARD NOW USE 0020027897 INTERFACE CARD
Glowworm part no. 2000801922
48 Part number 801919, NOW USE 2000801919 IGNITION LEAD NOW USE 2000801919 IGNITION LEAD
Glowworm part no. 801919
50 Part number 2000801923, Option board OPTION BOARD
Glowworm part no. 2000801923		 £35.96
52 Part number 801722, Thermistor thermometric THERMISTOR THERMOMETRIC
Glowworm part no. 801722		 £22.04
53 Part number 2000801936, NOW USE S5742700 ignition transformer 24 VR NOW USE S5742700 IGNITION TRANSFORMER 24 VR
Glowworm part no. 2000801936
53 Part number S5742700, Spark generator SPARK GENERATOR
Glowworm part no. S5742700
54   NOW USE S1025600 HEATING COCK
Glowworm part no. 2000802487
54 Part number S1025600, Heating cock HEATING COCK
Glowworm part no. S1025600		 £16.42
55 Part number 2000802488, DOMESTIC COLD WATER COCK DOMESTIC COLD WATER COCK
Glowworm part no. 2000802488
56   NOW USE S1029700 DOMESTIC HOT WATER ELBOW
Glowworm part no. 2000802489
56 Part number S1029700, Connection (hot water) CONNECTION (HOT WATER)
Glowworm part no. S1029700
57   NOW USE 2000802840 GAS COCK
Glowworm part no. 2000802490
57   GAS COCK
Glowworm part no. 2000802840
58   INJECTOR - BURNER 1.25MM, KIT OF 16
Glowworm part no. 2000802806
58   INJECTOR - BURNER G30
Glowworm part no. 2000802807		 £6.61
59 Part number 2000801942, NOW USE S5418200 SANITARY WASHER (PK100) NOW USE S5418200 SANITARY WASHER (PK100)
Glowworm part no. 2000801942
59 Part number S5418200, Sealing ring (PK100) SEALING RING (PK100)
Glowworm part no. S5418200		 £13.68
60 Part number 2000801943, O-ring bypass (PK25) O-RING BYPASS (PK25)
Glowworm part no. 2000801943		 £26.64
61 Part number 2000801945, NOW USE S5455000 clip cv-filter (set of 10) NOW USE S5455000 CLIP CV-FILTER (SET OF 10)
Glowworm part no. 2000801945
61 Part number S5455000, Clip 20mm (PK10) CLIP 20MM (PK10)
Glowworm part no. S5455000		 £7.76
62   SCREW TORX 4.2X13.5MM (PK25)
Glowworm part no. 2000801946		 £7.75
63 Part number 2000801947, NOW USE S5465700 clip pressure relief valve NOW USE S5465700 CLIP PRESSURE RELIEF VALVE
Glowworm part no. 2000801947
63 Part number 801947, NOW USE S5465700 clip pressure relief valve NOW USE S5465700 CLIP PRESSURE RELIEF VALVE
Glowworm part no. 801947
63 Part number S5465700, Clip 18mm (PK10) CLIP 18MM (PK10)
Glowworm part no. S5465700		 £10.81
64 Part number 2000801948, O-ring, (PK20) O-RING, (PK20)
Glowworm part no. 2000801948		 £12.05
65 Part number 0020014182, Gasket Type-C (PK10) GASKET TYPE-C (PK10)
Glowworm part no. 0020014182		 £10.61
65 Part number 2000801949, NOW USE 0020014182 gasket plate heat exchanger (20 pcs.) NOW USE 0020014182 GASKET PLATE HEAT EXCHANGER (20 PCS.)
Glowworm part no. 2000801949
66 Part number 2000801950, O-ring for pipe (PK20) O-RING FOR PIPE (PK20)
Glowworm part no. 2000801950		 £10.83
67 Part number 2000801951, NOW USE S5466200clip 10mm NOW USE S5466200CLIP 10MM
Glowworm part no. 2000801951
67 Part number S5466200, Clip 10mm (PK10) CLIP 10MM (PK10)
Glowworm part no. S5466200		 £9.67
68 Part number 2000801952, NOW USE S5466300 clip 3-way-valve motor NOW USE S5466300 CLIP 3-WAY-VALVE MOTOR
Glowworm part no. 2000801952
68 Part number S5466300, Clip (PK10) CLIP (PK10)
Glowworm part no. S5466300
69 Part number S5466400, O-Ring (PK20) O-RING (PK20)
Glowworm part no. S5466400		 £17.50
70 Part number 2000801954, NOW USE S5466500 o-ring (20 pieces) NOW USE S5466500 O-RING (20 PIECES)
Glowworm part no. 2000801954
70 Part number S5466500, O-ring (PK20) O-RING (PK20)
Glowworm part no. S5466500		 £15.83
71   SCREW PCB (PK75)
Glowworm part no. 2000801955		 £15.91
72 Part number 2000801956, O-ring (PK10) O-RING (PK10)
Glowworm part no. 2000801956		 £9.48
73 Part number 2000801957, NOW USE S5485100 gasket burner/pipe (100 pieces) NOW USE S5485100 GASKET BURNER/PIPE (100 PIECES)
Glowworm part no. 2000801957
73 Part number S5485100, Sealing ring (PK100) SEALING RING (PK100)
Glowworm part no. S5485100		 £23.35
74 Part number 2000801958, NOW USE S5485200 sealing washer (Pack of 100) NOW USE S5485200 SEALING WASHER (PACK OF 100)
Glowworm part no. 2000801958
74 Part number S5485200, Sealing ring (PK100) SEALING RING (PK100)
Glowworm part no. S5485200		 £13.40
75   SCREW - IGN FLAME ELEC (PK50)
Glowworm part no. 2000801960		 £5.13
76   CLIP FOR BYPASS
Glowworm part no. 2000801961		 £8.80
77   FLOW LIMITER (14L /MIN )
Glowworm part no. 2000802805
78 Part number 2000801863, Gasket (PK50) GASKET (PK50)
Glowworm part no. 2000801863		 £24.95
79   OBSOLETE INSPECTION PILOT GLASS AND SEAL
Glowworm part no. 2000802468
82   OBSOLETE COMBUSTION FRONT PNL SEAL (X2)
Glowworm part no. 2000802470
83   PIPE - HEAT EXCHANGER / 3WV
Glowworm part no. 2000802478
84   PIPE - PUMP/H/EXCH
Glowworm part no. 2000802479
85   PIPE - HEAT EXCHANGER / 3WV
Glowworm part no. 2000802480		 £9.88
86   PIPE - GAS
Glowworm part no. 2000802481
87 Part number 2000800089, Timer-mechanical TIMER-MECHANICAL
Glowworm part no. 2000800089		 £167.53
88 Part number 2000802483, DIVERTER VALVE DIVERTER VALVE
Glowworm part no. 2000802483		 £271.62
999   WIRING HARNESS
Glowworm part no. 2000802485
999 Part number 2000802491, Fixing jig washer bag FIXING JIG WASHER BAG
Glowworm part no. 2000802491
999   BOILER WASHER BAG KIT + LIMITER
Glowworm part no. 2000802492


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
