GLOWWORM 18SXI - (Hydraulics)
Appliance Code: 41-047-72

Appliance Diagram

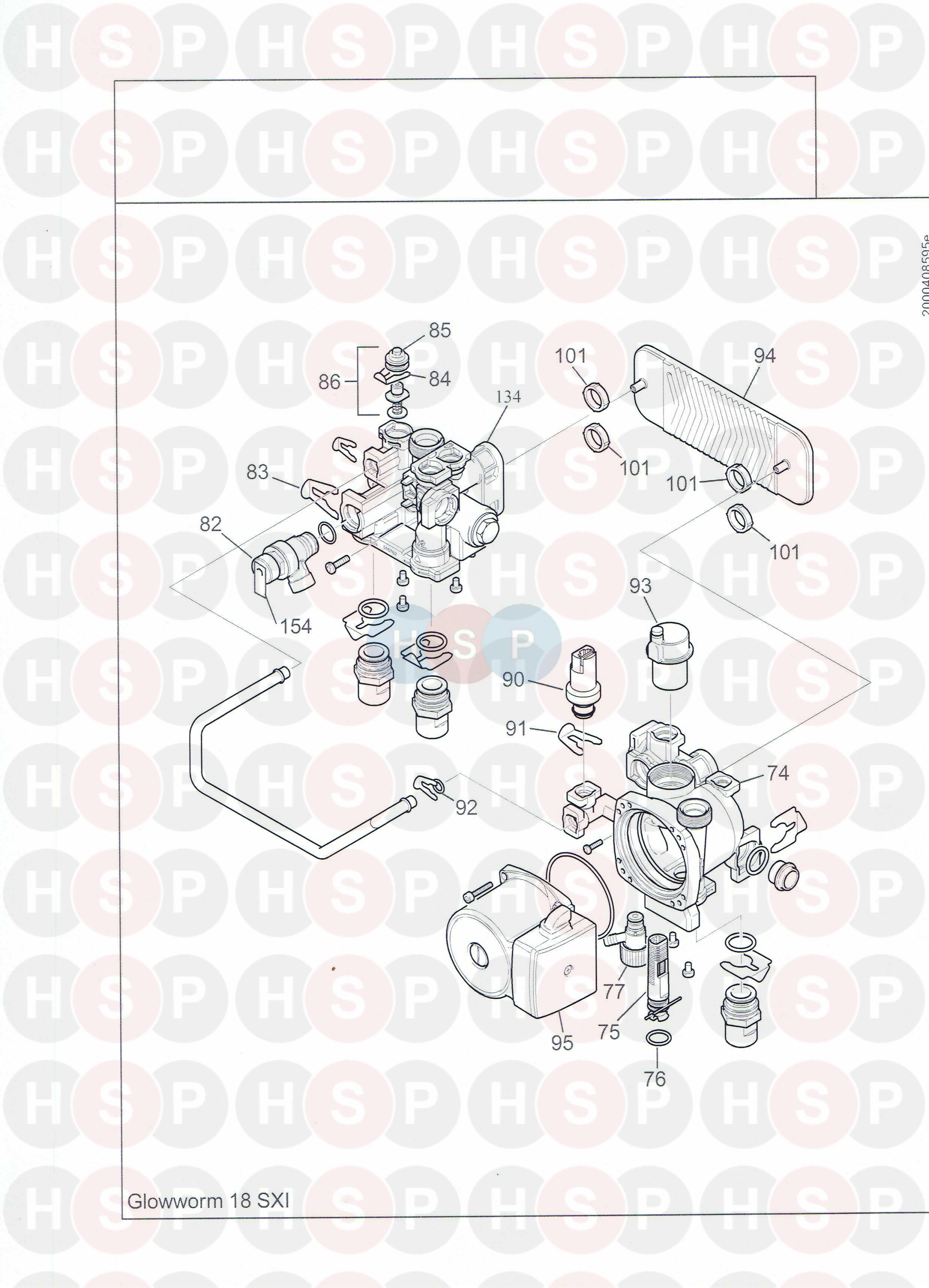

Hydraulics diagram for Glowworm Glowworm 18sxi Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1	CHASSIS ASSEMBLY Glowworm part n^o. 801699
2	NOW USE 801614 FLUE COLLECTOR Glowworm part n^o. 2000802776
2	FLUE ADAPTER Glowworm part n^o. 801614	£114.80
3	GASKET HEAT EXCHANGER Glowworm part n^o. 2000801615	£20.69
3	NOW USE 2000801615 HEAT EXCHANGER SEAL Glowworm part n^o. 801615
4	NOW USE 0020038076 FLUE SEAL Glowworm part n^o. 2000801616
4	GASKET EXCHANGER / FLUE Glowworm part n^o. 0020038076	£7.89
5	SIPHON ADAPTER Glowworm part n^o. 0020057359	£21.09
5	NOW USE 0020057359 FLEXIBLE HOSE 120MM WITH SEAL Glowworm part n^o. 801617
6	H/E SUPPORT BRACKET - LH Glowworm part n^o. 801618	£21.73
7	H/E SUPPORT BRACKET RH Glowworm part n^o. 801619	£21.73
8	BOTTOM SUPPORT-HEAT EXCHANGER Glowworm part n^o. 801620
9	SCREW ( M5X8MM ) Glowworm part n^o. S208238	£6.61
10	HEAT EXCHANGER Glowworm part n^o. 801621	£576.47
11	CLAMP - HEAT EXCHANGER Glowworm part n^o. 801622	£6.61
12	SCREW M6 X120 POZI PAN Glowworm part n^o. 801692	£6.61
13	NOW USE 0020057359 SIPHON ADAPTER Glowworm part n^o. 801624
14	O RING 18 X 3 Glowworm part n^o. 801625	£6.61
15	O RING 15.6 ID X 2.4 SECT DIA Glowworm part n^o. 801626	£6.61
16	NOW USE 0020057359 HOSE CONNECTOR Glowworm part n^o. 801732
16	SIPHON ADAPTER Glowworm part n^o. 0020057359	£21.09
17	ADAPTER CLIP-HEAT EXCHANGER Glowworm part n^o. 801733	£6.61
18	NOW USE 0020057359 FLEXIBLE HOSE 60MM WITH SEAL Glowworm part n^o. 801627
18	SIPHON ADAPTER Glowworm part n^o. 0020057359	£21.09
19	FLOW PIPE Glowworm part n^o. 801628
20	SEALING WASHER 24.5X18.2MM Glowworm part n^o. S212332	£6.57
21	PIPE - RETURN Glowworm part n^o. 801630	£61.98
22	HEAT EXCHANGER DOOR KIT Glowworm part n^o. 801631	£123.71
23	NOW USE 2000802737 INSULATION COVER HEAT EXCHANGER HRG Glowworm part n^o. 801687
23	INSULATION COVER HEAT EXCHANGER Glowworm part n^o. 2000802737	£61.71
24	BURNER, KIT WITH GASKETS, 24KW Glowworm part n^o. 2000802463	£176.61
25	SCREW, BURNER Glowworm part n^o. 801633	£6.61
26	HEXAGON NUT Glowworm part n^o. 801690
27	GASKET, BURNER Glowworm part n^o. 801634	£6.97
28	NOW USE 0020038679 SEAL HEAT EXCHANGER DOOR Glowworm part n^o. 801635
28	GASKET KIT Vaillant part n^o. 0020038679	£19.11
29	GASKET INSPECTION COVER HEAT EXCHANGER Glowworm part n^o. 2000801636	£6.61
29	NOW USE 2000801636 GASKET INSPECTION COVER HEAT EXCHANGER Glowworm part n^o. 801636
31	GASKET ELECTRODE Glowworm part n^o. 801638	£6.39
32	SCREW ELECTRODE Glowworm part n^o. 801639	£6.61
33	NOW USE 2000801640 SIGHT GLASS REPLACEMENT KIT Glowworm part n^o. 801640
33	VIEWING GLASS (SET) Glowworm part n^o. 2000801640	£10.98
34	GASKET H/E DOOR/MIXING ARM Glowworm part n^o. 801688	£6.39
35	MANIFOLD FAN (ASSEMBLY) Glowworm part n^o. 801641	£146.90
36	NOW USE 0020018831 SCREW FAN ASSEMBLY Glowworm part n^o. 801644
36	SCREW M6X20 (PK10) Glowworm part n^o. 0020018831	£6.61
37	SEAL FAN Glowworm part n^o. 801689	£8.17
38	FAN Glowworm part n^o. 801645	£207.86
39	NOW USE S208294 SCREW EJOT M5X16 Glowworm part n^o. 801646
39	SCREW ( M5X14MM ) Glowworm part n^o. S208294	£6.61
40	VENTURI PLATE FAN Glowworm part n^o. 801647	£35.51
41	O-RING FOR VENTURI PLATE Glowworm part n^o. 801648	£6.61
42	SCREW M4X10MM Glowworm part n^o. S014277	£6.61
43	NOW USE 2000802664 GAS VALVE 239119 Glowworm part n^o. 801649
43	GAS SECTION Glowworm part n^o. 2000802664	£207.80
44	CONNECTOR GAS VALVE Glowworm part n^o. 801650	£43.27
45	O RING Glowworm part n^o. S208040	£6.61
46	SCREW M4X12MM Glowworm part n^o. S12780	£6.61
47	M6 WASHERED NUT Glowworm part n^o. 801651	£6.61
48	GAS PIPE Glowworm part n^o. 2000801834	£43.50
49	NOW USE 2000802532 O RING Glowworm part n^o. 801652
49	O RING 17.86X2.62 (NITRILE) Glowworm part n^o. 2000802532	£6.61
50	CLIP GAS PIPE Glowworm part n^o. 2000801653	£6.61
50	NOW USE 2000801653 HEAT EXCHANGER PIPE CLIP Glowworm part n^o. 801653
51	ZIG IGNITOR BRACKET Glowworm part n^o. 801654	£11.45
52	ZIG IGNITOR Glowworm part n^o. 801655	£37.25
53	SCREW, NO6 X 3/8 Glowworm part n^o. SFF0652
54	SCREW-NO.8X3/4 Glowworm part n^o. S213045
55	CLIP - STRAIN RELIEF Glowworm part n^o. SK9221	£4.91
56	GROMMET Glowworm part n^o. 801656	£6.61
57	SEAL - PIPE Glowworm part n^o. 801657	£6.61
58	SEAL - PIPE Glowworm part n^o. 801658	£6.61
59	RETAINER - EXPANSION VESSEL Glowworm part n^o. 801659
60	END TIP Glowworm part n^o. 801660	£6.61
61	CABLE SUPPORT Glowworm part n^o. 801686	£3.61
62	CABLE SEAL Glowworm part n^o. 801685
63	OPEN / CLOSED BUSH Glowworm part n^o. 801661	£6.61
64	SIPHON GASKET Glowworm part n^o. 801662	£6.61
65	SIPHON Glowworm part n^o. 0020013711	£31.95
66	NOW USE 2000802153 CAP WITH SEALING WASHER Glowworm part n^o. 802153
66	CAP WITH SEALING Glowworm part n^o. 2000802153	£6.97
70	EXPANSION VESSEL Glowworm part n^o. 0020020744	£102.11
70	NOW USE 0020020744 EXPANSION VESSEL 8 LT Glowworm part n^o. 801666
71	FIXING BRACKET-EXPANSION VESSEL Glowworm part n^o. 801667	£12.83
73	SCREW M8X40 Glowworm part n^o. 2000801671	£6.61
74	PUMP BLOCK Glowworm part n^o. 2000802133
75	FILTER CENTRAL HEATING Glowworm part n^o. 2000801897	£17.68
76	O-RING (PK20) Glowworm part n^o. S5466400	£17.50
77	TAP DRAIN PIECE Glowworm part n^o. S1006300	£22.64
77	NOW USE S1006300 DRAIN VALVE 24 VR Glowworm part n^o. 2000801902
82	NOW USE 0020047005 PRESSURE RELIEF VALVE(3 BAR) Glowworm part n^o. 0020014173
82	PRESSURE RELIEF VALVE, 3 BAR Glowworm part n^o. 0020047005	£14.99
83	NOW USE S5465700 CLIP PRESSURE RELIEF VALVE Glowworm part n^o. 2000801947
83	CLIP 18MM (PK10) Glowworm part n^o. S5465700	£10.81
83	NOW USE S5465700 CLIP PRESSURE RELIEF VALVE Glowworm part n^o. 801947
84	CLIP FOR BYPASS Glowworm part n^o. 2000801961	£8.80
85	O-RING BYPASS (PK25) Glowworm part n^o. 2000801943	£26.64
86	NOW USE S5261700 BY-PASS Glowworm part n^o. 2000801909
86	BYPASS Glowworm part n^o. S5261700	£8.66
91	CLIP 10MM (PK10) Glowworm part n^o. S5466200	£9.67
91	NOW USE S5466200CLIP 10MM Glowworm part n^o. 2000801951
92	O-RING, (PK20) Glowworm part n^o. 2000801948	£12.05
94	E6 SHUNT PLATE SWEP Glowworm part n^o. 2000802045
95	PUMP 50KW Glowworm part n^o. 2000801830
96	O RING Glowworm part n^o. 801672	£6.61
101	NOW USE 0020014182 GASKET PLATE HEAT EXCHANGER (20 PCS.) Glowworm part n^o. 2000801949
101	GASKET TYPE-C (PK10) Glowworm part n^o. 0020014182	£10.61
104	PIPEWORK Glowworm part n^o. 801680	£11.93
105	NOW USE 0020247022 WASHER Glowworm part n^o. S208342
105	WASHER (PK10) Glowworm part n^o. 0020247022	£8.19
107	CONTROL PANEL Glowworm part n^o. 801765
108	NOW USE S1009300 CONTROL BOX CHASSIS Glowworm part n^o. 801768
108	ELECTRIC BOX Glowworm part n^o. S1009300	£16.63
109	PCB REPLACEMENT KIT Glowworm part n^o. 2000802731	£227.14
109	NOW USE 2000802731 PCB REPL KIT XI RANGE Glowworm part n^o. 801719
110	EARTH WIRE - 700MM Glowworm part n^o. 2000801810	£6.61
111	CONTROL HARNESS Glowworm part n^o. 2000801980
112	IGNITION HARNESS Glowworm part n^o. 2000801816	£18.96
113	NOW USE S1008300 CABLE CONTROL PANEL HRG Glowworm part n^o. 2000801813
113	HARNESS Glowworm part n^o. S1008300	£7.69
114	MAINS INLET HARNESS Glowworm part n^o. 2000801814
115	CONTROL BOX COVER Glowworm part n^o. 801772
117	TRANSFORMER Glowworm part n^o. 801721	£204.44
118	NOW USE 0020152564 CABLE IGNITION ROD Glowworm part n^o. 801728
118	NOW USE 0020152564 CABLE IGNITION ROD Glowworm part n^o. 2000801728
118	ELECTRODE (KIT) Glowworm part n^o. 0020152564	£41.16
119	THERMISTOR THERMOMETRIC Glowworm part n^o. 801722	£22.04
120	OVERHEAT THERMOSTAT Glowworm part n^o. 801724	£21.09
121	CLIP - OVERHEAT THERMOSTAT Glowworm part n^o. 2000801725
122	SIDE PANEL LH Glowworm part n^o. 801681	£59.97
122	SIDE PANEL R/H Glowworm part n^o. 2000802126	£56.67
123	DOOR Glowworm part n^o. 801682	£45.36
124	INNER DOOR SEAL, 1765MM Glowworm part n^o. 2000801843	£10.78
125	NOW USE 2000802454 FRONT PANEL BASIC Glowworm part n^o. 801683
125	FRONT PANEL KIT (BASIC) Glowworm part n^o. 2000802454	£58.45
126	NAME BADGE Glowworm part n^o. 2000802007
127	FLUE ADAPTER WITH CAP + SEALS Glowworm part n^o. 801668	£60.35
130	SCREW 4.2X13.5MM Glowworm part n^o. 801700	£6.61
131	BASE PLATE, HYDRAULIC HRG Glowworm part n^o. 2000801833	£39.66
134	SANI BLOCK Glowworm part n^o. 802130	£204.57
135	NOW USE A000035108 WALL BRACKET Glowworm part n^o. 801741
135	WALL HANGING BRACKET Glowworm part n^o. A000035108	£6.39
144	RESET SWITCH Glowworm part n^o. 2000802779	£21.74
145	NOW USE 0020020496 OUTSIDE WALL SEAL (DN 100) Glowworm part n^o. 2000802770
145	OUTSIDE WALL SEAL (DN 100) Glowworm part n^o. 0020020496	£19.35
146	FLUE DUCT Glowworm part n^o. 2000802771	£31.39
147	NOW USE 0020020497 WALL SEAL INTERNAL Glowworm part n^o. 2000802772
147	INSIDE WALL SEAL (DN 100) Glowworm part n^o. 0020020497	£18.28
148	CLAMP (100 X 48) Glowworm part n^o. 0020020499	£18.27
148	NOW USE 0020020499 SECURING COLLAR Glowworm part n^o. 2000802773
149	NOW USE 0020020498 FLUE ELBOW Glowworm part n^o. 2000802774
149	ELBOW 87 Glowworm part n^o. 0020020498	£46.87
150	PACKING RING EPDM (133 X 161.5) Glowworm part n^o. 0020020501	£13.65
150	NOW USE 0020020501 FLUE SEAL Glowworm part n^o. 2000802785
155	CABLE TIE Glowworm part n^o. SK5089
999	CONTROL BOX RETAINER Glowworm part n^o. 2000801730	£5.58
999	OBSOLETE FITTINGS PACK Glowworm part n^o. 802008
999	NOW USE 0020013712 SIPHON - FLOAT Glowworm part n^o. 802151
999	FLOAT Glowworm part n^o. 0020013712	£6.61
