GLOWWORM
FUELSAVER 75 R MKII 1988 AVA - (Burner)
Appliance Code: 41-313-81

Appliance Diagram

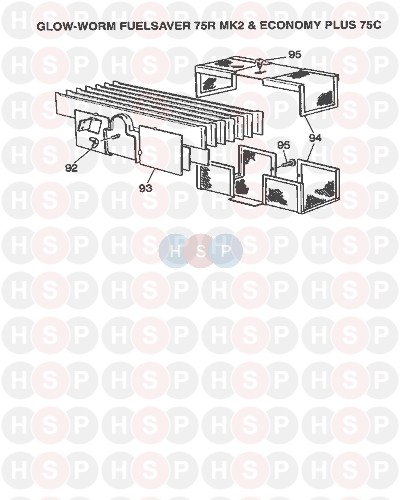

Burner diagram for Glowworm Fuelsaver 75 R MKII 1988 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE USER INSTR- FSMK2R/BR 10/92
Glowworm part no. 206855
1   OBSOLETE FITTERS INST-FS60/75RMK2 12/90
Glowworm part no. 206860
1   OBSOLETE OUTER CASE ASSY-PNTD FS75MK2
Glowworm part no. 423836
2   OBSOLETE A/DUCT SD STRIP LH-PNTD FSC
Glowworm part no. 433558
3   OBSOLETE A/DUCT SD STRIP RH-PNTD FSC
Glowworm part no. 433559
5 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112
6 Part number SK5877, Screw, no8 x 5/8 SCREW, NO8 X 5/8
Glowworm part no. SK5877
7 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
8   OBSOLETE INNER CASE F/ECON 60/75C
Glowworm part no. 800836
9 Part number 51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. 51936004
9 Part number S51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. S51936004
10 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
10 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
11   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
12   SCREW - M4X10MM
Glowworm part no. SK6359
13 Part number 208012, NOW USE S208012 NUT-WING M4 ZP NOW USE S208012 NUT-WING M4 ZP
Glowworm part no. 208012
13 Part number S208012, Nut ( wing M4 ) NUT ( WING M4 )
Glowworm part no. S208012
14   OBSOLETE CASE TRAY ASSY-BROWN-FS60/75R
Glowworm part no. 433852
15   OBSOLETE DRAUGHT DIVERTER ASSY--PH FS7C
Glowworm part no. 423808
16   NOW USE S208283 SCREW-M4X16MM+5DG MS PN
Glowworm part no. 208283
16   SCREW ( M4X16MM )
Glowworm part no. S208283
17 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
18 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
19   OBSOLETE DRAUGHT DIVE DOOR ASSY FS67C
Glowworm part no. 423721
20   OBSOLETE HOOK BOLT(1XB) FS3456C
Glowworm part no. 423527
21   OBSOLETE DRAUGHT DIVERTER BAFFLE ASSY
Glowworm part no. 423814
22   OBSOLETE H/EXCH ASSY
Glowworm part no. 421039
23 Part number 51987004, OBSOLETE WASHER-FIBRE 48OD OBSOLETE WASHER-FIBRE 48OD
Glowworm part no. 51987004
24 Part number 204154, NOW USE S204154 LOCK NUT-M36 X 8 NOW USE S204154 LOCK NUT-M36 X 8
Glowworm part no. 204154
24 Part number S204154, LOCK NUT-M36 X 8 LOCK NUT-M36 X 8
Glowworm part no. S204154		 £6.58
25   OBSOLETE OLIVE-28MM DIA
Glowworm part no. 66360002
25   OBSOLETE OLIVE-28MM DIA
Glowworm part no. S66360002
26   OBSOLETE NUT-COMPRESSION QC
Glowworm part no. 61940732
26   OBSOLETE NUT-COMPRESSION QC
Glowworm part no. S61940732
27   OBSOLETE RETAINER-PHIAL
Glowworm part no. 410939
28 Part number 2000800014, Overheat stat OVERHEAT STAT
Glowworm part no. 2000800014		 £35.93
29   NOW USE S416173 OVERHEAT CLAMP(PCF) FSMK2
Glowworm part no. 416173
29   OVERHEAT CLAMP
Glowworm part no. S416173		 £4.29
30   OBSOLETE NUT-SPIRE CAPT NO6
Glowworm part no. 51173003
31   OBSOLETE COMB CHAMB ASSY (SW) FS7C
Glowworm part no. 423805
33   OBSOLETE FRONT SEAL PLT(PCF) FS3456C
Glowworm part no. 423546
34   OBSOLETE SEAL-3MM-THMTX 500/ALTEC
Glowworm part no. 208081
35   OBSOLETE COMB CHAMB BAFFLE RH FS5C
Glowworm part no. 423538
36   OBSOLETE COMB CHAMB BAFFLE LH FS5C
Glowworm part no. 423539
37   OBSOLETE INSUL-10MM C/C BACK QC
Glowworm part no. 210042
38 Part number 210005, OBSOLETE INSUL-10MM C/C SIDE OBSOLETE INSUL-10MM C/C SIDE
Glowworm part no. 210005
38 Part number S210005, OBSOLETE Insulation-10mm combustion chamber side OBSOLETE INSULATION-10MM COMBUSTION CHAMBER SIDE
Glowworm part no. S210005
39   OBSOLETE INSUL-10MM C/C FRNT QC
Glowworm part no. 210044
40   OBSOLETE A/DUCT&CTRL CVR ASY-SPARE
Glowworm part no. 423740
41   OBSOLETE AIR DUCT PLATE ASSY
Glowworm part no. 423536
42   OBSOLETE GROMMET-ROBERT MOSS 15069
Glowworm part no. 204243
43 Part number 203415, PILOT BURNER-27A1E2M4212C1X PILOT BURNER-27A1E2M4212C1X
Glowworm part no. 203415
43 Part number S203415, Pilot burner PILOT BURNER
Glowworm part no. S203415
44   NOW USE S202600 ELECTRODE
Glowworm part no. 202600
44 Part number S202600, Electrode ELECTRODE
Glowworm part no. S202600
45   OBSOLETE ELECTRODE BRKT(SW)FSMK2-OT CMB
Glowworm part no. 416096
46   OBSOLETE SCREW-M3X6MM MS PN REC
Glowworm part no. 12712
47   IGNITION LEAD ASSY 900MM
Glowworm part no. SWW4608
48 Part number 204185, NOW USE S204185 ADAPTER OLIVE-REDUCER NOW USE S204185 ADAPTER OLIVE-REDUCER
Glowworm part no. 204185
48 Part number S204185, ADAPTER OLIVE-REDUCER ADAPTER OLIVE-REDUCER
Glowworm part no. S204185		 £6.97
49 Part number 204184, OBSOLETE TUBING NUT-7/16 X 24UNS OBSOLETE TUBING NUT-7/16 X 24UNS
Glowworm part no. 204184
49 Part number S204184, OBSOLETE Tubing nut-7/16 X 24UNS OBSOLETE TUBING NUT-7/16 X 24UNS
Glowworm part no. S204184
50   OBSOLETE PILOT TBE-SPARE-FS60&75R&BRMK2
Glowworm part no. 800048
51 Part number 204853, NOW USE S204853 TB NUT-4MM-H/W 45.004.388-001 NOW USE S204853 TB NUT-4MM-H/W 45.004.388-001
Glowworm part no. 204853
51 Part number S204853, Tubing nut -4mm TUBING NUT -4MM
Glowworm part no. S204853		 £8.27
52 Part number 900000, NOW USE S900000 THERMOCOUPLE-ALTERNATIVES NOW USE S900000 THERMOCOUPLE-ALTERNATIVES
Glowworm part no. 900000
52 Part number S900000, Thermocouple THERMOCOUPLE
Glowworm part no. S900000		 £23.31
53   OBSOLETE CLIP-BUCKLE METWAY TYPE XC5
Glowworm part no. SK1817
54   OBSOLETE SCREW-2BAX1/4 SLOT
Glowworm part no. 013936
55 Part number SK6296, Washer WASHER
Glowworm part no. SK6296
56   OBSOLETE INJECTOR QC
Glowworm part no. 203055
57 Part number 204162, NOW USE S204162 WASHER-COPPER-14.2X10X2.2MM NOW USE S204162 WASHER-COPPER-14.2X10X2.2MM
Glowworm part no. 204162
57 Part number S204162, WASHER-COPPER-14.2X10X2.2MM WASHER-COPPER-14.2X10X2.2MM
Glowworm part no. S204162		 £4.91
59   OBSOLETE GASKET-3MM WEBGLASS 230
Glowworm part no. 212080
59   OBSOLETE GASKET-3MM WEBGLASS 230
Glowworm part no. S212080
60 Part number 208241, NOW USE S208241 SCREW-M4-GAS MANIFOLD NOW USE S208241 SCREW-M4-GAS MANIFOLD
Glowworm part no. 208241
60 Part number S208241, SCREW-M4-GAS MANIFOLD SCREW-M4-GAS MANIFOLD
Glowworm part no. S208241		 £6.97
61 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
61 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
62   SCREW
Glowworm part no. S78129
62   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
63 Part number 208040, NOW USE S208040 O RING-H/WELL 22.0 X 2.5 NOW USE S208040 O RING-H/WELL 22.0 X 2.5
Glowworm part no. 208040
63 Part number S208040, O ring O RING
Glowworm part no. S208040		 £6.61
64 Part number 800046, Gas section GAS SECTION
Glowworm part no. 800046		 £181.98
65 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
65 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
66 Part number S202095, Connector CONNECTOR
Glowworm part no. S202095
66 Part number 202095, NOW USE S202095 CONNECTOR-H/W 45.900.404-002 NOW USE S202095 CONNECTOR-H/W 45.900.404-002
Glowworm part no. 202095
69   OBSOLETE G/V GROMT PLT-H/W 45003674-002
Glowworm part no. 203343
70   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
70   BUSH RELIEF
Glowworm part no. S204226
71 Part number S900501, Piezo generator PIEZO GENERATOR
Glowworm part no. S900501
71 Part number 900501, NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE
Glowworm part no. 900501
72 Part number 416189, OBSOLETE THERMOSTAT OBSOLETE THERMOSTAT
Glowworm part no. 416189
73   OBSOLETE CONTROL BOX ASSY-FSMK2R
Glowworm part no. 433504
75   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
76   OBSOLETE WASHER-CUP 4.2MMX0.385
Glowworm part no. SFF0824
78   SCREW - M3X16MM
Glowworm part no. SK8706
79 Part number 202103, OBSOLETE TERMINAL BLOCK-7 WAY-EKRAM OBSOLETE TERMINAL BLOCK-7 WAY-EKRAM
Glowworm part no. 202103
80   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
81   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
82   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
82   CORD GRIP
Glowworm part no. S204239
83   LOCKNUT
Glowworm part no. S204240
83   NOW USE S204240 LOCKNUT-ELKAY CAT 92
Glowworm part no. 204240
84   GROMMET
Glowworm part no. SFF2285
86   OBSOLETE CHECK STRAP-FASTEX
Glowworm part no. 204245
87   OBSOLETE P CLIP-NYLON-RICHCO N200
Glowworm part no. 208406
88   OBSOLETE SCREW-M4X20MM MS PN REC
Glowworm part no. 208281
88   OBSOLETE SCREW-M4X20MM MS PN REC
Glowworm part no. S208281
89 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
89 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
90 Part number 416144, Control knob CONTROL KNOB
Glowworm part no. 416144		 £5.10
91 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
91 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
92 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215
92 Part number 403215, NOW USE S403215 NUT-WING M5 ZP NOW USE S403215 NUT-WING M5 ZP
Glowworm part no. 403215
93   OBSOLETE BURNER&LNT ARR 170.500.017
Glowworm part no. 203266
94   OBSOLETE LINT ARRESTER ASSY-518.001.018
Glowworm part no. 203273
95   SCREW-M4 X 6MM REC
Glowworm part no. 208365
95   SCREW ( M4 X 6MM )
Glowworm part no. S208365
