GLOWWORM
FUELSAVER 40 BR MKII 1988 AVA - (Burner & Controls)
Appliance Code: 41-313-73

Appliance Diagram

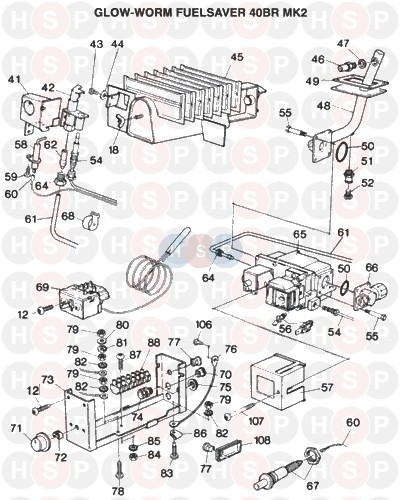

Burner & Controls diagram for Glowworm Fuelsaver 40 BR MKII 1988 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE USER INSTR- FSMK2R/BR 10/92
Glowworm part no. 206855
1   OBSOLETE FITTR INSTR-FS30>50BRMK2 2/91
Glowworm part no. 206856
1   OBSOLETE O/CASE S/A-WH FS-ECON4/5B+345C
Glowworm part no. 416197
2   OBSOLETE AIR DUCT S/STRIP LH FS40/50BR
Glowworm part no. 433614
3   OBSOLETE AIR DUCT S/STRIP RH FS40/50BR
Glowworm part no. 433615
4   OBSOLETE A/DUCT&CTRL CVR ASY-SPARE
Glowworm part no. 416186
5 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112
6 Part number SK5877, Screw, no8 x 5/8 SCREW, NO8 X 5/8
Glowworm part no. SK5877
7 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
8   INNER CASE
Glowworm part no. 2000800481		 £69.23
9   SIGHT WINDOW FRAME
Glowworm part no. SAA049M
10 Part number 51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. 51936004
10 Part number S51936004, ADHESIVE RING ADHESIVE RING
Glowworm part no. S51936004
11 Part number 411194, NOW USE S411194 SIGHT GLASS NOW USE S411194 SIGHT GLASS
Glowworm part no. 411194
11 Part number S411194, SIGHT GLASS SIGHT GLASS
Glowworm part no. S411194		 £6.80
12   SCREW - M4X10MM
Glowworm part no. SK6359
13 Part number 208006, OBSOLETE SEAL-12X4X1450MM SILICONE OBSOLETE SEAL-12X4X1450MM SILICONE
Glowworm part no. 208006
13 Part number S208006, SEAL-12X4X1450MM SILICONE SEAL-12X4X1450MM SILICONE
Glowworm part no. S208006
14   OBSOLETE CASE TRAY ASSY-FS40/50BRMK2
Glowworm part no. 433604
15   OBSOLETE FLUE HOOD ASSY(SW) FS4B
Glowworm part no. 416506
16   HOOK BOLT
Glowworm part no. 416026
16   HOOK BOLT
Glowworm part no. S416026
17   OBSOLETE FLUE HOOD BRKT(1XB) FS4B
Glowworm part no. 416501
19 Part number 208012, NOW USE S208012 NUT-WING M4 ZP NOW USE S208012 NUT-WING M4 ZP
Glowworm part no. 208012
19 Part number S208012, Nut ( wing M4 ) NUT ( WING M4 )
Glowworm part no. S208012
20 Part number 204101, OBSOLETE UNION NUT-22MM OBSOLETE UNION NUT-22MM
Glowworm part no. 204101
20 Part number S204101, OBSOLETE UNION NUT-22MM OBSOLETE UNION NUT-22MM
Glowworm part no. S204101
21 Part number 56553016, OBSOLETE OLIVE-22MM OBSOLETE OLIVE-22MM
Glowworm part no. 56553016
21 Part number S56553016, OBSOLETE OLIVE-22MM OBSOLETE OLIVE-22MM
Glowworm part no. S56553016
22 Part number 208007, NOW USE S208007 WASHER-FIBRE 41.5OD NOW USE S208007 WASHER-FIBRE 41.5OD
Glowworm part no. 208007
22 Part number S208007, Washer WASHER
Glowworm part no. S208007		 £4.29
23   NOW USE S411034 LOCKNUT-7/8 BSP
Glowworm part no. 411034
23   LOCKNUT-7/8 BSP
Glowworm part no. S411034		 £4.29
24 Part number 2000800014, Overheat stat OVERHEAT STAT
Glowworm part no. 2000800014		 £35.93
25   NOW USE S416173 OVERHEAT CLAMP(PCF) FSMK2
Glowworm part no. 416173
25   OVERHEAT CLAMP
Glowworm part no. S416173		 £4.29
26   OBSOLETE NUT-SPIRE CAPT NO6
Glowworm part no. 51173003
27   NOW USE S208005 SEAL-18X10X1200MM WALL
Glowworm part no. 208005
27   SEAL-18X10X1200MM WALL
Glowworm part no. S208005		 £4.29
28 Part number 416519, OBSOLETE H/EXCH ASSY OBSOLETE H/EXCH ASSY
Glowworm part no. 416519
29   OBSOLETE RETAINER-PHIAL
Glowworm part no. 410939
30   OBSOLETE COMB CHAMB ASSY(SW) FS4B
Glowworm part no. 416505
30   OBSOLETE COMB CHAMB ASSY(SW) FS4B
Glowworm part no. S416505
31 Part number 416507, COMB CHMB FRT (SW) FS4BC COMB CHMB FRT (SW) FS4BC
Glowworm part no. 416507
31 Part number S416507, Combustion chamber front COMBUSTION CHAMBER FRONT
Glowworm part no. S416507
32 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
33   NOW USE S204200 CLIP-CABLE
Glowworm part no. 204200
33   CLIP CABLE
Glowworm part no. S204200
35   OBSOLETE FRONT GLAND PLATE
Glowworm part no. 416061
36   REAR GLAND PLATE
Glowworm part no. 416063		 £4.29
37 Part number SK8679, Screw - M5X35mm SCREW - M5X35MM
Glowworm part no. SK8679		 £4.29
38 Part number 210008, INSUL-10MM C/C BACK INSUL-10MM C/C BACK
Glowworm part no. 210008
38 Part number S210008, Insulation-10mm combustion chamber back INSULATION-10MM COMBUSTION CHAMBER BACK
Glowworm part no. S210008
39 Part number 210005, OBSOLETE INSUL-10MM C/C SIDE OBSOLETE INSUL-10MM C/C SIDE
Glowworm part no. 210005
39 Part number S210005, OBSOLETE Insulation-10mm combustion chamber side OBSOLETE INSULATION-10MM COMBUSTION CHAMBER SIDE
Glowworm part no. S210005
40   OBSOLETE INSUL-10MM C/C FRT
Glowworm part no. 210007
40   OBSOLETE INSULATION-10MM COMBUSTION CHAMBER FRONT
Glowworm part no. S210007
41 Part number 423842, Bracket - Electrode BRACKET - ELECTRODE
Glowworm part no. 423842		 £7.56
42 Part number 203415, PILOT BURNER-27A1E2M4212C1X PILOT BURNER-27A1E2M4212C1X
Glowworm part no. 203415
42 Part number S203415, Pilot burner PILOT BURNER
Glowworm part no. S203415
43   OBSOLETE SCREW-2BAX1/4 SLOT
Glowworm part no. 013936
44 Part number SK6296, Washer WASHER
Glowworm part no. SK6296
45 Part number 900600, OBSOLETE BURNER-ALTERNATIVES OBSOLETE BURNER-ALTERNATIVES
Glowworm part no. 900600
45 Part number S900600, OBSOLETE Burner OBSOLETE BURNER
Glowworm part no. S900600
46   OBSOLETE INJECTOR-BRAY 30 1200
Glowworm part no. 203004
47 Part number 204162, NOW USE S204162 WASHER-COPPER-14.2X10X2.2MM NOW USE S204162 WASHER-COPPER-14.2X10X2.2MM
Glowworm part no. 204162
47 Part number S204162, WASHER-COPPER-14.2X10X2.2MM WASHER-COPPER-14.2X10X2.2MM
Glowworm part no. S204162		 £4.91
49   OBSOLETE GASKET-3MM WEBGLASS 230
Glowworm part no. 212080
49   OBSOLETE GASKET-3MM WEBGLASS 230
Glowworm part no. S212080
50 Part number 208040, NOW USE S208040 O RING-H/WELL 22.0 X 2.5 NOW USE S208040 O RING-H/WELL 22.0 X 2.5
Glowworm part no. 208040
50 Part number S208040, O ring O RING
Glowworm part no. S208040		 £6.61
51 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
51 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
52   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
52   SCREW
Glowworm part no. S78129
53 Part number 403215, NOW USE S403215 NUT-WING M5 ZP NOW USE S403215 NUT-WING M5 ZP
Glowworm part no. 403215
53 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215
54 Part number 900000, NOW USE S900000 THERMOCOUPLE-ALTERNATIVES NOW USE S900000 THERMOCOUPLE-ALTERNATIVES
Glowworm part no. 900000
54 Part number S900000, Thermocouple THERMOCOUPLE
Glowworm part no. S900000		 £23.31
55 Part number 208241, NOW USE S208241 SCREW-M4-GAS MANIFOLD NOW USE S208241 SCREW-M4-GAS MANIFOLD
Glowworm part no. 208241
55 Part number S208241, SCREW-M4-GAS MANIFOLD SCREW-M4-GAS MANIFOLD
Glowworm part no. S208241		 £6.97
56 Part number 202095, NOW USE S202095 CONNECTOR-H/W 45.900.404-002 NOW USE S202095 CONNECTOR-H/W 45.900.404-002
Glowworm part no. 202095
56 Part number S202095, Connector CONNECTOR
Glowworm part no. S202095
57   NOW USE S203347 G/V COVER-H/W 45.900.401-UK1
Glowworm part no. 203347
57   GAS VALVE COVER
Glowworm part no. S203347		 £4.43
58   NOW USE S202600 ELECTRODE
Glowworm part no. 202600
58 Part number S202600, Electrode ELECTRODE
Glowworm part no. S202600
59   OBSOLETE SCREW-M3X6MM MS PN REC
Glowworm part no. 12712
60 Part number SWW4612, Ignition lead IGNITION LEAD
Glowworm part no. SWW4612
61 Part number 800047, Pipe - Pilot PIPE - PILOT
Glowworm part no. 800047
62 Part number 204185, NOW USE S204185 ADAPTER OLIVE-REDUCER NOW USE S204185 ADAPTER OLIVE-REDUCER
Glowworm part no. 204185
62 Part number S204185, ADAPTER OLIVE-REDUCER ADAPTER OLIVE-REDUCER
Glowworm part no. S204185		 £6.97
63 Part number 204184, OBSOLETE TUBING NUT-7/16 X 24UNS OBSOLETE TUBING NUT-7/16 X 24UNS
Glowworm part no. 204184
63 Part number S204184, OBSOLETE Tubing nut-7/16 X 24UNS OBSOLETE TUBING NUT-7/16 X 24UNS
Glowworm part no. S204184
64 Part number 204853, NOW USE S204853 TB NUT-4MM-H/W 45.004.388-001 NOW USE S204853 TB NUT-4MM-H/W 45.004.388-001
Glowworm part no. 204853
64 Part number S204853, Tubing nut -4mm TUBING NUT -4MM
Glowworm part no. S204853		 £8.27
65 Part number 2000800015, Gas section GAS SECTION
Glowworm part no. 2000800015
66 Part number 900307, NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC NOW USE S900307 G/COCK-FLANGED-ALTERNATIVES QC
Glowworm part no. 900307
66 Part number S900307, Gas Cock - flanged GAS COCK - FLANGED
Glowworm part no. S900307
67 Part number 900501, NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE
Glowworm part no. 900501
67 Part number S900501, Piezo generator PIEZO GENERATOR
Glowworm part no. S900501
68   CABLE TIE
Glowworm part no. SK5089
69 Part number 416189, OBSOLETE THERMOSTAT OBSOLETE THERMOSTAT
Glowworm part no. 416189
70   GROMMET
Glowworm part no. SFF2285
71 Part number 416144, Control knob CONTROL KNOB
Glowworm part no. 416144		 £5.10
72 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
72 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
73   OBSOLETE CONTROL BOX ASSY-FSMK2R
Glowworm part no. 433504
74   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
74   CORD GRIP
Glowworm part no. S204239
75   NOW USE S204240 LOCKNUT-ELKAY CAT 92
Glowworm part no. 204240
75   LOCKNUT
Glowworm part no. S204240
76   OBSOLETE CHECK STRAP-FASTEX
Glowworm part no. 204245
77   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
77   BUSH RELIEF
Glowworm part no. S204226
78   OBSOLETE SCREW-M4X20MM MS PN REC
Glowworm part no. 208281
78   OBSOLETE SCREW-M4X20MM MS PN REC
Glowworm part no. S208281
79 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
80   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
81   OBSOLETE WASHER-CUP 4.2MMX0.385
Glowworm part no. SFF0824
82 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
83   OBSOLETE SCREW-M4X16MM MS PN REC ZP
Glowworm part no. SK6213
84   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
85   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
86   OBSOLETE CLIP(PCF) ALLFS/SS/GW/VG/B
Glowworm part no. SM4939
87   OBSOLETE SCREW-M3X10MM MS PN REC BZP
Glowworm part no. SK8859
88 Part number 202103, OBSOLETE TERMINAL BLOCK-7 WAY-EKRAM OBSOLETE TERMINAL BLOCK-7 WAY-EKRAM
Glowworm part no. 202103
89   NOW USE S416134 F/DUCT-STD. (SW) FS45B
Glowworm part no. 416134
89   FLUE DUCT
Glowworm part no. S416134		 £27.59
90   OBSOLETE T/WALL PLATE (PTF) FS45B
Glowworm part no. 416127
91   OBSOLETE T/INNER-ASSY (SW) FS45B
Glowworm part no. 416118
92   OBSOLETE I/GUARD ASY-T&B(SW) FS45B
Glowworm part no. 416115
93   OBSOLETE O/GUARD ASY-T&B(SW) FS45B
Glowworm part no. 416117
94   OBSOLETE T/OUTER PLT (PTF) FS45B
Glowworm part no. 416129
95   OBSOLETE SCREW-M5 X 10MM REC PNSST
Glowworm part no. SFF0053
96   OBSOLETE CORNER POST-124.5MM LG
Glowworm part no. 209016
97   OBSOLETE O/GUARD ASY-SD(SW) FS345B
Glowworm part no. 416113
98   OBSOLETE I/GUARD ASY-SIDE(SW) FS45B
Glowworm part no. 416110
99   OBSOLETE T/WALL LNR-STD (SW) FS45B
Glowworm part no. 416132
100   OBSOLETE WALL LNR-APL-STD(SW) FS45B
Glowworm part no. 416130
100   OBSOLETE WALL LNR-APL-STD(SW) FS45B
Glowworm part no. S416130
101   OBSOLETE THERM TAPE-LOW TEMP-1.95M ROLL
Glowworm part no. S412734
101   OBSOLETE THERM TAPE-LOW TEMP-1.95M ROLL
Glowworm part no. 412734
102 Part number SK6219, Nut NUT
Glowworm part no. SK6219
104   OBSOLETE FS/ECONOMY 40/50 FLUE EXT KIT
Glowworm part no. 2000800360
105   OBSOLETE SHORT FLUE KIT-FS40/50BRMK2
Glowworm part no. 433611
107   NOW USE S203306 GAS CONTROL SCREW
Glowworm part no. 203306
107   SCREW-GAS CONTROL
Glowworm part no. S203306		 £4.91
108   OBSOLETE G/V GROMT PLT-H/W 45003674-002
Glowworm part no. 203343
109 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
109 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
