GLOWWORM
DOVEDALE FIRE FRONT - (Fire Assembly)
Appliance Code: BB151

Appliance Diagram

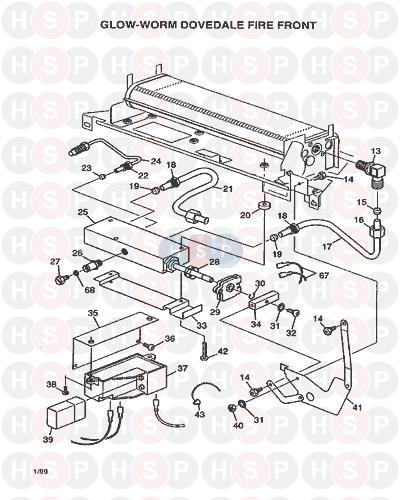

Fire Assembly diagram for Glowworm Dovedale Fire FrontClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
3   OBSOLETE FUEL RETAINING BAR ASSY - PNTD
Glowworm part no. 453865
4   OBSOLETE FRAME PK SINGLE M BRASS/BLACK
Glowworm part no. 454066
4   OBSOLETE FRAME PK SINGLE M BRASS WIDE
Glowworm part no. 454065
4   OBSOLETE FRAME PK SINGLE M SILVER
Glowworm part no. 454067
4   OBSOLETE FRAME PK SINGLE M BRASS STD
Glowworm part no. 2000454064
5 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
6   OBSOLETE SINGLE FRET PK-DOVEDALE SILVER
Glowworm part no. 454063
6   OBSOLETE SINGLE FRET PK-DOVEDALE BLACK
Glowworm part no. 454062
6   OBSOLETE SINGLE FRET PK-DOVEDALE BRASS
Glowworm part no. 454061P
7   OBSOLETE FRET FIX.BRKT (F) DOVEDALE
Glowworm part no. 453834
8 Part number 208238, NOW USE S208238 SCREW-M5X8mm MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238
8 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238		 £6.61
9   OBSOLETE BEZEL(MANUAL INSET FIRES)
Glowworm part no. 800882
10   OBSOLETE CONTROL KNOB
Glowworm part no. 204692
11 Part number 453808, OBSOLETE SLIDER ASSY OBSOLETE SLIDER ASSY
Glowworm part no. 453808
11 Part number S453808, OBSOLETE SLIDER ASSY OBSOLETE SLIDER ASSY
Glowworm part no. S453808
12 Part number 800865, OBSOLETE BURNER ASSY OBSOLETE BURNER ASSY
Glowworm part no. 800865
13   NOW USE S205739 INJECTOR-BRAY CAT.82-500
Glowworm part no. 205739
13   INJECTOR
Glowworm part no. S205739		 £9.36
14   OBSOLETE SCREW SHOULDERED
Glowworm part no. S208688
14   OBSOLETE SCREW SHOULDERED
Glowworm part no. 208688
15   OBSOLETE OLIVE-8MM DIA
Glowworm part no. 230125
16   OBSOLETE UNION NUT-OLIVE TYPE-8MM
Glowworm part no. FF2188
16   OBSOLETE UNION NUT-OLIVE TYPE-8MM
Glowworm part no. SFF2188
17   OBSOLETE SPARES-OUTLET TUBE
Glowworm part no. 2000800922
18   OBSOLETE TUBING NUT M12(STD2042)
Glowworm part no. 800889
18   OBSOLETE TUBING NUT M12(STD2042)
Glowworm part no. S800889
19   OBSOLETE OLIVE M8(STD1721)
Glowworm part no. 800893
20   OBSOLETE SPACER-MILD STEEL
Glowworm part no. 204884
21   OBSOLETE INLET TUBE
Glowworm part no. 800944
22   OBSOLETE TUBING NUT M4(STD2097)
Glowworm part no. 800891
22   OBSOLETE TUBING NUT M4(STD2097)
Glowworm part no. S800891
23   OLIVE M4 (STD 1720)
Glowworm part no. S800892		 £4.29
23   NOW USE S800892 OLIVE M4(STD1720)
Glowworm part no. 800892
24   OBSOLETE PILOT TUBE
Glowworm part no. 800921
25 Part number 230502, OBSOLETE GAS VALVE(M)C/W NUTS/OLIVES OBSOLETE GAS VALVE(M)C/W NUTS/OLIVES
Glowworm part no. 230502
26   OBSOLETE PRESSURE TEST POINT (STD2076)
Glowworm part no. 800903
26   OBSOLETE PRESSURE TEST POINT (STD2076)
Glowworm part no. S800903
28   SPRING - MICROSWITCH
Glowworm part no. S800896
28   MICROSWITCH SPRING (STD2006)
Glowworm part no. 800896
29   OBSOLETE MICROSWITCH (STD1998)
Glowworm part no. 800886
29   OBSOLETE MICROSWITCH (STD 1998)
Glowworm part no. S800886
30   CIRCLIP (STD 2138)
Glowworm part no. S800895		 £4.29
30   NOW USE S800895 CIRCLIP (STD2138)
Glowworm part no. 800895
31 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
32   OBSOLETE SCREW-M4X16MM MS PN REC ZP
Glowworm part no. SK6213
33   OBSOLETE IGNITER BRKT (NPF) INSET
Glowworm part no. 453856
34   OBSOLETE GAS TAP FITTING BLOCK
Glowworm part no. 204988
34   OBSOLETE GAS TAP FITTING BLOCK
Glowworm part no. S204988
35   OBSOLETE IGNITOR BRACKET (INSRT)
Glowworm part no. 453562
36   SCREW -M4X6MM
Glowworm part no. SK6212
37 Part number 202179, OBSOLETE RV IGNITOR(9V) REF RV0681 OO16 OBSOLETE RV IGNITOR(9V) REF RV0681 OO16
Glowworm part no. 202179
37 Part number S202179, OBSOLETE Ignitor (9V) OBSOLETE IGNITOR (9V)
Glowworm part no. S202179
39   OBSOLETE 9V BATTERY-ALTERNATIVES
Glowworm part no. 900822
41   LEVER ARM
Glowworm part no. 2000453897		 £5.72
42   SCREW-M4 X 30MM REC PAN HD
Glowworm part no. 213011
42   SCREW -M4 X 30MM
Glowworm part no. S213011
43   CABLE TIE
Glowworm part no. SK5089
44   OBSOLETE BURNER SUPPT BRKT (NPF) INSET
Glowworm part no. 453819
45   OBSOLETE COMB CHAMBER BASE
Glowworm part no. 800864
46 Part number 208661, NOW USE S208661 SCREW-M4X8mm+5DG MS HX REC BZP NOW USE S208661 SCREW-M4X8MM+5DG MS HX REC BZP
Glowworm part no. 208661
46 Part number S208661, Screw - M4X8mm SCREW - M4X8MM
Glowworm part no. S208661
47   OBSOLETE OXYPILOT MNTG.BRKT (NPFI)INSET
Glowworm part no. 453837
48 Part number S203443, OBSOLETE Oxypilot OBSOLETE OXYPILOT
Glowworm part no. S203443
48 Part number 203443, OBSOLETE OXY-PILOT OBSOLETE OXY-PILOT
Glowworm part no. 203443
50 Part number SWX5503, Ignition lead IGNITION LEAD
Glowworm part no. SWX5503		 £9.06
51   NOW USE S213029 8BA SCREW
Glowworm part no. 213029
51   8BA SCREW
Glowworm part no. S213029		 £4.29
52   MICRO SWITCH
Glowworm part no. 202275
52 Part number S202275, MICRO SWITCH MICRO SWITCH
Glowworm part no. S202275
54   NOW USE S213030 8BA NUT
Glowworm part no. 213030
54   8BA NUT
Glowworm part no. S213030		 £4.29
55   OBSOLETE SHUTTER (BP) INSET
Glowworm part no. 453828
56 Part number 210269, OBSOLETE REAR FUEL SUPPORT OBSOLETE REAR FUEL SUPPORT
Glowworm part no. 210269
56 Part number S210269, OBSOLETE REAR FUEL SUPPORT OBSOLETE REAR FUEL SUPPORT
Glowworm part no. S210269
57 Part number S210268, MIDDLE FUEL SUPPORT MIDDLE FUEL SUPPORT
Glowworm part no. S210268
57 Part number 210268, MIDDLE FUEL SUPPORT MIDDLE FUEL SUPPORT
Glowworm part no. 210268
58   NOW USE S900851 LIQUID COAL ALTERNATIVES
Glowworm part no. 900851
58   LIQUID COAL
Glowworm part no. S900851		 £5.96
59 Part number S210272, LOOSE COAL SMALL LOOSE COAL SMALL
Glowworm part no. S210272
59 Part number 210272, NOW USE S210272 LOOSE COAL SMALL NOW USE S210272 LOOSE COAL SMALL
Glowworm part no. 210272
60   OBSOLETE RHS FUEL SUPPORT
Glowworm part no. 210271
60   OBSOLETE FUEL SUPPORT-RIGHT HAND SIDE
Glowworm part no. S210271
61 Part number S210273, OBSOLETE LOOSE COAL LARGE OBSOLETE LOOSE COAL LARGE
Glowworm part no. S210273
61 Part number 210273, OBSOLETE LOOSE COAL LARGE OBSOLETE LOOSE COAL LARGE
Glowworm part no. 210273
62 Part number 210270, OBSOLETE LHS FUEL SUPPORT OBSOLETE LHS FUEL SUPPORT
Glowworm part no. 210270
62 Part number S210270, OBSOLETE Fuel support-left hand side OBSOLETE FUEL SUPPORT-LEFT HAND SIDE
Glowworm part no. S210270
63 Part number S210267, OBSOLETE Front fuel support OBSOLETE FRONT FUEL SUPPORT
Glowworm part no. S210267
63 Part number 210267, OBSOLETE FRONT FUEL SUPPORT OBSOLETE FRONT FUEL SUPPORT
Glowworm part no. 210267
67   IGNITION LEAD
Glowworm part no. SWX6402		 £4.29
68   OBSOLETE FIREFRONT FLUE SEAL
Glowworm part no. 212308
