GLOWWORM
DERWENT FF 1988 AVA - (Controls 2)
Appliance Code: 32-314-33

Appliance Diagram


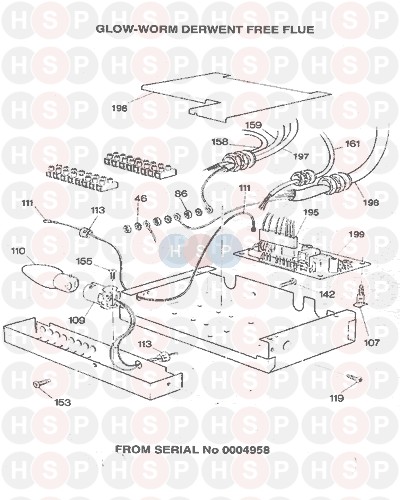

Controls 2 diagram for Glowworm Derwent FF 1988 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE SUPPLY TUBE-EXTN-181LG
Glowworm part no. 203817
2   OBSOLETE LOG LH
Glowworm part no. 203787
3   OBSOLETE LOG RH
Glowworm part no. 203788
4   OBSOLETE REAR LOG
Glowworm part no. 203789
5   OBSOLETE C/C SIDE CHEEK LH
Glowworm part no. 203758
6   OBSOLETE C/C SIDE CHEEK RH
Glowworm part no. 203707
12   OBSOLETE DECORATIVE LEG ASSY - SPARE
Glowworm part no. 431125
13   OBSOLETE DEC LEG FIXING PLATE
Glowworm part no. 209127
14   SCREW - M4X8MM
Glowworm part no. S403014
14   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014
17   OBSOLETE PLENUM CHMB BASE(P/INSERT) PFL
Glowworm part no. 431042
18 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
18 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
19   OBSOLETE GASKET-3MM THERMOTEX 500
Glowworm part no. 212109
20   OBSOLETE GASKET-3MM THERMOTEX 500
Glowworm part no. 212108
21   OBSOLETE PLEN GAUZE ASY(P/V/CL/P) PFL
Glowworm part no. 431043
23   OBSOLETE MALE STUD COUPL-3/8X1/4
Glowworm part no. 204883
24   OBSOLETE MALE STUD ELBOW-3/8X1/4
Glowworm part no. 204878
25   OBSOLETE LOCKNUT-1/4 BSP-316 S/STEEL
Glowworm part no. 204881
27   OBSOLETE HEAT EXCH ASSY STAGE 3(RVT)
Glowworm part no. 431165
28   OBSOLETE FRONT H/EXCH COWL(3XB) PFL
Glowworm part no. 431048
29   OBSOLETE REAR H/EXCH COWL(1XB) PFL
Glowworm part no. 431049
30 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
31   OBSOLETE HOOD ASSY-SPARES
Glowworm part no. 431211
31   OBSOLETE HOOD ASSY-SPARES
Glowworm part no. 431212
32   LIGHT SWITCH ASSY - SPARES
Glowworm part no. 431155
33   OBSOLETE COMB CHAMBER ASSY
Glowworm part no. 431041
34   OBSOLETE BRNR CHAMB COVER PLATE ASSY
Glowworm part no. 431119
36   OBSOLETE CENTRIFUGAL FAN-SIFAN FFB 1613
Glowworm part no. 208432
37   OBSOLETE FAN SUPPORT SUB ASSY-SPARE
Glowworm part no. 431171
41   OBSOLETE REAR COVER PLATE(NP) PFL
Glowworm part no. 431025
42   OBSOLETE TOROIDAL FAN SUP(3ST NPF) PFL
Glowworm part no. 431027
43   OBSOLETE GROMMET-ROBERT MOSS 15069
Glowworm part no. 204243
45   OBSOLETE TOROIDAL FAN BRKT ASSY DFF
Glowworm part no. 2000431085
46 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
47   OBSOLETE SILENCER&FLUE OUTLET ASSY
Glowworm part no. 431029
48   FAN OUTLET ASSY
Glowworm part no. 2000431088
49   OBSOLETE F/OUTLET FLANGE COUPLING-BTM QC
Glowworm part no. 205840
50   OBSOLETE O RING-36.09IDX3.53MM VITON
Glowworm part no. 212160
52 Part number SK6219, Nut NUT
Glowworm part no. SK6219
53   OBSOLETE SUMP ASSY
Glowworm part no. 431124
54   OBSOLETE HOSE CLIP SIZE 1-TERRY 442035
Glowworm part no. 208448
55   OBSOLETE PIPE CLIP-HUNTER 52209
Glowworm part no. 205833
56   OBSOLETE SCREW-NO.12 X 1/2 REC
Glowworm part no. 208350
57   OBSOLETE FLUE O/HT SWITCH ASSY-SPARE
Glowworm part no. 431129
60   MICRO SWITCH-OTEHALL 383190
Glowworm part no. 202014
60   MICRO SWITCH
Glowworm part no. S202014
61   OBSOLETE INSULATION PLATE-MARANYL AD197
Glowworm part no. 210074
62   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
63   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
64   NUT - SPIRE CAPT NO8
Glowworm part no. SK9327		 £4.91
65   OBSOLETE TAP-ISPHORD GH399-003-001
Glowworm part no. 203635
66   OBSOLETE ELBOW-1/8 BSP 5/16
Glowworm part no. 411551
66   OBSOLETE ELBOW-1/8 BSP X 5/16
Glowworm part no. 204851
67   OBSOLETE CTRL TAP BRKT ASSY-DERFF TYPE1
Glowworm part no. 431120
67   OBSOLETE CONTROL TAP BRKT ASSY
Glowworm part no. 431183
68   OBSOLETE CONTROL CONV KIT COMPLETE DFF
Glowworm part no. 800390
69   SCREW -M4X6MM
Glowworm part no. SK6212
70   OBSOLETE STRT ADAPTER-1/4 BSP>5/16
Glowworm part no. 204825
71   OBSOLETE SUPPLY TUBE ASSY-FORMED
Glowworm part no. 2000431090
71   OBSOLETE SUPPLY TUBE ASSY(F)
Glowworm part no. 431180
74   OBSOLETE PRESSURE POINT CONNECTOR
Glowworm part no. 204824
74   OBSOLETE PRESSURE POINT CONN.-1/8 BSP
Glowworm part no. 204850
75   LOCKNUT-1/8 BSP
Glowworm part no. 415065
75   LOCKNUT-1/8 BSP
Glowworm part no. S415065
76 Part number 2000800884, Test nipple & screw TEST NIPPLE & SCREW
Glowworm part no. 2000800884		 £6.52
76   SCREW
Glowworm part no. S78129
76 Part number 12621, NOW USE 2000800884 NIPPLE-TEST 1/8 NOW USE 2000800884 NIPPLE-TEST 1/8
Glowworm part no. 12621
76   NOW USE S78129 SCREW-2BA
Glowworm part no. 78129
77   OBSOLETE SOLENOID VLV-TEKNI 1/8 E8
Glowworm part no. 203341
78   OBSOLETE SUPPLY TUBE ASSY-TOP-SPARE
Glowworm part no. 431172
81   OBSOLETE SUPP TUBE ASSY-BTM INJTR(F)
Glowworm part no. 431092
82   OBSOLETE BURNER-DUPLEX-BRAY 9530W QC
Glowworm part no. 203290
83   OBSOLETE INJECTOR-BRAY CAT 100 100 QC
Glowworm part no. 203081
84   OBSOLETE INJECTOR-BRAY CAT 18 170 QC
Glowworm part no. 203082
85   ELECTRODE
Glowworm part no. 202607
85 Part number S202607, ELECTRODE ELECTRODE
Glowworm part no. S202607
86 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
87   OBSOLETE THERMOCOUPLE-ORKLI QC
Glowworm part no. 202420
88   OBSOLETE NUT-M8X1MM HEX LOCK BZP
Glowworm part no. 403225
89   OBSOLETE WASHER-S/PROOF M8
Glowworm part no. 403219
91   OBSOLETE INLET SUPPLY TUBE ASSY(F)
Glowworm part no. 431093
92   OBSOLETE INJ BOX PLATE(NP/ST/FC) PFL
Glowworm part no. 431108
93   SCREW-M4 X 6MM REC
Glowworm part no. 208365
93   SCREW ( M4 X 6MM )
Glowworm part no. S208365
94   OBSOLETE BRNR CHAMB END PLATE ASSY
Glowworm part no. 431193
94   OBSOLETE BRNR CHAMB END PLATE ASSY
Glowworm part no. 431131
95 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
96   NOW USE 2000802764 SCREW-NO.8 X 1/2 REC
Glowworm part no. 208393
96 Part number 2000802764, Screw (PK2) SCREW (PK2)
Glowworm part no. 2000802764		 £6.61
97   OBSOLETE CAM (P/BLK) PFL
Glowworm part no. 431037
98   OBSOLETE CIRCLIP-RHONDAMA D1500.0040A
Glowworm part no. 208436
99   OBSOLETE CONNECTING SLEEVE
Glowworm part no. 203815
100 Part number SK5148, Split pin -3/32 dia X 3/4 SPLIT PIN -3/32 DIA X 3/4
Glowworm part no. SK5148
101   OBSOLETE CONNECTING ROD
Glowworm part no. 208433
102   OBSOLETE TUBE-4.5MMID SA152
Glowworm part no. 205816
103   OBSOLETE TUBE-4.75MMID SA152
Glowworm part no. 205817
104   OBSOLETE TUBE-4.75MMID SA152
Glowworm part no. 205818
105   OBSOLETE CTRL BOX ASSY(TYPE1)-DERWENT FF
Glowworm part no. 431026
105   OBSOLETE CTRL BOX ASSY(TYPE2)-DERWENT FF
Glowworm part no. 431191
106 Part number 202211, NOW USE S202211 PCB-MAIN PACTROL REF P16DG NOW USE S202211 PCB-MAIN PACTROL REF P16DG
Glowworm part no. 202211
106 Part number 202063, OBSOLETE P.C. BOARD-PACTROL OBSOLETE P.C. BOARD-PACTROL
Glowworm part no. 202063
106 Part number S202063, OBSOLETE P.C. BOARD-PACTROL OBSOLETE P.C. BOARD-PACTROL
Glowworm part no. S202063
106 Part number S202211, PCB main PCB MAIN
Glowworm part no. S202211
107   OBSOLETE PCB SUPPORT-RICHCO CBS-6-01
Glowworm part no. 208446
108   OBSOLETE PCB CORNER SUPPORT-RICHCO
Glowworm part no. 208438
109   OBSOLETE LAMP HOLDER-BJB 24602.3702.51
Glowworm part no. 202064
110   OBSOLETE LAMP-240V40W-BCCAP WARM 0RANGE
Glowworm part no. 202065
111 Part number SWW4613, Ignition lead IGNITION LEAD
Glowworm part no. SWW4613
112   OBSOLETE A/PR SWITCH-BECK 911.080
Glowworm part no. 202059
113   GROMMET
Glowworm part no. SFF2285
115   OBSOLETE GLASS PANEL ASSY
Glowworm part no. 424025
116   OBSOLETE LAMP SHIELD
Glowworm part no. 209118
117   OBSOLETE CLIP-JETPRESS 19270-11
Glowworm part no. 208439
117   OBSOLETE CLIP-JETPRESS 29510-11
Glowworm part no. 208521
118   OBSOLETE CASING SIDE SUPP (NPF) FL+
Glowworm part no. 424064
119 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
120   OBSOLETE TRIM-LOWER FRONT (NPF) FLCO+
Glowworm part no. 424094
123   OBSOLETE REAR SIDE TRIM-PNTD CO+
Glowworm part no. 424208
125   OBSOLETE UPPER SIDE PANEL ASSY LH-SPARE
Glowworm part no. 431199
126   OBSOLETE UPPER SIDE PANEL ASSY RH-SPARE
Glowworm part no. 431198
127   OBSOLETE CANOPY ASSY
Glowworm part no. 431213
127   OBSOLETE CANOPY ASSY-SPARES
Glowworm part no. 2000431010
128   OBSOLETE REAR SURR TOP ASSY-SPARE
Glowworm part no. 431173
129   OBSOLETE REMOVABLE FRONT ASSY
Glowworm part no. 424220
130   OBSOLETE PLINTH ASSY
Glowworm part no. 431126
131   OBSOLETE SCREW-M5 KNURLED HEAD
Glowworm part no. 208304
132   CONTROL KNOB ASSY
Glowworm part no. 431111
134   OBSOLETE FLUE BLOCKAGE SWITCH ASSY-SPARE
Glowworm part no. 431130
136   OBSOLETE SCREW-M3X20MM MS PN REC ZP
Glowworm part no. K6675
137   OBSOLETE PRESSURE TEST SCREW+O RING ASS
Glowworm part no. 203620
138 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112
139   OBSOLETE CLAMP (PCF) FLCOHSGAG
Glowworm part no. 410745
140   OBSOLETE SCREW-M4 X 8MM+5DG REC
Glowworm part no. 208379
141   OBSOLETE PLENUM CHAMB ASSY-SPARE
Glowworm part no. 431175
142   OBSOLETE SCREW-M4X16MM MS PN REC ZP
Glowworm part no. SK6213
143   OBSOLETE H/E BLOCKAGE TUBE ASSY-SPARE
Glowworm part no. 431176
144   OBSOLETE PIPE CLIP ASSY
Glowworm part no. 431167
145   CLIP - EDGE CABLE
Glowworm part no. SK6899
146   OBSOLETE SCREW-M5X20MM MS HX REC
Glowworm part no. 208493
147   NOW USE S212121 O RING-SUPERIOR SEALS BS118
Glowworm part no. 212121
147   O RING -SUPERIOR SEALS
Glowworm part no. S212121		 £4.91
148   OBSOLETE PIPE CLIP-FASTEX 232-03.1962
Glowworm part no. 208458
149 Part number 208429, OBSOLETE TOROIDAL FAN-FFB 5007 OBSOLETE TOROIDAL FAN-FFB 5007
Glowworm part no. 208429
150   OBSOLETE CLIP-IGNITION LEAD
Glowworm part no. 208289
151 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
152   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
153   SCREW - M4X10MM
Glowworm part no. SK6359
154   OBSOLETE FLUE BLKGE SWTCH BKT ASY-SPARE
Glowworm part no. 431178
155   OBSOLETE SCREW-M3X6MM MS PN REC
Glowworm part no. 12712
156   OBSOLETE P.C.B. LEAD ASSY-DERFF TYPE1
Glowworm part no. 431142
156   OBSOLETE P.C.B. LEAD ASSY
Glowworm part no. 431204
157   OBSOLETE CTRL BOX COVER ASSY-TYPE1 CTRL
Glowworm part no. 431127
157   OBSOLETE CTRL BOX COVER ASSY
Glowworm part no. 431189
158   OBSOLETE HARNESS ASSY NO.4
Glowworm part no. 431141
159   OBSOLETE HARNESS ASSY NO.3
Glowworm part no. 431140
160   OBSOLETE HARNESS ASSY NO.2-DERFF TYPE1
Glowworm part no. 431139
160   OBSOLETE HARNESS ASSY NO.2
Glowworm part no. 431206
161   OBSOLETE LEAD-BLACK 3 CORE 2100MM
Glowworm part no. SWW9000
162   OBSOLETE HARNESS ASSY NO.1
Glowworm part no. 431205
162   OBSOLETE HARNESS ASSY NO.1-DERFF TYPE1
Glowworm part no. 431138
163   OBSOLETE GROMMET-25MM ROBERT MOSS 11213
Glowworm part no. 204264
164   OBSOLETE SCREW-M5X35MM MS HX HD ZP
Glowworm part no. SK6289
165   SCREW - NO 6 X 5/16
Glowworm part no. SFF0653
166   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
166   BUSH RELIEF
Glowworm part no. S204226
167   OBSOLETE AIR SWITCH BOX ASSY-SPARES
Glowworm part no. 431220
168   OBSOLETE RR COVER PLATE ANGLE(1XB) PFL
Glowworm part no. 431134
170   OBSOLETE GROMMET-ROBERT MOSS REF 15080
Glowworm part no. 204266
170   OBSOLETE GROMMET - SR2708
Glowworm part no. 204269
171   OBSOLETE GROMT-R/MOSS 11181 BLACK PVC
Glowworm part no. 204250
172   OBSOLETE C/CHAMB BACK REFLR (NF) FLCO+
Glowworm part no. 424031
173   OBSOLETE ELBOW-1/4 BSPX5/16
Glowworm part no. SK9192
174 Part number 403215, NOW USE S403215 NUT-WING M5 ZP NOW USE S403215 NUT-WING M5 ZP
Glowworm part no. 403215
174 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215
176   OBSOLETE FLUE TERMINAL ASSY-DERWENT FF
Glowworm part no. 2000431006
177   KNOB ASSY-H/CAPPED PERSON
Glowworm part no. 409282
178   OBSOLETE ELBOW-28MM CPVC-HUNTER 50709
Glowworm part no. 205805
179   OBSOLETE ELBOW-15MM CPVC-HUNTER 50705
Glowworm part no. 205837
180   OBSOLETE COUPLER-28MM CPVC-HUNTER 50109
Glowworm part no. 205811
181   OBSOLETE OFFSET FITTING ASSY
Glowworm part no. 431195
182   OBSOLETE VALVE SUPPORT(NPS)/200 PFL
Glowworm part no. 431181
183   OBSOLETE CLIP-JETPRESS 35490
Glowworm part no. 208500
184   OBSOLETE PIPE STRAP-HUNTER REF PS28
Glowworm part no. 205847
185   OBSOLETE TBE-28X3000MM CPVC REF P283
Glowworm part no. 205834
186   OBSOLETE FITTINGS PACK-DERWENT FF
Glowworm part no. 431003
187   OBSOLETE SOFT SEATS KIT
Glowworm part no. 431200
188   OBSOLETE BAFFLE PLATE/PLENUM GAUZE KIT
Glowworm part no. 431222
201   OBSOLETE DRAIN TEE ASSY
Glowworm part no. 2000431007


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
