GLOWWORM
CHATSWORTH (REMOTE) GF90 - (Burner & Controls 1)
Appliance Code: GF90

Appliance Diagram

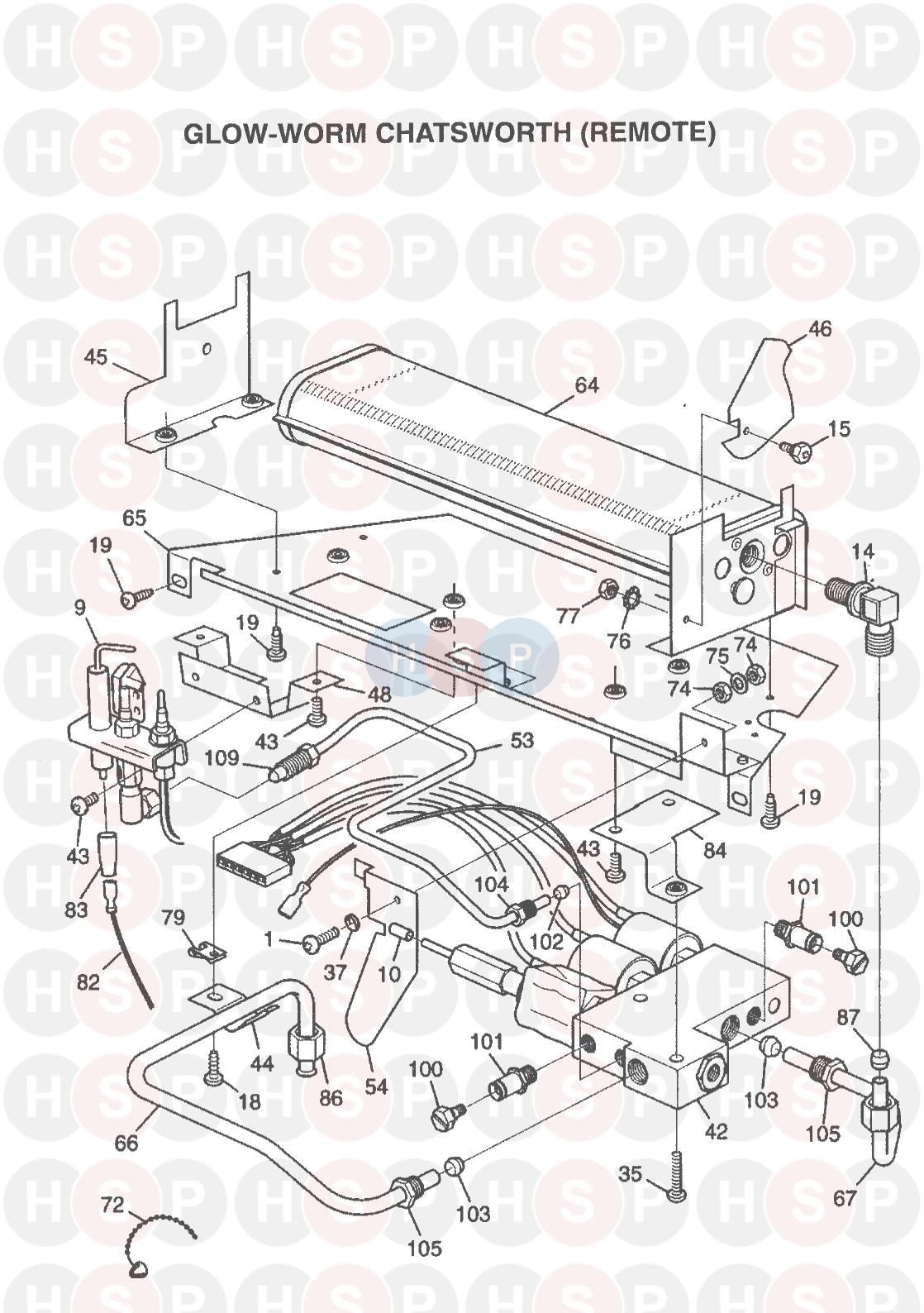

Burner & Controls 1 diagram for Glowworm Chatsworth (Remote) GF90Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 12780, NOW USE S12780 SCREW M4X12MM MS PN REC NOW USE S12780 SCREW M4X12MM MS PN REC
Glowworm part no. 12780
1   OBSOLETE USER INSTRUCTIONS
Glowworm part no. 221029
1   OBSOLETE INST & SERV
Glowworm part no. 221030
1 Part number S12780, Screw M4x12mm SCREW M4X12MM
Glowworm part no. S12780		 £6.61
2   OBSOLETE PCB (MAIN)
Glowworm part no. 202277
3   OBSOLETE REMOTE HANDSET CASE C/W H SET
Glowworm part no. 2000453886
4   OBSOLETE LENS INFARED FILTER
Glowworm part no. 202281
5   OBSOLETE P.C.B.INSULATION-RIGID P.V.C.
Glowworm part no. 202282
6   OBSOLETE PCB SUPPORT POST - PCB047-NAT
Glowworm part no. 202283
7   OBSOLETE EDGE HOLDING P.C.B. POST
Glowworm part no. 202284
8   OBSOLETE 1.5V BATTERY AAA ALK (TWIN PK)
Glowworm part no. 202286
9 Part number S203443, OBSOLETE Oxypilot OBSOLETE OXYPILOT
Glowworm part no. S203443
9 Part number 203443, OBSOLETE OXY-PILOT OBSOLETE OXY-PILOT
Glowworm part no. 203443
10   OBSOLETE CAP-COLES BROS BLACK-2006/3
Glowworm part no. 204202
11   BUSH RELIEF
Glowworm part no. S204226
11   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
12   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
12   CORD GRIP
Glowworm part no. S204239
13   LOCKNUT
Glowworm part no. S204240
13   NOW USE S204240 LOCKNUT-ELKAY CAT 92
Glowworm part no. 204240
14   NOW USE S205739 INJECTOR-BRAY CAT.82-500
Glowworm part no. 205739
14   INJECTOR
Glowworm part no. S205739		 £9.36
15   SCREW ( NO.10 X 1 1/2 )
Glowworm part no. S208225
15   NOW USE S208225 SCREW-NO.10 X 1 1/2 REC
Glowworm part no. 208225
16   OBSOLETE SCREW-NO.8 X 3/8 REC
Glowworm part no. 208230
17 Part number 208238, NOW USE S208238 SCREW-M5X8MM MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238
17 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238		 £6.61
18 Part number 2000802764, Screw (PK2) SCREW (PK2)
Glowworm part no. 2000802764		 £6.61
18   NOW USE 2000802764 SCREW-NO.8 X 1/2 REC
Glowworm part no. 208393
19 Part number 208661, NOW USE S208661 SCREW-M4X8MM+5DG MS HX REC BZP NOW USE S208661 SCREW-M4X8MM+5DG MS HX REC BZP
Glowworm part no. 208661
19 Part number S208661, Screw - M4X8mm SCREW - M4X8MM
Glowworm part no. S208661
20   OBSOLETE EYE BOLT
Glowworm part no. 208682
21   OBSOLETE CABLE
Glowworm part no. 208683
21   OBSOLETE CABLE
Glowworm part no. S208683
22   OBSOLETE TENSION SCREW
Glowworm part no. 208684
23   OBSOLETE SCREW SHOULDERED
Glowworm part no. S208688
23   OBSOLETE SCREW SHOULDERED
Glowworm part no. 208688
24   OBSOLETE THUMB SCREW
Glowworm part no. 208689
25 Part number S210267, OBSOLETE Front fuel support OBSOLETE FRONT FUEL SUPPORT
Glowworm part no. S210267
25 Part number 210267, OBSOLETE FRONT FUEL SUPPORT OBSOLETE FRONT FUEL SUPPORT
Glowworm part no. 210267
26 Part number 210268, MIDDLE FUEL SUPPORT MIDDLE FUEL SUPPORT
Glowworm part no. 210268
26 Part number S210268, MIDDLE FUEL SUPPORT MIDDLE FUEL SUPPORT
Glowworm part no. S210268
27 Part number S210269, OBSOLETE REAR FUEL SUPPORT OBSOLETE REAR FUEL SUPPORT
Glowworm part no. S210269
27 Part number 210269, OBSOLETE REAR FUEL SUPPORT OBSOLETE REAR FUEL SUPPORT
Glowworm part no. 210269
28 Part number 210270, OBSOLETE LHS FUEL SUPPORT OBSOLETE LHS FUEL SUPPORT
Glowworm part no. 210270
28 Part number S210270, OBSOLETE Fuel support-left hand side OBSOLETE FUEL SUPPORT-LEFT HAND SIDE
Glowworm part no. S210270
29   OBSOLETE FUEL SUPPORT-RIGHT HAND SIDE
Glowworm part no. S210271
29   OBSOLETE RHS FUEL SUPPORT
Glowworm part no. 210271
30 Part number 210272, NOW USE S210272 LOOSE COAL SMALL NOW USE S210272 LOOSE COAL SMALL
Glowworm part no. 210272
30 Part number S210272, LOOSE COAL SMALL LOOSE COAL SMALL
Glowworm part no. S210272
31 Part number S210273, OBSOLETE LOOSE COAL LARGE OBSOLETE LOOSE COAL LARGE
Glowworm part no. S210273
31 Part number 210273, OBSOLETE LOOSE COAL LARGE OBSOLETE LOOSE COAL LARGE
Glowworm part no. 210273
32   NOW USE S900851 LIQUID COAL ALTERNATIVES
Glowworm part no. 900851
32   LIQUID COAL
Glowworm part no. S900851		 £5.96
33   OBSOLETE FOAM SEAL
Glowworm part no. S212275
33   OBSOLETE FOAM SEAL
Glowworm part no. 212275
34   OBSOLETE REAR INSULATION BLANKET
Glowworm part no. 212284
35   SCREW-M4 X 30MM REC PAN HD
Glowworm part no. 213011
35   SCREW -M4 X 30MM
Glowworm part no. S213011
36   SCREW-NO.6X3/8
Glowworm part no. S213023
36   SCREW-NO.6X3/8 S/TAP PAN REC
Glowworm part no. 213023
38   OBSOLETE EDGE PANEL FASTENER
Glowworm part no. 213025
39   OBSOLETE CABLE CLIP - U TYPE
Glowworm part no. 213027
42   OBSOLETE GAS VALVE
Glowworm part no. 800932
43   SCREW - M4X8MM
Glowworm part no. S403014
43   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014
44   OBSOLETE CLAMP (PCF) FLCOHSGAG
Glowworm part no. 410745
45   OBSOLETE BURNER SUPPT BRKT (NPF) INSET
Glowworm part no. 453819
46   OBSOLETE SHUTTER (BP) INSET
Glowworm part no. 453828
47   OBSOLETE FRET FIX.BRKT (F) CHATSWORTH
Glowworm part no. 453835
48   OBSOLETE OXYPILOT MNTG.BRKT (NPFI)INSET
Glowworm part no. 453837
49   OBSOLETE CONTROLS SHIELD - PNTD
Glowworm part no. 453861
50   OBSOLETE FUEL RETAINING BAR ASSY - PNTD
Glowworm part no. 453865
51   OBSOLETE SPARES-PILOT TUBE REM
Glowworm part no. 800880
53   OBSOLETE SPARES PILOT TUBE
Glowworm part no. 2000800904
54   OBSOLETE COAL/COKE LEVER INSET
Glowworm part no. 453914
55   OBSOLETE SINGLE FRET PK-CHATSWORTH BRS
Glowworm part no. 454058P
55   OBSOLETE SINGLE FRET PK-CHATS SILVER
Glowworm part no. 454060
55   OBSOLETE SINGLE FRET PK-CHATSWORTH BLK
Glowworm part no. 454059
58   OBSOLETE DECORATIVE MOTIF (BRASS)
Glowworm part no. 209311P
58   OBSOLETE DECORATIVE MOTIF (SILVER)
Glowworm part no. 209310P
58   OBSOLETE FRAME PK SINGLE R BRASS BLACK
Glowworm part no. 454074
58   OBSOLETE FRAME PK SINGLE REM BRS STD
Glowworm part no. 454072
58   OBSOLETE FRAME PK SINGLE REMOTE SILVER
Glowworm part no. 454075
62   SCREW - NO.6X1/4
Glowworm part no. S50754002
62   NOW USE S50754002 SCREW-NO.6X1/4 REC BZP
Glowworm part no. 50754002
63   OBSOLETE NUT-SPIRE CAPT NO6
Glowworm part no. 51173003
64 Part number 800865, OBSOLETE BURNER ASSY OBSOLETE BURNER ASSY
Glowworm part no. 800865
65   OBSOLETE COMB CHAMBER BASE (ELEC)
Glowworm part no. 800870
66   OBSOLETE OUTLET TUBE
Glowworm part no. 800871
67   OBSOLETE SPARES INLET TUBE
Glowworm part no. 800872
68   OVERRIDE SWITCH
Glowworm part no. 800873
70 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
71   GROMMET
Glowworm part no. SFF2285
72   CABLE TIE
Glowworm part no. SK5089
73   SCREW -M4X6MM
Glowworm part no. SK6212
74 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
75 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
76   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
77   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
78   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
79 Part number SK8112, Nut - spire capt no8 NUT - SPIRE CAPT NO8
Glowworm part no. SK8112
81   LEAD
Glowworm part no. SWW4405
82   IGNITION LEAD
Glowworm part no. SWX5500		 £7.74
84   OBSOLETE GAS VALVE MNTG BRKT INSET
Glowworm part no. 453915
84   OBSOLETE GAS VALVE MNTG BRKT INSET
Glowworm part no. S453915
86   OBSOLETE NUT-UNION 1/4 X5/16 FLARE
Glowworm part no. SK9194
87   OBSOLETE OLIVE-8MM DIA
Glowworm part no. 230125
89   OBSOLETE PLUG-WALL 5.5 RED
Glowworm part no. SR1807
90   OBSOLETE SPACER KIT STANDARD ASSY
Glowworm part no. 454027
91   OBSOLETE SPACER KIT WIDE ASSY
Glowworm part no. 454023
93   OBSOLETE SCREW-M5X40MM MS PN REC
Glowworm part no. 208371
94 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
95   OBSOLETE M5 ANCHOR FASTR-FISCHER TYPE M
Glowworm part no. 208374
97 Part number 202015, OBSOLETE FUSE-1A 20MM 151490 OBSOLETE FUSE-1A 20MM 151490
Glowworm part no. 202015
97 Part number S202015, Fuse-1A 20mm FUSE-1A 20MM
Glowworm part no. S202015
98   BUSH RELIEF
Glowworm part no. S204228
98   NOW USE S204228 BUSH-RELIEF SR6N34
Glowworm part no. 204228
99   OBSOLETE RATCHET PLATE-REMOVABLE
Glowworm part no. 213022
100   OBSOLETE THROTTLE SCREW (TE2307)
Glowworm part no. 800898
101   OBSOLETE PRESSURE TEST POINT (STD2076)
Glowworm part no. 800903
101   OBSOLETE PRESSURE TEST POINT (STD2076)
Glowworm part no. S800903
102   OLIVE M4 (STD 1720)
Glowworm part no. S800892		 £4.29
102   NOW USE S800892 OLIVE M4(STD1720)
Glowworm part no. 800892
103   OBSOLETE OLIVE M8(STD1721)
Glowworm part no. 800893
104   OBSOLETE TUBING NUT M4(STD2097)
Glowworm part no. S800891
104   OBSOLETE TUBING NUT M4(STD2097)
Glowworm part no. 800891
105   OBSOLETE TUBING NUT M12(STD2042)
Glowworm part no. 800889
105   OBSOLETE TUBING NUT M12(STD2042)
Glowworm part no. S800889
111   OBSOLETE GAS SERVICE COCK 1/4 FX1/4 FL
Glowworm part no. 226000
112   OBSOLETE ELBOW-1/4 BSPX5/16
Glowworm part no. SK9192
