GLOWWORM
CHARTWELL FIRE ONLY 1998 AVA - (Fire Assembly 2)
Appliance Code: 32-314-45

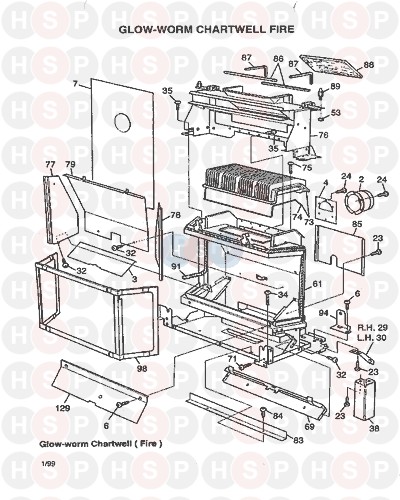

Appliance Diagram


Fire Assembly 2 diagram for Glowworm Chartwell Fire Only 1998 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE FLUE SPIGOT ASSY(SW) OPUS FIRE
Glowworm part no. 448267
3   OBSOLETE C.CHAMB BTM PLT(1XB) VPC/OPUS
Glowworm part no. 448074
4   OBSOLETE SPIGOT RESTRICTOR OPUS FIRE
Glowworm part no. 448254
5   CLIP-CTRL KNOB-TRW 17020-07
Glowworm part no. 204631
5   OBSOLETE FUEL EFFECT BED PACK-SEE REMS
Glowworm part no. 210211
5   CLIP
Glowworm part no. S204631
5   OBSOLETE FUEL EFFECT BED
Glowworm part no. S210211
6 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
6 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
7   OBSOLETE CLOSURE PLATE ASSY CHARTFIRE
Glowworm part no. 451496
8   OBSOLETE PLINTH ASSY CHART/SAX FIRE
Glowworm part no. 451487
9   OBSOLETE SPARES-CANOPY TOP CHARTWELL
Glowworm part no. 2000800777
10   OBSOLETE CANOPY BODY-PWDR SAX3
Glowworm part no. 451402
11   OBSOLETE LOWER FRONT PIN
Glowworm part no. 208577
12   OBSOLETE SPARES - LOWER FRONT CHARTWELL
Glowworm part no. 2000800778
13   OBSOLETE BRASS KNOB-25 DIA REF LBO 0500
Glowworm part no. 209294
14   OBSOLETE BRASS KNOB-38 DIA REF LBO 0500
Glowworm part no. 209295
15   OBSOLETE BACKING PLATE-32 DIA LBO 0500
Glowworm part no. 209297
16   OBSOLETE BACKING PLATE-25 DIA LBO 0500
Glowworm part no. 209298
17   OBSOLETE LOWER SIDE LH - PWDR VPC/SAX3
Glowworm part no. 451404
18   OBSOLETE LOWER SIDE RH - PWDR VPC/SAX3
Glowworm part no. 451405
19   OBSOLETE 9V BATTERY-ALTERNATIVES
Glowworm part no. 900822
20   NOW USE S208225 SCREW-NO.10 X 1 1/2 REC
Glowworm part no. 208225
20   SCREW ( NO.10 X 1 1/2 )
Glowworm part no. S208225
21 Part number S208342, NOW USE 0020247022 Washer NOW USE 0020247022 WASHER
Glowworm part no. S208342
21 Part number 0020247022, Washer (PK10) WASHER (PK10)
Glowworm part no. 0020247022		 £8.19
21 Part number 208342, NOW USE 0020247022 WASHER-SEALING-AF2000-15ODX6ID NOW USE 0020247022 WASHER-SEALING-AF2000-15ODX6ID
Glowworm part no. 208342
22   OBSOLETE SCREW-M5X40MM MS PN REC
Glowworm part no. 208371
23   NOW USE S208608 SCREW-NO8 X 1/4 REC PAN B ZP
Glowworm part no. 208608
23   SCREW - NO8 X 1/4
Glowworm part no. S208608
24   OBSOLETE SCREW-M5X14MM+5DG PAN REC-BLK
Glowworm part no. 208611
25   OBSOLETE KNURLED SCREW
Glowworm part no. 208665
26   OBSOLETE LIQUID COAL
Glowworm part no. 230149
27 Part number S230186, Screw -M4X5mm SCREW -M4X5MM
Glowworm part no. S230186
27 Part number 230186, SCREW-M4X5MM+5DG MS PN REC ZP SCREW-M4X5MM+5DG MS PN REC ZP
Glowworm part no. 230186
28   OBSOLETE CONTROL KNOB ASSY BLKASH
Glowworm part no. 448103
29   OBSOLETE LOW.WALL FIX BRKT-LH (F) OP-F
Glowworm part no. 448261
30   OBSOLETE LOW.WALL FIX BRKT-RH (F) OP-F
Glowworm part no. 448262
31   OBSOLETE REAR SURR SIDE EXTN-PWDR CHART
Glowworm part no. 451469
32 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
33   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
34   OBSOLETE SCREW-M5X25MM MS HX HD BZP
Glowworm part no. SK7231
35   OBSOLETE SCREW-M4 X 10MM REC PNMST
Glowworm part no. SK8043
36   OBSOLETE UNION NUT-OLIVE TYPE-8MM
Glowworm part no. FF2188
36   OBSOLETE UNION NUT-OLIVE TYPE-8MM
Glowworm part no. SFF2188
37   OBSOLETE OLIVE- 5/16 QC
Glowworm part no. SK9191
38   OBSOLETE REAR LEG-PAINTED VPC/OPUS FIRE
Glowworm part no. 448257
39   OBSOLETE LEG LH - PWDR VPC/SAX
Glowworm part no. 451406
40   OBSOLETE LEG RH - PWDR VPC/SAX
Glowworm part no. 451407
41   OBSOLETE UPPER SIDE S/ASSY RH-PNT SAX
Glowworm part no. 451420
42   OBSOLETE BEZEL - PRINTED CHART
Glowworm part no. 451423
43   OBSOLETE ARCOLETRIC BLANK - AO 434AT
Glowworm part no. 202213
44 Part number 208526, NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0 NOW USE S208526 PUSH-ON-FIX SFO 3103/17/0
Glowworm part no. 208526
44 Part number S208526, Push on fix PUSH ON FIX
Glowworm part no. S208526		 £6.61
45   OBSOLETE ELECTRODE-BUCCLEUCH BE3375/SI
Glowworm part no. 202623
46   OBSOLETE INJECTOR-BRAY CAT18/180 QC
Glowworm part no. S230169
46   OBSOLETE INJECTOR-BRAY CAT18/180 QC
Glowworm part no. 230169
47   OBSOLETE INJECTOR 18/320 QC
Glowworm part no. S230201
47   OBSOLETE INJECTOR 18/320 QC
Glowworm part no. 230201
48   OBSOLETE BURNER ASSY OPUS/OPULENCE
Glowworm part no. 2000800448
49   NOW USE S204848 NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. 204848
49   NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. S204848		 £4.29
50   OBSOLETE OLIVE-3/16
Glowworm part no. SK3022
51   OBSOLETE BLEED RESTRICTOR
Glowworm part no. 204926
52 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
53 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
54   OBSOLETE INLET SUPPLY TUBE ASSY OPUS
Glowworm part no. 448053
55 Part number 448055, OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS
Glowworm part no. 448055
55 Part number S448055, OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS OBSOLETE SUPPLY TUBE ASSY-BTM INJ OPUS
Glowworm part no. S448055
56   OBSOLETE SUPPLY TUBE ASSY-TOP INJ OPUS
Glowworm part no. 448057
57   OBSOLETE BLEED TUBE (F) OPUS
Glowworm part no. 448059
59   THERMOCOUPLE - 16400/241
Glowworm part no. 202444
59 Part number S202444, THERMOCOUPLE - 16400/241 THERMOCOUPLE - 16400/241
Glowworm part no. S202444
60   OBSOLETE TTB MOUNTING BRKT (1XB) SAXGF
Glowworm part no. 451464
61   OBSOLETE SPARES-BODY ASY CHARTWELL FIRE
Glowworm part no. 2000800781
62   OBSOLETE WASHER-S/PROOF M8
Glowworm part no. 403219
64   OBSOLETE TSTAT O/HEAT NO 2455R-9214-922
Glowworm part no. 202565
65   OBSOLETE NUT-M8X1MM HEX LOCK BZP
Glowworm part no. 403225
66   OBSOLETE BULKHEAD FITTING-OP/OPUL/CHAR
Glowworm part no. 204973
67 Part number SWW4617, Ignition lead IGNITION LEAD
Glowworm part no. SWW4617
68   CABLE TIE
Glowworm part no. SK5089
69   OBSOLETE AIR GUIDE ASSY (SW) OPUS/VIC
Glowworm part no. 448014
70   OBSOLETE UPPER SIDE ASSY - RH CHART
Glowworm part no. 451422
71   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014
71   SCREW - M4X8MM
Glowworm part no. S403014
72   OBSOLETE LEG BRACKET-RH SAX3
Glowworm part no. 451413
73   OBSOLETE HEAT EXCH & PRESTIK OPUS/OPUL
Glowworm part no. 2000800451
74 Part number SFF0828, OBSOLETE HYLOMAR SILICONE - 40ML TUBE OBSOLETE HYLOMAR SILICONE - 40ML TUBE
Glowworm part no. SFF0828
75 Part number SK5877, Screw, no8 x 5/8 SCREW, NO8 X 5/8
Glowworm part no. SK5877
76   OBSOLETE SPARES-HEAT EXCH CANOPY
Glowworm part no. 2000800780
77   OBSOLETE SIDE REFLECTOR-LH(NPF)OPUS/VIC
Glowworm part no. 448046
78   OBSOLETE SIDE REFLECTOR-RH(NPF)OPUS/VIC
Glowworm part no. 448047
79   OBSOLETE BACK REFLECTOR(2ST NPF)OPUS/VI
Glowworm part no. 448048
80 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
81   SCREW - M5X10MM
Glowworm part no. S208610
81   SCREW-M5X10MM+5DG MSZP HEX REC
Glowworm part no. 208610
82   OBSOLETE LOCKNUT 1/4 BSP
Glowworm part no. 204830
83   OBSOLETE BURNER BAFFLE(1XBEND) OPUS/VIC
Glowworm part no. 448061
84   SCREW -M4X6MM
Glowworm part no. SK6212
85   OBSOLETE WASHER-PLAIN 1/4 PWALI
Glowworm part no. 451475
86   OBSOLETE WALL PROTECT. PLATE SEAL 264MM
Glowworm part no. 212201
87   OBSOLETE WALL PROTECT. PLATE SEAL 160MM
Glowworm part no. 212202
88   OBSOLETE INSULATION-WALL PROTECT. PLATE
Glowworm part no. 210201
89   OBSOLETE HINGE PIN
Glowworm part no. 208578
91   GLASS FRAME SEAL QC
Glowworm part no. 212204
91   GLASS FRAME SEAL
Glowworm part no. S212204
92   OBSOLETE AERATION PLATE ASSY (SW) OPUS
Glowworm part no. 448050
93   SCREW ( M4 X 6MM )
Glowworm part no. S208365
93   SCREW-M4 X 6MM REC
Glowworm part no. 208365
94   OBSOLETE IGNITER BRKT(VEE\INS)OP\OPL\CH
Glowworm part no. 451473
95 Part number 202179, OBSOLETE RV IGNITOR(9V) REF RV0681 OO16 OBSOLETE RV IGNITOR(9V) REF RV0681 OO16
Glowworm part no. 202179
95 Part number S202179, OBSOLETE Ignitor (9V) OBSOLETE IGNITOR (9V)
Glowworm part no. S202179
96   LEAD
Glowworm part no. SWX0403		 £4.29
98   OBSOLETE GLASS FRAME ASSY SAXGF
Glowworm part no. 451438
99   OBSOLETE UPPER SIDE S/ASSY LH-PNT SAX
Glowworm part no. 451419
100   MICRO SWITCH-OTEHALL 383190
Glowworm part no. 202014
100   MICRO SWITCH
Glowworm part no. S202014
101   OBSOLETE PUSH ON FIX-MECHFAST M/F 6493
Glowworm part no. 208582
102   OBSOLETE INSULATION PLATE-MARANYL AD197
Glowworm part no. 210074
103   OBSOLETE CAM (NPF) FBL/OPUS
Glowworm part no. 440469
104   OBSOLETE WASHER-S/PROOF M3 ZP EXT TEETH
Glowworm part no. SK6362
105   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363
106   OBSOLETE SCREW-M3X20MM MS PN REC ZP
Glowworm part no. K6675
107   OBSOLETE CONTROL TAP ASSY OPUS/OPULENCE
Glowworm part no. 2000800449
108   OBSOLETE CANOPY HEAT SHIELD ASSY - PNTD
Glowworm part no. 451429
109   OBSOLETE CANOPY BAFFLE (PNT) SAX3
Glowworm part no. 451430
110 Part number 210214, NOW USE S210214 FUEL EFFECT PIECE NO 1 OPUS NOW USE S210214 FUEL EFFECT PIECE NO 1 OPUS
Glowworm part no. 210214
110 Part number S210214, Fuel effect piece no 1 FUEL EFFECT PIECE NO 1
Glowworm part no. S210214		 £40.28
111   FUEL EFFECT PIECE NO 2
Glowworm part no. S210215		 £40.28
111   NOW USE S210215 FUEL EFFECT PIECE NO 2 OPUS
Glowworm part no. 210215
112 Part number 210216, NOW USE S210216 FUEL EFFECT PIECE NO 3 OPUS NOW USE S210216 FUEL EFFECT PIECE NO 3 OPUS
Glowworm part no. 210216
112 Part number S210216, Fuel effect piece no 3 FUEL EFFECT PIECE NO 3
Glowworm part no. S210216		 £40.28
113 Part number S210217, Fuel effect piece no 4 FUEL EFFECT PIECE NO 4
Glowworm part no. S210217		 £40.28
113 Part number 210217, NOW USE S210217 FUEL EFFECT PIECE NO 4 OPUS NOW USE S210217 FUEL EFFECT PIECE NO 4 OPUS
Glowworm part no. 210217
114 Part number 210218, NOW USE S210218 FUEL EFFECT PIECE NO 5 OPUS NOW USE S210218 FUEL EFFECT PIECE NO 5 OPUS
Glowworm part no. 210218
114 Part number S210218, Fuel effect piece no 5 FUEL EFFECT PIECE NO 5
Glowworm part no. S210218		 £40.28
118   OBSOLETE INLET SUPLY TUBE ASY OPUS/OPUL
Glowworm part no. 2000800465
119   OBSOLETE ELBOW-1/4 BSPX5/16
Glowworm part no. SK9192
120   OBSOLETE NUT-UNION 1/4 X5/16 FLARE
Glowworm part no. SK9194
