GLOWWORM
CAPRICORN 246 FIRE ONLY 1976 AVA - (Fire Assembly 2)
Appliance Code: 37-314-06

Appliance Diagram

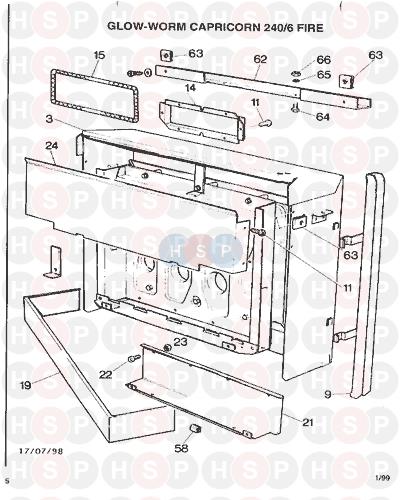

Fire Assembly 2 diagram for Glowworm Capricorn 246 Fire Only 1976 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BOOKLET-INSTL-CAPRICORN
Glowworm part no. 206300

2   OBSOLETE USER CARD-CAPRICORN
Glowworm part no. 206305

3   OBSOLETE HEAT EXCH PACK-CAPRI 246
Glowworm part no. M9092

9   OBSOLETE SIDE LOUVRE ASSY-WALN
Glowworm part no. SM8046

11 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330

13   SCREW (NO 8X1/2)
Glowworm part no. SK7688

14 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019
£6.61
15   OBSOLETE SEAL-12DIAX552MM LOOP
Glowworm part no. K7590

16   OBSOLETE LOCATION BRKT ASSY
Glowworm part no. SM7592

17   OBSOLETE FRONT PANEL ASSY
Glowworm part no. SM10067

18   OBSOLETE REAR SURROUND TOP ASSY
Glowworm part no. SM10066

21   OBSOLETE BT P/PT(NF)CP/GL/ML/AL/MJ2&3
Glowworm part no. SM7599

22   SCREW -M5X10MM
Glowworm part no. SK6214
£6.61
23 Part number SK6219, Nut NUT
Glowworm part no. SK6219

25   OBSOLETE SILENCER ASSY
Glowworm part no. M6900

29   OBSOLETE SCREW-M4X16MM MS PN REC ZP
Glowworm part no. SK6213

30   OBSOLETE REFLECTOR TRIM
Glowworm part no. SK7506

31   OBSOLETE REFLECTOR CHEEK-RH (2XB) 83/11
Glowworm part no. SK6221

32   OBSOLETE REFLECTOR CHEEK-LH (2XB) 83/11
Glowworm part no. SK6222

34   OBSOLETE NUT-FLAT N0.6
Glowworm part no. 208575

36 Part number SWW4609, Ignition lead IGNITION LEAD
Glowworm part no. SWW4609

37   OBSOLETE RADIANT PACK
Glowworm part no. 203744

41 Part number SK5148, Split pin -3/32 dia X 3/4 SPLIT PIN -3/32 DIA X 3/4
Glowworm part no. SK5148

44   OBSOLETE SCREW-M3 X 6MM DUOT REC
Glowworm part no. SFF0101

44   OBSOLETE ELECTRODE
Glowworm part no. 415062

45   OBSOLETE NUT-M3 HEX FULL ZP
Glowworm part no. SK6363

46   OBSOLETE BURNR-BRAY-AB10086W QC
Glowworm part no. SK7660

46   OBSOLETE BURNER-BRAY-AB9518W
Glowworm part no. 203202

47   OBSOLETE BNR SHD(PF)GL/CP/AL/ML/MJ
Glowworm part no. SM7728

48   OBSOLETE BAFF-RH(PF)GL/CP/AL/ML/MJ
Glowworm part no. SM8134

54   OBSOLETE ADAPTER-1/4 BSP ML
Glowworm part no. SK4732

55   OBSOLETE BEND-1/4 BSP F/F
Glowworm part no. SK6453

56   OBSOLETE NUT-TUBING 3/8 TUBE MALE QC
Glowworm part no. SK4736

57   OLIVE - 3/8 DIA
Glowworm part no. SK4740

61   OBSOLETE WASHER-PLAIN 3/16 PWMSI
Glowworm part no. SK2348

63   OBSOLETE NUT-SPIRE CAPTIVE M6
Glowworm part no. SK7685

64   OBSOLETE SCREW-M6 X 12MM
Glowworm part no. SK6290

65   SHAKE PROOF WASHER (M6)
Glowworm part no. SK7315
£4.29
66   OBSOLETE NUT-M6 HEX FULL BZP
Glowworm part no. SK6069

68   OBSOLETE GAS FEED PIPE-SPARE-GL/CAP/MJ3
Glowworm part no. 800043

69   OBSOLETE UNION NUT-OLIVE TYPE-8MM
Glowworm part no. FF2188

69   OBSOLETE UNION NUT-OLIVE TYPE-8MM
Glowworm part no. SFF2188

70   OBSOLETE OLIVE- 5/16 QC
Glowworm part no. SK9191
