GLOWWORM
ASCOT 1.4 S 1982 AVA - (Flue)
Appliance Code: 52-313-01

Appliance Diagram

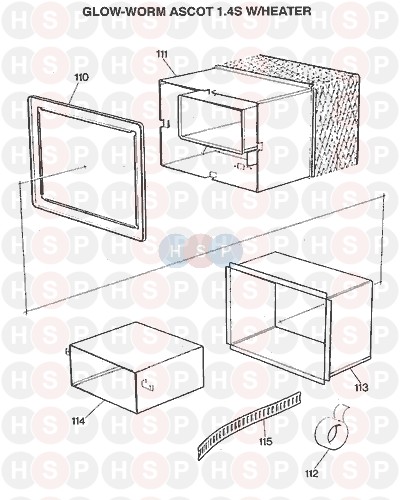

Flue diagram for Glowworm Ascot 1.4 S 1982 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

4   OBSOLETE FRONT COVER ASSEMBLY - GOLD
Glowworm part no. 420020

4   OBSOLETE FRONT COVER ASSY
Glowworm part no. 420077

5   OBSOLETE CONTROL COVER ASSY-ASCOT1.4S
Glowworm part no. 420079

5   OBSOLETE CONTROL COVER ASSY-ASCOT-GOLD
Glowworm part no. 420021

6   OBSOLETE CASE BTM ASSY-1.4S-SPARES
Glowworm part no. 420059

7   OBSOLETE SEALING STRIP-245MMSEALS
Glowworm part no. 411747

8   OBSOLETE SEALING STRIP-361MMSEALS QC
Glowworm part no. 208025

12 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019
£6.61
12   OBSOLETE SCREW-NO.10 X 1/2 REC
Glowworm part no. 50759002

13   WASHER-SEAL 1/2X3/16X1/16 BSW
Glowworm part no. 69953

13 Part number 403215, NOW USE S403215 NUT-WING M5 ZP NOW USE S403215 NUT-WING M5 ZP
Glowworm part no. 403215

13 Part number S403215, Nut-wing M5 NUT-WING M5
Glowworm part no. S403215

13   WASHER - SEAL 1/2X3/16X1/16
Glowworm part no. S69953

14   OBSOLETE TIE BAR-FLUE HOOD QC
Glowworm part no. 412667

15   OBSOLETE FLUE HD SUB-ASSY (SW) AS/SV
Glowworm part no. 412572

19   OBSOLETE G/FIBRE ROPE 4MM DIA
Glowworm part no. SFF0826

21   OBSOLETE WASS/WASHER-EPDM-24ODX18IDX2.0THK
Glowworm part no. 411129

22   SCREW-M4X8MM MS PN REC
Glowworm part no. 403014

22   SCREW - M4X8MM
Glowworm part no. S403014

23   OBSOLETE PILOT SHIELD ASSEMBLY
Glowworm part no. 420019

24   OBSOLETE PILOT & ELECT ASSY PBRNR QC
Glowworm part no. 203404

25 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218
£6.61
28   OBSOLETE DEFLECTOR PLATE ASSY
Glowworm part no. 420047

29   OBSOLETE INJECTOR-4.2MM HOLEINJTR QC
Glowworm part no. 203008

31   OBSOLETE SCREW-M5X14MM MS HX HD REC
Glowworm part no. 208219

33   OBSOLETE GASKET-ELBOW GASKT QC
Glowworm part no. 208021

34   OBSOLETE SCREW-M3X6MM MS PN REC
Glowworm part no. 12712

35   OBSOLETE IGNITION LEAD ASSY 350MM
Glowworm part no. SWW4610

36 Part number SK6296, Washer WASHER
Glowworm part no. SK6296

36   SCREW - M5X10MM
Glowworm part no. SK9324

36   OBSOLETE WASHER-M5 MS PLAIN ZP
Glowworm part no. 208228

37   OBSOLETE GAS FEED PIPE ASSY-ASCOT
Glowworm part no. 420024

38   OBSOLETE GASKET-FEED PIPE GASKT
Glowworm part no. 208022

39   OBSOLETE NUT-LOCK 3/4
Glowworm part no. 411068

40   OBSOLETE WASHER-SEALING 36ODSWSHR
Glowworm part no. 411069

44   OBSOLETE BURNER TRAY ASSY
Glowworm part no. 800090

47   OBSOLETE O RING-5/32IDX0.070ORING
Glowworm part no. 204230

47   OBSOLETE O RING-4.1X1.6MM
Glowworm part no. 204209

48   OBSOLETE GAS SERVICE COCK GCOCK QC
Glowworm part no. 203602

49   OBSOLETE WATER CONN BEND (D-BURR) ASCOT
Glowworm part no. 412053

50   OBSOLETE GAS INLET PIPE(BEAD+DE-BURR)AS
Glowworm part no. 420030

52 Part number 208214, OBSOLETE WATER FILTER-10-12284 OBSOLETE WATER FILTER-10-12284
Glowworm part no. 208214

52 Part number S208214, OBSOLETE Filter - Water OBSOLETE FILTER - WATER
Glowworm part no. S208214

54   OBSOLETE WASHER-15IDX19ODX3 PWBRM
Glowworm part no. 204109

55   OBSOLETE CONNECT FLANGE 10-10026
Glowworm part no. 204111

58   OBSOLETE COMPRESSION FLANGE QC
Glowworm part no. 204108

60   OBSOLETE PILOT TUBE ASSEMBLY
Glowworm part no. 420033

61   OBSOLETE CONNECTING ADAPTER-BRASS QC
Glowworm part no. 204116

62 Part number 204215, NOW USE S204215 WASHER-SEALING-AF2000-11.3X4 NOW USE S204215 WASHER-SEALING-AF2000-11.3X4
Glowworm part no. 204215

62 Part number S204215, Washer sealing WASHER SEALING
Glowworm part no. S204215

64   OBSOLETE FILTER HOLDER-BRASS QC
Glowworm part no. 204115

65   OBSOLETE O RING-7.1X1.6MM 0071-16-MN70
Glowworm part no. 204214

66 Part number M8877, OBSOLETE GLAND PLATE ASSY OBSOLETE GLAND PLATE ASSY
Glowworm part no. M8877

68   OBSOLETE CONT SUPPORT BRKT (F) AS
Glowworm part no. 420027

69 Part number SK6219, Nut NUT
Glowworm part no. SK6219

71   OBSOLETE IGNITER BUTTON QC
Glowworm part no. 204607

72   OBSOLETE STARTER BUTTON QC
Glowworm part no. 204606

73   OBSOLETE STOP BUTTON QC
Glowworm part no. 204605

74   OBSOLETE COMPRESSION RING-SCB1876/17/80
Glowworm part no. 204604

75   OBSOLETE WATER INLET ASSY-ASCOT
Glowworm part no. 420007

79   OBSOLETE THROTTLE BODY ASSY (BRAZE) AS
Glowworm part no. 420016

81   OBSOLETE INLET THROTTLE 10-12207
Glowworm part no. 204110

81   OBSOLETE VENTURI BODY ASY 10-13727
Glowworm part no. 204119

84 Part number S208217, Water S/Cock WATER S/COCK
Glowworm part no. S208217
£25.60
84 Part number 208217, NOW USE S208217 WATER S/COCK-BEM I4/3/357 NOW USE S208217 WATER S/COCK-BEM I4/3/357
Glowworm part no. 208217

85   OBSOLETE WATER INLET PIPE (BEND&BEAD)AS
Glowworm part no. 420028

87   OBSOLETE GASKET 10-12848 GASKT
Glowworm part no. 208027

91   OBSOLETE WASHER 13-12224
Glowworm part no. 208031

91   OBSOLETE WASHER-13-12223
Glowworm part no. 204138

93   OBSOLETE CLIP-RETAIN-MAIN CLIPS
Glowworm part no. 204122

95   OBSOLETE KAO RING-6.1ID X 1.6MM
Glowworm part no. 204218

95   OBSOLETE O RING-6.1ID X 1.6MM
Glowworm part no. S204218

96   OBSOLETE ADJUSTING SCREW
Glowworm part no. 208223

97   OBSOLETE DIA THRUST PLT 10-12460
Glowworm part no. 208018

98   OBSOLETE SCREW-M5 X 10MM REC PNSST
Glowworm part no. SFF0053

100   OBSOLETE SECURING PLATE 10-12374
Glowworm part no. 204114

103   NOW USE S204212 O RING-5.1X1.6MM 0051-16-MN70
Glowworm part no. 204212

103   O RING -5.1X1.6MM
Glowworm part no. S204212
£4.91
104   OBSOLETE LP WATER PIPE (BEAD+B) ASCOT
Glowworm part no. 420032

105   OBSOLETE HP WATER PIPE (BEAD+B) ASCOT
Glowworm part no. 420031

106   OBSOLETE WINTER/SUMMER KNOB QC
Glowworm part no. 204608

107   OBSOLETE CLIP-SPRING SPIRE CLIPS
Glowworm part no. 204609

108   OBSOLETE WINTR/SUMMER CAM 10-13557
Glowworm part no. 204120

111   OBSOLETE BAL FLUE TERM ASSY
Glowworm part no. 411204

112   OBSOLETE THERM TAPE-LOW TEMP-1.95M ROLL
Glowworm part no. 412734

112   OBSOLETE THERM TAPE-LOW TEMP-1.95M ROLL
Glowworm part no. S412734

113   OBSOLETE W/LINER ASSY SHT(SW) T/SOV
Glowworm part no. 411212

114   OBSOLETE DUCT EXT.ASSY (SW) T/SOV
Glowworm part no. 411209

116   OBSOLETE BURNER ASSY-170.500.009 QC
Glowworm part no. 203224

118   OBSOLETE GAS FEED PIPE ASCOT
Glowworm part no. 420070

119   OBSOLETE TRANSFER ELBOW ASSEMBLY
Glowworm part no. 420063

120   OBSOLETE FLANGE PLT-PLATED ASCOT
Glowworm part no. 204134

121   OBSOLETE WASHER-15.6X12.9X2 PWBRM QC
Glowworm part no. 204133
