GLOWWORM
AMBIANCE 2 BBU FIRE ONLY 1996 AVA - (Fire Assembly 4)
Appliance Code: 37-314-17

Appliance Diagram


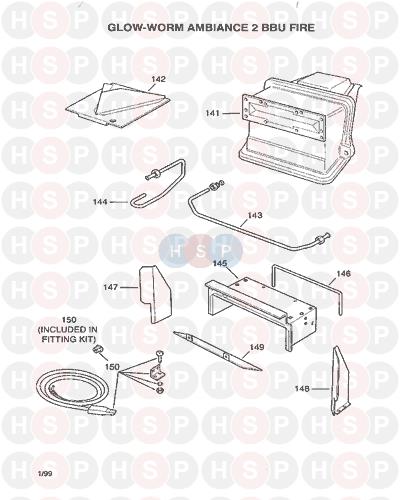

Fire Assembly 4 diagram for Glowworm Ambiance 2 BBU Fire Only 1996 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE INSTALLATION INSTRUCTIONS
Glowworm part no. 220797
1   OBSOLETE USER INSTRUCTIONS
Glowworm part no. 220798
2   OBSOLETE HEARTH FRONT ASSY GW AMBIANCE
Glowworm part no. 2000448316
4   GLASS LAMP COVER (RED)
Glowworm part no. S209131		 £16.65
4   NOW USE S209131 GLASS LAMP COVER (RED)
Glowworm part no. 209131
5   OBSOLETE FUEL BED GLASS
Glowworm part no. S209132
5   OBSOLETE FUEL BED GLASS
Glowworm part no. 209132
6   OBSOLETE HEARTH TRIM ASSY(RVT) HGW
Glowworm part no. 432626
7   OBSOLETE FLUE SPIGOT ASSY(SW) HGB/OPUS
Glowworm part no. 433300
8   OBSOLETE LOWER PLINTH ASSY BEMB2
Glowworm part no. 2000448314
9 Part number 451461, UPPER SENSING TUBE-(F) UPPER SENSING TUBE-(F)
Glowworm part no. 451461
9 Part number S451461, Upper sensing tube UPPER SENSING TUBE
Glowworm part no. S451461
10   OBSOLETE NUT-UNION 3/8 TUBE
Glowworm part no. SK8149
11 Part number 2000800016, OBSOLETE Pipe - Gas supply OBSOLETE PIPE - GAS SUPPLY
Glowworm part no. 2000800016
12   COAL-REAR
Glowworm part no. 203763
12   COAL REAR
Glowworm part no. S203763
13   OBSOLETE COAL-FRONT LH
Glowworm part no. S203764
13   OBSOLETE COAL-FRONT LH
Glowworm part no. 203764
14 Part number 203765, NOW USE S203765 COAL-FRONT RH NOW USE S203765 COAL-FRONT RH
Glowworm part no. 203765
14 Part number S203765, Coal front RH COAL FRONT RH
Glowworm part no. S203765		 £16.65
15   OBSOLETE COAL NO 1
Glowworm part no. 203766
16   OBSOLETE COAL NO.2 (WADE REF260/44)
Glowworm part no. 203767
17   OBSOLETE COAL NO.3
Glowworm part no. 203768
18   OBSOLETE COAL NO.4
Glowworm part no. 203769
19   OBSOLETE COAL NO.5 (WADE REF260/47)
Glowworm part no. 203790
20   OBSOLETE COAL NO.6 (WADE REF260/48)
Glowworm part no. 203791
21   OBSOLETE COAL NO.7
Glowworm part no. 203792
22   OBSOLETE INSULATION-LH SIDE CHEEK NO.1
Glowworm part no. 210136
23   OBSOLETE INSULATION-RH SIDE CHEEK NO.1
Glowworm part no. 210138
24   OBSOLETE INSULATION-LH SIDE CHEEK NO.2
Glowworm part no. 210137
25   OBSOLETE INSULATION-RH SIDE CHEEK NO.2
Glowworm part no. 210139
26   NOW USE S210140 INSULATION-REAR CHEEK
Glowworm part no. 210140
26   INSULATION-REAR CHEEK
Glowworm part no. S210140		 £36.87
27   OBSOLETE FUEL GRID LH
Glowworm part no. 203761
28 Part number S203780, FUEL GRID RH FUEL GRID RH
Glowworm part no. S203780
28 Part number 203780, NOW USE S203780 FUEL GRID RH NOW USE S203780 FUEL GRID RH
Glowworm part no. 203780
29   OBSOLETE REAR SURR ASSY LH-PNTD BEMB
Glowworm part no. 448308
30 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
31   OBSOLETE REAR SURR ASSY RH-PNTD BEMB
Glowworm part no. 448309
32   OBSOLETE HEARTH ASSY L/H GW AMBIANCE
Glowworm part no. 2000800488
33   OBSOLETE HEARTH EXT LH-PNTD BEMB
Glowworm part no. 448310
34   OBSOLETE HEARTH ASSY R/H GW AMBIANCE
Glowworm part no. 2000800489
35   OBSOLETE HEARTH EXT RH-PNTD BEMB
Glowworm part no. 448311
36   OBSOLETE HRTH SD SUPP ANGLE(DE-BUR) HGW
Glowworm part no. 432592
37   SCREW -M5X10MM
Glowworm part no. SK6214		 £6.61
39   SCREW ( M4 X 8MM )
Glowworm part no. SK7968
40   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
41   OBSOLETE SPARES-CANOPY ASSY GW AMBIANCE
Glowworm part no. 2000800486
42   NOW USE S58921016 PUSH ON FIX-SPIRE-SF02938/17/4
Glowworm part no. 58921016
42   PUSH ON FIX
Glowworm part no. S58921016
43   OBSOLETE CANOPY TOP-PWDR (146021)
Glowworm part no. 448305
44   SCREW ( M4 X 6MM )
Glowworm part no. S208365
44   SCREW-M4 X 6MM REC
Glowworm part no. 208365
45   OBSOLETE CANOPY TRIM (2XB)-PH HGW
Glowworm part no. 432554
46   OBSOLETE SCR-NO.6X3/8 FLG HD/BR PL B
Glowworm part no. 208543
47   OBSOLETE SCR NO.6X3/8 FLG HD/BR PLT AB
Glowworm part no. 208548
48   OBSOLETE REAR SURR TOP GW AMBIANCE 2
Glowworm part no. 2000800798
49   OBSOLETE REAR DEFLECTOR (1XB) HGW
Glowworm part no. 432612
51   OBSOLETE SCREW-NO.8 X 1/2 REC
Glowworm part no. 208003
52   OBSOLETE CANOPY UNDER PANEL-PNTD HGB
Glowworm part no. 433260
53   OBSOLETE HEAT EXCH CANOPY-PNTD HGB
Glowworm part no. 433262
54   OBSOLETE UPP WALL MNTNG BRKT(NPFC) HGW
Glowworm part no. 432535
55   OBSOLETE INSULATION CLIP (PC) FD
Glowworm part no. 424110
56   OBSOLETE CASE SECURING BRKT-SPARE-HG
Glowworm part no. 2000800106
57   OBSOLETE FRET & SUPPORT ASSY
Glowworm part no. 432559
58 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
58 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
59 Part number SK8019, Screw ( M5X10mm ) SCREW ( M5X10MM )
Glowworm part no. SK8019		 £6.61
60   OBSOLETE LOCKNUT-3/8 BSP
Glowworm part no. 204196
60   OBSOLETE LOCKNUT-3/8 BSP
Glowworm part no. S204196
61   OBSOLETE BACK REFLECTOR (3STTF) HGW
Glowworm part no. 432555
62   OBSOLETE SIDE REFLECTOR LH(3STBF) HGW
Glowworm part no. 432556
63   OBSOLETE 1SIDE REFLECTOR RH(3STBF) HGW
Glowworm part no. 432557
64   OBSOLETE AIR GUIDE ASSY(SW) HGB2/GWAM2
Glowworm part no. 452604
65   SIDE GLASS
Glowworm part no. 432544		 £103.73
66   OBSOLETE FRONT GLASS
Glowworm part no. 432558
67   OBSOLETE LOWER FRT GLASS CLAMP-PNTD HGW
Glowworm part no. 432567
68   OBSOLETE KNURLED NUT
Glowworm part no. 208509
68   OBSOLETE KNURLED NUT
Glowworm part no. S208509
69   OBSOLETE CONNECTING SLEEVE
Glowworm part no. 203815
70 Part number SK5148, Split pin -3/32 dia X 3/4 SPLIT PIN -3/32 DIA X 3/4
Glowworm part no. SK5148
71   OBSOLETE CONNECTING ROD
Glowworm part no. S204713
71   OBSOLETE CONNECTING ROD
Glowworm part no. 204713
72   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. 208375
72   OBSOLETE WASHER-1/4 X1 MS PLAIN
Glowworm part no. S208375
73   OBSOLETE CONTROL KNOB ASSY GW AMBIANCE
Glowworm part no. 2000448323
74 Part number 452606, Control tap assembly CONTROL TAP ASSEMBLY
Glowworm part no. 452606		 £129.97
75 Part number 432616, OBSOLETE SUPPLY TUBE ASSY-BTM(F) OBSOLETE SUPPLY TUBE ASSY-BTM(F)
Glowworm part no. 432616
75 Part number S432616, OBSOLETE SUPPLY TUBE ASSY-BTM(F) OBSOLETE SUPPLY TUBE ASSY-BTM(F)
Glowworm part no. S432616
77   OBSOLETE UNION NUT-6MM OLIVE TYPE
Glowworm part no. 204846
78   UNION NUT-6MM FLARED
Glowworm part no. 204810
78   UNION NUT-6MM FLARED
Glowworm part no. S204810
79   OBSOLETE OLIVE-6MM
Glowworm part no. 204802
80   OBSOLETE BLEED TUBE-SPARE-HG+BBU
Glowworm part no. 2000800019
81   OBSOLETE UNION NUT-3/16 FLARED
Glowworm part no. 403224
82   NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. S204848		 £4.29
82   NOW USE S204848 NUT-UNION-OLIVE TYPE 3/16
Glowworm part no. 204848
83   OBSOLETE INLET SUPPLY TUBE-SPARE-HGBBU
Glowworm part no. 2000800020
84   OBSOLETE NUT-UNION 1/4 X5/16 FLARE
Glowworm part no. SK9194
85   NUT- TUBING 8MM
Glowworm part no. SK9190		 £4.29
86   OBSOLETE OLIVE- 5/16 QC
Glowworm part no. SK9191
87   OBSOLETE OLIVE-8MM DIA
Glowworm part no. 230125
88 Part number 204975, OBSOLETE BULKHEAD CONNECTOR OBSOLETE BULKHEAD CONNECTOR
Glowworm part no. 204975
89   OBSOLETE INJECTOR-BRAY 77 160 QC
Glowworm part no. 203075
90   NOW USE S203076 INJECTOR-BRAY 18 280
Glowworm part no. 203076
90   INJECTOR
Glowworm part no. S203076		 £5.54
91   OBSOLETE SPARES-BURNER H/GLOW AMBIANCE2
Glowworm part no. 2000800796
92 Part number S203438, OXYPILOT OXYPILOT
Glowworm part no. S203438		 £27.56
92 Part number 203438, NOW USE S203438 OXYPILOT NOW USE S203438 OXYPILOT
Glowworm part no. 203438
93   OBSOLETE SLEEVING 600MMX10MM DIA-SRG715
Glowworm part no. 202319
94   OBSOLETE SPARES-PILOT PIPE
Glowworm part no. 2000800793
95   OBSOLETE TBE NUT/OLIVE-4MM 45900402-019
Glowworm part no. 204965
96 Part number SWW4607, Ignition lead IGNITION LEAD
Glowworm part no. SWW4607
98   OBSOLETE AERATION PLATE(NPFC) HGB
Glowworm part no. 433307
99 Part number 417019, NUT-COMP-4MM-SIT 0.958.030 NUT-COMP-4MM-SIT 0.958.030
Glowworm part no. 417019
99 Part number S417019, Nut - Compression 4mm NUT - COMPRESSION 4MM
Glowworm part no. S417019
100   UNION NUT 3/8 BSPF
Glowworm part no. S12248
100   UNION NUT 3/8 BSPF
Glowworm part no. 12248
101   OBSOLETE SCREW-M5X40MM MS PN REC
Glowworm part no. 208371
102   SENSING TUBE BRACKET
Glowworm part no. 451456
102   BRACKET - SENSING TUBE
Glowworm part no. S451456
103   OLIVE - 3/8 DIA
Glowworm part no. SK4740
104   OBSOLETE SENSING TUBE FITTING-OPUS/OPUL
Glowworm part no. S204971
104   OBSOLETE SENSING TUBE FITTING-OPUS/OPUL
Glowworm part no. 204971
105   LOCKNUT-1/8 BSP
Glowworm part no. S415065
105   LOCKNUT-1/8 BSP
Glowworm part no. 415065
110   BUSH RELIEF
Glowworm part no. S204226
110   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
111   OBSOLETE FIRE LIGHT CABLE ASSY-395MM
Glowworm part no. 427220
113   OBSOLETE SWITCH COVER ASSY-SPARE-HGBBU
Glowworm part no. 2000800105
118   OBSOLETE OVEN LAMP-25W-300CPHILIPS SES14
Glowworm part no. 202056
119   OBSOLETE WIRING HARNESS-HGBBU
Glowworm part no. 433301
120   OBSOLETE LAMP HOLDR-LA01
Glowworm part no. 202057
121 Part number 202018, PLUG-ELKAY 6603-1 PLUG-ELKAY 6603-1
Glowworm part no. 202018
121 Part number S202018, Electrical Plug ELECTRICAL PLUG
Glowworm part no. S202018
122 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
124 Part number 12780, NOW USE S12780 SCREW M4X12MM MS PN REC NOW USE S12780 SCREW M4X12MM MS PN REC
Glowworm part no. 12780
124 Part number S12780, Screw M4x12mm SCREW M4X12MM
Glowworm part no. S12780		 £6.61
125   CLIP - EDGE CABLE
Glowworm part no. SK6899
126   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
126   CORD GRIP
Glowworm part no. S204239
127   NOW USE S900813 SEAL-ALTERNATIVES
Glowworm part no. 900813
127   SEAL
Glowworm part no. S900813		 £8.93
128 Part number 208238, NOW USE S208238 SCREW-M5X8MM MS PN REC NOW USE S208238 SCREW-M5X8MM MS PN REC
Glowworm part no. 208238
128 Part number S208238, Screw ( M5X8mm ) SCREW ( M5X8MM )
Glowworm part no. S208238		 £6.61
129   OBSOLETE INSUL-485X75X25MM -G/FIBRE
Glowworm part no. 210146
131   OBSOLETE DRAUGHT DIVE REAR(SW) HGB
Glowworm part no. 433259
133   OBSOLETE LIGHT SWITCH-SW04
Glowworm part no. 202068
134   OBSOLETE NUT-SPIRE CAPT NO6
Glowworm part no. 51173003
135 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
137   OBSOLETE PRESSURE TEST SCREW+O RING ASS
Glowworm part no. 203620


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
