GLOWWORM
56 BBU 1986 AVA - (Boiler Assembly 2)
Appliance Code: 44-315-28

Appliance Diagram


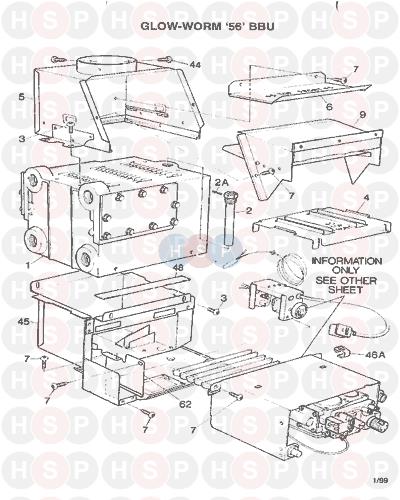

Boiler Assembly 2 diagram for Glowworm 56 BBU 1986 AVAClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE FITTERS INSTR- BBU45/56 6/92
Glowworm part no. 206630
1   OBSOLETE HEAT EXCHANGER ASSY-PNTD-BBU56
Glowworm part no. 426502
1   OBSOLETE GASKET-1.5MM-PERMANITE AF2000
Glowworm part no. 212055
1   OBSOLETE GASKET-1.5MM
Glowworm part no. S212055
2 Part number S208390, Split pin - 1.6 X 25mm SPLIT PIN - 1.6 X 25MM
Glowworm part no. S208390
2 Part number 409233, PHIAL POCKET KIT PHIAL POCKET KIT
Glowworm part no. 409233
2 Part number 208390, NOW USE S208390 SPLIT PIN-1.6 X 25MM NOW USE S208390 SPLIT PIN-1.6 X 25MM
Glowworm part no. 208390
3 Part number 411402, NOW USE S411402 SCREW-M6X10MM MS PN REC BZP NOW USE S411402 SCREW-M6X10MM MS PN REC BZP
Glowworm part no. 411402
3 Part number S411402, Screw - M6X10mm SCREW - M6X10MM
Glowworm part no. S411402
4   OBSOLETE H/E FLUEWAY BAFF. (NPF) BBU5/F
Glowworm part no. 426504
5   OBSOLETE DRAUGHT DIVE ASSY-BBU56
Glowworm part no. 426543
6   OBSOLETE D/DIVERTER LOWER BAFF(NPF)BBU5
Glowworm part no. 426538
7 Part number 208308, NOW USE S208308 SCREW-M4X10MM+5DG MS PN NOW USE S208308 SCREW-M4X10MM+5DG MS PN
Glowworm part no. 208308
7 Part number S208308, Screw (M4x10mm) SCREW (M4X10MM)
Glowworm part no. S208308		 £6.61
9   OBSOLETE DRAUGHT DIVE FRONT ASSY-SPARE
Glowworm part no. 426552
10 Part number SFF0652, Screw, no6 x 3/8 SCREW, NO6 X 3/8
Glowworm part no. SFF0652
11   OBSOLETE G/FIBRE ROPE-6DIAX730MM LG QC
Glowworm part no. 212058
13   OBSOLETE BURNER-AERO AC07/05 2029
Glowworm part no. 203269
14 Part number 203419, OBSOLETE PILOT BURNER-SIT 0.140.020 OBSOLETE PILOT BURNER-SIT 0.140.020
Glowworm part no. 203419
14 Part number S203419, OBSOLETE Pilot burner OBSOLETE PILOT BURNER
Glowworm part no. S203419
15   OBSOLETE SCREW-2BAX1/4 SLOT
Glowworm part no. 013936
16   NOW USE S210059 INSUL-84X29X8MM G.FBR/C.FBR
Glowworm part no. 210059
16   INSULATION - 84X29X8MM
Glowworm part no. S210059		 £4.91
17   INSULATION -62X30.5X8MM
Glowworm part no. S210067		 £5.07
17   NOW USE S210067 INSUL-62X30.5X8MM G.FB/C.FB
Glowworm part no. 210067
18 Part number 208309, NOW USE S208309 PAPER FASTENER-TUCKER 063BS3 NOW USE S208309 PAPER FASTENER-TUCKER 063BS3
Glowworm part no. 208309
18 Part number S208309, Paper fastener PAPER FASTENER
Glowworm part no. S208309		 £4.91
19 Part number S202605, ELECTRODE ELECTRODE
Glowworm part no. S202605		 £20.30
19 Part number 202605, NOW USE S202605 ELECTRODE NOW USE S202605 ELECTRODE
Glowworm part no. 202605
20   NOW USE S202606 ELECTRODE RETAINING NUT
Glowworm part no. 202606
20   ELECTRODE RETAINING NUT
Glowworm part no. S202606		 £4.91
21   OBSOLETE MANIFOLD-GAS VALVE
Glowworm part no. 203130
21 Part number 426555, Gas cock assembly GAS COCK ASSEMBLY
Glowworm part no. 426555		 £46.31
22   OBSOLETE INJECTOR-3.7MM HOLE
Glowworm part no. 203001A
22   OBSOLETE INJECTOR
Glowworm part no. S203001A
23   OBSOLETE BURNER SUPPORT ASSY(I) BBU
Glowworm part no. 426522
23   OBSOLETE BURNER SUPPORT ASSY(I) BBU
Glowworm part no. S426522
24   LINT ARRESTER
Glowworm part no. S426513		 £23.71
24   NOW USE S426513 LINT ARRESTER ASSY(SW) BBU
Glowworm part no. 426513
25 Part number SK6262, Shake proof washer (M5) SHAKE PROOF WASHER (M5)
Glowworm part no. SK6262
26 Part number SK6219, Nut NUT
Glowworm part no. SK6219
27 Part number 426766, Gas section GAS SECTION
Glowworm part no. 426766		 £103.68
27   OBSOLETE PLUG & CABLE ASSY
Glowworm part no. 426540
27   OBSOLETE PLUG AND CABLE
Glowworm part no. S426540
28 Part number S208068, O ring-25IDX4.0mm O RING-25IDX4.0MM
Glowworm part no. S208068		 £4.91
28 Part number 208068, NOW USE S208068 O RING-25IDX4.0MM SECT NOW USE S208068 O RING-25IDX4.0MM SECT
Glowworm part no. 208068
29   SCREW - M5X10MM
Glowworm part no. SK9324
32 Part number S203508, Injector, pilot INJECTOR, PILOT
Glowworm part no. S203508		 £15.68
32 Part number 203508, PLT INJTR-0.27MM-SIT 0.977.113 PLT INJTR-0.27MM-SIT 0.977.113
Glowworm part no. 203508
33   OBSOLETE OLIVE-4MM-SIT 0.957.009
Glowworm part no. 204158
33   OBSOLETE OLIVE 4MM
Glowworm part no. S204158
34   OBSOLETE NUT-TUBING-4MM
Glowworm part no. S204157
34   OBSOLETE NUT-TUBING-4MM-SIT 0.958.013
Glowworm part no. 204157
35 Part number 417019, NUT-COMP-4MM-SIT 0.958.030 NUT-COMP-4MM-SIT 0.958.030
Glowworm part no. 417019
35 Part number S417019, Nut - Compression 4mm NUT - COMPRESSION 4MM
Glowworm part no. S417019
36 Part number S900001, Thermocouple THERMOCOUPLE
Glowworm part no. S900001		 £27.04
36 Part number 900001, NOW USE S900001 THERMOCOUPLE-ALTERNATIVES NOW USE S900001 THERMOCOUPLE-ALTERNATIVES
Glowworm part no. 900001
37   OBSOLETE PILOT SHIELD FRONT (NPF) BBU
Glowworm part no. 426529
38 Part number 208093, NOW USE S208093 GASKET-SIGHT GLASS NOW USE S208093 GASKET-SIGHT GLASS
Glowworm part no. 208093
38 Part number S208093, GASKET-SIGHT GLASS GASKET-SIGHT GLASS
Glowworm part no. S208093		 £6.61
39 Part number S208302, SIGHT GLASS SIGHT GLASS
Glowworm part no. S208302		 £6.61
39 Part number 208302, NOW USE S208302 SIGHT GLASS NOW USE S208302 SIGHT GLASS
Glowworm part no. 208302
40   OBSOLETE SIGHT GLASS COV(PC) CV/HABCBBU
Glowworm part no. 424508
41 Part number SWW4603, Ignition lead IGNITION LEAD
Glowworm part no. SWW4603
42   OBSOLETE PILOT SHIELD BASE (NPF) BBU
Glowworm part no. 426530
43   OBSOLETE NUT-SPIRE CAPT NO8
Glowworm part no. 208303
44 Part number SK2330, Screw (No8 X 3/8) SCREW (NO8 X 3/8)
Glowworm part no. SK2330
45 Part number 426544, OBSOLETE COMB CHAMB ASSY-BBU56 OBSOLETE COMB CHAMB ASSY-BBU56
Glowworm part no. 426544
46   OBSOLETE C/C EXTN ASSY-BBU45/56-SPARES
Glowworm part no. 426768
47 Part number 900501, NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE NOW USE S900501 PIEZO GENERATOR-ALTERNATIVE
Glowworm part no. 900501
47 Part number S900501, Piezo generator PIEZO GENERATOR
Glowworm part no. S900501
48   GASKET-1.5MM
Glowworm part no. S212084
48 Part number 212084, GASKET-1.5MM-THMTX 500/ALTEC GASKET-1.5MM-THMTX 500/ALTEC
Glowworm part no. 212084
49   OBSOLETE CONTROL BOX COVER ASSY-SPARE
Glowworm part no. 426554
50   NOW USE S204239 CORD GRIP-ELKAY 743
Glowworm part no. 204239
50   CORD GRIP
Glowworm part no. S204239
51   LOCKNUT
Glowworm part no. S204240
51   NOW USE S204240 LOCKNUT-ELKAY CAT 92
Glowworm part no. 204240
53   BUSH RELIEF
Glowworm part no. S204226
53   NOW USE S204226 BUSH-RELIEF - SRB011-BLK
Glowworm part no. 204226
54   OBSOLETE SCREW-M4X20MM MS PN REC
Glowworm part no. 208281
54   OBSOLETE SCREW-M4X20MM MS PN REC
Glowworm part no. S208281
55 Part number SK6361, Shake proof washer (M4) SHAKE PROOF WASHER (M4)
Glowworm part no. SK6361
56   OBSOLETE WASHER-CUP 4.2MMX0.385
Glowworm part no. SFF0824
57   OBSOLETE WASHER-M4 FORM A PLN ZP
Glowworm part no. SK6558
58 Part number SK6218, Nut - M4 NUT - M4
Glowworm part no. SK6218		 £6.61
59 Part number S202518, Thermostat THERMOSTAT
Glowworm part no. S202518		 £65.39
59   NOW USE S202518 TSTAT-RANCO CL6 P0144-000
Glowworm part no. 202518
60 Part number 426526, OBSOLETE CONTROL KNOB ASSY OBSOLETE CONTROL KNOB ASSY
Glowworm part no. 426526
60 Part number S426526, OBSOLETE Control knob OBSOLETE CONTROL KNOB
Glowworm part no. S426526
61 Part number S403095, D clip for control knob D CLIP FOR CONTROL KNOB
Glowworm part no. S403095
61 Part number 403095, OBSOLETE CLIP- D-SPIRE OBSOLETE CLIP- D-SPIRE
Glowworm part no. 403095
62   OBSOLETE CONTROL BOX DOOR ASSY-SPARE
Glowworm part no. 426553
