FERROLI
DOMI COMPACT F24 B (01-09-2006),
DOMI COMPACT F24 B (03-05-2005) - (Gas Line)
Appliance Code: 47-267-37 03-05-05

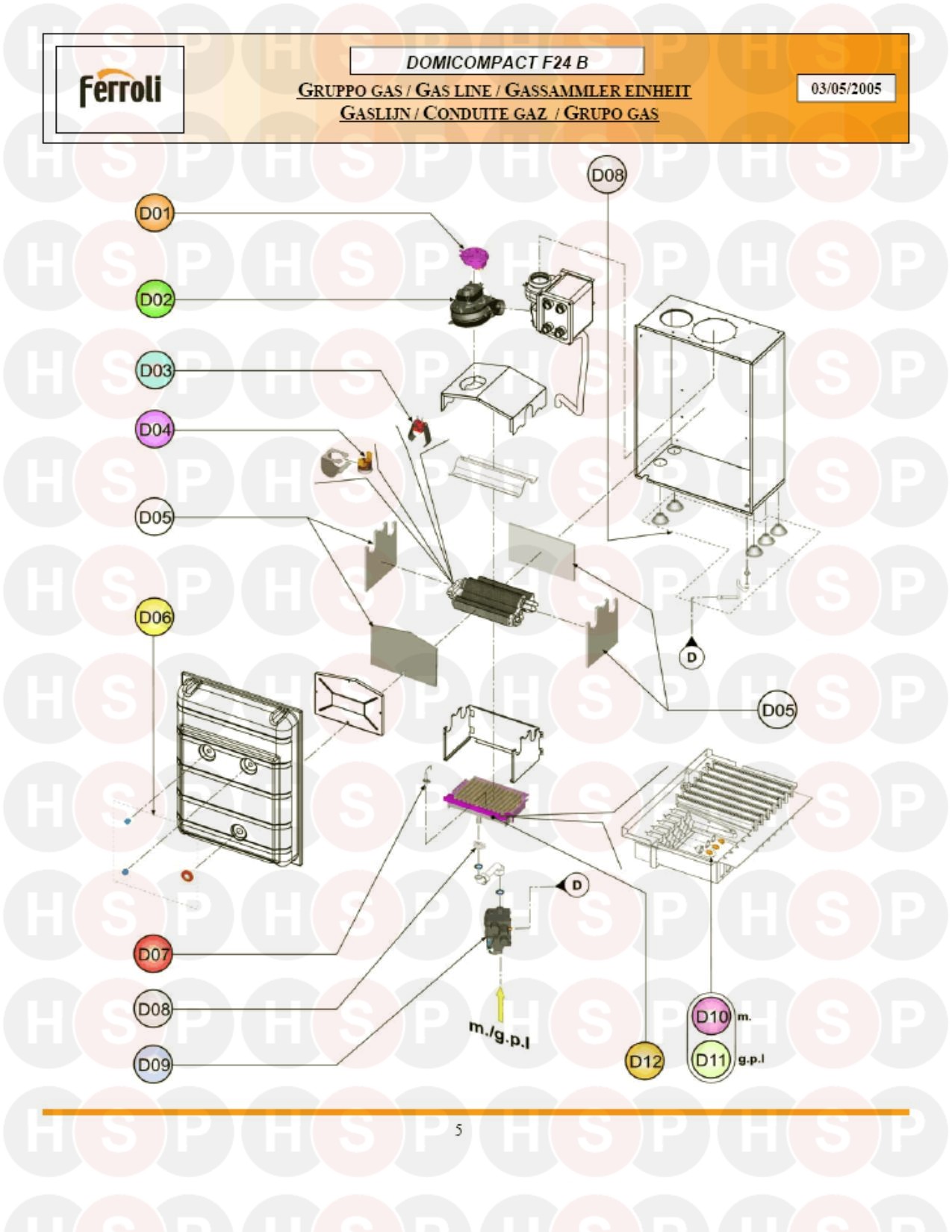

Appliance Diagram


Gas Line diagram for Ferroli Domi Compact F24 B (03-05-2005)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number 38321710, LEAD - IGNITION & FLAME SENSING LEAD - IGNITION & FLAME SENSING
Ferroli part no. 38321710
£0.85
Part number 38321740, LEAD - GAS VALVE LEAD - GAS VALVE
Ferroli part no. 38321740
£10.47
D10 Part number 39805760, INJECTOR KIT (12) - MAIN 1.30 (NG) INJECTOR KIT (12) - MAIN 1.30 (NG)
Ferroli part no. 39805760
£10.55
D11 Part number 39804780, INJECTOR KIT (12) - MAIN 0.77 (LPG) INJECTOR KIT (12) - MAIN 0.77 (LPG)
Ferroli part no. 39804780
£12.92
D12 Part number 39806950, BURNER - MAIN MF03-MF03.1 (12 HEAD) BURNER - MAIN MF03-MF03.1 (12 HEAD)
Ferroli part no. 39806950
£94.60
D01 Part number 39800140, AIR PRESSURE SWITCH AIR PRESSURE SWITCH
Ferroli part no. 39800140
£40.76
D02 Part number 39817650, FAN ASSEMBLY - 60WATT (24KW) FAN ASSEMBLY - 60WATT (24KW)
Ferroli part no. 39817650
£102.85
D03 Part number 39810220, SENSOR - C/W BRACKET 10K NTC SENSOR - C/W BRACKET 10K NTC
Ferroli part no. 39810220
£13.41
D04 Part number 39805650, THERMOSTAT - 100C C/W BRACKET THERMOSTAT - 100C C/W BRACKET
Ferroli part no. 39805650
£9.19
D05 Part number 39817660, INSULATION - COMPLETE SET INSULATION - COMPLETE SET
Ferroli part no. 39817660
£28.54
D06 Part number 39811330, SIGHT GLASS - C/W SEAL SIGHT GLASS - C/W SEAL
Ferroli part no. 39811330
£8.42
D07 Part number 39812170, ELECTRODE - IGNITION ELECTRODE - IGNITION
Ferroli part no. 39812170
£7.95
D07A Part number 38321950, NOW USE 39819800 LEAD - IGNITION (C/W RESISTOR) NOW USE 39819800 LEAD - IGNITION (C/W RESISTOR)
Ferroli part no. 38321950

D07A Part number 39819800, LEAD - IGNITION (C/W RESISTOR) LEAD - IGNITION (C/W RESISTOR)
Ferroli part no. 39819800
£11.87
D08 Part number 39817560, GASKET - ROOM SEALED GASKET - ROOM SEALED
Ferroli part no. 39817560
£16.62
D09 Part number 39812190, GAS VALVE - SIEMENS GAS VALVE - SIEMENS
Ferroli part no. 39812190
£124.66
