CHAFFOTEAUX
MAXIFLAME MK 2 BF TO - (Water Section)
Appliance Code: 41-980-46

Appliance Diagram


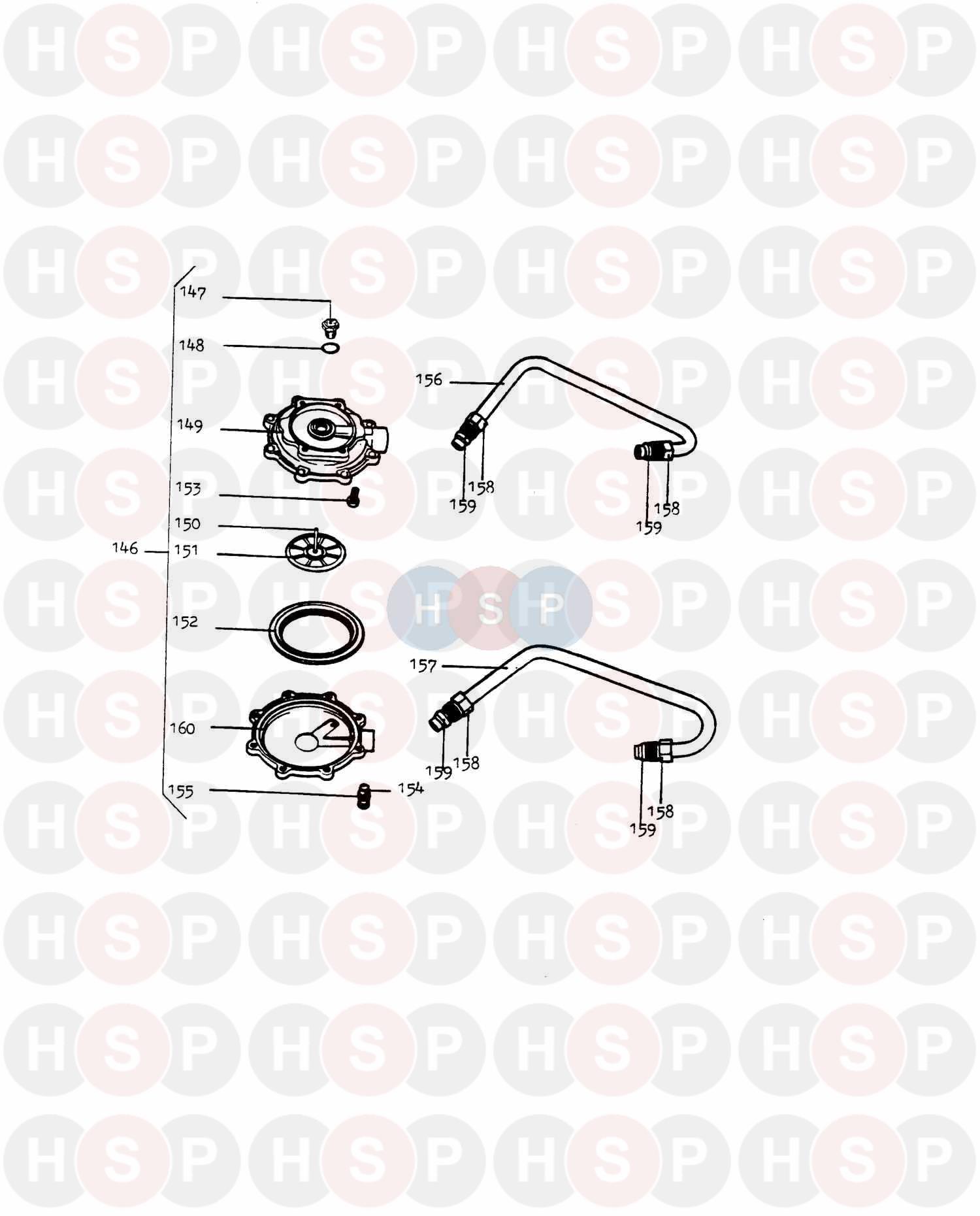

Water Section diagram for Chaffoteaux Maxiflame MK 2 BF ToClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FRONT CASE ASSY MAXI II TO.
Chaffoteaux part no. 0056069.00

2   OBSOLETE SIGHT GLASS ASSY
Chaffoteaux part no. 60081047
£28.66
3   OBSOLETE WINDOW GASKET
Chaffoteaux part no. 0025818.00

5 Part number 60075010, SCREW M 3-8 SCREW M 3-8
Chaffoteaux part no. 60075010
£0.47
5 Part number 60010764-03, SCREW CS M 3-8 SCREW CS M 3-8
Chaffoteaux part no. 60010764-03
£0.56
6   NUT H M 3
Chaffoteaux part no. 60010759-03
£0.41
9   OBSOLETE RADIATION SHIELD (FOIL)
Chaffoteaux part no. 60041398

9   OBSOLETE HORIZONTAL TRIM
Chaffoteaux part no. 0045188.00

9   OBSOLETE VERTICAL TRIM
Chaffoteaux part no. 0038021.00

10   NUT M 22-1.5
Chaffoteaux part no. 60018732-10
£0.79
11   OBSOLETE GAS CONTROL KNOB
Chaffoteaux part no. 60027102

12 Part number 60014044, SCREW CLS M 6-14 SCREW CLS M 6-14
Chaffoteaux part no. 60014044

13   OBSOLETE PLASTIC WASHER - CASE FIXING
Chaffoteaux part no. 0034372.01

21   OBSOLETE BURNER ASSY ()
Chaffoteaux part no. 0032391.00

22   OBSOLETE BURNER HEAD ASSY G15BF
Chaffoteaux part no. 0033103.00

23   OBSOLETE MANIFOLD ASSY N
Chaffoteaux part no. 0022202.20

24   INJECTOR D: 1.18
Chaffoteaux part no. 60014154-18
£1.75
25   PRESSURE TEST POINT SCREW
Chaffoteaux part no. 60019445
£1.24
26 Part number 61010131, SCREW HX M 5-12 SCREW HX M 5-12
Chaffoteaux part no. 61010131
£0.42
27   NOW USE 60022118-03 WASHER 10.0 X 5.0 X 1.0
Chaffoteaux part no. 0022118.03

27   WASHER D: 10-5-1
Chaffoteaux part no. 60022118-03
£0.40
28   SUPPORT & PILOT TUBE
Chaffoteaux part no. 60100307-20
£13.91
29   NOW USE 60027051-03 THERMOCOUPLE CLAMP
Chaffoteaux part no. 0027051.03

29 Part number 60027051-03, THERMOCOUPLE SUPPORT THERMOCOUPLE SUPPORT
Chaffoteaux part no. 60027051-03
£18.87
31   OBSOLETE NUT
Chaffoteaux part no. 0025159.00

32   OBSOLETE BURNER BASE
Chaffoteaux part no. 60032249-08

33   OBSOLETE RESTRICTOR
Chaffoteaux part no. 0032684.01

34   OBSOLETE NUT M 36-1.5
Chaffoteaux part no. 60032250-08

35 Part number 60022833-10, PERB WASHER D: 34.1-25.7-1.5 PERB WASHER D: 34.1-25.7-1.5
Chaffoteaux part no. 60022833-10
£0.83
36   OBSOLETE GASKET (/MANIFOLD)
Chaffoteaux part no. 60015600

37   WASHER D: 4.2-2.2-1
Chaffoteaux part no. 60029244-01

38   FILTER
Chaffoteaux part no. 60020682

39 Part number 60026646, PILOT INJECTOR D: 0.3 PILOT INJECTOR D: 0.3
Chaffoteaux part no. 60026646
£7.83
40   NUT H M 8-0.75
Chaffoteaux part no. 60026550
£1.64
41   NOW USE 60100307-20 PILOT TUBE
Chaffoteaux part no. 60028851

42 Part number 60028297, THERMOCOUPLE ASSY THERMOCOUPLE ASSY
Chaffoteaux part no. 60028297
£40.43
44   OBSOLETE IGNITER PROTECTION
Chaffoteaux part no. 60035307

45   IGNITER
Chaffoteaux part no. 60035267
£12.25
47   SCREW M 5-8
Chaffoteaux part no. 60019319
£0.91
56   OBSOLETE GAS SECTION NAT ASSY
Chaffoteaux part no. 60032370

57   OBSOLETE NUT MAXI II
Chaffoteaux part no. 60032232-08

58   OBSOLETE GASKET D: 48-35-1.5
Chaffoteaux part no. 60032233

59   OBSOLETE SPRING
Chaffoteaux part no. 60034744

60   OBSOLETE GAS VALVE
Chaffoteaux part no. 60032294

61   OBSOLETE WASHER VALVE FACING
Chaffoteaux part no. 0021112.00

63   WASHER
Chaffoteaux part no. 60026578
£0.98
64   OBSOLETE SPINDLE-VALVE MAXI II
Chaffoteaux part no. 0032258.00

65   SPRING
Chaffoteaux part no. 60032290
£0.90
66   OBSOLETE SPRING SEAT
Chaffoteaux part no. 60032259

67   NOW USE 60020769-06 CIRCLIP EXT 3.1
Chaffoteaux part no. 0020769.06

67   CIRCLIPS EXT D: 3.1
Chaffoteaux part no. 60020769-06
£1.11
68   GASKET (/GAS SECTION)
Chaffoteaux part no. 60018652
£0.96
69   THERMO-ELECTRIC BOX
Chaffoteaux part no. 60032295
£116.14
70 Part number 60019483, THERMO-ELECTRIC VALVE THERMO-ELECTRIC VALVE
Chaffoteaux part no. 60019483
£20.25
71   GAS VALVE FACING
Chaffoteaux part no. 60021783
£1.20
72   OBSOLETE THERMO-ELECTRIC VALVE HOUSING
Chaffoteaux part no. 60026576

73 Part number 60026587, PUSH ROD ASSY PUSH ROD ASSY
Chaffoteaux part no. 60026587
£8.67
74 Part number 60022871, GAS VALVE FACING GAS VALVE FACING
Chaffoteaux part no. 60022871
£0.76
75   GAS VALVE NAT
Chaffoteaux part no. 60026777
£2.99
76   OBSOLETE SPRING
Chaffoteaux part no. 60019127

77   OBSOLETE PLUG
Chaffoteaux part no. 60031627-08

80   OBSOLETE WASHER 12.5 X 9.0 X 1.5
Chaffoteaux part no. 0019870.04

81 Part number 60018653, GASKET(/Box cover) GASKET(/BOX COVER)
Chaffoteaux part no. 60018653
£0.94
82   GAS COCK MECHANISM
Chaffoteaux part no. 60032296
£45.34
83   1/2 STRAP
Chaffoteaux part no. 60026707
£1.29
84 Part number 60042585-02, SCREW M 4-12 SCREW M 4-12
Chaffoteaux part no. 60042585-02
£0.41
85   SCREW CS M 6-45
Chaffoteaux part no. 60029555-03
£0.88
86   SCREW CB M 6-12
Chaffoteaux part no. 60032390-08
£0.78
87   GASKET D: 29.5-21.5-3
Chaffoteaux part no. 60019109
£1.19
88   OBSOLETE GAS BEND
Chaffoteaux part no. 60032291-08

89   OBSOLETE THERM WASHER D: 28.4-22.6-1.5
Chaffoteaux part no. 60019867-07

89   NOW USE 60061857-16 THERM WASHER D: 34-28-1.5
Chaffoteaux part no. 60019866-16

89   SHEET GASKET D: 34-28-1.5
Chaffoteaux part no. 60061857-16
£1.45
91   OBSOLETE LOCK NUT 22 X 150
Chaffoteaux part no. 60047225-08

92   O-RING D: 19.8-3.6
Chaffoteaux part no. 60024184-24
£1.28
93   CONNECTION M 36X150 M 22X150
Chaffoteaux part no. 60047771-08
£8.52
94   OBSOLETE THERM WASHER D: 34.1-25.7-1.5
Chaffoteaux part no. 60019866-10

96   OBSOLETE REAR CASE MAXI 11
Chaffoteaux part no. 0049890.00

96   OBSOLETE REAR CASE ASSY
Chaffoteaux part no. 0044683.00

97   TRAPPED NUT M 6
Chaffoteaux part no. 60008588-03
£2.48
99 Part number 60081273, FOAM SEAL 12.5x5 L: 2.5M FOAM SEAL 12.5X5 L: 2.5M
Chaffoteaux part no. 60081273
£23.36
100   FLUE BEND
Chaffoteaux part no. 60043430
£72.03
102 Part number 60026773, FOAM SEAL 25x12 L: 1.030M FOAM SEAL 25X12 L: 1.030M
Chaffoteaux part no. 60026773
£4.51
103 Part number 60019316-03, SCREW HS M 6-15 SCREW HS M 6-15
Chaffoteaux part no. 60019316-03
£0.57
104   WASHER D: 14.2-7.2-1.2
Chaffoteaux part no. 60005369-03
£0.41
105   OBSOLETE WASHER 16.0 X 6.0 X 1.5
Chaffoteaux part no. 0019869.08

106   OBSOLETE PRESSURE VESSEL CLIPS TIG
Chaffoteaux part no. 0019290.06

106 Part number 60044197, CLIP CLIP
Chaffoteaux part no. 60044197
£3.12
108 Part number 60031527-03, SCREW M 6-10 SCREW M 6-10
Chaffoteaux part no. 60031527-03
£0.74
109   OBSOLETE WASHER - M4 MILD STEEL ZINC PLATED
Chaffoteaux part no. 0037931.08

111 Part number 60033509, FUSE 109C FUSE 109C
Chaffoteaux part no. 60033509
£8.87
112   WASHER D: 16-4.2-1.2
Chaffoteaux part no. 60033511
£0.78
115   OBSOLETE NUT H M 4-0.7
Chaffoteaux part no. 60011104-03

116   WASHER D: 12-4.2-1.5
Chaffoteaux part no. 60033510
£0.67
117   OBSOLETE WASHER - M4 SHAKEPROOF
Chaffoteaux part no. 0010465.00

118   OBSOLETE TUBE-RETURN MAXI II TO
Chaffoteaux part no. 0044159.08

118   OBSOLETE TUBE-FLOW ASSEMBLY
Chaffoteaux part no. 0040294.08

119   OBSOLETE TUBE-RETURN ASSY
Chaffoteaux part no. 0040295.08

119   OBSOLETE TUBE-FLOW MAXI II TO
Chaffoteaux part no. 0044158.08

120   OBSOLETE VENTURI ASSY
Chaffoteaux part no. 0037239.00

121   OBSOLETE PLUG ON THERMOSTATIC ELEMENT
Chaffoteaux part no. 60034687-08

122   THERM WASHER D: 29.9-24.4-1.5
Chaffoteaux part no. 60019867-01

122   SHEET GASKET D: 29.9-24.4-1.5
Chaffoteaux part no. 60061856-01

123   SPRING
Chaffoteaux part no. 60043423

124   OBSOLETE THERMOSTAT CARTRIDGE
Chaffoteaux part no. 60035010
£34.35
127 Part number 60022835-02, SHEET GASKET D: 24-16.2-1.5 SHEET GASKET D: 24-16.2-1.5
Chaffoteaux part no. 60022835-02
£0.53
129   WATER FILTER
Chaffoteaux part no. 60043440
£3.56
130   GASKET
Chaffoteaux part no. 60038388
£1.75
131 Part number 60061855-01, SHEET GASKET D: 24-18.2-1.5 SHEET GASKET D: 24-18.2-1.5
Chaffoteaux part no. 60061855-01
£0.79
132   OBSOLETE GAS SERVICE TAP
Chaffoteaux part no. 60043793

133 Part number 60037309, GAS FILTER GAS FILTER
Chaffoteaux part no. 60037309

134   OBSOLETE WALL FIXING SCREW
Chaffoteaux part no. 0005787.00

135   OBSOLETE TERMINAL FIXING HOOK
Chaffoteaux part no. 0031784.00

137   OBSOLETE NUT M7
Chaffoteaux part no. 0029094.03

138   WOOD SCREW
Chaffoteaux part no. 60025617-03
£0.79
140 Part number 60005799-13, SCREW HS M 6-12 SCREW HS M 6-12
Chaffoteaux part no. 60005799-13
£0.55
141   OBSOLETE NIPPLE
Chaffoteaux part no. 0044166.08

146   OBSOLETE WATER VALVE ASSY
Chaffoteaux part no. 60033119

147 Part number 60022639, GLAND GLAND
Chaffoteaux part no. 60022639
£7.96
148 Part number 0061854.11, NOW USE 60061854-11 WASHER 14.8 X 10.3 X 1.5 NOW USE 60061854-11 WASHER 14.8 X 10.3 X 1.5
Chaffoteaux part no. 0061854.11

148 Part number 60061854-11, SHEET GASKET D: 14.8-10.3-1.5 SHEET GASKET D: 14.8-10.3-1.5
Chaffoteaux part no. 60061854-11
£0.58
150 Part number 60100605-30, WATER SECTION REPAIR KIT WATER SECTION REPAIR KIT
Chaffoteaux part no. 60100605-30
£25.61
152 Part number 60032664, OBSOLETE DIAPHRAGM OBSOLETE DIAPHRAGM
Chaffoteaux part no. 60032664

153   SCREW M 5-15
Chaffoteaux part no. 60031088-03
£1.44
154 Part number 60024164-05, O-RING D: 3.4-1.9 O-RING D: 3.4-1.9
Chaffoteaux part no. 60024164-05
£0.42
155   OBSOLETE DRAIN SCREW
Chaffoteaux part no. 60031547-08

156   OBSOLETE TUBE-LOW PRESSURE
Chaffoteaux part no. 60040263-08

157   OBSOLETE TUBE-HIGH PRESSURE
Chaffoteaux part no. 60040264-08

166   OBSOLETE BF TERMINAL ONLY - 2A/2T
Chaffoteaux part no. 60026611-10

168   OBSOLETE FLUE DUCT STD. 3-14 IN. ALL BF BRITONYS
Chaffoteaux part no. 60028315

169   OBSOLETE WALL LINER EXT. COVER 14-20 INCH
Chaffoteaux part no. 60056376

172   OBSOLETE CHAIN 20 INCH
Chaffoteaux part no. 60022555-10

173   OBSOLETE WALL LINER BODY 3-14 INCH
Chaffoteaux part no. 60056377

174   OBSOLETE WALL LINER COVER 3-14 INCH
Chaffoteaux part no. 0056378.00

175   OBSOLETE WALL LINER EXT BODY 14-20 INCH
Chaffoteaux part no. 60056375

180   OBSOLETE SCREW
Chaffoteaux part no. 0010764.00

182   OBSOLETE WASHER SET
Chaffoteaux part no. 60067487
