CHAFFOTEAUX
FLEXIFLAME 280 - (Heat Exchanger/Pump)
Appliance Code: 41-981-12

Appliance Diagram


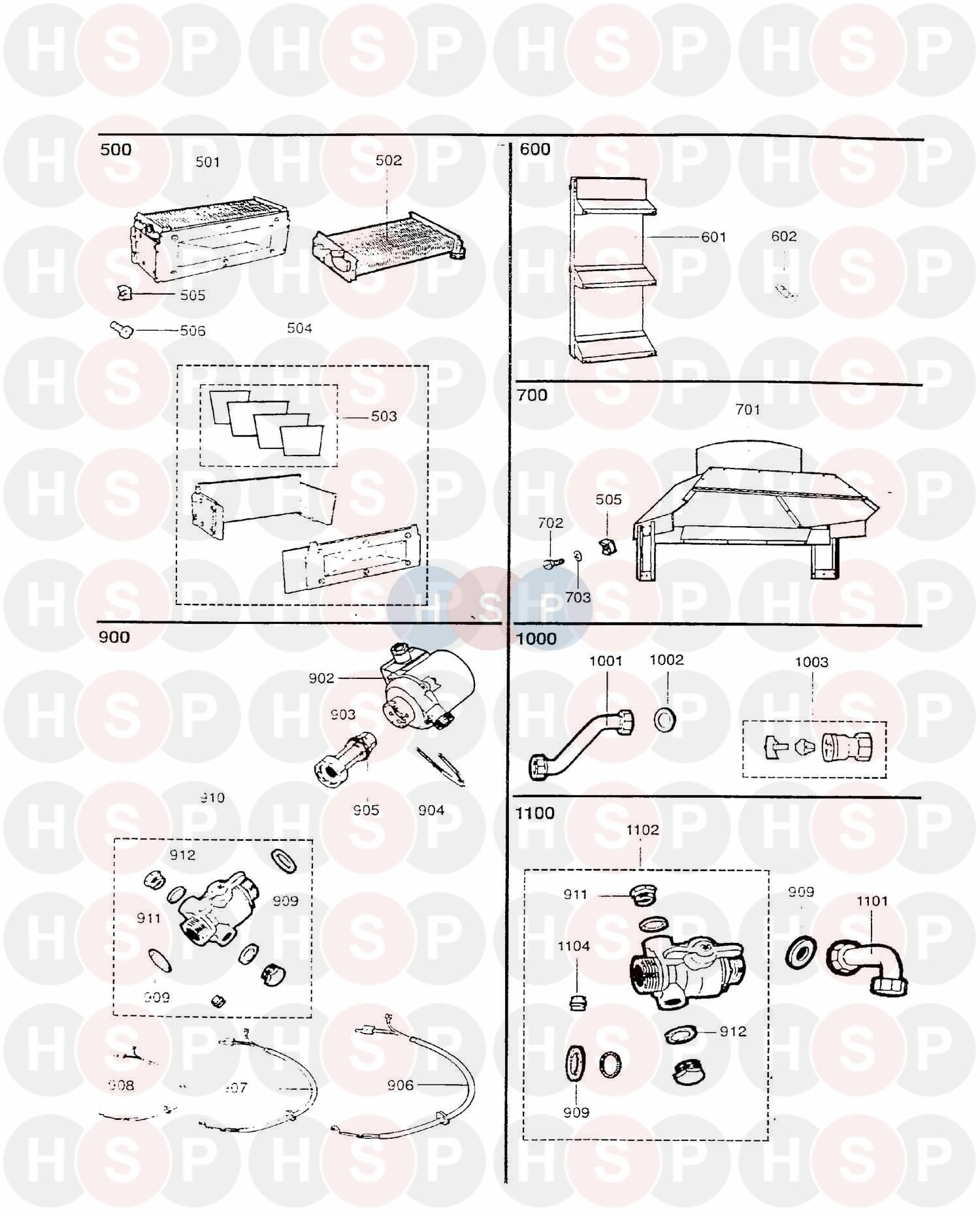

Heat Exchanger/Pump diagram for Chaffoteaux Flexiflame 280Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101   OBSOLETE CHASSIS FLEX 280 - (POA)
Chaffoteaux part no. 0071377.06

102 Part number 60081194, ISOLATING COCK KIT ISOLATING COCK KIT
Chaffoteaux part no. 60081194
£67.19
103 Part number 60061855-01, SHEET GASKET D: 24-18.2-1.5 SHEET GASKET D: 24-18.2-1.5
Chaffoteaux part no. 60061855-01
£0.79
104   PLUG
Chaffoteaux part no. 60076181
£2.14
105   OBSOLETE WASHER 17.9 X 13.2 X 1.5
Chaffoteaux part no. 0019869.01

106   OBSOLETE PLUG 3/8 M
Chaffoteaux part no. 61001583

107   OBSOLETE INSULATION
Chaffoteaux part no. 60060085

108   OBSOLETE FIXING STRAP
Chaffoteaux part no. 0054613.00

109   SIDE CONDUIT KIT
Chaffoteaux part no. 60081193
£47.51
112 Part number 60031527-03, SCREW M 6-10 SCREW M 6-10
Chaffoteaux part no. 60031527-03
£0.74
113   TAPPING SCREW CBLZ D: 3.9-9.5
Chaffoteaux part no. 60050460-03
£0.87
114   OBSOLETE GROMMET FLEX 280/420 DNO
Chaffoteaux part no. 0016161.00

201   GAS SECTION
Chaffoteaux part no. 60046641
£402.11
203   MAIN GAS VALVE KIT
Chaffoteaux part no. 60081196
£88.48
204   GAS RATE ADJUSTER KIT
Chaffoteaux part no. 60081197
£32.28
205   CONTROL VALVE KIT
Chaffoteaux part no. 60081198
£105.10
206 Part number 60024800, THERMO-ELECTRIC VALVE THERMO-ELECTRIC VALVE
Chaffoteaux part no. 60024800
£20.15
207   SCREW CB M 6-12
Chaffoteaux part no. 60032390-08
£0.78
208 Part number 60021061-12, O-RING D: 7.2-1.9 O-RING D: 7.2-1.9
Chaffoteaux part no. 60021061-12
£0.44
209 Part number 60005799-13, SCREW HS M 6-12 SCREW HS M 6-12
Chaffoteaux part no. 60005799-13
£0.55
210 Part number 60010764-03, SCREW CS M 3-8 SCREW CS M 3-8
Chaffoteaux part no. 60010764-03
£0.56
211 Part number 60034220, INJECTOR HOLDER INJECTOR HOLDER
Chaffoteaux part no. 60034220
£3.30
212   GAS SECTION GASKETS KIT
Chaffoteaux part no. 60081199
£13.47
218   RETAINING SCREW
Chaffoteaux part no. 60016024-01
£1.44
301   GAS TUBE
Chaffoteaux part no. 60076577

301   OBSOLETE TUBE-GAS FLEXIFLAME 280/420 MK I
Chaffoteaux part no. 60063662

302   OBSOLETE WASHER 24.0 X 18.2 X 1.5
Chaffoteaux part no. 0022835.01

303   REPLACEMENT KIT GAS TUBE
Chaffoteaux part no. 61000323

303   ISOLATING COCK KIT
Chaffoteaux part no. 60081214
£49.62
402   BURNER HEAD
Chaffoteaux part no. 60032151
£69.02
404 Part number 60081408, BURNER BASE KIT BURNER BASE KIT
Chaffoteaux part no. 60081408
£109.05
405 Part number 60045270, PILOT TUBE PILOT TUBE
Chaffoteaux part no. 60045270
£6.92
406 Part number 60081406, PILOT INJECTOR KIT PILOT INJECTOR KIT
Chaffoteaux part no. 60081406
£5.26
408 Part number 60044446, THERMOCOUPLE SUPPORT THERMOCOUPLE SUPPORT
Chaffoteaux part no. 60044446
£24.50
409 Part number 60081209, FLAME SUPERVISION KIT FLAME SUPERVISION KIT
Chaffoteaux part no. 60081209

412 Part number 60031521-03, TAPPING SCREW CBLZ D: 3.5-6.5 TAPPING SCREW CBLZ D: 3.5-6.5
Chaffoteaux part no. 60031521-03
£0.41
413 Part number 60031035-03, SCREW M 5-25 SCREW M 5-25
Chaffoteaux part no. 60031035-03
£0.63
414 Part number 61010131, SCREW HX M 5-12 SCREW HX M 5-12
Chaffoteaux part no. 61010131
£0.42
415   NOW USE 60022118-03 WASHER 10.0 X 5.0 X 1.0
Chaffoteaux part no. 0022118.03

415   WASHER D: 10-5-1
Chaffoteaux part no. 60022118-03
£0.40
416   SCREW M 5-35
Chaffoteaux part no. 60036520-03
£3.26
417 Part number 60081202, BURNER GASKET KIT BURNER GASKET KIT
Chaffoteaux part no. 60081202
£6.84
418 Part number 60048839, THERMO. & O/HEAT THERMO. 110C THERMO. & O/HEAT THERMO. 110C
Chaffoteaux part no. 60048839
£49.84
418 Part number 60061751, THERMO. & O/HEAT THERMO. 110C THERMO. & O/HEAT THERMO. 110C
Chaffoteaux part no. 60061751
£86.05
419 Part number 60060466, ELECTRODE & LEAD ASSY ELECTRODE & LEAD ASSY
Chaffoteaux part no. 60060466

420 Part number 60081441, IGNITOR KIT IGNITOR KIT
Chaffoteaux part no. 60081441

421   SCREW M 5-8
Chaffoteaux part no. 60015691-03
£0.48
422 Part number 60004806-03, TRAPPED NUT M 6 TRAPPED NUT M 6
Chaffoteaux part no. 60004806-03
£0.53
427   IGNITER SUPPORT
Chaffoteaux part no. 60055497
£5.83
501 Part number 60048426, HEATING BODY HEATING BODY
Chaffoteaux part no. 60048426
£604.69
502 Part number 60056481-06, HEAT EXCHANGER HEAT EXCHANGER
Chaffoteaux part no. 60056481-06
£362.86
503 Part number 60081203, COMBUSTION CHAMBER LINING KIT COMBUSTION CHAMBER LINING KIT
Chaffoteaux part no. 60081203
£33.53
504 Part number 60063666, COMBUSTION CHAMBER KIT COMBUSTION CHAMBER KIT
Chaffoteaux part no. 60063666
£89.38
601   OBSOLETE FLUE DUCTING ASSEMBLY FLEXIFLAME 280
Chaffoteaux part no. 1000640.00

602 Part number 61010125, TAPPING SCREW CBLSX D: 4.2-9.5 TAPPING SCREW CBLSX D: 4.2-9.5
Chaffoteaux part no. 61010125
£0.42
701   OBSOLETE DRAUGHT DIVERTER FLEX.280/420 MK.II ONLY
Chaffoteaux part no. 0079992.00

702 Part number 60019316-03, SCREW HS M 6-15 SCREW HS M 6-15
Chaffoteaux part no. 60019316-03
£0.57
703   WASHER D: 14.2-7.2-1.2
Chaffoteaux part no. 60005369-03
£0.41
902   PUMP HEAD UPMO 60PH
Chaffoteaux part no. 65119656-01
£273.54
902 Part number 60079225, NOW USE 65119656-01 PUMP UP 15/50 NOW USE 65119656-01 PUMP UP 15/50
Chaffoteaux part no. 60079225

903   OBSOLETE PUMP INLET TUBE
Chaffoteaux part no. 60048430

903 Part number 60080154, PUMP INLET TUBE PUMP INLET TUBE
Chaffoteaux part no. 60080154
£17.26
904 Part number 60030898-03, CLIP CLIP
Chaffoteaux part no. 60030898-03
£1.00
905 Part number 60024164-35, O-RING D: 27.8-3.6 O-RING D: 27.8-3.6
Chaffoteaux part no. 60024164-35
£0.57
910   REPLACEMENT KIT - COCK
Chaffoteaux part no. 61000326
£49.37
1001   OBSOLETE HEATING BODY INLET TUBE
Chaffoteaux part no. 60048428

1002 Part number 0061856.03, NOW USE 60061856-03 WASHER 29.9 X 20.0 X 1.5 NOW USE 60061856-03 WASHER 29.9 X 20.0 X 1.5
Chaffoteaux part no. 0061856.03

1002 Part number 60061856-03, SHEET GASKET D: 29.9-20-1.5 SHEET GASKET D: 29.9-20-1.5
Chaffoteaux part no. 60061856-03
£1.51
1003 Part number 60054448, NON-RETURN VALVE NON-RETURN VALVE
Chaffoteaux part no. 60054448
£40.46
1101   HEAT EXCHANGER FLOW BEND
Chaffoteaux part no. 60077749
£19.25
1101   HEAT EXCHANGER FLOW BEND
Chaffoteaux part no. 60048427
£11.64
1102   REPLA KIT COCK & OUTGOING BEND
Chaffoteaux part no. 61000324
£120.21
1104   CONNECTION M/M 1/4
Chaffoteaux part no. 60079111
£12.31
1201 Part number 60057962, WATER VALVE ASSY WATER VALVE ASSY
Chaffoteaux part no. 60057962
£194.03
1202 Part number 60081204, WATER SECTION REPAIR KIT WATER SECTION REPAIR KIT
Chaffoteaux part no. 60081204
£46.74
1203 Part number 60010419, DIAPHRAGM DIAPHRAGM
Chaffoteaux part no. 60010419
£2.52
1204 Part number 60019870-02, NOW USE 60061853-02 THERM WASHER D: 13.9-10.4-1.5 NOW USE 60061853-02 THERM WASHER D: 13.9-10.4-1.5
Chaffoteaux part no. 60019870-02

1204 Part number 60061853-02, SHEET GASKET D: 13.9-10.4-1.5 SHEET GASKET D: 13.9-10.4-1.5
Chaffoteaux part no. 60061853-02
£0.49
1206 Part number 60061854-11, SHEET GASKET D: 14.8-10.3-1.5 SHEET GASKET D: 14.8-10.3-1.5
Chaffoteaux part no. 60061854-11
£0.58
1206 Part number 0061854.11, NOW USE 60061854-11 WASHER 14.8 X 10.3 X 1.5 NOW USE 60061854-11 WASHER 14.8 X 10.3 X 1.5
Chaffoteaux part no. 0061854.11

1207 Part number 60022639, GLAND GLAND
Chaffoteaux part no. 60022639
£7.96
1208   SCREW M 6-12
Chaffoteaux part no. 60000101-13
£0.68
1209   HIGH PRESSURE TUBE
Chaffoteaux part no. 60048432
£53.93
1209   HIGH PRESSURE TUBE KIT
Chaffoteaux part no. 60081524
£24.00
1210   LOW PRESSURE TUBE KIT
Chaffoteaux part no. 60081525
£15.60
1210   LOW PRESSURE TUBE
Chaffoteaux part no. 60048431
£41.72
1301   OBSOLETE ELECTRICAL BOX
Chaffoteaux part no. 60061110

1302   PRINTED CIRCUIT BOARD
Chaffoteaux part no. 60067764
£137.49
1303   OBSOLETE CONTROL PANEL FASCIA. FLEX.280 MK.2
Chaffoteaux part no. 1001129.00

1304   NOW USE 60074094 BLACK SWITCH
Chaffoteaux part no. 60076126

1304   BLACK SWITCH
Chaffoteaux part no. 60074094
£13.52
1305   OBSOLETE SWITCH CABLE-FLEX 280 ONLY
Chaffoteaux part no. 1001155.00

1306 Part number 60075302, ADJUSTABLE THERMOSTAT ADJUSTABLE THERMOSTAT
Chaffoteaux part no. 60075302

1307 Part number 60061632, THERMOSTAT CABLE THERMOSTAT CABLE
Chaffoteaux part no. 60061632
£8.94
1308   CABLE ENTRY KIT
Chaffoteaux part no. 60081211
£13.00
1310   PRINTED CIRCUIT BOARD FIXING
Chaffoteaux part no. 60081416
£14.14
1311   SCREW M 4-6
Chaffoteaux part no. 60019197-03
£0.96
1314 Part number 60081213, FUSE HOLDER KIT FUSE HOLDER KIT
Chaffoteaux part no. 60081213
£45.35
1315   BLACK THERMOSTAT KNOB
Chaffoteaux part no. 60074091
£1.89
1316   FUSE 240V 1A
Chaffoteaux part no. 60061722
£2.08
1317   OBSOLETE COVER
Chaffoteaux part no. 61001133

1320 Part number 60043680-08, THERMOSTAT POCKET (Lg 140) THERMOSTAT POCKET (LG 140)
Chaffoteaux part no. 60043680-08
£31.22
1321   CLIP
Chaffoteaux part no. 60074039
£0.75
1323   TAPPING SCREW CBLZ D: 3.5-9.5
Chaffoteaux part no. 60054033
£0.95
1401   OBSOLETE FRONT FRAME
Chaffoteaux part no. 0057517.06

1402   OBSOLETE BOTTOM PANEL SUPPORT
Chaffoteaux part no. 0048574.10

1405 Part number 60013183-03, STAR WASHER D: 6 STAR WASHER D: 6
Chaffoteaux part no. 60013183-03
£0.44
1406   NUT H M 6-1
Chaffoteaux part no. 60026501-03
£0.44
1407   OBSOLETE L/H DOOR FLEX.280 MK 2
Chaffoteaux part no. 0057518.06

1408   OBSOLETE R H DOOR FLEXI 280 MK 1
Chaffoteaux part no. 0064359.06

1409   DOOR RETAINER ASSY
Chaffoteaux part no. 60081205

1410   OBSOLETE LOCKING MECHANISM KIT
Chaffoteaux part no. 60081206

5001   OBSOLETE SIDE PANEL
Chaffoteaux part no. 1001144.00

5015   BOLT
Chaffoteaux part no. 61000615
£30.07
