CHAFFOTEAUX
CENTORA GREEN SYSTEM 30 - (Casing)
Appliance Code: 41-980-31

Appliance Diagram


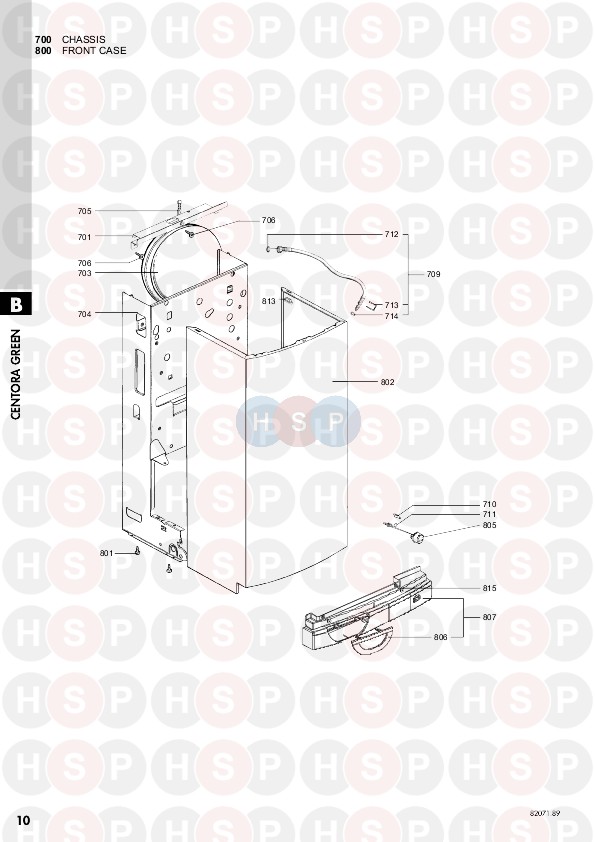

Casing diagram for Chaffoteaux Centora Green System 30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101   EXCHANGER 30KW
Chaffoteaux part no. 61309327		 £913.81
102 Part number 61308491, DOOR ASSY 30KW DOOR ASSY 30KW
Chaffoteaux part no. 61308491		 £400.79
107   FIXING BRACKET
Chaffoteaux part no. 61309237		 £114.69
108   FIXING BRACKET
Chaffoteaux part no. 61309238		 £28.47
109   HOOKING BRACKET
Chaffoteaux part no. 61306448		 £5.90
110 Part number 61309624, ELECTRODES ELECTRODES
Chaffoteaux part no. 61309624		 £115.57
112   WASHER D:65-59-2.6
Chaffoteaux part no. 61307588		 £4.58
114 Part number 61306078, TRAP TRAP
Chaffoteaux part no. 61306078
115 Part number 61010125, TAPPING SCREW CBLSX D: 4.2-9.5 TAPPING SCREW CBLSX D: 4.2-9.5
Chaffoteaux part no. 61010125		 £0.42
116 Part number 60081265-02, SILICONE TUBE D: 21x2.5 L: 1M SILICONE TUBE D: 21X2.5 L: 1M
Chaffoteaux part no. 60081265-02		 £48.25
117   DUCT FIRST SECTION
Chaffoteaux part no. 61306026		 £204.23
119 Part number 61010131, SCREW HX M 5-12 SCREW HX M 5-12
Chaffoteaux part no. 61010131		 £0.42
121 Part number 61308092, O-RING 17.76X1.78 O-RING 17.76X1.78
Chaffoteaux part no. 61308092		 £3.18
122 Part number 61308782, SCREW D: 5-14 SCREW D: 5-14
Chaffoteaux part no. 61308782		 £0.66
202   FLUE CONNECTION
Chaffoteaux part no. 61309242		 £31.09
203 Part number 61310088, GASKET D:66-58.4-9 (TO 03/06) GASKET D:66-58.4-9 (TO 03/06)
Chaffoteaux part no. 61310088		 £9.90
205 Part number 61306029, GASKET D:66.6 (TO 03/06) GASKET D:66.6 (TO 03/06)
Chaffoteaux part no. 61306029		 £12.93
212 Part number 61300262, GASKET (TO 03/06) GASKET (TO 03/06)
Chaffoteaux part no. 61300262		 £4.90
213 Part number 61306698, PLUG KIT (TO 03/06) PLUG KIT (TO 03/06)
Chaffoteaux part no. 61306698		 £8.27
222   OUTGOING FLUE BOX
Chaffoteaux part no. 61306028		 £116.46
227 Part number 61010847, TAPPING SCREW CBLSX D:4.2-12.5 TAPPING SCREW CBLSX D:4.2-12.5
Chaffoteaux part no. 61010847		 £0.81
228 Part number 61010648, TAPPING SCREW CBLSX D: 6.3-13 TAPPING SCREW CBLSX D: 6.3-13
Chaffoteaux part no. 61010648		 £0.44
230 Part number 61300258, GASKET (/ Flue bend turret) GASKET (/ FLUE BEND TURRET)
Chaffoteaux part no. 61300258		 £2.73
231 Part number 61306030, GASKET D:129.4 (TO 03/06) GASKET D:129.4 (TO 03/06)
Chaffoteaux part no. 61306030		 £33.62
303   TOP PANEL BOX
Chaffoteaux part no. 61305438		 £21.47
304 Part number 60081273, FOAM SEAL 12.5x5 L: 2.5M FOAM SEAL 12.5X5 L: 2.5M
Chaffoteaux part no. 60081273		 £23.36
308 Part number 60057488, SPIRE CLIP SPIRE CLIP
Chaffoteaux part no. 60057488		 £0.78
309   BASE - BOX
Chaffoteaux part no. 61307613		 £19.98
311   CASE COVER
Chaffoteaux part no. 61400102		 £96.62
314 Part number 61010109, GROMMET GROMMET
Chaffoteaux part no. 61010109		 £3.87
315 Part number 60039017, GROMMET GROMMET
Chaffoteaux part no. 60039017		 £1.98
401 Part number 61310129, GAS VALVE GAS VALVE
Chaffoteaux part no. 61310129		 £216.31
403   NOW USE 61015154 SCREW CLXS M 4-30
Chaffoteaux part no. 61310333
403   SCREW CLXS M 4-30
Chaffoteaux part no. 61015154		 £1.56
406   GASKET
Chaffoteaux part no. 61308335		 £4.70
407 Part number 61307585, FAN ASSY FAN ASSY
Chaffoteaux part no. 61307585		 £192.28
408   SCREW CLSX M 5-12
Chaffoteaux part no. 61308327		 £0.53
410 Part number 61306072, GASKET GASKET
Chaffoteaux part no. 61306072		 £1.92
412 Part number 61310121, SILENCER SILENCER
Chaffoteaux part no. 61310121		 £19.70
418   CONNECTION
Chaffoteaux part no. 61012649		 £10.27
436 Part number 60021061-40, O-RING D: 22-2.6 O-RING D: 22-2.6
Chaffoteaux part no. 60021061-40		 £0.99
501   TUBE-EXCHANGER TO THREE-WAY VALVE
Chaffoteaux part no. 61307591		 £15.17
502 Part number 61010012, CLIP CLIP
Chaffoteaux part no. 61010012		 £1.53
503 Part number 60024164-22, O-RING D: 18.4-2.7 O-RING D: 18.4-2.7
Chaffoteaux part no. 60024164-22		 £0.47
504 Part number 60024164-51, O-RING D: 17-4 O-RING D: 17-4
Chaffoteaux part no. 60024164-51		 £1.18
505 Part number 61010436, VALVE BLOCK ASSY VALVE BLOCK ASSY
Chaffoteaux part no. 61010436		 £23.85
507 Part number 61010572, OVERHEAT THERMOSTAT 100C OVERHEAT THERMOSTAT 100C
Chaffoteaux part no. 61010572		 £6.87
509 Part number 60081028, DRAIN SCREW ASSY DRAIN SCREW ASSY
Chaffoteaux part no. 60081028		 £6.85
510 Part number 61000733, THERMISTOR TEMP. SENSOR THERMISTOR TEMP. SENSOR
Chaffoteaux part no. 61000733		 £28.04
511 Part number 61002083, TEMPERATURE SENSOR CLIP TEMPERATURE SENSOR CLIP
Chaffoteaux part no. 61002083		 £1.08
514   JOINING PLATE
Chaffoteaux part no. 61010439		 £27.68
515 Part number 61010129, SCREW CBLSX M 5-40 SCREW CBLSX M 5-40
Chaffoteaux part no. 61010129		 £1.71
516 Part number 61307589, CLIP (TO 03/06) CLIP (TO 03/06)
Chaffoteaux part no. 61307589		 £2.72
518 Part number 61010003, LEFT HAND HYDRAULIC BLOCK LEFT HAND HYDRAULIC BLOCK
Chaffoteaux part no. 61010003		 £13.63
520 Part number 61010044, BYPASS TUBE BYPASS TUBE
Chaffoteaux part no. 61010044		 £13.10
521 Part number 61010127, TAPPING SCREW CBLSX D: 6.3-19 TAPPING SCREW CBLSX D: 6.3-19
Chaffoteaux part no. 61010127		 £2.84
522 Part number 61010005, CLIP CLIP
Chaffoteaux part no. 61010005		 £1.53
526 Part number 61009834-14, O-RING 8.9X2.7 O-RING 8.9X2.7
Chaffoteaux part no. 61009834-14		 £0.50
528 Part number 61010056, HOT WATER BEND HOT WATER BEND
Chaffoteaux part no. 61010056		 £11.96
529 Part number 61010057, HEATING FLOW BEND HEATING FLOW BEND
Chaffoteaux part no. 61010057		 £11.24
530 Part number 60061855-19, SHEET GASKET D: 24-17-1.5 SHEET GASKET D: 24-17-1.5
Chaffoteaux part no. 60061855-19		 £0.69
531 Part number 61010042, HYDRAULIC PLATE HYDRAULIC PLATE
Chaffoteaux part no. 61010042		 £7.77
532 Part number 60081471, WATER THROTTLE WATER THROTTLE
Chaffoteaux part no. 60081471		 £38.44
535 Part number 61016387, BYPASS BODY BYPASS BODY
Chaffoteaux part no. 61016387		 £10.58
537 Part number 60024164-18, O-RING D: 13.6-2.7 O-RING D: 13.6-2.7
Chaffoteaux part no. 60024164-18		 £0.44
539 Part number 61009833-34, O-RING D: 1.9-8 O-RING D: 1.9-8
Chaffoteaux part no. 61009833-34		 £0.79
540 Part number 61010111, ADJUSTING SCREW OF BY-PASS ADJUSTING SCREW OF BY-PASS
Chaffoteaux part no. 61010111		 £5.27
542   CLIP
Chaffoteaux part no. 60079845		 £2.53
548   OBSOLETE WASHER 24.0 X 18.2 X 1.5
Chaffoteaux part no. 0022835.01
550 Part number 61010055, BEND RETURN BEND RETURN
Chaffoteaux part no. 61010055		 £9.06
551   GAS TUBE
Chaffoteaux part no. 61309556		 £13.52
553 Part number 61007727, WATER FILTER WATER FILTER
Chaffoteaux part no. 61007727		 £2.35
558   PUMP LEAD (2 SPEEDS)
Chaffoteaux part no. 61004115		 £15.63
559 Part number 61009833-46, O-RING D: 45-3.5 O-RING D: 45-3.5
Chaffoteaux part no. 61009833-46		 £1.31
560 Part number 61002653, AIR SEPARATOR HEAD ASSEMBLY AIR SEPARATOR HEAD ASSEMBLY
Chaffoteaux part no. 61002653		 £26.28
561 Part number 61010167, RIGHT HAND HYDRAULIC BLOCK RIGHT HAND HYDRAULIC BLOCK
Chaffoteaux part no. 61010167		 £54.09
564 Part number 61009834-30, O-RING D: 24.6-3.6 O-RING D: 24.6-3.6
Chaffoteaux part no. 61009834-30		 £0.90
565 Part number 61305560, HEATING FILTER HEATING FILTER
Chaffoteaux part no. 61305560		 £2.84
567 Part number 60030898-03, CLIP CLIP
Chaffoteaux part no. 60030898-03		 £1.00
569 Part number 61002249, LIP SEAL x1 LIP SEAL X1
Chaffoteaux part no. 61002249		 £1.88
570   HEATING RETURN TUBE
Chaffoteaux part no. 61307592		 £18.58
571 Part number 61009833-37, O-RING D: 16-1.9 O-RING D: 16-1.9
Chaffoteaux part no. 61009833-37		 £0.60
572 Part number 61010612, PUMP UP 15/50 230V PUMP UP 15/50 230V
Chaffoteaux part no. 61010612		 £273.54
573 Part number 61000652-10, CAPACITOR CAPACITOR
Chaffoteaux part no. 61000652-10		 £23.72
574 Part number 60015709, PLUG M 10-100 PLUG M 10-100
Chaffoteaux part no. 60015709		 £1.27
575 Part number 61308091, O-RING 17.86X2.62 O-RING 17.86X2.62
Chaffoteaux part no. 61308091		 £1.31
581 Part number 61010050, CLIP CLIP
Chaffoteaux part no. 61010050		 £3.87
601   ELECTRICAL BOX
Chaffoteaux part no. 61311320		 £299.37
602 Part number 61020510, SCREW FX90 L:16 SCREW FX90 L:16
Chaffoteaux part no. 61020510		 £0.44
604   INSTRUCTIONS SUPPORT
Chaffoteaux part no. 61309315		 £7.23
606   CONNECTOR
Chaffoteaux part no. 61011046		 £7.09
607 Part number 61002105-20, IGNITER IGNITER
Chaffoteaux part no. 61002105-20		 £50.54
609 Part number 61010014, CONNECTOR COVER CONNECTOR COVER
Chaffoteaux part no. 61010014		 £5.81
610   FAN-IGNITER CABLE
Chaffoteaux part no. 61309837		 £30.16
611   WIRE ASSEMBLY
Chaffoteaux part no. 61310189		 £13.14
612   CONNECTION STRIP
Chaffoteaux part no. 61010152		 £4.36
613   TAPPING SCREW TCBL D:4 L:10
Chaffoteaux part no. 61020509		 £0.42
614 Part number 61010007, ELECTRICAL BOX COVER ELECTRICAL BOX COVER
Chaffoteaux part no. 61010007		 £11.02
615 Part number 61310357, PRINTED CIRCUIT BOARDS PRINTED CIRCUIT BOARDS
Chaffoteaux part no. 61310357		 £375.20
617 Part number 61010006, ELECTRIC BOX PLATE ELECTRIC BOX PLATE
Chaffoteaux part no. 61010006		 £30.81
621   TRANSMITTER OF LEDS
Chaffoteaux part no. 61306012		 £13.25
622   CONTROL PANEL
Chaffoteaux part no. 61310292		 £7.68
623   SIGHT GLASS
Chaffoteaux part no. 61303830		 £2.65
625   PRINTED CIRCUIT BOARD T.A.
Chaffoteaux part no. 61011846		 £92.93
626   PRINTED CIRCUIT BOARD LEAD
Chaffoteaux part no. 61310366		 £22.14
627 Part number 61003456, FUSE 250V 2A FUSE 250V 2A
Chaffoteaux part no. 61003456		 £1.20
628 Part number 61003634, FUSE 250V 1A - TEMPORISED FUSE 250V 1A - TEMPORISED
Chaffoteaux part no. 61003634		 £1.20
629 Part number 61003635, FUSE 250V 1.25A - TEMPORISED FUSE 250V 1.25A - TEMPORISED
Chaffoteaux part no. 61003635		 £1.20
630 Part number 61307845, FUSE 250V 0.315A - TEMPORISED FUSE 250V 0.315A - TEMPORISED
Chaffoteaux part no. 61307845		 £1.20
632   CLOSURE PLATE
Chaffoteaux part no. 61304599		 £0.89
639 Part number 61308086, ELECTRODE CABLE ELECTRODE CABLE
Chaffoteaux part no. 61308086		 £4.42
640   TRANSFORMER
Chaffoteaux part no. 61308149		 £66.66
641   SPACER
Chaffoteaux part no. 61308945		 £45.41
701   TOP STAY PLATE
Chaffoteaux part no. 61010029		 £5.69
703 Part number 60056676-06, EXPANSION VESSEL 7L EXPANSION VESSEL 7L
Chaffoteaux part no. 60056676-06		 £142.17
704   OBSOLETE CHASSIS
Chaffoteaux part no. 61310119
705 Part number 61010170, EXPANSION VESSEL AIR HOSE EXPANSION VESSEL AIR HOSE
Chaffoteaux part no. 61010170		 £13.82
706   TAPPING SCREW CBLSX D: 6.3-19
Chaffoteaux part no. 61014516		 £0.54
709 Part number 60081824, FLEXIBLE PIPE KIT FLEXIBLE PIPE KIT
Chaffoteaux part no. 60081824		 £13.38
710 Part number 61002406, CLIP CLIP
Chaffoteaux part no. 61002406		 £1.40
711 Part number 61009834-10, O-RING 5.7X1.9 O-RING 5.7X1.9
Chaffoteaux part no. 61009834-10		 £0.50
802   CASE
Chaffoteaux part no. 61309874		 £52.10
805 Part number 61303158, PRESSURE GAUGE PRESSURE GAUGE
Chaffoteaux part no. 61303158		 £27.20
806   DOOR
Chaffoteaux part no. 61306020		 £9.19
807   SERIGRA. STRIP (WITHOUT PROG.)
Chaffoteaux part no. 61307650		 £32.46
813 Part number 61015797, SPACER SPACER
Chaffoteaux part no. 61015797		 £4.03
901   OBSOLETE PREFABRICATION
Chaffoteaux part no. 61014332
902 Part number 61020388, WATER FLOW SERVICE TAP WATER FLOW SERVICE TAP
Chaffoteaux part no. 61020388		 £38.12
904 Part number 61020389, GAS SERVICE TAP GAS SERVICE TAP
Chaffoteaux part no. 61020389		 £23.64
906 Part number 61302614, WATER RETURN SERVICE TAP WATER RETURN SERVICE TAP
Chaffoteaux part no. 61302614		 £30.88
907   HOOKING BRACKET
Chaffoteaux part no. 61012457		 £7.16
908   WASHER D: 14.2-7.2-1.2
Chaffoteaux part no. 60005369-03		 £0.41
909   WOOD SCREW
Chaffoteaux part no. 60025617-03		 £0.79
910   BOTTOM STAY PLATE
Chaffoteaux part no. 61011683		 £6.59
918   LOCK NUT 3/4"
Chaffoteaux part no. 60031140		 £1.20
922 Part number 61302611, HAND LEVER BLACK HAND LEVER BLACK
Chaffoteaux part no. 61302611		 £0.64
923 Part number 61302610, HAND LEVER YELLOW HAND LEVER YELLOW
Chaffoteaux part no. 61302610		 £0.79
927 Part number 61016378, PRESSURE TEST POINT SCREW PRESSURE TEST POINT SCREW
Chaffoteaux part no. 61016378		 £0.55
936 Part number 61009834-18, O-RING D: 13.6-2.7 O-RING D: 13.6-2.7
Chaffoteaux part no. 61009834-18		 £0.50
937 Part number 60081266-02, TUBE PVC D: 13x17 L: 1M TUBE PVC D: 13X17 L: 1M
Chaffoteaux part no. 60081266-02		 £18.04
938 Part number 61020933, PRESSURE RELIEF VALVE PRESSURE RELIEF VALVE
Chaffoteaux part no. 61020933		 £28.36
939 Part number 60061855-14, WASHER D: 18.4-12.2-1.5 WASHER D: 18.4-12.2-1.5
Chaffoteaux part no. 60061855-14		 £0.60
940   NOW USE 60020747-38 NUT 1/2 IN (16.0 X 10. 0 X 2.0)
Chaffoteaux part no. 0020747.38
940   NUT 1/2" H=10
Chaffoteaux part no. 60020747-38		 £2.48
943   ACCESSORY KIT
Chaffoteaux part no. 61309329		 £39.27
947   CLIP
Chaffoteaux part no. 61012927		 £0.96
1016   OBSOLETE SEALING RING
Chaffoteaux part no. 0062079.00
1018 Part number 61017600, SCREW CLX M 5-20 SCREW CLX M 5-20
Chaffoteaux part no. 61017600		 £1.40
1022   GASKET D:66-60-7.5
Chaffoteaux part no. 61309786		 £3.14
5002   CONVERSION KIT G20 > G31
Chaffoteaux part no. 61311760		 £17.28
5020   OBSOLETE SLEEVE
Chaffoteaux part no. 61309802
5021   OBSOLETE CHOCK - BOTTOM SIDE
Chaffoteaux part no. 61309803
5022   OBSOLETE CHOCK - DRAUGHT DIVERTER SIDE
Chaffoteaux part no. 61309804
5030   JIG PLATE
Chaffoteaux part no. 61309325		 £7.75
5033   ROD PLATE
Chaffoteaux part no. 61010932		 £35.99
5035   OBSOLETE SOUND-PROOFING KIT
Chaffoteaux part no. 61305676
5040   OBSOLETE USERS' INSTRUCTIONS
Chaffoteaux part no. 61310360
6006 Part number 61302650, SPANNER SPANNER
Chaffoteaux part no. 61302650		 £22.44
6007 Part number 61306970, STOPPED W/THROT. CONNECTOR KIT STOPPED W/THROT. CONNECTOR KIT
Chaffoteaux part no. 61306970		 £8.08


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
