CHAFFOTEAUX
CELT STAR B (IF) FROM S/N 195023764 - (Fitting Kit)
Appliance Code: 51-980-39

Appliance Diagram


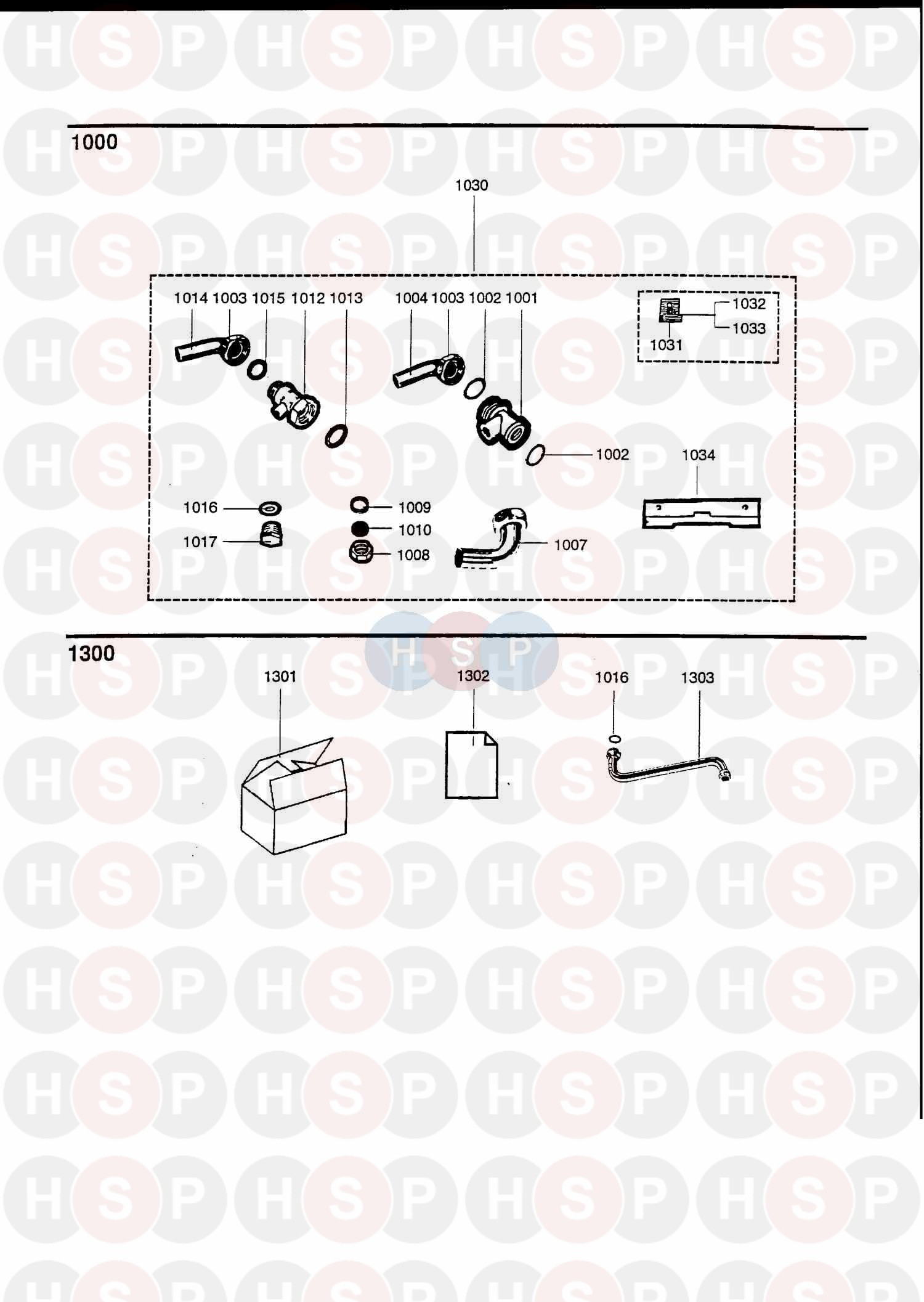

Fitting Kit diagram for Chaffoteaux Celt Star B (IF) From S/N 195023764Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101   CHASSIS ASSY
Chaffoteaux part no. 60075596		 £44.08
103 Part number 61010125, TAPPING SCREW CBLSX D: 4.2-9.5 TAPPING SCREW CBLSX D: 4.2-9.5
Chaffoteaux part no. 61010125		 £0.42
106   COMBUSTION CHAMBER KIT
Chaffoteaux part no. 60081308		 £42.87
107   DEFLECTOR
Chaffoteaux part no. 60074398		 £13.11
108   OBSOLETE SUPPORT BRKT CELT STARS
Chaffoteaux part no. 0065657.00
201 Part number 60061056-06, HEAT EXCHANGER HEAT EXCHANGER
Chaffoteaux part no. 60061056-06		 £127.92
203   COLD WATER TUBE
Chaffoteaux part no. 61001666		 £11.44
204   HOT WATER TUBE
Chaffoteaux part no. 61001667		 £11.22
205 Part number 60024164-47, O-RING 12.3X2.4 O-RING 12.3X2.4
Chaffoteaux part no. 60024164-47		 £1.27
206 Part number 61001674, CLIP CLIP
Chaffoteaux part no. 61001674		 £1.51
301   BURNER HEAD
Chaffoteaux part no. 60078068		 £53.18
401   NOW USE 60081447 MANIFOLD CELT STAR
Chaffoteaux part no. 0081447.00
401   MANIFOLD NAT KIT
Chaffoteaux part no. 60081447		 £40.38
402 Part number 60071226, GASKET (/Manifold) GASKET (/MANIFOLD)
Chaffoteaux part no. 60071226		 £2.48
403   SUPPORT BRACKET
Chaffoteaux part no. 60061539		 £0.95
404 Part number 61010128, TAPPING SCREW CBLSX D: 4.2-25 TAPPING SCREW CBLSX D: 4.2-25
Chaffoteaux part no. 61010128		 £0.47
405 Part number 61010131, SCREW HX M 5-12 SCREW HX M 5-12
Chaffoteaux part no. 61010131		 £0.42
407   WASHER D: 12-5.2-1
Chaffoteaux part no. 60061934-03		 £0.41
501   IGNITION SUPPORT KIT
Chaffoteaux part no. 60081310		 £33.08
502 Part number 61001565, THERMO. & O/HEAT THERMO. 154C THERMO. & O/HEAT THERMO. 154C
Chaffoteaux part no. 61001565		 £40.72
503 Part number 61001564, ELECTRODE & LEAD ASSY ELECTRODE & LEAD ASSY
Chaffoteaux part no. 61001564		 £9.31
504   FLAME SUPERVISION KIT
Chaffoteaux part no. 60081312		 £58.79
601   OBSOLETE GAS SECTION NAT ASSY
Chaffoteaux part no. 61001568
602   BURNER BASE KIT
Chaffoteaux part no. 60081089		 £113.94
603 Part number 60066602, SPRING SPRING
Chaffoteaux part no. 60066602		 £1.88
604   MAIN GAS VALVE ASSY
Chaffoteaux part no. 60081105-07		 £10.17
605 Part number 61001567, PILOT INJECTOR D: 0.26 PILOT INJECTOR D: 0.26
Chaffoteaux part no. 61001567		 £8.87
606   GAS FILTER
Chaffoteaux part no. 60068848		 £1.22
608   SECONDARY GAS VALVE KIT
Chaffoteaux part no. 60081091		 £15.37
609   OBSOLETE COVER PLATE
Chaffoteaux part no. 0064588.00
610   O-RING D: 6.4-1.9
Chaffoteaux part no. 60021061-11		 £1.40
611 Part number 60081095, CAM KIT CAM KIT
Chaffoteaux part no. 60081095		 £22.21
613   PIEZO MECHANISM COVER
Chaffoteaux part no. 60064551		 £2.84
614 Part number 60081094, IGNITER ASSY IGNITER ASSY
Chaffoteaux part no. 60081094
615 Part number 60070622-20, OBSOLETE THERMO-ELECTRIC VALVE OBSOLETE THERMO-ELECTRIC VALVE
Chaffoteaux part no. 60070622-20
616   OBSOLETE NUT M 27-1
Chaffoteaux part no. 60068054-08
618 Part number 60025809-30, DIAPHRAGM DIAPHRAGM
Chaffoteaux part no. 60025809-30		 £7.52
619 Part number 60100141-20, WATER SECTION REPAIR KIT WATER SECTION REPAIR KIT
Chaffoteaux part no. 60100141-20
620   OBSOLETE OLIVE BS 3/4
Chaffoteaux part no. 61004025
621 Part number 60081096, GAS SECTION GASKETS KIT GAS SECTION GASKETS KIT
Chaffoteaux part no. 60081096		 £17.52
622 Part number 60074428, PILOT TUBE PILOT TUBE
Chaffoteaux part no. 60074428		 £8.93
701   WATER SECTION 1F HP ASSY
Chaffoteaux part no. 61001864		 £103.73
702 Part number 60067080, TEMPERATURE SELECTOR ASSY TEMPERATURE SELECTOR ASSY
Chaffoteaux part no. 60067080		 £16.28
703 Part number 60061855-09, SHEET GASKET D: 20.1-17.1-1.5 SHEET GASKET D: 20.1-17.1-1.5
Chaffoteaux part no. 60061855-09		 £0.47
704 Part number 60024164-09, O-RING D: 4.9-1.9 O-RING D: 4.9-1.9
Chaffoteaux part no. 60024164-09		 £0.41
705 Part number 60024164-13, O-RING D: 8.9-1.9 O-RING D: 8.9-1.9
Chaffoteaux part no. 60024164-13		 £0.50
706   OBSOLETE SLOW IGNITION DEVICE ASSY
Chaffoteaux part no. 60074430		 £21.13
707 Part number 60100122-20, OBSOLETE WATER GOVERNOR KIT OBSOLETE WATER GOVERNOR KIT
Chaffoteaux part no. 60100122-20		 £15.59
709   VENTURI D: 2.25
Chaffoteaux part no. 60019448-08		 £6.74
714 Part number 60024164-10, O-RING D: 5.7-1.9 O-RING D: 5.7-1.9
Chaffoteaux part no. 60024164-10		 £0.44
715 Part number 60024164-16, O-RING D: 12.1-2.7 O-RING D: 12.1-2.7
Chaffoteaux part no. 60024164-16		 £0.54
716 Part number 61001863, TAP HEAD ASSY TAP HEAD ASSY
Chaffoteaux part no. 61001863		 £13.82
721 Part number 60005579, WATER VALVE D: 12.4-5 WATER VALVE D: 12.4-5
Chaffoteaux part no. 60005579		 £0.88
722 Part number 60081118, WASHER SET WASHER SET
Chaffoteaux part no. 60081118		 £11.97
723   CONNECTION M 16X125
Chaffoteaux part no. 60044305		 £11.32
724   NOW USE 60020747-18 NUT(PIPE) BRASS SLEEVE NUT 1/2 INCH
Chaffoteaux part no. 0020747.18
724   NUT 1/2" THICK: 10
Chaffoteaux part no. 60020747-18		 £3.03
801 Part number 61000098, COMPOSITE SCALE REDUCER 5L COMPOSITE SCALE REDUCER 5L
Chaffoteaux part no. 61000098
803   GASKET KIT
Chaffoteaux part no. 60081311		 £4.90
804 Part number 61000729, CLIP CLIP
Chaffoteaux part no. 61000729		 £1.65
901   FRONT CASE
Chaffoteaux part no. 61001489		 £40.67
906 Part number 61001778, OBSOLETE KNOBS 1F SET OBSOLETE KNOBS 1F SET
Chaffoteaux part no. 61001778
907   OBSOLETE FASCIA CELT STAR B 1F
Chaffoteaux part no. 1001530.00
909   ADJUSTING OLIVE
Chaffoteaux part no. 60070493		 £0.96
911   SPIRE CLIP
Chaffoteaux part no. 60072411		 £0.56
1001   SERVICE TAP
Chaffoteaux part no. 61009433		 £19.76
1002 Part number 60061855-14, WASHER D: 18.4-12.2-1.5 WASHER D: 18.4-12.2-1.5
Chaffoteaux part no. 60061855-14		 £0.60
1003   NOW USE 60020747-38 NUT 1/2 IN (16.0 X 10. 0 X 2.0)
Chaffoteaux part no. 0020747.38
1003   NUT 1/2" H=10
Chaffoteaux part no. 60020747-38		 £2.48
1004   CONNECTING PIPE
Chaffoteaux part no. 60078864		 £5.04
1007   CONNECTING PIPE
Chaffoteaux part no. 60039783		 £8.90
1008 Part number 0020746.20, NOW USE 60020746-20 NUT 3/8 CELT STAR/B NOW USE 60020746-20 NUT 3/8 CELT STAR/B
Chaffoteaux part no. 0020746.20
1008 Part number 60020746-20, NUT 3/8" THICK: 11 NUT 3/8" THICK: 11
Chaffoteaux part no. 60020746-20		 £1.65
1009 Part number 60061854-10, GASKET D: 14.8-11.5-1.5 GASKET D: 14.8-11.5-1.5
Chaffoteaux part no. 60061854-10		 £0.84
1010 Part number 60001219, BLANKING DISC BLANKING DISC
Chaffoteaux part no. 60001219		 £0.76
1012 Part number 60074427, ISOLATING COCK ISOLATING COCK
Chaffoteaux part no. 60074427
1014   CONNECTING PIPE
Chaffoteaux part no. 60076058-10		 £5.75
1015 Part number 60022835-16, SHEET GASKET D: 18.2-14-1.5 SHEET GASKET D: 18.2-14-1.5
Chaffoteaux part no. 60022835-16		 £1.00
1016 Part number 60061855-15, SHEET GASKET D: 18.2-15-1.5 SHEET GASKET D: 18.2-15-1.5
Chaffoteaux part no. 60061855-15		 £0.64
1017   PLUG
Chaffoteaux part no. 60024454-08		 £3.46
1030   OBSOLETE CONNECTION KIT 1F
Chaffoteaux part no. 60076013
1031   FIXING BRACKET
Chaffoteaux part no. 60054606		 £1.01
1032   WOOD SCREW
Chaffoteaux part no. 60025617-03		 £0.79
1033   WASHER D: 25-6.5-1.5
Chaffoteaux part no. 60035378-03		 £0.77
1034   FIXING BRACKET
Chaffoteaux part no. 60071707		 £4.61
1301   OBSOLETE PACKING BOX
Chaffoteaux part no. 1001820.00
1303   OBSOLETE SWIVEL SPOUT STANDARD - 250MM LONG
Chaffoteaux part no. 0081750.00
1303   OBSOLETE SWIVEL SPOUT
Chaffoteaux part no. 0041938.00
1303   OBSOLETE SWIVEL SPOUT - 600MM LONG
Chaffoteaux part no. 0041939.00
