CHAFFOTEAUX
BRITONY II FF - (Service Fault Finding 1)
Appliance Code: 52-980-21

Appliance Diagram


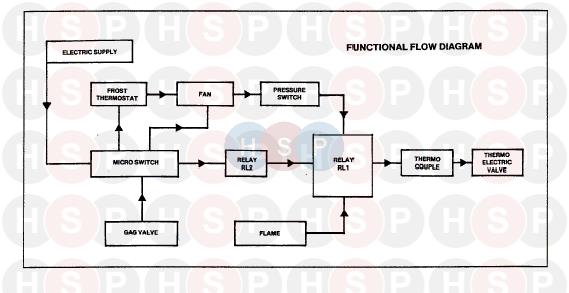

Service Fault Finding 1 diagram for Chaffoteaux Britony II FFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FRONT CASE ONLY
Chaffoteaux part no. 0075009.06

1   OBSOLETE FRONT CASE
Chaffoteaux part no. 60075013

2   OBSOLETE SIGHT GLASS ASSY
Chaffoteaux part no. 60081047
£28.66
6 Part number 60075010, SCREW M 3-8 SCREW M 3-8
Chaffoteaux part no. 60075010
£0.47
7   NUT H M 3
Chaffoteaux part no. 60010759-03
£0.41
8 Part number 60035732, GROMMET GROMMET
Chaffoteaux part no. 60035732
£5.33
9   OBSOLETE HORIZONTAL TRIM
Chaffoteaux part no. 0074984.00

11 Part number 60074477, GAS CONTROL KNOB GAS CONTROL KNOB
Chaffoteaux part no. 60074477
£3.38
12 Part number 60074478, TEMPERATURE SELECTOR KNOB TEMPERATURE SELECTOR KNOB
Chaffoteaux part no. 60074478
£5.15
13 Part number 60031527-03, SCREW M 6-10 SCREW M 6-10
Chaffoteaux part no. 60031527-03
£0.74
14 Part number 60034377, WASHER D: 11.5-6.2-1 WASHER D: 11.5-6.2-1
Chaffoteaux part no. 60034377
£0.55
15   COMPLETE FITTING KIT
Chaffoteaux part no. 60075034
£61.08
16 Part number 60013183-03, STAR WASHER D: 6 STAR WASHER D: 6
Chaffoteaux part no. 60013183-03
£0.44
17   FACIA KIT
Chaffoteaux part no. 60081172
£27.31
18   OBSOLETE SUPPORT BLOCK
Chaffoteaux part no. 0074475.00

19   CLIP
Chaffoteaux part no. 60074999
£1.51
22   OBSOLETE EXTENSION PLATE - EARTH
Chaffoteaux part no. 0077962.00

23   SCREW HS M 6-25
Chaffoteaux part no. 60010942-13
£1.43
25   OBSOLETE
Chaffoteaux part no. 0074555.00

26   BOTTOM TRIM
Chaffoteaux part no. 60074473
£16.64
27   WOOD SCREW
Chaffoteaux part no. 60025617-03
£0.79
28   WASHER D: 14.2-7.2-1.2
Chaffoteaux part no. 60005369-03
£0.41
29   WALL MOUNTING BRACKET
Chaffoteaux part no. 60028967-06
£17.50
30   TRAPPED NUT M 6
Chaffoteaux part no. 60008588-03
£2.48
31 Part number 60057750, SCREW CBLZ M 4-8 SCREW CBLZ M 4-8
Chaffoteaux part no. 60057750
£0.42
33 Part number 60004806-03, TRAPPED NUT M 6 TRAPPED NUT M 6
Chaffoteaux part no. 60004806-03
£0.53
35   OBSOLETE TUBE-GAS INTERNAL BRITONY FLEXIFLUE
Chaffoteaux part no. 0057737.00

37   CONNECTION SUPPORT
Chaffoteaux part no. 60066057
£11.82
38 Part number 60046914-08, CONNECTION M 3/4 CONNECTION M 3/4
Chaffoteaux part no. 60046914-08
£8.48
40   CONNECTION M/M 1/2
Chaffoteaux part no. 60056488
£7.85
41 Part number 60034780-08, LOCK NUT H 1/2" LOCK NUT H 1/2"
Chaffoteaux part no. 60034780-08
£3.35
42 Part number 60076549, FAN CABLE FAN CABLE
Chaffoteaux part no. 60076549
£75.20
43   1/2 CABLE
Chaffoteaux part no. 60076351
£8.19
49 Part number 60055077-06, HEAT EXCHANGER HEAT EXCHANGER
Chaffoteaux part no. 60055077-06
£258.74
51   COLD WATER TUBE
Chaffoteaux part no. 60057740
£6.84
52   COLD WATER INLET TUBE
Chaffoteaux part no. 60057738
£9.03
54   OBSOLETE CONNECTION M 3/4 M 22X150
Chaffoteaux part no. 60047134

55   OBSOLETE LOCK NUT 22 X 150
Chaffoteaux part no. 60047225-08

62 Part number 60037309, GAS FILTER GAS FILTER
Chaffoteaux part no. 60037309

63   PRESSURE TEST POINT SCREW
Chaffoteaux part no. 60019445
£1.24
65   OBSOLETE CABLE SUPPORT
Chaffoteaux part no. 60067840

66 Part number 60081288, GAS SERVICE TAP KIT GAS SERVICE TAP KIT
Chaffoteaux part no. 60081288
£93.40
67   COMBUSTION CHAMBER LINING KIT
Chaffoteaux part no. 60079350
£29.93
68 Part number 60081289, WATER SERVICE TAP KIT WATER SERVICE TAP KIT
Chaffoteaux part no. 60081289

69 Part number 60039803, WATER FILTER WATER FILTER
Chaffoteaux part no. 60039803
£2.65
70   OBSOLETE PRESSURE NIPPLE
Chaffoteaux part no. 0066040.00

71   OBSOLETE NUT HM12
Chaffoteaux part no. 0066039.00

73   HEATING BODY
Chaffoteaux part no. 60075765
£528.68
74   OBSOLETE COMB. CHAN/FT PNL. BR.FF
Chaffoteaux part no. 60057452

75   OBSOLETE COMBUSTION CHAMBER - REAR PANEL
Chaffoteaux part no. 0042420.00

78   OBSOLETE COMB.CHMBR LINING FRNT BRIT FF AND IIFF
Chaffoteaux part no. 0055471.00

81 Part number 61010125, TAPPING SCREW CBLSX D: 4.2-9.5 TAPPING SCREW CBLSX D: 4.2-9.5
Chaffoteaux part no. 61010125
£0.42
82 Part number 60057488, SPIRE CLIP SPIRE CLIP
Chaffoteaux part no. 60057488
£0.78
84   OBSOLETE NUT COMPRESSION
Chaffoteaux part no. 0056490.00

85   OBSOLETE OLIVE 15MM
Chaffoteaux part no. 0056489.00

86   PRESSURE RELIEF VALVE DRAIN
Chaffoteaux part no. 60029471
£28.74
87   OBSOLETE GLAND - STG SB60/80
Chaffoteaux part no. 0040000.00

88 Part number 60081273, FOAM SEAL 12.5x5 L: 2.5M FOAM SEAL 12.5X5 L: 2.5M
Chaffoteaux part no. 60081273
£23.36
89   OBSOLETE NUT - PLASTIC
Chaffoteaux part no. 0040001.00

90   OBSOLETE BURNER HEAD ASSY
Chaffoteaux part no. 0075011.00

91   OBSOLETE RESTRICTOR
Chaffoteaux part no. 60037258

92   OBSOLETE MANIFOLD 14 INJ. NAT
Chaffoteaux part no. 60061769

93 Part number 60071226, GASKET (/Manifold) GASKET (/MANIFOLD)
Chaffoteaux part no. 60071226
£2.48
95 Part number 61010131, SCREW HX M 5-12 SCREW HX M 5-12
Chaffoteaux part no. 61010131
£0.42
96   WASHER D: 12-5.2-1
Chaffoteaux part no. 60061934-03
£0.41
97 Part number 61010128, TAPPING SCREW CBLSX D: 4.2-25 TAPPING SCREW CBLSX D: 4.2-25
Chaffoteaux part no. 61010128
£0.47
98   INJECTOR D: 1.23
Chaffoteaux part no. 60014154-36
£0.86
99   OBSOLETE ION ELECT & LEAD
Chaffoteaux part no. 0075383.00

100   TAPPING SCREW CBLZ D: 3.9-9.5
Chaffoteaux part no. 60050460-03
£0.87
101   OBSOLETE TUBE-PRESSURE
Chaffoteaux part no. 0067762.00

102   OBSOLETE COMPRESSION OLIVE D: 4
Chaffoteaux part no. 60003563

103   NUT H M 8-0.75
Chaffoteaux part no. 60003562-08
£11.13
104   OBSOLETE CROSS LIGHTING STRIP
Chaffoteaux part no. 0067728.00

105   OBSOLETE BRKT IONISTN ELECTRODE BFF
Chaffoteaux part no. 0066056.00

107   GAS & WATER SECTION ASSY
Chaffoteaux part no. 60073862
£465.86
108   OBSOLETE GAS SECT.ASSY
Chaffoteaux part no. 0057681.00

110 Part number 60057704, THERMOCOUPLE LEAD THERMOCOUPLE LEAD
Chaffoteaux part no. 60057704
£14.31
111 Part number 60032304, NUT M 10-1 NUT M 10-1
Chaffoteaux part no. 60032304
£4.54
112 Part number 60057703, THERMOCOUPLE THERMOCOUPLE
Chaffoteaux part no. 60057703
£13.73
116   IGNITION SAFETY ASSY
Chaffoteaux part no. 60036313
£9.52
117 Part number 60081160, BURNER BASE KIT BURNER BASE KIT
Chaffoteaux part no. 60081160
£49.46
118   PILOT TUBE
Chaffoteaux part no. 60035051
£7.78
119 Part number 60049378, PILOT INJECTOR D: 0.23 PILOT INJECTOR D: 0.23
Chaffoteaux part no. 60049378
£4.32
120 Part number 60042585-02, SCREW M 4-12 SCREW M 4-12
Chaffoteaux part no. 60042585-02
£0.41
121 Part number 60038960, CLAMP CLAMP
Chaffoteaux part no. 60038960
£1.56
122 Part number 60033596, GAS SECTION GASKET GAS SECTION GASKET
Chaffoteaux part no. 60033596

123 Part number 60053357, PILOT PROTECTION PILOT PROTECTION
Chaffoteaux part no. 60053357
£8.19
124 Part number 60053356, PILOT HEAD PILOT HEAD
Chaffoteaux part no. 60053356
£2.39
125 Part number 60034118, BEARING RING BEARING RING
Chaffoteaux part no. 60034118
£6.53
126   SCREW D: 5
Chaffoteaux part no. 60034548
£0.86
129   MAIN GAS VALVE NAT
Chaffoteaux part no. 60076515
£21.68

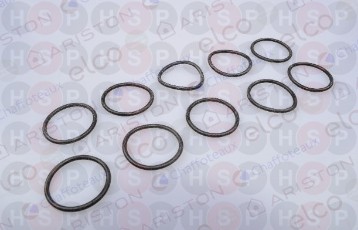

130 Part number 60022113-03, O-RING D: 22-2 O-RING D: 22-2
Chaffoteaux part no. 60022113-03
£0.54
131   CONNECTION M 36X150 M 22X150
Chaffoteaux part no. 60047771-08
£8.52
132   OBSOLETE WASHER 34.0 X 28.5 X 1.5
Chaffoteaux part no. 0022833.18

133   NUT M 27-1
Chaffoteaux part no. 60047707-08
£5.84
134 Part number 60034346, THERMO-ELECTRIC VALVE THERMO-ELECTRIC VALVE
Chaffoteaux part no. 60034346
£12.80
135   OBSOLETE VALVE FACING
Chaffoteaux part no. 0041064.00

137   PUSH ROD ASSY
Chaffoteaux part no. 60034574
£6.51
138   GAS VALVE FACING
Chaffoteaux part no. 60030305
£0.96
139   OBSOLETE SECONDARY GAS VALVE
Chaffoteaux part no. 60034624

141   OBSOLETE SPRING
Chaffoteaux part no. 60044371

142   SCREW M 5-15
Chaffoteaux part no. 60031088-03
£1.44
143   NOW USE 60037227-03 SPRING WASHER
Chaffoteaux part no. 0037227.03

143   SPRING WASHER D: 5
Chaffoteaux part no. 60037227-03
£0.87
144 Part number 60100201-20, ECCENT. SPIN. GUIDE ASSY-CAM ECCENT. SPIN. GUIDE ASSY-CAM
Chaffoteaux part no. 60100201-20
£18.83
145   O-RING D: 10-2.5
Chaffoteaux part no. 60022113-12
£0.95
147   CAM
Chaffoteaux part no. 60044370
£2.46
148   SELF TAPPING SCREW M 4-15
Chaffoteaux part no. 60039054-03
£1.68
152 Part number 60021061-34, O-RING D: 8-1.9 O-RING D: 8-1.9
Chaffoteaux part no. 60021061-34
£1.15
153   OBSOLETE PUSH ROD-PILOT VALVE ASSY
Chaffoteaux part no. 0039060.00

154 Part number 60021061-07, O-RING D: 1.9-2.55 O-RING D: 1.9-2.55
Chaffoteaux part no. 60021061-07
£0.41
155   OBSOLETE PLASTIC TOP COVER
Chaffoteaux part no. 0018961.00

156 Part number 0100142.20, DIAPHRAGM KIT DIAPHRAGM KIT
Chaffoteaux part no. 0100142.20

156 Part number 60100142-20, WATER SECTION REPAIR KIT WATER SECTION REPAIR KIT
Chaffoteaux part no. 60100142-20

157 Part number 60034894, SPRING SPRING
Chaffoteaux part no. 60034894
£1.02
158 Part number 60081094, IGNITER ASSY IGNITER ASSY
Chaffoteaux part no. 60081094

159   OBSOLETE PIEZO CARTRIDGE
Chaffoteaux part no. 60020267

160   OBSOLETE SPACER
Chaffoteaux part no. 60034452

161   WASHER D: 11.5-2-1.5
Chaffoteaux part no. 60034453-03
£0.61
162   PIEZO MECHANISM COVER
Chaffoteaux part no. 60034095
£5.51
167 Part number 61001338, MICROSWITCH MECHANISM ASSY MICROSWITCH MECHANISM ASSY
Chaffoteaux part no. 61001338
£206.83
168   OBSOLETE FIXING SCREW
Chaffoteaux part no. 0018934.00

169   OBSOLETE INSULATION STRIP
Chaffoteaux part no. 0056259.00

171   OBSOLETE GRUB SCREW - SPECIAL
Chaffoteaux part no. 0078648.00

188   OBSOLETE MOTOR SUP BRKT
Chaffoteaux part no. 0064042.00

189   OBSOLETE SCREW
Chaffoteaux part no. 0037303.03

190 Part number 61009106, FAN MOTOR ASSY 240V FAN MOTOR ASSY 240V
Chaffoteaux part no. 61009106
£51.62
191   OBSOLETE SCREW M4 X 25
Chaffoteaux part no. 0056186.00

192   OBSOLETE WASHER
Chaffoteaux part no. 0055528.00

193   OBSOLETE ANTI-VIBRATION BUSH
Chaffoteaux part no. 0055526.00

194   OBSOLETE MOUNTING BUSH
Chaffoteaux part no. 0055527.00

195   OBSOLETE WASHER
Chaffoteaux part no. 60055548

196   FLUE HOOD
Chaffoteaux part no. 60056628
£74.75
197   OBSOLETE WASHER - M4 SHAKEPROOF
Chaffoteaux part no. 0010465.00

198   OBSOLETE NUT H M 4-0.7
Chaffoteaux part no. 60011104-03

199   NOW USE 60079407 PCB COVER BRIT.FLEXIFLUE
Chaffoteaux part no. 0079407.00

199   PRINTED CIRCUIT PROTECTION
Chaffoteaux part no. 60079407
£3.41
202   OBSOLETE COVER
Chaffoteaux part no. 0055524.00

203 Part number 60055083, GASKET (/Cover) GASKET (/COVER)
Chaffoteaux part no. 60055083
£3.15
205   OBSOLETE GASKET
Chaffoteaux part no. 60056388

206   ELECTRICAL BOX
Chaffoteaux part no. 60058179
£24.84
207 Part number 60079333, PRINTED CIRCUIT BOARD PRINTED CIRCUIT BOARD
Chaffoteaux part no. 60079333

208   SCREW M 4-6
Chaffoteaux part no. 60019197-03
£0.96
209   OBSOLETE SCREW - M4 X 25 MM LONG
Chaffoteaux part no. 0066234.00

210   FUSE HOLDER
Chaffoteaux part no. 60074995
£3.80
214   OBSOLETE EARTHING TAG
Chaffoteaux part no. 0045227.00

216   AIR DUCT ASSY
Chaffoteaux part no. 60062601

217   OBSOLETE CLAMP WASHER
Chaffoteaux part no. 60018986

230   FLUE TURRET COVER
Chaffoteaux part no. 60060418
£4.89
232   SCREW M 3-10
Chaffoteaux part no. 60063840
£1.04
233   FLUE DUCT SECOND SECTION
Chaffoteaux part no. 60068259
£31.83
235   OBSOLETE FLUE BEND TURRET CELTIC FF
Chaffoteaux part no. 0081257.00

236 Part number 60081171, AIR PRESSURE SWITCH KIT AIR PRESSURE SWITCH KIT
Chaffoteaux part no. 60081171
£129.24
237 Part number 60019316-03, SCREW HS M 6-15 SCREW HS M 6-15
Chaffoteaux part no. 60019316-03
£0.57
238   SCREW M 5-8
Chaffoteaux part no. 60015691-03
£0.48
239   OBSOLETE PRESSURE SWITCH PLATE
Chaffoteaux part no. 60068250

241   OBSOLETE SPIRE CLIP
Chaffoteaux part no. 60064029

242   OBSOLETE TUBE-PRESSURE
Chaffoteaux part no. 0074755.08

243 Part number 60024164-08, O-RING D: 4.2-1.9 O-RING D: 4.2-1.9
Chaffoteaux part no. 60024164-08
£0.41
244   O-RING D: 3.4-1.9
Chaffoteaux part no. 60021061-05
£0.61
245   FLUE DUCT FIRST SECTION
Chaffoteaux part no. 60068254
£17.84
246   OBSOLETE BLEED SCREW
Chaffoteaux part no. 60068253

248 Part number 60081057, LOCKING RING & O-RING KIT LOCKING RING & O-RING KIT
Chaffoteaux part no. 60081057
£9.98
249 Part number 60053842, GASKET (/Locking ring) GASKET (/LOCKING RING)
Chaffoteaux part no. 60053842
£3.50
250 Part number 60053839, GASKET GASKET
Chaffoteaux part no. 60053839
£2.25
251 Part number 60053840, GASKET GASKET
Chaffoteaux part no. 60053840
£11.63
253   OBSOLETE THERM WASHER D: 14-8.2-1.5
Chaffoteaux part no. 60019870-01

254   OBSOLETE BANJO UNION
Chaffoteaux part no. 0062216.00

256   OBSOLETE SCREW
Chaffoteaux part no. 0044688.00

259   TAPPING SCREW CLS D: 3.9-19
Chaffoteaux part no. 60061982
£1.33
260   SPACER SUPPORT
Chaffoteaux part no. 60061338
£5.76
261   OBSOLETE RUBBER BUSH
Chaffoteaux part no. 60035197

280 Part number 60053116, WATER SECTION 2F HP ASSY WATER SECTION 2F HP ASSY
Chaffoteaux part no. 60053116

283 Part number 60029751-08, VENTURI D: 5.5 VENTURI D: 5.5
Chaffoteaux part no. 60029751-08
£6.31
284 Part number 60040802, TEMPERATURE SELECTOR TEMPERATURE SELECTOR
Chaffoteaux part no. 60040802
£22.04
286   OBSOLETE TEMPERATURE SELECTOR KNOB
Chaffoteaux part no. 0036718.08

287 Part number 60024164-10, O-RING D: 5.7-1.9 O-RING D: 5.7-1.9
Chaffoteaux part no. 60024164-10
£0.44
288 Part number 60061856-13, GASKET D: 24.3-21-1.5 GASKET D: 24.3-21-1.5
Chaffoteaux part no. 60061856-13
£0.54
289   WATER RESTRICTOR D: 3.7
Chaffoteaux part no. 60023206-13
£3.81
290 Part number 60024164-13, O-RING D: 8.9-1.9 O-RING D: 8.9-1.9
Chaffoteaux part no. 60024164-13
£0.50
291 Part number 60081168, SLOW IGNITION DEVICE ASSY SLOW IGNITION DEVICE ASSY
Chaffoteaux part no. 60081168
£21.56
292   NUT M 18-1
Chaffoteaux part no. 60025558
£2.87
295   OBSOLETE WASHER 23.9 X 20.1 X 1.5
Chaffoteaux part no. 0019868.03

297 Part number 60061855-16, SHEET GASKET D: 18.2-14-1.5 SHEET GASKET D: 18.2-14-1.5
Chaffoteaux part no. 60061855-16
£0.60



Heating spares made simple this website is secured by Geotrust
