CHAFFOTEAUX
BRITONY BF - (Controls)
Appliance Code: 52-980-03

Appliance Diagram


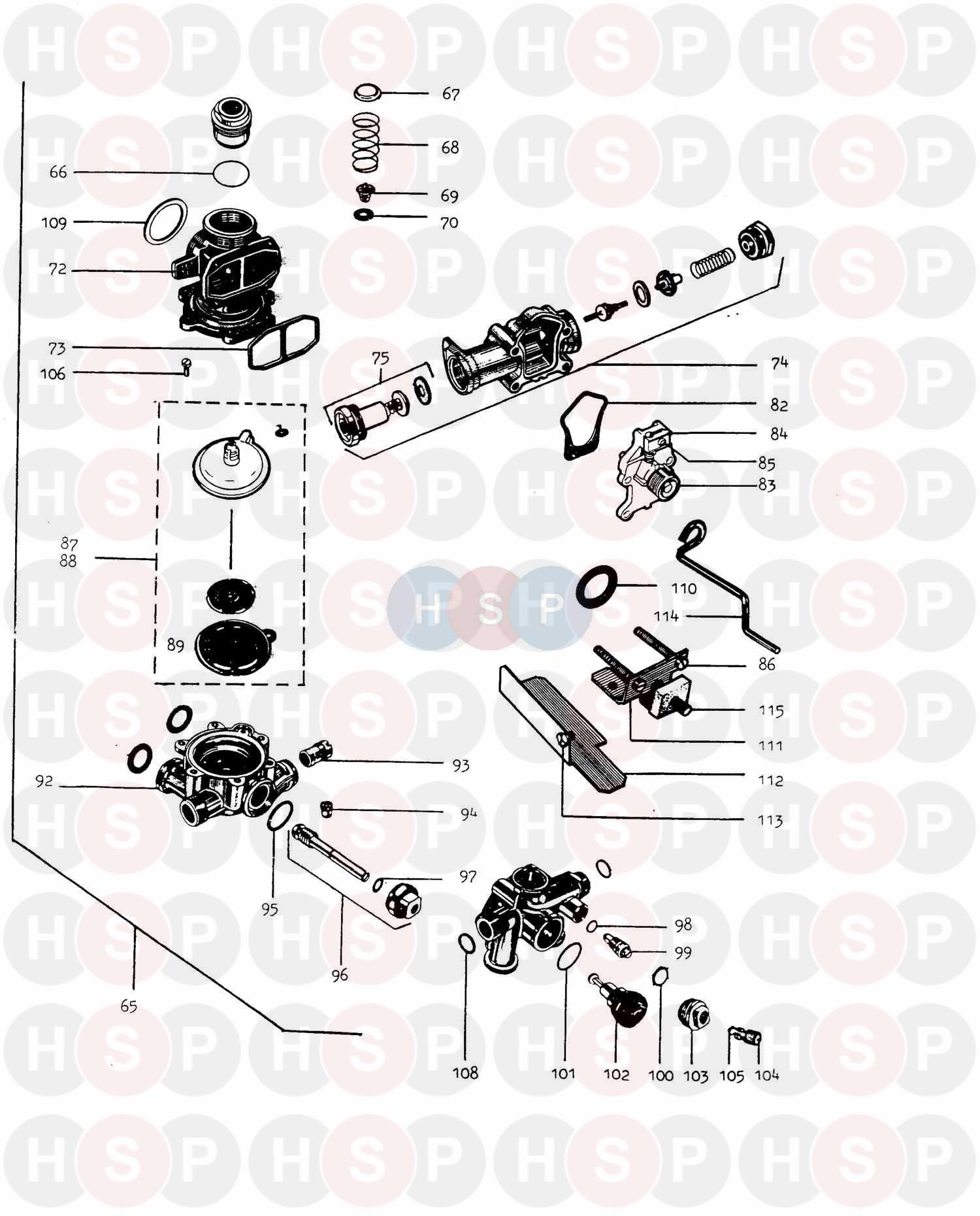

Controls diagram for Chaffoteaux Britony BFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

12   OBSOLETE SIGHT GLASS ASSY
Chaffoteaux part no. 60081047
£28.66
13 Part number 60031527-03, SCREW M 6-10 SCREW M 6-10
Chaffoteaux part no. 60031527-03
£0.74
14 Part number 0061853.07, NOW USE 60061853-07 WASHER 11.0 X 5.0 X 1.5 NOW USE 60061853-07 WASHER 11.0 X 5.0 X 1.5
Chaffoteaux part no. 0061853.07

14 Part number 60061853-07, SHEET GASKET D: 11-5-1.5 SHEET GASKET D: 11-5-1.5
Chaffoteaux part no. 60061853-07
£0.50
15   OBSOLETE GAS CONTROL KNOB
Chaffoteaux part no. 60034262

16   NUT M 22-1.5
Chaffoteaux part no. 60018732-10
£0.79
17   TEMPERATURE SELECTOR KNOB
Chaffoteaux part no. 60026945
£2.99
19   OBSOLETE SCREW - FRONT COVER
Chaffoteaux part no. 0030529.00

20   WASHER D: 12-6.2-1.2
Chaffoteaux part no. 60007059-03
£0.41
31   INJECTOR D: 1.18
Chaffoteaux part no. 60014154-18
£1.75
32   SUPPORT & PILOT TUBE
Chaffoteaux part no. 60100307-20
£13.91
33   PRESSURE TEST POINT SCREW
Chaffoteaux part no. 60019445
£1.24
34 Part number 61010131, SCREW HX M 5-12 SCREW HX M 5-12
Chaffoteaux part no. 61010131
£0.42
35   NOW USE 60022118-03 WASHER 10.0 X 5.0 X 1.0
Chaffoteaux part no. 0022118.03

35   WASHER D: 10-5-1
Chaffoteaux part no. 60022118-03
£0.40
39   OBSOLETE NUT FOR T/C SUPPORT BRACKET
Chaffoteaux part no. 0025129.08

40   OBSOLETE BURNER BASE
Chaffoteaux part no. 0019761.10

41   OBSOLETE RETAINING RING
Chaffoteaux part no. 0015592.00

42   OBSOLETE NUT THICK: 12
Chaffoteaux part no. 60020752-18

44   OBSOLETE RESTRICTOR GASKET 6.1
Chaffoteaux part no. 0023991.33

45   OBSOLETE RESTRICTOR GASKET 5.7
Chaffoteaux part no. 0023991.03

47   WASHER D: 4.2-2.2-1
Chaffoteaux part no. 60029244-01

48   FILTER
Chaffoteaux part no. 60020682

49 Part number 60026646, PILOT INJECTOR D: 0.3 PILOT INJECTOR D: 0.3
Chaffoteaux part no. 60026646
£7.83
50 Part number 60081441, IGNITOR KIT IGNITOR KIT
Chaffoteaux part no. 60081441

51   NUT H M 8-0.75
Chaffoteaux part no. 60026550
£1.64
53 Part number 60028297, THERMOCOUPLE ASSY THERMOCOUPLE ASSY
Chaffoteaux part no. 60028297
£40.43
53 Part number 60032035, THERMOCOUPLE THERMOCOUPLE
Chaffoteaux part no. 60032035
£8.00
65   OBSOLETE GAS & WATER SECTION M32
Chaffoteaux part no. 0031774.00

67   OBSOLETE SPRING SEAT
Chaffoteaux part no. 60018278

68   SPRING
Chaffoteaux part no. 60022159
£1.73
69   OBSOLETE VALVE-GAS MAIN LP
Chaffoteaux part no. 0022186.00

70   GAS VALVE FACING
Chaffoteaux part no. 60011473
£0.89
73   GASKET (/GAS SECTION)
Chaffoteaux part no. 60018652
£0.96
74   OBSOLETE THERMO-ELECTRIC BOX
Chaffoteaux part no. 60026608

75 Part number 60019483, THERMO-ELECTRIC VALVE THERMO-ELECTRIC VALVE
Chaffoteaux part no. 60019483
£20.25
82 Part number 60018653, GASKET(/Box cover) GASKET(/BOX COVER)
Chaffoteaux part no. 60018653
£0.94
83   OBSOLETE GAS COCK
Chaffoteaux part no. 0029043.00

84   1/2 STRAP
Chaffoteaux part no. 60026707
£1.29
85 Part number 60042585-02, SCREW M 4-12 SCREW M 4-12
Chaffoteaux part no. 60042585-02
£0.41
86   SCREW CS M 6-45
Chaffoteaux part no. 60029555-03
£0.88
87 Part number 60100142-20, WATER SECTION REPAIR KIT WATER SECTION REPAIR KIT
Chaffoteaux part no. 60100142-20

88 Part number 60100147-20, WATER SECTION REPAIR KIT WATER SECTION REPAIR KIT
Chaffoteaux part no. 60100147-20

89 Part number 60025809-30, DIAPHRAGM DIAPHRAGM
Chaffoteaux part no. 60025809-30
£7.52
93 Part number 60029751-08, VENTURI D: 5.5 VENTURI D: 5.5
Chaffoteaux part no. 60029751-08
£6.31
93   OBSOLETE VENTURI 4.5MM DIAMETER
Chaffoteaux part no. 0021500.00

94   WATER RESTRICTOR D: 3.8
Chaffoteaux part no. 60023206-12
£3.38
95 Part number 60061856-13, GASKET D: 24.3-21-1.5 GASKET D: 24.3-21-1.5
Chaffoteaux part no. 60061856-13
£0.54
96   TEMPERATURE SELECTOR ASSY
Chaffoteaux part no. 60028567
£193.92
96   OBSOLETE TEMP SELECTOR LP ()
Chaffoteaux part no. 0033332.00

97 Part number 60024164-12, O-RING D: 7.2-1.9 O-RING D: 7.2-1.9
Chaffoteaux part no. 60024164-12
£0.44
98 Part number 60024164-13, O-RING D: 8.9-1.9 O-RING D: 8.9-1.9
Chaffoteaux part no. 60024164-13
£0.50
99   OBSOLETE SLOW IGNITION ASSEMBLY
Chaffoteaux part no. 0018376.01

100   OBSOLETE SELF LOCKING WASHER
Chaffoteaux part no. 0027178.00

101 Part number 60024959-03, O-RING D: 22-2 O-RING D: 22-2
Chaffoteaux part no. 60024959-03
£0.63
101 Part number 60022113-03, O-RING D: 22-2 O-RING D: 22-2
Chaffoteaux part no. 60022113-03
£0.54
102 Part number 60100120-20, WATER GOVERNOR KIT WATER GOVERNOR KIT
Chaffoteaux part no. 60100120-20
£23.13
102 Part number 60100119-20, WATER GOVERNOR KIT WATER GOVERNOR KIT
Chaffoteaux part no. 60100119-20
£16.48
103   OBSOLETE PLUG
Chaffoteaux part no. 0033331.08

104   OBSOLETE DRAIN SCREW
Chaffoteaux part no. 60031547-08

105 Part number 60024164-05, O-RING D: 3.4-1.9 O-RING D: 3.4-1.9
Chaffoteaux part no. 60024164-05
£0.42
107 Part number 60061855-01, SHEET GASKET D: 24-18.2-1.5 SHEET GASKET D: 24-18.2-1.5
Chaffoteaux part no. 60061855-01
£0.79
108 Part number 60061855-15, SHEET GASKET D: 18.2-15-1.5 SHEET GASKET D: 18.2-15-1.5
Chaffoteaux part no. 60061855-15
£0.64
109 Part number 60022833-10, PERB WASHER D: 34.1-25.7-1.5 PERB WASHER D: 34.1-25.7-1.5
Chaffoteaux part no. 60022833-10
£0.83
110   GASKET D: 29.5-21.5-3
Chaffoteaux part no. 60019109
£1.19
111   OBSOLETE PIEZO BRACKET
Chaffoteaux part no. 0028870.00

112   OBSOLETE RADIATION SHIELD -
Chaffoteaux part no. 0028917.00

113 Part number 60005799-13, SCREW HS M 6-12 SCREW HS M 6-12
Chaffoteaux part no. 60005799-13
£0.55
114   OBSOLETE PIEZO PUSH ROD
Chaffoteaux part no. 0028869.00

116   O-RING D: 19.8-3.6
Chaffoteaux part no. 60024184-24
£1.28
121   OBSOLETE CAPTIVE NUT - M5
Chaffoteaux part no. 0029595.00

122   TRAPPED NUT M 6
Chaffoteaux part no. 60008588-03
£2.48
123 Part number 60081273, FOAM SEAL 12.5x5 L: 2.5M FOAM SEAL 12.5X5 L: 2.5M
Chaffoteaux part no. 60081273
£23.36
126   OBSOLETE HEATING BODY
Chaffoteaux part no. 60038676-06

128   OBSOLETE GASKET
Chaffoteaux part no. 0031395.00

129 Part number 60026773, FOAM SEAL 25x12 L: 1.030M FOAM SEAL 25X12 L: 1.030M
Chaffoteaux part no. 60026773
£4.51
130 Part number 60019316-03, SCREW HS M 6-15 SCREW HS M 6-15
Chaffoteaux part no. 60019316-03
£0.57
135 Part number 60043792, WATER SERVICE TAP WATER SERVICE TAP
Chaffoteaux part no. 60043792
£78.53
138   OBSOLETE GAS SERVICE TAP
Chaffoteaux part no. 60043793

151   GASKETS SET
Chaffoteaux part no. 60037306
£45.36
