BUDERUS
LOGATHERM - (Refrigerant Controls)
Appliance Code: 7716162022

Appliance Diagram

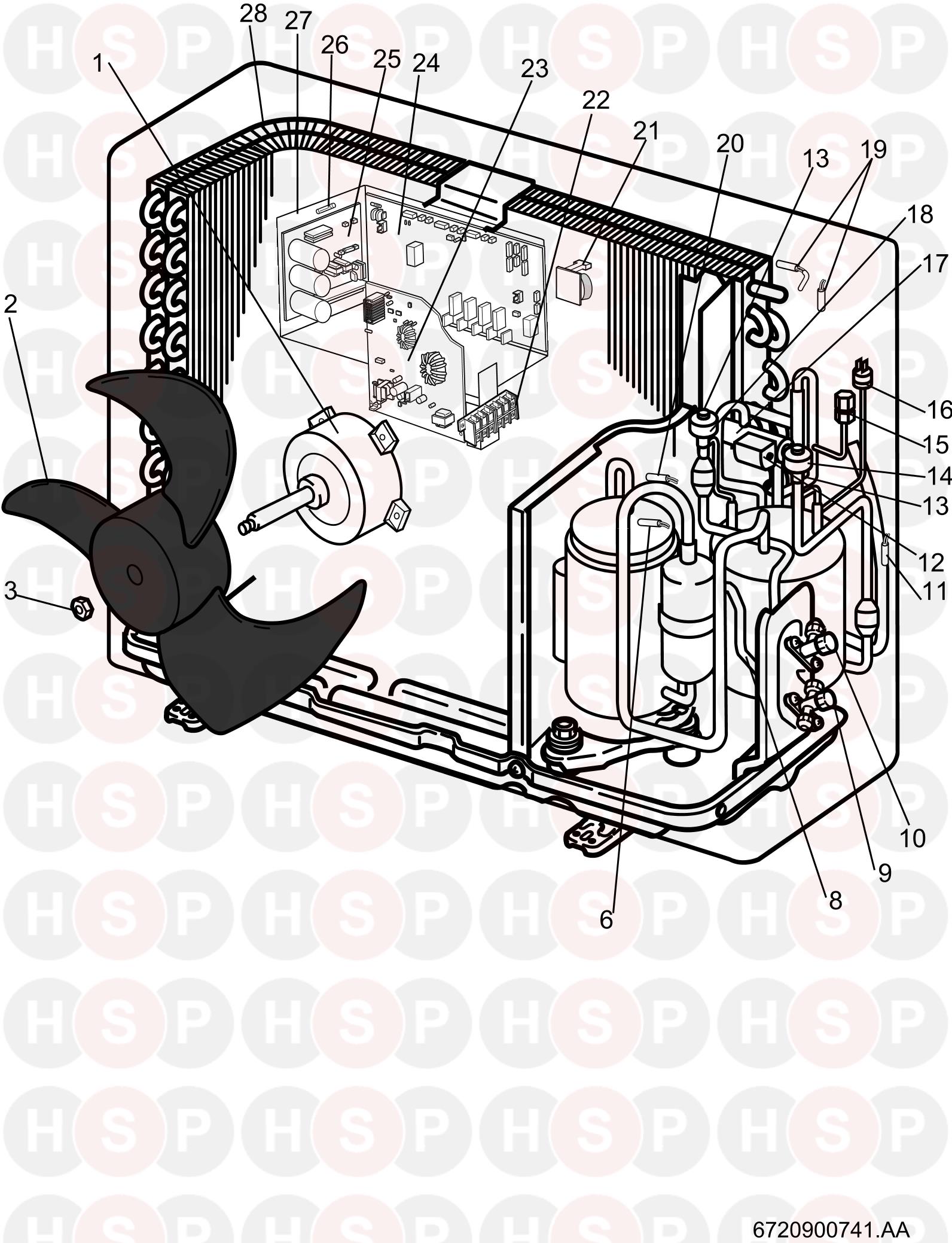

Refrigerant Controls diagram for Buderus LogathermClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

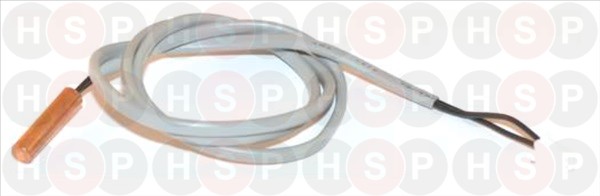

Part number 87161163140, THERMISTOR OUTDOOR PIPE (TH33) THERMISTOR OUTDOOR PIPE (TH33)
Worcester part no. 87161163140		 £155.18
Part number 87161163170, FUSE 250V 6.3A FUSE 250V 6.3A
Worcester part no. 87161163170		 £11.30
Part number 87186893370, SPACER PCB 8mm SPACER PCB 8MM
Worcester part no. 87186893370		 £7.91
Part number 87186893380, SPACER PCB 9.4mm SPACER PCB 9.4MM
Worcester part no. 87186893380		 £12.76
1   FAN MOTOR
Worcester part no. 87161163020		 £1,013.15
2   FAN PROPELLER
Worcester part no. 87161163030		 £251.00
3   NUT
Worcester part no. 87161163040		 £58.34
6   THERMISTOR SHELL (TH32)
Worcester part no. 87161163050		 £86.96
8 Part number 87161162960, STRAINER STRAINER
Worcester part no. 87161162960		 £49.33
9 Part number 87161162970, VALVE STOP 1/2" GAS VALVE STOP 1/2" GAS
Worcester part no. 87161162970		 £182.94
10 Part number 87161162980, VALVE STOP 1/4" LIQUID VALVE STOP 1/4" LIQUID
Worcester part no. 87161162980		 £164.88
11 Part number 87161163060, THERMISTOR OUTDOOR PIPE (TH3) THERMISTOR OUTDOOR PIPE (TH3)
Worcester part no. 87161163060		 £87.47
12 Part number 87161163190, COIL 4 WAY VALVE COIL 4 WAY VALVE
Worcester part no. 87161163190		 £147.71

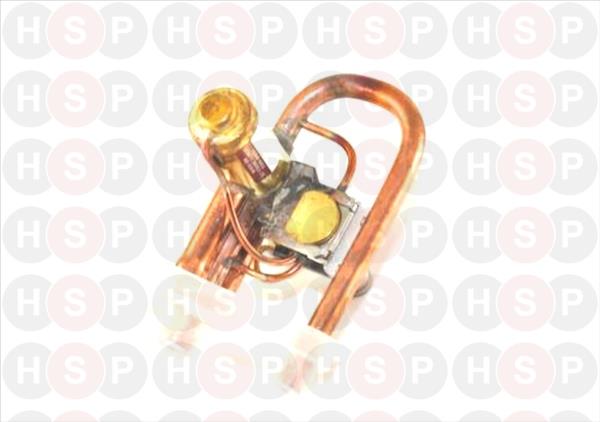

13 Part number 87161162990, VALVE EXPANSION LEV VALVE EXPANSION LEV
Worcester part no. 87161162990		 £285.35
14 Part number 87161162920, COIL EXPANSION VALVE COIL EXPANSION VALVE
Worcester part no. 87161162920		 £125.77

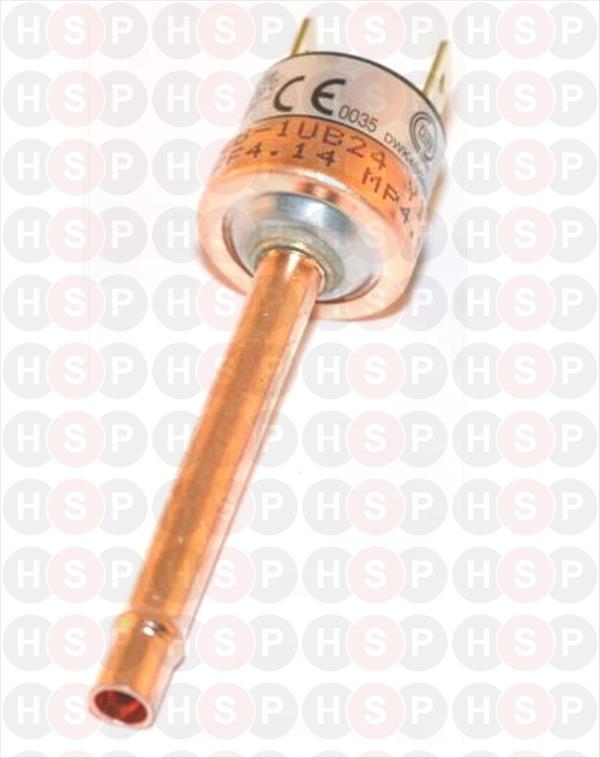

16 Part number 87161163150, SENSOR HIGH PRESSURE SWITCH SENSOR HIGH PRESSURE SWITCH
Worcester part no. 87161163150		 £154.48
17 Part number 87161163000, VALVE 4 WAY VALVE 4 WAY
Worcester part no. 87161163000		 £196.56
18 Part number 87161163180, COIL EXPANSION VALVE COIL EXPANSION VALVE
Worcester part no. 87161163180		 £116.17
19 Part number 87161163070, THERMISTOR OUTDOOR 2 PHASE PIPE (TH6&7) THERMISTOR OUTDOOR 2 PHASE PIPE (TH6&7)
Worcester part no. 87161163070		 £77.95

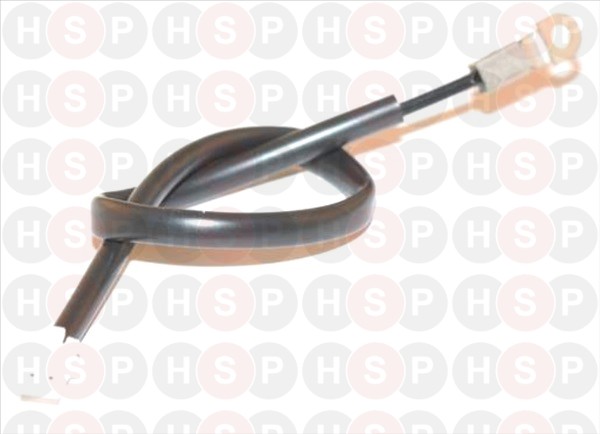

20 Part number 87161163080, THERMISTOR DISCHARGE (TH4) THERMISTOR DISCHARGE (TH4)
Worcester part no. 87161163080		 £70.21
21 Part number 87161163090, REACTOR REACTOR
Worcester part no. 87161163090		 £411.97
23 Part number 87161163110, FILTER NOISE FILTER NOISE
Worcester part no. 87161163110		 £602.88
24 Part number 87161163120, PCB CONTROLLER EHP PCB CONTROLLER EHP
Worcester part no. 87161163120		 £1,429.78

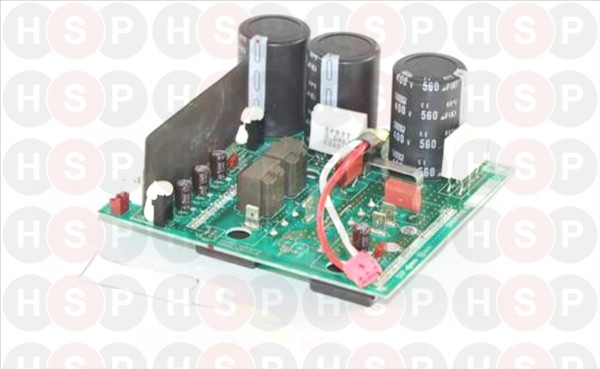

25 Part number 87161163130, PCB POWER EHP PCB POWER EHP
Worcester part no. 87161163130		 £1,256.67
26 Part number 87161163160, THERMISTOR HEATSINK (TH8) THERMISTOR HEATSINK (TH8)
Worcester part no. 87161163160		 £49.33
28   HEAT_EXCHANGER
Worcester part no. 87161163010		 £2,150.73
