BUDERUS
PRIMO TWIN ITSI 300 TWIN COIL (03/2006 TO 02/2011),
300 LTR INDIRECT,
300 LTR SOLAR INDIRECT,
EVOLUTION 300 INDIRECT SOLAR,
300L DIRECT,
300L INDIRECT,
300L INDIRECT SOLAR,
LOGANO G125-25 SE GB 30009031,
LOGANO G125-32 SE GB 30009032,
LOGANO G125-40 SE GB 30009033,
SOLAR 300 DIRECT,
SOLAR 300 INDIRECT,
SOLAR 300 INDIRECT (UPGRADE),
UNVENTED 300L DIRECT,
UNVENTED 300L INDIRECT,
GAS 3000/6000(ECO) - (Motor)
Appliance Code: 30009031

Appliance Diagram


Motor diagram for Buderus Logano G125-25 SE GB 30009031Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 63003767, MOTOR HG 90W MOTOR HG 90W
Worcester part no. 63003767		 £245.00
2 Part number 5885662, CAPACITOR CAPACITOR
Worcester part no. 5885662		 £29.40
3 Part number 87185728410, CLUTCH WHITE (2X) CLUTCH WHITE (2X)
Worcester part no. 87185728410		 £9.55
4   SCREW PAN HEAD ISO7380 M5X12 (5X)
Worcester part no. 7747029976		 £15.20
5 Part number 8718584650, CABLE FEED D 14/4MM CABLE FEED D 14/4MM
Worcester part no. 8718584650		 £8.32
6 Part number 8718584643, PRESSURE TEST NOZZLE R 1/8" MS PRESSURE TEST NOZZLE R 1/8" MS
Worcester part no. 8718584643		 £3.86

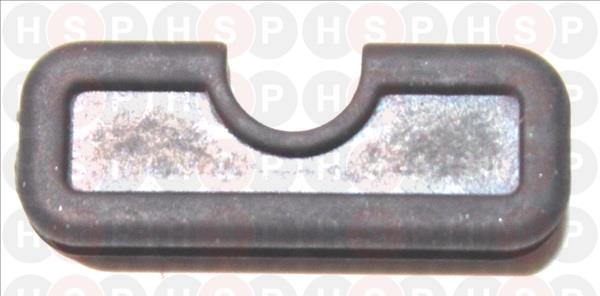

7 Part number 8718584656, CABLE FEED D29X11X4 CABLE FEED D29X11X4
Worcester part no. 8718584656		 £6.21
8   PIN THREADED DIN916 M6X8 (3X)
Worcester part no. 7747029978		 £14.60
9 Part number 8718584683, CYLINDER HEAD SCREW DIN7984 M8X25 8.8 A3 CYLINDER HEAD SCREW DIN7984 M8X25 8.8 A3
Worcester part no. 8718584683		 £15.19
10 Part number 63002998, O RING 92X3 O RING 92X3
Worcester part no. 63002998		 £17.54
11 Part number 63025160, GASKET D 128X2 GASKET D 128X2
Worcester part no. 63025160		 £31.85
12   BURNER FLANGE HG-A
Worcester part no. 63038318		 £33.91
13 Part number 7747000719, GASKET 143X143X6 V3 GASKET 143X143X6 V3
Worcester part no. 7747000719		 £12.15
14   THROTTLE PLATE HG-A
Worcester part no. 63028789
15 Part number 63003779, IMPELLER D133X38.4MM IMPELLER D133X38.4MM
Worcester part no. 63003779		 £80.26
16 Part number 63006885, HOUSING LID HG-A SIZE 1 HOUSING LID HG-A SIZE 1
Worcester part no. 63006885		 £105.62
17 Part number 7747029974, SCREW PAN HEAD ISO7380 M5X20 (5X) SCREW PAN HEAD ISO7380 M5X20 (5X)
Worcester part no. 7747029974		 £16.07
