BUDERUS
BUDERUS 500 24C (COMBI) - (Exploded View)
Appliance Code: 47-110-04

Appliance Diagram


Exploded View diagram for Buderus Buderus 500 24C (Combi)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   CASING
Worcester part no. 73861
2 Part number 7099173, WALL MOUNTING WALL MOUNTING
Worcester part no. 7099173		 £12.50
3 Part number 78145, CABLE BUSH (2PC) CABLE BUSH (2PC)
Worcester part no. 78145		 £15.05
4 Part number 7099387, NOW USE 7099022 FAN NOW USE 7099022 FAN
Worcester part no. 7099387
4   FAN 230V
Worcester part no. 7099022		 £281.32
5 Part number 7099393, SEALING FAN SEALING FAN
Worcester part no. 7099393		 £14.32
7 Part number 7736700635, GAS CONTROL BLOCK GAS CONTROL BLOCK
Worcester part no. 7736700635		 £223.85
8 Part number 7099020, VENTURI 24/30KW (423.072A) VENTURI 24/30KW (423.072A)
Worcester part no. 7099020		 £18.49
9 Part number 7099058, SEALING 50mm (5X) SEALING 50MM (5X)
Worcester part no. 7099058		 £20.86
10 Part number 7099530, SUCTION PIPE SUCTION PIPE
Worcester part no. 7099530		 £32.62
11 Part number 8718601988, VALVE COMPLETE GAS AIR DISTRIBUTION VALVE COMPLETE GAS AIR DISTRIBUTION
Worcester part no. 8718601988		 £11.61
12 Part number 7746900188, SYPHON + CONDENSATE TRAP SYPHON + CONDENSATE TRAP
Worcester part no. 7746900188		 £52.51
13 Part number 8718600327, BURNER C2 BURNER C2
Worcester part no. 8718600327		 £249.70
14 Part number 8718600197, SEALING BURNER GAS AIR SUPPLY SEALING BURNER GAS AIR SUPPLY
Worcester part no. 8718600197		 £6.60
15 Part number 8718600327, BURNER C2 BURNER C2
Worcester part no. 8718600327		 £249.70
16 Part number 7099544, SEAL HEAT EXCH / GAS AIR SUP. SEAL HEAT EXCH / GAS AIR SUP.
Worcester part no. 7099544		 £20.28
17 Part number 8718600023, BACK SIDE HEAT EXCHANGER BACK SIDE HEAT EXCHANGER
Worcester part no. 8718600023		 £133.24
18 Part number 8718600021, GASKET HEAT EXCHANGER GASKET HEAT EXCHANGER
Worcester part no. 8718600021		 £15.23
19 Part number 8718600038, HEAT EXCHANGER HEAT EXCHANGER
Worcester part no. 8718600038		 £212.33
20 Part number 8718600141, FRONT SIDE HEAT EXCHANGER FRONT SIDE HEAT EXCHANGER
Worcester part no. 8718600141		 £164.00
21 Part number 7099546, SIGHT GLASS SIGHT GLASS
Worcester part no. 7099546		 £9.57
22 Part number 7099564, COMBUSTION DIVIDER COMBUSTION DIVIDER
Worcester part no. 7099564		 £22.04
23 Part number 7099006, HOT SURFACE IGNITER HOT SURFACE IGNITER
Worcester part no. 7099006		 £77.18
24 Part number 7100238, IONISATION ELECTRODE IONISATION ELECTRODE
Worcester part no. 7100238		 £28.86
25 Part number 7099556, SEALING (5 PC) SEALING (5 PC)
Worcester part no. 7099556		 £18.62
27 Part number 7099566, BRACKET ION.ELEC/GLOW IG (2X) BRACKET ION.ELEC/GLOW IG (2X)
Worcester part no. 7099566		 £8.48
28 Part number 7100229, SHIELD HOT SURFACE IGNITOR SHIELD HOT SURFACE IGNITOR
Worcester part no. 7100229		 £27.88
29   CONCENTRIC ADAPTER
Worcester part no. 78120		 £27.77
30   NOW USE 7100496 GASKET 100M
Worcester part no. 78121
30   SEALING DN100
Worcester part no. 7100496		 £13.66
31 Part number 7099686, SEALING SEALING
Worcester part no. 7099686		 £10.64
32 Part number 7099502, EXHAUST PIPE EXHAUST PIPE
Worcester part no. 7099502		 £25.43
33 Part number 7099450, SEALING SEALING
Worcester part no. 7099450		 £9.57
34 Part number 7099762, SEALING SEALING
Worcester part no. 7099762		 £12.23
35 Part number 7099456, FLUE-GAS SENSOR FLUE-GAS SENSOR
Worcester part no. 7099456		 £17.17
36 Part number 7099452, CONDENSATE COLLECTOR CONDENSATE COLLECTOR
Worcester part no. 7099452		 £65.19
39   GAS PIPE
Worcester part no. 78126		 £9.69
40 Part number 7099428, CONNECTION SUPPLY CONNECTION SUPPLY
Worcester part no. 7099428		 £82.87
41 Part number 7099180, AUTOMATIC AIR VENT AUTOMATIC AIR VENT
Worcester part no. 7099180		 £18.45
42 Part number 7099676, CLIP (2 PC) CLIP (2 PC)
Worcester part no. 7099676		 £6.45
43 Part number 7099718, O-RING 26.3X5.33 (10 PC) O-RING 26.3X5.33 (10 PC)
Worcester part no. 7099718		 £12.49
44 Part number 7099794, SEALING (2 PC) SEALING (2 PC)
Worcester part no. 7099794		 £7.25
45 Part number 7101564, SAFETY SENSOR SAFETY SENSOR
Worcester part no. 7101564		 £38.18
46   CH SUPPLY PIPE
Worcester part no. 7746900068		 £21.19
47 Part number 78142, NOW USE 8738901572 pump NOW USE 8738901572 PUMP
Worcester part no. 78142
47   PUMP UPMO 5M NESCL 9H
Worcester part no. 8738901572		 £185.55
48 Part number 7746900067, CH SUPPLY PIPE CH SUPPLY PIPE
Worcester part no. 7746900067		 £27.77
49 Part number 7746900067, CH SUPPLY PIPE CH SUPPLY PIPE
Worcester part no. 7746900067		 £27.77
50 Part number 78165, CONNECTION RETURN CONNECTION RETURN
Worcester part no. 78165		 £63.29
50 Part number T0000781650, NOW USE 78165 CONNECTION RETURN COMBI NOW USE 78165 CONNECTION RETURN COMBI
Worcester part no. T0000781650
51 Part number 7099576, CARTRIDGE 3-WAY VALVE CARTRIDGE 3-WAY VALVE
Worcester part no. 7099576		 £29.79
52 Part number 7099578, ACTUATOR 3-WAY VALVE ACTUATOR 3-WAY VALVE
Worcester part no. 7099578		 £46.39
53 Part number 7099580, CLIP CLIP
Worcester part no. 7099580		 £8.24
54   DRAIN PIPE SAFETY VALVE
Worcester part no. 78134		 £16.88
55 Part number 7100888, SAFETY VALVE SAFETY VALVE
Worcester part no. 7100888		 £22.54
56 Part number 78143, BY PASS PIPE BY PASS PIPE
Worcester part no. 78143		 £75.51
57   CONNECTION PIPE EXPANSION TANK
Worcester part no. 78135		 £25.63
58 Part number 78163, NOW USE 8738901138 EXPANSION TANK NOW USE 8738901138 EXPANSION TANK
Worcester part no. 78163
58   EXPANSION VESSEL 5 [L]
Worcester part no. 8738901138		 £118.57
59 Part number 8718600265, CONNECTION HEAT EXCHANGER CONNECTION HEAT EXCHANGER
Worcester part no. 8718600265		 £63.29
60 Part number 7101630, FLOW REGULATOR FLOW REGULATOR
Worcester part no. 7101630		 £30.22
61 Part number 7746900079, NOW USE 8738902350 DHW SENSOR NOW USE 8738902350 DHW SENSOR
Worcester part no. 7746900079
61   FLOW SENSOR
Worcester part no. 8738902350		 £43.75
62 Part number 7101616, CONNECTION SUPPLY COMBI CONNECTION SUPPLY COMBI
Worcester part no. 7101616		 £36.98
63 Part number 7101578, SENSOR SENSOR
Worcester part no. 7101578		 £34.60
64 Part number 7101532, SAFETY SENSOR SAFETY SENSOR
Worcester part no. 7101532		 £42.47
65 Part number 7101628, PLATE HEAT EXCHANGER PLATE HEAT EXCHANGER
Worcester part no. 7101628		 £132.65
66 Part number 7101620, O-RING 16X3,5 (10X) O-RING 16X3,5 (10X)
Worcester part no. 7101620		 £8.83

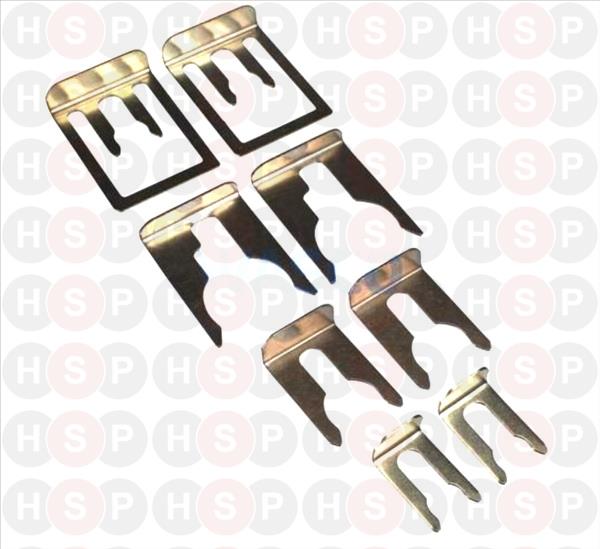

67 Part number 7746700063, CLIP DN10/16/24 (4X2) CLIP DN10/16/24 (4X2)
Worcester part no. 7746700063		 £31.26
67 Part number 78156, NOW USE 7746700063 CLIP (3X2 ST) 44 NOW USE 7746700063 CLIP (3X2 ST) 44
Worcester part no. 78156
69 Part number 7101610, CONNECTION NIPPLE CH CONNECTION NIPPLE CH
Worcester part no. 7101610		 £24.19
70 Part number 7101612, CONNECTION PIPE SANITARY CONNECTION PIPE SANITARY
Worcester part no. 7101612		 £22.43
71 Part number 7746900069, CONTROL UNIT DBA UK 24/C KW CONTROL UNIT DBA UK 24/C KW
Worcester part no. 7746900069		 £285.90
72 Part number 7099041, POWER SWITCH POWER SWITCH
Worcester part no. 7099041		 £9.57
73 Part number 7746900064, CABLE HARNESS CABLE HARNESS
Worcester part no. 7746900064		 £52.20
74 Part number 7099438, CLIP (5X) CLIP (5X)
Worcester part no. 7099438		 £13.29
75 Part number 7099708, CLIP (5 PC) CLIP (5 PC)
Worcester part no. 7099708		 £9.51
76 Part number 7100742, SEAL CONDENSATE TRAP (5X) SEAL CONDENSATE TRAP (5X)
Worcester part no. 7100742		 £14.03
77   NOW USE 73368S SEALING (5 PC) 105
Worcester part no. 73368
77 Part number 73368S, GB162 SEALING GASKET 10-PAK GB162 SEALING GASKET 10-PAK
Worcester part no. 73368S		 £16.04
78 Part number 7101644, O-RING 19X3 (5X) O-RING 19X3 (5X)
Worcester part no. 7101644		 £16.00
79 Part number 7101558, O-RING 15,54X2,62 (10X) O-RING 15,54X2,62 (10X)
Worcester part no. 7101558		 £24.00
80 Part number 7101588, O-RING 73X5 O-RING 73X5
Worcester part no. 7101588		 £9.57
81 Part number 7101596, O-RING 48,9X2,62 O-RING 48,9X2,62
Worcester part no. 7101596		 £9.57
82 Part number 7101574, O-RING 21.82X3.53 (10X) O-RING 21.82X3.53 (10X)
Worcester part no. 7101574		 £14.09
83 Part number 7101622, SCREW + SCREW CASE (2X) SCREW + SCREW CASE (2X)
Worcester part no. 7101622		 £9.90
84 Part number 7101606, DRAIN PLUG DRAIN PLUG
Worcester part no. 7101606		 £9.57
85 Part number 78079, RTH CONVERTER RTH CONVERTER
Worcester part no. 78079		 £57.00
86 Part number 7099167, O-RING 14.48X2.62 (10X) O-RING 14.48X2.62 (10X)
Worcester part no. 7099167		 £29.39
88 Part number 8718601961, O-RING 18.72X2.62 (10X) O-RING 18.72X2.62 (10X)
Worcester part no. 8718601961		 £18.26
89 Part number 78174, SEALING COVER SEALING COVER
Worcester part no. 78174		 £11.84
90 Part number 73561, SEALING CONDENSATE PIPE SEALING CONDENSATE PIPE
Worcester part no. 73561		 £8.48
91 Part number 7099021, SEALING SET (2X5X) SEALING SET (2X5X)
Worcester part no. 7099021		 £19.17
92   CODE PLUG N600-24C
Worcester part no. 7746900208		 £15.09
93 Part number 7100198, SEALING (5X) SEALING (5X)
Worcester part no. 7100198		 £9.26
94   FASTENERS CASING
Worcester part no. 73901		 £9.17
95 Part number 7101606, DRAIN PLUG DRAIN PLUG
Worcester part no. 7101606		 £9.57
