WM 60/3 RS - (Flue)
Appliance Code: 41-077-40

Appliance Diagram


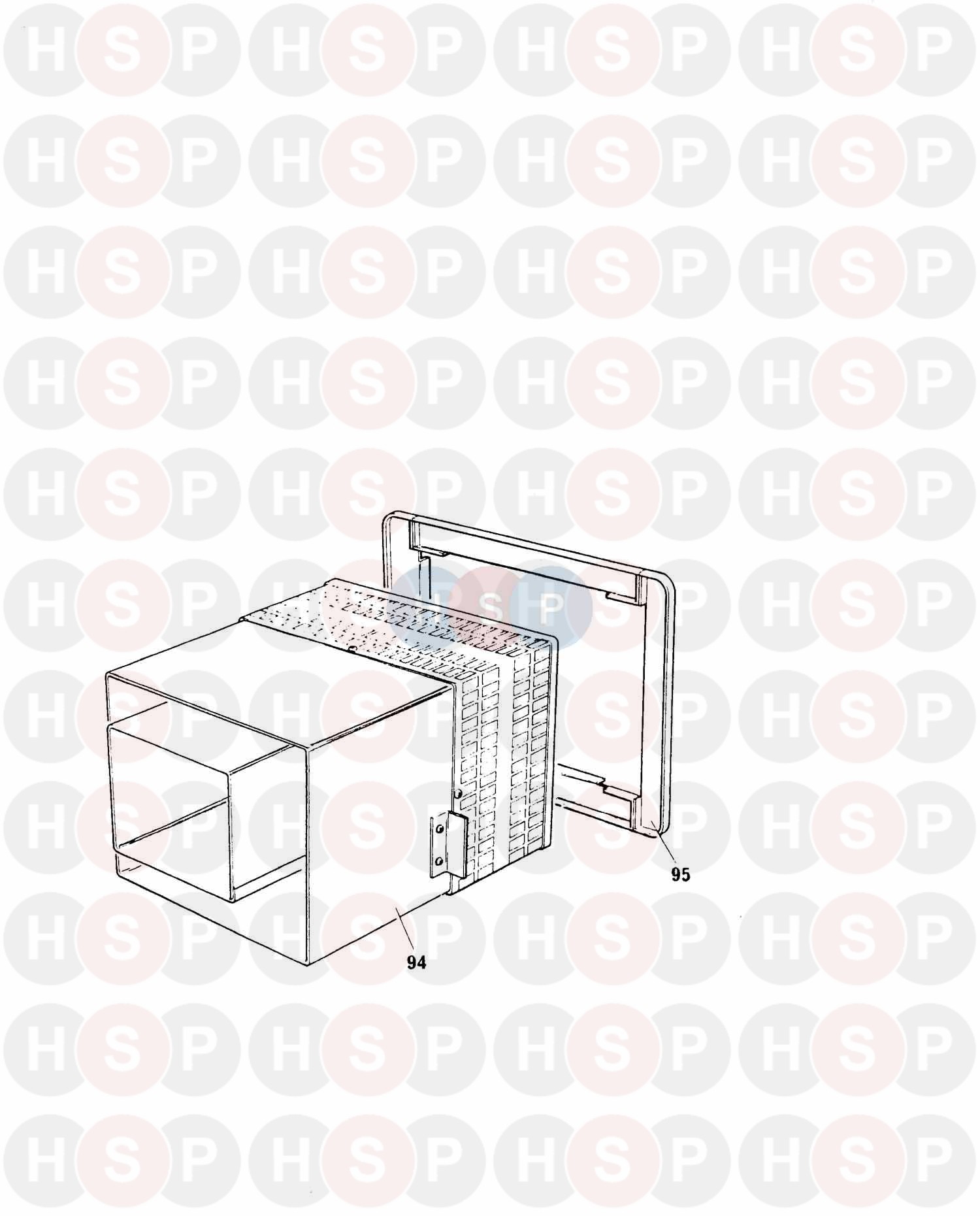

Flue diagram for Baxi WM 60/3 RSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE PANEL - FRONT 100304 41-077-34 364-492
Baxi part no. 100304
2   OBSOLETE TRIM-FACIA-RIDGED-603-513 RS
Baxi part no. 102296
3   OBSOLETE WINDOW-VIEWING-CABINET-WM3
Baxi part no. 102273
4   OBSOLETE PANEL DOOR 100305 41-077-34 364-493
Baxi part no. 100305
5   OBSOLETE ASSY PANEL SIDE
Baxi part no. 100301
6 Part number 112000, STUD-FOREST-FAST-SRV-1762-17-0 STUD-FOREST-FAST-SRV-1762-17-0
Baxi part no. 112000		 £2.50
7 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
8   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
9 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
10   OBSOLETE PANEL-CASE INFIL
Baxi part no. 100391
11 Part number 062548, SCR-ST-No 8x3/8in POZI FL.HD A SCR-ST-NO 8X3/8IN POZI FL.HD A
Baxi part no. 062548		 £3.01
12   OBSOLETE CATCH-MAG DOOR-WM532-381RS
Baxi part no. 102104
13   OBSOLETE TRIM-TOP-WM-513-RS
Baxi part no. 100306
14   OBSOLETE ASSY CABINET COMPLETE WM 513RS
Baxi part no. 100303
15   NUT-WING-M6-ZN-PD
Baxi part no. 112028
16 Part number 062549, SCR-ST-No8x1/2 POZI FLANGE SCR-ST-NO8X1/2 POZI FLANGE
Baxi part no. 062549		 £3.12
17   OBSOLETE ASSY BOX COMBUSTION WM60/3 RS
Baxi part no. 100386
18   OBSOLETE BRKT-SUPPORT-O/CASE ASSY-LH
Baxi part no. 100318
19   OBSOLETE NUT CAPTIVE - U TYPE NO 8
Baxi part no. 102247
21   OBSOLETE SUPPORT COMBUSTION BOX LH 100320 41-077-34
Baxi part no. 100320
22   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539
23 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
24   OBSOLETE SUPPORT COMBUSTION BOX RH 100321 41-077-34
Baxi part no. 100321
25   OBSOLETE ASSY CARRIER/INSULATION REAR
Baxi part no. 100394
26   OBSOLETE SCR-ST-NO8X5/8 FL HD-POZ-ZPD-B
Baxi part no. 062732
27   OBSOLETE INSULATION SIDE WM 513 RS
Baxi part no. 102224
28   WASHER-RETAINING-SPECIAL-ST/S
Baxi part no. 110011		 £15.01
29   OBSOLETE ASSY STRAP CONNECTING 513 RS
Baxi part no. 100323
30   OBSOLETE PANEL INSULATION WM 513 RS
Baxi part no. 100324
31   OBSOLETE BRKT-SUPP-O/CASE ASSY RH.51/3
Baxi part no. 100319
32   OBSOLETE PANEL DOOR BOX-COM UPPER
Baxi part no. 100325
33   OBSOLETE KIT-GASKET-C/BOX DOOR WM51/3RS
Baxi part no. 100376
34   OBSOLETE ASSY INSULATION/CARRIER DOOR
Baxi part no. 100326
35 Part number 102028, SEAL-THERMOSTAT PHIAL. SEAL-THERMOSTAT PHIAL.
Baxi part no. 102028		 £8.26
36   OBSOLETE PLATE WALL MOUNTING
Baxi part no. 100313
37 Part number 062441, NUT-FULL HEX-6MM ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441		 £3.01
38   OBSOLETE WASHER PLAIN-6MM ID-ZINC PL
Baxi part no. 062463
41 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
41   OBSOLETE ASSY DOOR BOX COMBUSTION
Baxi part no. 100395
41   OBSOLETE SHIELD-HEAT-COMB.BOX DOOR-LOW.
Baxi part no. 222978
42   OBSOLETE SHIELD-PILOT WM 60/3 RS
Baxi part no. 100384
43   OBSOLETE KIT-SIGHT WINDOW-WM513RS
Baxi part no. 100329
44   OBSOLETE BURNER-BOILER-WM60/3 RS
Baxi part no. 102284
46   OBSOLETE INJECTOR-BOILER 3.8MM WM60/3RS
Baxi part no. 102283
47 Part number 062695, NOW USE 7211908 WASHER COPPER INJECTOR SEALING NOW USE 7211908 WASHER COPPER INJECTOR SEALING
Baxi part no. 062695
47 Part number 7211908, WASHER COPPER SEALING WASHER COPPER SEALING
Baxi part no. 7211908		 £3.14
48   OBSOLETE CLAMP 100387 41-077-40 364-548
Baxi part no. 100387
50   OBSOLETE PIPE-BOILER-BUR.FEED-WM 60/3RS
Baxi part no. 102282
51   OBSOLETE SUPPORT-VALVE-INLET-ALUM.
Baxi part no. 102232
52   OBSOLETE O RING-21.9MM ID X 2.62MM-TH
Baxi part no. 102233
54   SCR-SET-M4X12MM-PAN HD PZ ZNPD
Baxi part no. 062726
55   OBSOLETE COVER-ELECTRICAL ASSY-WM60/3RS
Baxi part no. 100388
56   OBSOLETE HI-LO TAPPING SCREW NO. 5 X 25 RECESSED PA
Baxi part no. 404204
58   OBSOLETE SUPPORT-VALVE-OUTLET-BRASS
Baxi part no. 102237
59 Part number 062240, OBSOLETE NIPPLE PRES TEST OBSOLETE NIPPLE PRES TEST
Baxi part no. 062240
60 Part number 102205, NOW USE 5110466 TAP SERVICE NOW USE 5110466 TAP SERVICE
Baxi part no. 102205
60 Part number 5110466, GAS TAP C/W NUT & TAIL PIECE GAS TAP C/W NUT & TAIL PIECE
Baxi part no. 5110466		 £46.03
61   OBSOLETE IGNITOR-PIEZO VERNITRON 60053
Baxi part no. 082388
62   OBSOLETE LEAD-ELECTRODE-BRAZ 8000 ST
Baxi part no. 082389
63 Part number 102024, ELECTRODE-PILOT-IGNITION ELECTRODE-PILOT-IGNITION
Baxi part no. 102024		 £7.03
64 Part number 062638, OBSOLETE BURNER PILOT OBSOLETE BURNER PILOT
Baxi part no. 062638
65 Part number 402560, OBSOLETE PILOT INJECTOR (STD) OBSOLETE PILOT INJECTOR (STD)
Baxi part no. 402560
65 Part number 112011, OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A
Baxi part no. 112011
66   OBSOLETE PIPE-P/LT F/D-INC N/O WM60/3RS
Baxi part no. 100389
67 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005		 £19.17
68   OBSOLETE KIT-TERMINAL STRIP-WM 51/3 RS
Baxi part no. 100332
69   OBSOLETE SOCKET-3 PIN WITH LEADS
Baxi part no. 100333
70   OBSOLETE COVER ELECTRICAL-TERM STRIP
Baxi part no. 102240
71   OBSOLETE WASHER-ANTI-LOSS
Baxi part no. 112030
72   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
73   OBSOLETE KIT-WIRES-WM 51/3 RS
Baxi part no. 100335
74   OBSOLETE CAPACITOR ASSY-WM-3-SERIES
Baxi part no. 100375
75   OBSOLETE PLUG-3 PIN WITH LEADS
Baxi part no. 100334
76   OBSOLETE HOUSING THERMOSTAT-WM513RS
Baxi part no. 102241
77 Part number 102027, THERMOSTAT KIT K36P1324 THERMOSTAT KIT K36P1324
Baxi part no. 102027		 £20.57
78   OBSOLETE COVER-THERMOSTAT-HOUSING
Baxi part no. 102242
79   OBSOLETE KNOB-THERMOSTAT-WM 60/3 RS
Baxi part no. 102280
80   OBSOLETE BOILER-ASSY-WM 60/3 RS
Baxi part no. 100390
81 Part number 102029, OBSOLETE GASKET-BOILER OBSOLETE GASKET-BOILER
Baxi part no. 102029
81 Part number 102029BAX, OBSOLETE GASKET-BOILER(Blue) OBSOLETE GASKET-BOILER(BLUE)
Baxi part no. 102029BAX
82 Part number 042889BAX, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889BAX
82 Part number 042889, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889
83   KIT-DRAW BAR-BOILER SECURING
Baxi part no. 040890
84   OBSOLETE PLATE-BLR CLAMPING.WM-532RS
Baxi part no. 100113
85 Part number 040665, OBSOLETE BAFFLE-HEAT EXCH-COMB BOX OBSOLETE BAFFLE-HEAT EXCH-COMB BOX
Baxi part no. 040665
86   OBSOLETE BAFFLE-HEAT EXCH-CENTRE-60/3RS
Baxi part no. 100403
88 Part number 062637, OBSOLETE GROMMET BOILER END SEAL OBSOLETE GROMMET BOILER END SEAL
Baxi part no. 062637		 £4.44
89 Part number 040515, OBSOLETE KIT-ADAPTER-INJECTOR TEE OBSOLETE KIT-ADAPTER-INJECTOR TEE
Baxi part no. 040515
94   OBSOLETE TERMINAL-FLUE ASSY WM 60/3RS
Baxi part no. 100392
95   OBSOLETE KIT-TRIM-FLUE TERMINAL-51/3RS.
Baxi part no. 100316
