BAXI
WM 551 OF CAT 1N - (Outer Case)
Appliance Code: 41-077-02

Appliance Diagram

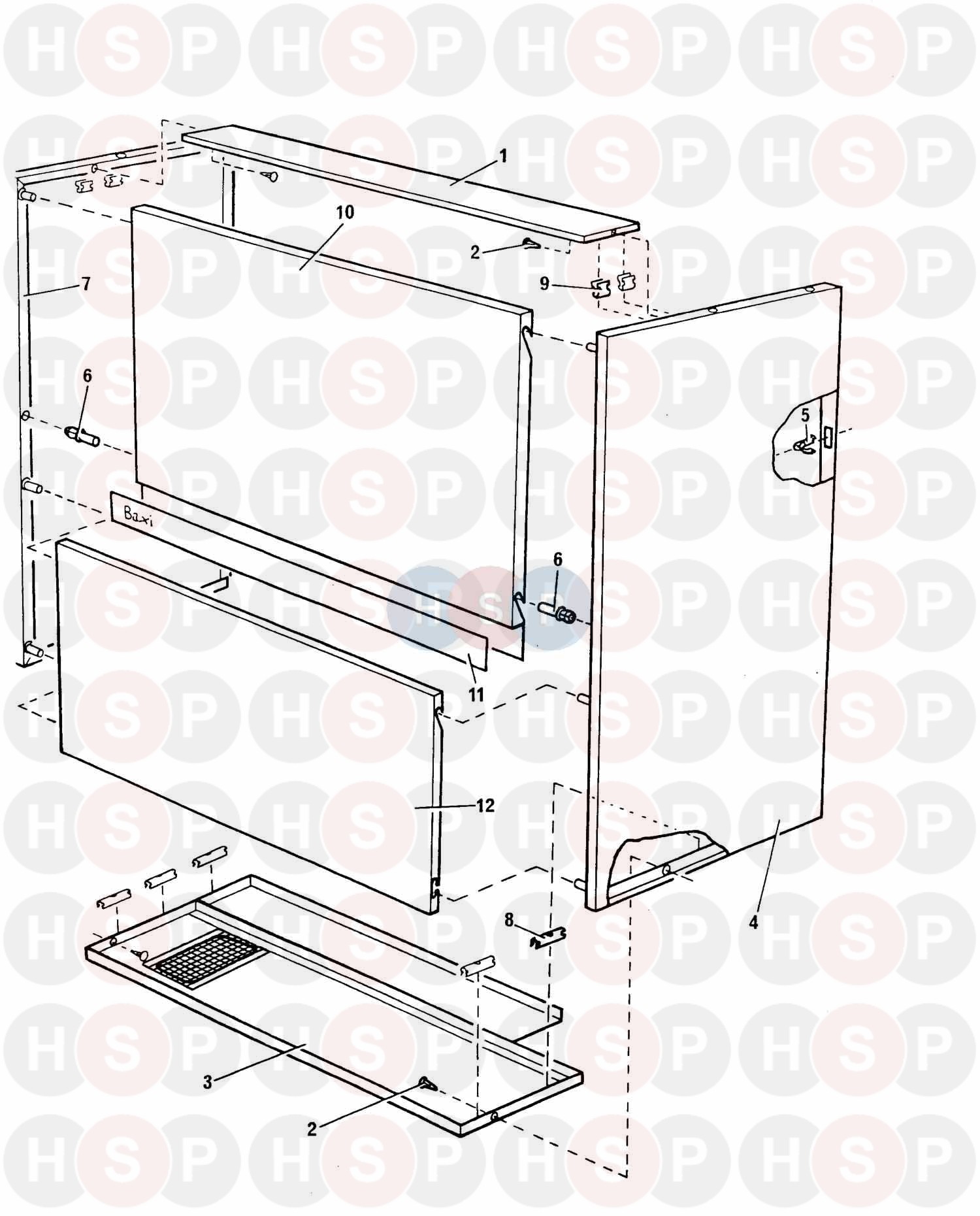

Outer Case diagram for Baxi WM 551 Of CAT 1NClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE TOP PANEL 100047 41-077-02 364-065
Baxi part no. 100047
2 Part number 062595, BUTTON-INDIC-UTD.CARR 70270-06 BUTTON-INDIC-UTD.CARR 70270-06
Baxi part no. 062595
3   OBSOLETE BOTTOM PANEL 100048 41-077-02 364-066
Baxi part no. 100048
4   OBSOLETE SIDE PANEL - RIGHT HAND 100004 41-077-02
Baxi part no. 100004
5   OBSOLETE FUS RES 180R 10% 1W
Baxi part no. 102008
6   OBSOLETE RIVET-NYLON ROKUT
Baxi part no. 102009
7   OBSOLETE SIDE PANEL - LEFT HAND 100005 41-077-02 3
Baxi part no. 100005
8   CLIP-EDGE-SPR.STEEL
Baxi part no. 102010		 £2.04
9   OBSOLETE CLIP-EDGE-HARD-TEM CAR STL 1/2
Baxi part no. 082097
10   OBSOLETE FRONT PANEL 100050 41-077-02 364-102
Baxi part no. 100050
11   OBSOLETE TRIM FACIA 102001 41-077-02 364-007
Baxi part no. 102001
12   OBSOLETE PANEL REMOVABLE 100051 41-077-02 364-068
Baxi part no. 100051
13   OBSOLETE COMBUSTION BOX 100052 41-077-02 364-069
Baxi part no. 100052
14   OBSOLETE BASE REAR 100068 41-077-02 364-070
Baxi part no. 100068
15 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571		 £3.12
16   OBSOLETE SUPPORT-HEAT-EXCH-WM-551-OF
Baxi part no. 100053
17   OBSOLETE BAFFLE-ANGLE-COMB BOX-WM551 OF
Baxi part no. 100069
18   OBSOLETE SCR-SET-M5 X 16MM-CH HD ZNPD
Baxi part no. 062435
19   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
19 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
21   OBSOLETE SCR-SET-M5 X 6MM-CH HD ZNPD
Baxi part no. 062434
23 Part number 062441, NUT-FULL HEX-6mm ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441		 £3.01
24   OBSOLETE WASHER PLAIN-6MM ID-ZINC PL
Baxi part no. 062463
25   OBSOLETE RETAINING PEG 102093 41-077-02 364-561
Baxi part no. 102093
26   OBSOLETE EMBLEM CLIP (FIXED TYPE) FOR 4.8MM SPIGOT
Baxi part no. 102085
28   OBSOLETE INSULATION-REAR-BTM-COMB BOX
Baxi part no. 042822
29   OBSOLETE CLAMP INSULATION
Baxi part no. 100070
30   OBSOLETE WASHER RETAINING SPECIAL
Baxi part no. 100012
31 Part number 062617, SCR-ST-No8x1/2 PAN POZ.TYPE B SCR-ST-NO8X1/2 PAN POZ.TYPE B
Baxi part no. 062617		 £3.16
32 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
33   OBSOLETE PANEL FRONT-COMBUSTION BOX (INCL KEYS 34 T
Baxi part no. 100055
34   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539
36   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3.01
37   OBSOLETE WASHER-PLAIN-4MM-ZINC. PLTD
Baxi part no. 062446
38   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
39 Part number 042824, INSULATION-FRONT PANEL. INSULATION-FRONT PANEL.
Baxi part no. 042824
40   OBSOLETE SCR-SET-M5 X 12MM-CH HD ZNPD
Baxi part no. 062416
41 Part number 062596, NUT-WING M5 STEEL ZN PD NUT-WING M5 STEEL ZN PD
Baxi part no. 062596		 £3.05
42   OBSOLETE GUIDE AIR
Baxi part no. 100057
43   OBSOLETE DIVERTER DRAUGHT 100056 41-077-02 364-077
Baxi part no. 100056
43   OBSOLETE BRACKET - CABINET SECURING 100154 41-077-0
Baxi part no. 100154
44   OBSOLETE SPIGOT FLUE (CASTING) 101002 41-077-02 36
Baxi part no. 101002
45   OBSOLETE GASKET - FLUE SPIGOT 102063 41-077-02 364
Baxi part no. 102063
46   WASHER-PLAIN-5MM ZINC PLTD
Baxi part no. 062447		 £2.36
47 Part number 060055, OBSOLETE KIT-PLUG & SOCKET-BOILERS OBSOLETE KIT-PLUG & SOCKET-BOILERS
Baxi part no. 060055
48   OBSOLETE SCR-SET-M4 X 8MM HEX.HD-ZNPD
Baxi part no. 062620
49 Part number 040665, OBSOLETE BAFFLE-HEAT EXCH-COMB BOX OBSOLETE BAFFLE-HEAT EXCH-COMB BOX
Baxi part no. 040665
50   OBSOLETE BASE FRONT 100063 41-077-02 364-082
Baxi part no. 100063
51   OBSOLETE NUT-CAP-U-TYPE 3/16INBSW CH ZP
Baxi part no. 102092
52   OBSOLETE THUMB SCREW 3/16BSW X 1/2IN - MILD STEEL Z
Baxi part no. 102095
53   OBSOLETE BOX-AIR-INLET.WM-551-OF
Baxi part no. 100071
54   OBSOLETE LINT ARRESTER 100205 41-077-02 364-228
Baxi part no. 100205
55   OBSOLETE BURNER-BOILER-WM 551/401 OF
Baxi part no. 062622
57   OBSOLETE INJECTOR-PIPE-BURNER-FEED-ASSY
Baxi part no. 100059
58   OBSOLETE NUT-COMP-12MM-STEEL-ZNPD
Baxi part no. 102017
59   OBSOLETE OLIVE-12MM-BRASS
Baxi part no. 102018
60 Part number V4600C1086, GAS VALVE TRADELINE GAS VALVE TRADELINE
Baxi part no. V4600C1086		 £160.92
60 Part number V4600C1029, NOW USE V4600C1086 HONEYWELL GAS VALVE NOW USE V4600C1086 HONEYWELL GAS VALVE
Baxi part no. V4600C1029
60 Part number 062623, NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL
Baxi part no. 062623
61 Part number 102050, CONNECTOR REDUCING.6mm-4mm CONNECTOR REDUCING.6MM-4MM
Baxi part no. 102050
62   OBSOLETE GRIP CABLE-HEYCO SR 6P 4
Baxi part no. 102007
63   OBSOLETE EXTENSION-PRESSURE TEST POINT
Baxi part no. 102075
64   OBSOLETE ADAPTER-MALE 1/2" BSP 12MM TUBE
Baxi part no. 042712
65   OBSOLETE BRKT-CONTROL-MOUNTING-WM551-OF
Baxi part no. 100064
66 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
67 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005		 £19.17
68   OBSOLETE SERVICE TAP 1/2IN MALE STRAIGHT UNION FEMA
Baxi part no. 112072
68   OBSOLETE TAP-SERV-STR-SIRAL-REF-0073853
Baxi part no. 112081
69 Part number 062638, OBSOLETE BURNER PILOT OBSOLETE BURNER PILOT
Baxi part no. 062638
69 Part number 102006, OBSOLETE BURNER-PILOT-H/WELL OBSOLETE BURNER-PILOT-H/WELL
Baxi part no. 102006
70   OBSOLETE GASKET ELEMENT ENVIWARM B/S
Baxi part no. 100065
70   OBSOLETE BRKT-LE-PILOT-SUPP-WM551-401OF
Baxi part no. 100144
71 Part number 102041, INJECTOR PILOT.NG.BCR-18 INJECTOR PILOT.NG.BCR-18
Baxi part no. 102041
72   OBSOLETE RESTRICTOR-PILOT-WM531RS
Baxi part no. 102055
73   OBSOLETE PARTS KIT - LOW ENERGY PILOT INCLUDING BUR
Baxi part no. 100146
73   OBSOLETE PIPE-LE-PILOT-FEED-NUTS
Baxi part no. 100145
73   OBSOLETE PILOT FEED PIPE INCLUDES NUTS AND OLIVES A
Baxi part no. 100060
74 Part number 102091, OBSOLETE HOUSING-T/STAT-PLASTIC-WM551 OBSOLETE HOUSING-T/STAT-PLASTIC-WM551
Baxi part no. 102091
75 Part number 040884, KIT-TV INTERFERENCE SUPP-72 KIT-TV INTERFERENCE SUPP-72
Baxi part no. 040884		 £14.71
75 Part number 042818, THERMOSTAT-BOILER-RANCO-K36. THERMOSTAT-BOILER-RANCO-K36.
Baxi part no. 042818
76   OBSOLETE BRKT-THERMO HOUSING WM 551 OF
Baxi part no. 100072
77 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
78 Part number 042717, KNOB-CONTROL BOILER THERMOSTAT KNOB-CONTROL BOILER THERMOSTAT
Baxi part no. 042717
80 Part number 226216, OBSOLETE KIT-BOILER REPLACEMENT-LARGE OBSOLETE KIT-BOILER REPLACEMENT-LARGE
Baxi part no. 226216
82 Part number 102029BAX, OBSOLETE GASKET-BOILER(Blue) OBSOLETE GASKET-BOILER(BLUE)
Baxi part no. 102029BAX
82 Part number 102029, OBSOLETE GASKET-BOILER OBSOLETE GASKET-BOILER
Baxi part no. 102029
83 Part number 042889, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889
83 Part number 042889BAX, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889BAX
83   OBSOLETE PLUG 1/4" BSP HEXAGON HEAD - BRASS. 102150 4
Baxi part no. 102150
84 Part number 062570, BOLT-M8x100mm-HX.HD ST PASS ZP BOLT-M8X100MM-HX.HD ST PASS ZP
Baxi part no. 062570		 £3.40
85 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597		 £3.12
86   OBSOLETE WASHER PLAIN-M8 PASS ZNPD
Baxi part no. 062599
87 Part number 062621, SPREADER-WATER-PLASTIC SPREADER-WATER-PLASTIC
Baxi part no. 062621		 £7.51
88 Part number 102037, SEAL-RING-BOILER. SEAL-RING-BOILER.
Baxi part no. 102037		 £7.15
88 Part number 060016, NOW USE 102037 SEAL RING BOILER END.(SET 3) NOW USE 102037 SEAL RING BOILER END.(SET 3)
Baxi part no. 060016
89   KIT-DRAW BAR-BOILER SECURING
Baxi part no. 040890
90   OBSOLETE PLATE-BLR CLAMPING.WM-532RS
Baxi part no. 100113
91   OBSOLETE NIPPLE-BARREL-SPECIAL-1" BSP
Baxi part no. 102035
93   OBSOLETE PLUG 1" BSP RECESSED - MALLEABLE IRON 102
Baxi part no. 102002
94 Part number 060058, KIT-INJECTOR-TEE-REPLACEMENT KIT-INJECTOR-TEE-REPLACEMENT
Baxi part no. 060058		 £93.05
95 Part number 100062, OBSOLETE KIT-WIRES-WM-551-OF OBSOLETE KIT-WIRES-WM-551-OF
Baxi part no. 100062
96   OBSOLETE FRAME - WALL MOUNTING 100058 41-077-02 36
Baxi part no. 100058
97   OBSOLETE BRACKET WALL MOUNTING 100066 41-077-02 36
Baxi part no. 100066
98   OBSOLETE LOCATING STRIP - WALL MOUNTING 100067 41-0
Baxi part no. 100067
101 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
102   OBSOLETE WALL BOLT - RAWLPLUG NO. FE10 X 65MM (C2-8
Baxi part no. 102073
103   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
104 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
