BAXI
WM 512 RS CAT 1N - (Controls)
Appliance Code: 41-077-33

Appliance Diagram


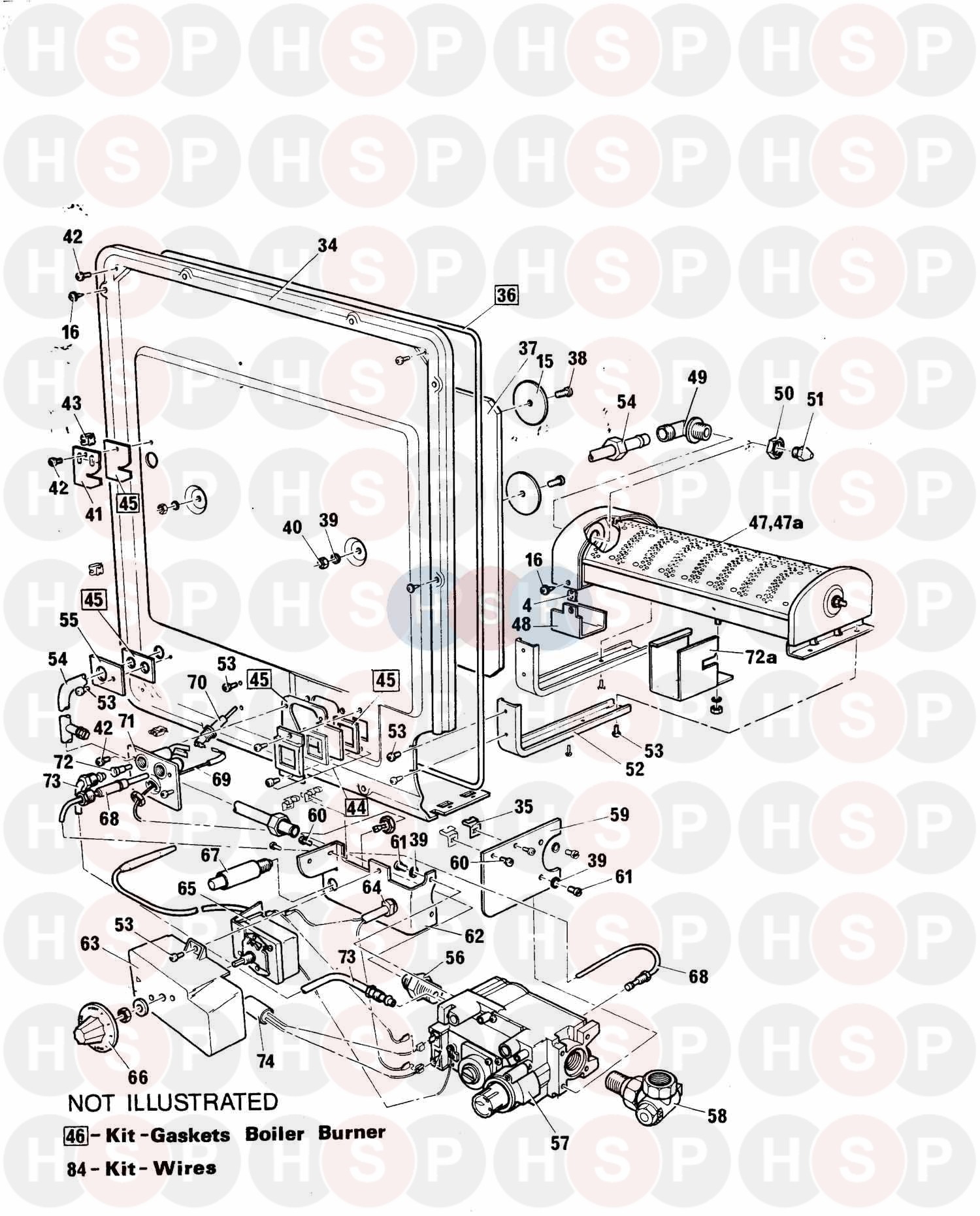

Controls diagram for Baxi WM 512 RS CAT 1NClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE PANEL - BOTTOM 100259 41-077-33 364-372
Baxi part no. 100259
2   OBSOLETE PANEL -TOP 100260 41-077-33 364-373
Baxi part no. 100260
3   OBSOLETE SIDE PANEL - LEFT HAND 100091 41-077-05 3
Baxi part no. 100091
4 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
5   OBSOLETE RIVET-NYLON ROKUT
Baxi part no. 102009
6 Part number 062549, SCR-ST-No8x1/2 POZI FLANGE SCR-ST-NO8X1/2 POZI FLANGE
Baxi part no. 062549		 £3.12
7   OBSOLETE SIDE PANEL - RIGHT HAND 100092 41-077-05
Baxi part no. 100092
8   OBSOLETE FRONT PANEL 100090 41-077-05 364-130
Baxi part no. 100090
9   OBSOLETE FACIA TRIM 102103 41-077-05 364-131
Baxi part no. 102103
10   OBSOLETE NUT-CAP-RH-ANG
Baxi part no. 102193
11   OBSOLETE CATCH-MAG DOOR-WM532-381RS
Baxi part no. 102104
12   OBSOLETE DOOR PANEL 100095 41-077-05 364-133
Baxi part no. 100095
13   OBSOLETE COMBUSTION BOX 100125 41-077-06 364-175
Baxi part no. 100125
14   OBSOLETE INSUL-SEPARATOR PLATE-WM532RS
Baxi part no. 102123
15   OBSOLETE WASHER RETAINING SPECIAL
Baxi part no. 100012
16 Part number 062679, SCR-ST-No8x5/8-FL HD POZ ZNPD SCR-ST-NO8X5/8-FL HD POZ ZNPD
Baxi part no. 062679		 £3.01
17 Part number 060016, NOW USE 102037 SEAL RING BOILER END.(SET 3) NOW USE 102037 SEAL RING BOILER END.(SET 3)
Baxi part no. 060016
17 Part number 102037, SEAL-RING-BOILER. SEAL-RING-BOILER.
Baxi part no. 102037		 £7.15
18   OBSOLETE INSUL-SIDE-COMB.BOX-WM532RS
Baxi part no. 102122
19   OBSOLETE SUPPORT - COMBUSTION BOX 100114 41-077-06
Baxi part no. 100114
20 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
21 Part number 060055, OBSOLETE KIT-PLUG & SOCKET-BOILERS OBSOLETE KIT-PLUG & SOCKET-BOILERS
Baxi part no. 060055
22   OBSOLETE TAPTITE SCREW M4 X 10 INDENT HEXAGON WASHE
Baxi part no. 102192
24   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3.01
25   OBSOLETE WASHER-PLAIN-4MM-BRASS
Baxi part no. 102140
26   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
27   OBSOLETE TERMINAL CUP WASHER FOR M4/8UN & 3BA SCREW
Baxi part no. 102139
28   OBSOLETE PLATE - WALL MOUNTING 100261 41-077-33 36
Baxi part no. 100261
29 Part number 062441, NUT-FULL HEX-6mm ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441		 £3.01
30   OBSOLETE WASHER PLAIN-6MM ID-ZINC PL
Baxi part no. 062463
31   OBSOLETE WALL BOLT - RAWLPLUG NO. FE10 X 65MM (C2-8
Baxi part no. 102073
32   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
33 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
34   OBSOLETE INSULATION SIDE OUTER ENV CE
Baxi part no. 100262
35 Part number 102102, OBSOLETE NUT-CAPTIVE-No8-R-ANG-ZNPD-CHR OBSOLETE NUT-CAPTIVE-NO8-R-ANG-ZNPD-CHR
Baxi part no. 102102
36   OBSOLETE SEAL-DOOR-COMB-BOX-WM551-RS
Baxi part no. 102134
37   OBSOLETE INSULATION - PANEL FRONT 102126 41-077-06
Baxi part no. 102126
38   OBSOLETE MACHINE SCREW M5 X 8 SLOTTED CHEESE HEAD -
Baxi part no. 062413
39 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
40   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
41   OBSOLETE PLATE - THERMOSTAT PHIAL 100199 41-077-05
Baxi part no. 100199
42 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
43   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539
44   OBSOLETE KIT-SIGHT-WINDOW-WM532-381RS
Baxi part no. 100134
45 Part number 100128, OBSOLETE KIT-GASK-COM-BOX-DOOR-WM551-RS OBSOLETE KIT-GASK-COM-BOX-DOOR-WM551-RS
Baxi part no. 100128
46 Part number 100133, OBSOLETE KIT-GASK-BLR-BNR-WM-532-381RS OBSOLETE KIT-GASK-BLR-BNR-WM-532-381RS
Baxi part no. 100133
47 Part number 100126, Assy Burner WM532 511RS AER ASSY BURNER WM532 511RS AER
Baxi part no. 100126
48   OBSOLETE DEFLECTOR PRIMARY AIR
Baxi part no. 100120
49   OBSOLETE ELBOW-BNR-10MM-COMP-X16MM-MALE
Baxi part no. 102116
50   OBSOLETE NUT-LOCK-M16
Baxi part no. 102115
51   OBSOLETE INJECTOR - MARKED 3.45 102191 41-077-08 3
Baxi part no. 102191
52   OBSOLETE SUPPORT BURNER WM-532-381
Baxi part no. 100103
53 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
54   OBSOLETE PIPE WITH NUTS AND OLIVES - BOILER BURNER
Baxi part no. 100201
55   OBSOLETE CLAMP FOR GASKET - BURNER FEED PIPE 100101
Baxi part no. 100101
56 Part number 102112, ADAPTER-1/2" BSPT-MALE-10mm-T-F ADAPTER-1/2" BSPT-MALE-10MM-T-F
Baxi part no. 102112		 £12.48
57 Part number V4600C1029, NOW USE V4600C1086 HONEYWELL GAS VALVE NOW USE V4600C1086 HONEYWELL GAS VALVE
Baxi part no. V4600C1029
57 Part number 062623, NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL
Baxi part no. 062623
57 Part number V4600C1086, GAS VALVE TRADELINE GAS VALVE TRADELINE
Baxi part no. V4600C1086		 £160.92
58 Part number 5110466, GAS TAP C/W NUT & TAIL PIECE GAS TAP C/W NUT & TAIL PIECE
Baxi part no. 5110466		 £46.03
58 Part number 102205, NOW USE 5110466 TAP SERVICE NOW USE 5110466 TAP SERVICE
Baxi part no. 102205
59   OBSOLETE SUPPORT - CONTROL VALVE 100100 41-077-05
Baxi part no. 100100
60   OBSOLETE SCR-ST-NO8X3/8-PN POZI ZNPD
Baxi part no. 062626
61   OBSOLETE SCR-SET-M5 X 6MM-CH HD ZNPD
Baxi part no. 062434
62   OBSOLETE BRACKET - THERMOSTAT HOUSING 100200 41-077
Baxi part no. 100200
63   OBSOLETE HOUSING THERMOSTAT 100264 41-077-33 364-3
Baxi part no. 100264
64   OBSOLETE GRIP-CABLE-HEYCO-SR-5-M3
Baxi part no. 102197
65 Part number 102027, THERMOSTAT KIT K36P1324 THERMOSTAT KIT K36P1324
Baxi part no. 102027		 £20.57
66 Part number 042717, KNOB-CONTROL BOILER THERMOSTAT KNOB-CONTROL BOILER THERMOSTAT
Baxi part no. 042717
67 Part number 040456, KIT-PIEZO IGN-BERM 552 KIT-PIEZO IGN-BERM 552
Baxi part no. 040456
68 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005		 £19.17
69 Part number 102143, LEAD-ELECTRODE-BER552-WM381RS LEAD-ELECTRODE-BER552-WM381RS
Baxi part no. 102143
70 Part number 102024, ELECTRODE-PILOT-IGNITION ELECTRODE-PILOT-IGNITION
Baxi part no. 102024		 £7.03
71 Part number 062638, OBSOLETE BURNER PILOT OBSOLETE BURNER PILOT
Baxi part no. 062638
72   OBSOLETE SHIELD PILOT
Baxi part no. 100136
73 Part number 100098, OBSOLETE PIPE-PILOT-FEED-NUTS-OLIVES OBSOLETE PIPE-PILOT-FEED-NUTS-OLIVES
Baxi part no. 100098
74 Part number 040884, KIT-TV INTERFERENCE SUPP-72 KIT-TV INTERFERENCE SUPP-72
Baxi part no. 040884		 £14.71
75 Part number 226216, OBSOLETE KIT-BOILER REPLACEMENT-LARGE OBSOLETE KIT-BOILER REPLACEMENT-LARGE
Baxi part no. 226216
76 Part number 102029, OBSOLETE GASKET-BOILER OBSOLETE GASKET-BOILER
Baxi part no. 102029
76 Part number 102029BAX, OBSOLETE GASKET-BOILER(Blue) OBSOLETE GASKET-BOILER(BLUE)
Baxi part no. 102029BAX
77 Part number 042889BAX, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889BAX
77 Part number 042889, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889
78   KIT-DRAW BAR-BOILER SECURING
Baxi part no. 040890
79   OBSOLETE PLATE-BLR CLAMPING.WM-532RS
Baxi part no. 100113
80 Part number 040665, OBSOLETE BAFFLE-HEAT EXCH-COMB BOX OBSOLETE BAFFLE-HEAT EXCH-COMB BOX
Baxi part no. 040665
81   OBSOLETE BAFFLE - HEAT EXCHANGER (CENTRE) 100197 41
Baxi part no. 100197
83 Part number 060058, KIT-INJECTOR-TEE-REPLACEMENT KIT-INJECTOR-TEE-REPLACEMENT
Baxi part no. 060058		 £93.05
84 Part number 100062, OBSOLETE KIT-WIRES-WM-551-OF OBSOLETE KIT-WIRES-WM-551-OF
Baxi part no. 100062
85   OBSOLETE FLUE TERMINAL KIT - 9 3/4IN TO 13 3/4IN 10
Baxi part no. 100139
86   OBSOLETE TRIM - FLUE TERMINAL 100254 41-077-05 364
Baxi part no. 100254
87   OBSOLETE TAPPING SCREW ISO NO. 8AB X 25 SLOTTED PAN
Baxi part no. 409999
88   OBSOLETE GUARD - FLUE TERMINAL - TOWER FLUES 102127
Baxi part no. 102127
89   OBSOLETE FLUE TERMINAL KIT - 4IN TO 9IN 100097 41-0
Baxi part no. 100097
90   OBSOLETE FLUE TERMINAL KIT - 14IN TO 18IN 100096 41
Baxi part no. 100096
91   OBSOLETE PUMP HOUSING KIT 100157 41-077-05 364-207
Baxi part no. 100157
92   OBSOLETE KIT - INFIL MESH 100275 41-077-05 364-530
Baxi part no. 100275
