BAXI
WM 381 RS CAT 1N - (Optional Extras)
Appliance Code: 41-077-05

Appliance Diagram


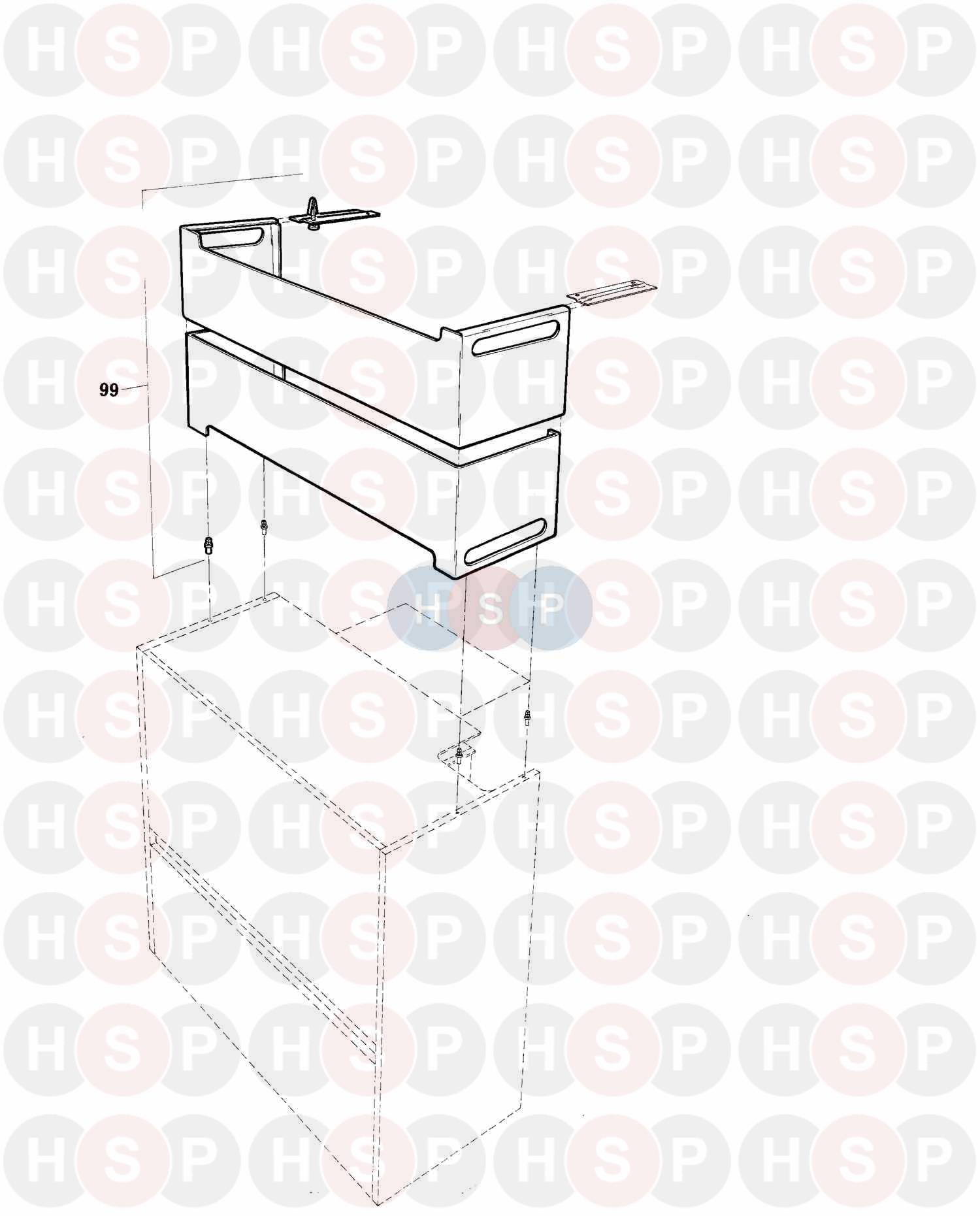

Optional Extras diagram for Baxi WM 381 RS CAT 1NClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE PANEL BOTTOM 100093 41-077-05 364-126
Baxi part no. 100093
2   OBSOLETE TOP - PANEL 100118 41-077-05 364-127
Baxi part no. 100118
3   OBSOLETE SIDE PANEL - LEFT HAND 100091 41-077-05 3
Baxi part no. 100091
4 Part number 102012, NUT-CAPT-U-TYPE-No8 ZNPD CHRM NUT-CAPT-U-TYPE-NO8 ZNPD CHRM
Baxi part no. 102012		 £3.12
5   OBSOLETE RIVET-NYLON ROKUT
Baxi part no. 102009
6 Part number 062679, SCR-ST-No8x5/8-FL HD POZ ZNPD SCR-ST-NO8X5/8-FL HD POZ ZNPD
Baxi part no. 062679		 £3.01
7   OBSOLETE SIDE PANEL - RIGHT HAND 100092 41-077-05
Baxi part no. 100092
8   OBSOLETE FRONT PANEL 100090 41-077-05 364-130
Baxi part no. 100090
9   OBSOLETE FACIA TRIM 102103 41-077-05 364-131
Baxi part no. 102103
10 Part number 102102, OBSOLETE NUT-CAPTIVE-No8-R-ANG-ZNPD-CHR OBSOLETE NUT-CAPTIVE-NO8-R-ANG-ZNPD-CHR
Baxi part no. 102102
11   OBSOLETE CATCH-MAG DOOR-WM532-381RS
Baxi part no. 102104
12   OBSOLETE DOOR PANEL 100095 41-077-05 364-133
Baxi part no. 100095
13   OBSOLETE COMBUSTION BOX ASSEMBLY 100094 41-077-05
Baxi part no. 100094
14   OBSOLETE INSULATION REAR
Baxi part no. 102105
15   OBSOLETE WASHER RETAINING SPECIAL
Baxi part no. 100012
16 Part number 062637, OBSOLETE GROMMET BOILER END SEAL OBSOLETE GROMMET BOILER END SEAL
Baxi part no. 062637		 £4.44
16 Part number 062571, SCR-ST-No8x1/2PAN.HD PZ ZNPD A SCR-ST-NO8X1/2PAN.HD PZ ZNPD A
Baxi part no. 062571		 £3.12
17   OBSOLETE INSUL-SIDE-COMB.BOX-WM381RS
Baxi part no. 102120
18   OBSOLETE CLAMP INSULATION
Baxi part no. 100070
19   OBSOLETE MACHINE SCREW M5 X 8 SLOTTED CHEESE HEAD -
Baxi part no. 062413
20   NUT-HEXAGON-M5-STEEL-
Baxi part no. 062440		 £3.01
21 Part number 062452, WASHER SHAKEPROOF INT-M5-ZN PD WASHER SHAKEPROOF INT-M5-ZN PD
Baxi part no. 062452		 £3.12
22   OBSOLETE SUPPORT LEFT HAND INCLUDING 2 OFF M4 X 10
Baxi part no. 100111
23   OBSOLETE SUPPORT RIGHT HAND - COMBUSTION BOX 100110
Baxi part no. 100110
25 Part number 062325, CLIP-CABLE-GT CLIP-CABLE-GT
Baxi part no. 062325
25   OBSOLETE CABLE/PIPE CLIP (EDGE TYPE) - SPRING STEEL
Baxi part no. 062675
26 Part number 060055, OBSOLETE KIT-PLUG & SOCKET-BOILERS OBSOLETE KIT-PLUG & SOCKET-BOILERS
Baxi part no. 060055
27   OBSOLETE TAPTITE SCREW M4 X 10 INDENT HEXAGON WASHE
Baxi part no. 102192
28   OBSOLETE WASHER SHAKEPROOF.INT-M4 ZN PD
Baxi part no. 062451
29   NUT-FULL HEX-4MM-ZINC PLTD
Baxi part no. 062439		 £3.01
31   OBSOLETE TERMINAL CUP WASHER FOR M4/8UN & 3BA SCREW
Baxi part no. 102139
31   OBSOLETE WASHER-PLAIN-4MM-BRASS
Baxi part no. 102140
32   OBSOLETE PLATE - WALL MOUNTING 100109 41-077-05 36
Baxi part no. 100109
33 Part number 062441, NUT-FULL HEX-6mm ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Baxi part no. 062441		 £3.01
34   OBSOLETE WASHER PLAIN-6MM ID-ZINC PL
Baxi part no. 062463
35   OBSOLETE WALL BOLT - RAWLPLUG NO. FE10 X 65MM (C2-8
Baxi part no. 102073
35 Part number 062320, PLUG WALL FIXING No8-PLASTIC PLUG WALL FIXING NO8-PLASTIC
Baxi part no. 062320		 £2.41
35   SCR-NO.8X1.5IN RD HD BLK JAP
Baxi part no. 062319
36   OBSOLETE PANEL - FRONT ASSEMBLY 100108 41-077-05 3
Baxi part no. 100108
37 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Baxi part no. 062532		 £3.01
38 Part number 102135BAX, SEAL-DOOR-COMB-BOX-WM402-RS SEAL-DOOR-COMB-BOX-WM402-RS
Baxi part no. 102135BAX
38 Part number 102135, SEAL-DOOR-COMB-BOX-WM402-RS SEAL-DOOR-COMB-BOX-WM402-RS
Baxi part no. 102135
39   OBSOLETE FRONT BRACKET - BOILER TRANSIT 100107 41-0
Baxi part no. 100107
40   OBSOLETE SCR-ST-NO8X3/8-PN POZI ZNPD
Baxi part no. 062626
41 Part number 102028, SEAL-THERMOSTAT PHIAL. SEAL-THERMOSTAT PHIAL.
Baxi part no. 102028		 £8.26
41   OBSOLETE PLATE - THERMOSTAT PHIAL 100199 41-077-05
Baxi part no. 100199
42   CLIP-CABLE-F/E-T/CARR 23790-11
Baxi part no. 062539
43   OBSOLETE INSUL-FRONT-PANEL-WM381RS
Baxi part no. 102119
44   OBSOLETE KIT-SIGHT-WINDOW-WM532-381RS
Baxi part no. 100134
45 Part number 100128, OBSOLETE KIT-GASK-COM-BOX-DOOR-WM551-RS OBSOLETE KIT-GASK-COM-BOX-DOOR-WM551-RS
Baxi part no. 100128
46 Part number 100133, OBSOLETE KIT-GASK-BLR-BNR-WM-532-381RS OBSOLETE KIT-GASK-BLR-BNR-WM-532-381RS
Baxi part no. 100133
47 Part number 062560, SCR-TF-M4 x 6mm PAN POZI ZN P SCR-TF-M4 X 6MM PAN POZI ZN P
Baxi part no. 062560		 £3.12
48   OBSOLETE SHIELD - PILOT 100104 41-077-05 364-146
Baxi part no. 100104
49   OBSOLETE SUPPORT BURNER WM-532-381
Baxi part no. 100103
49   OBSOLETE SERVICE TAP 1/2IN MALE STRAIGHT UNION FEMA
Baxi part no. 112072
50   OBSOLETE BURNER BOILER ASSEMBLY - WORGAS BAXI SPECI
Baxi part no. 100258
50 Part number 100119, OBSOLETE Assy Burner Boiler WM381 RS OBSOLETE ASSY BURNER BOILER WM381 RS
Baxi part no. 100119
51   OBSOLETE DEFLECTOR PRIMARY AIR
Baxi part no. 100120
52   OBSOLETE INJECTOR-3.1MM-BLR-BNR-381RS
Baxi part no. 102106
53   OBSOLETE PIPE-BLR-BRN-FEED-NUTS-OLIVES
Baxi part no. 100102
55 Part number 102112, ADAPTER-1/2" BSPT-MALE-10mm-T-F ADAPTER-1/2" BSPT-MALE-10MM-T-F
Baxi part no. 102112		 £12.48
56 Part number 062623, NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL NOW USE V4600C1086 VALVE-CONT-MULTI-H/WELL
Baxi part no. 062623
56 Part number V4600C1029, NOW USE V4600C1086 HONEYWELL GAS VALVE NOW USE V4600C1086 HONEYWELL GAS VALVE
Baxi part no. V4600C1029
56 Part number V4600C1086, GAS VALVE TRADELINE GAS VALVE TRADELINE
Baxi part no. V4600C1086		 £160.92
57   OBSOLETE TAP-SERV-STR-SIRAL-REF-0073853
Baxi part no. 112081
58   OBSOLETE SUPPORT - CONTROL VALVE 100100 41-077-05
Baxi part no. 100100
59   OBSOLETE SCR-SET-M5 X 6MM-CH HD ZNPD
Baxi part no. 062434
60   OBSOLETE BRACKET - THERMOSTAT HOUSING 100200 41-077
Baxi part no. 100200
61 Part number 102091, OBSOLETE HOUSING-T/STAT-PLASTIC-WM551 OBSOLETE HOUSING-T/STAT-PLASTIC-WM551
Baxi part no. 102091
62 Part number 102027, THERMOSTAT KIT K36P1324 THERMOSTAT KIT K36P1324
Baxi part no. 102027		 £20.57
63 Part number 042717, KNOB-CONTROL BOILER THERMOSTAT KNOB-CONTROL BOILER THERMOSTAT
Baxi part no. 042717
64 Part number 040456, KIT-PIEZO IGN-BERM 552 KIT-PIEZO IGN-BERM 552
Baxi part no. 040456
67   OBSOLETE GRIP CABLE-HEYCO SR 6P 4
Baxi part no. 102007
69   OBSOLETE EXTENSION-PRESSURE TEST POINT
Baxi part no. 102075
70 Part number 102005, THERM-18/24HWELL-Q309A2721 STD THERM-18/24HWELL-Q309A2721 STD
Baxi part no. 102005		 £19.17
71 Part number 042740, LEAD-ELECTRODE-675 LEAD-ELECTRODE-675
Baxi part no. 042740
72   OBSOLETE SLEEVE-SIL RUBBER-37MM GREEN
Baxi part no. 040576
73 Part number 040884, KIT-TV INTERFERENCE SUPP-72 KIT-TV INTERFERENCE SUPP-72
Baxi part no. 040884		 £14.71
73 Part number 102024, ELECTRODE-PILOT-IGNITION ELECTRODE-PILOT-IGNITION
Baxi part no. 102024		 £7.03
74 Part number 062638, OBSOLETE BURNER PILOT OBSOLETE BURNER PILOT
Baxi part no. 062638
75 Part number 402560, OBSOLETE PILOT INJECTOR (STD) OBSOLETE PILOT INJECTOR (STD)
Baxi part no. 402560
75 Part number 112011, OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A OBSOLETE INJECTOR-PILOT H/WELL-.38/.36A
Baxi part no. 112011
76 Part number 100098, OBSOLETE PIPE-PILOT-FEED-NUTS-OLIVES OBSOLETE PIPE-PILOT-FEED-NUTS-OLIVES
Baxi part no. 100098
77 Part number 100159, BOILER ASSEMBLY WM 381-281 RS BOILER ASSEMBLY WM 381-281 RS
Baxi part no. 100159
77 Part number 040064BAX, OBSOLETE BOILER-ASSEMBLY-B401 OBSOLETE BOILER-ASSEMBLY-B401
Baxi part no. 040064BAX
79 Part number 042889BAX, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889BAX
79 Part number 042889, OBSOLETE POCKET-THERMOSTAT 1/4in BSP OBSOLETE POCKET-THERMOSTAT 1/4IN BSP
Baxi part no. 042889
79   OBSOLETE PLUG 1/4" BSP HEXAGON HEAD - BRASS. 102150 4
Baxi part no. 102150
80 Part number 062636, OBSOLETE GASKET-BOILER BER 401 OBSOLETE GASKET-BOILER BER 401
Baxi part no. 062636
80 Part number 062636BAX, OBSOLETE GASKET-BOILER BER 401(Brown) OBSOLETE GASKET-BOILER BER 401(BROWN)
Baxi part no. 062636BAX
81 Part number 062570, BOLT-M8x100mm-HX.HD ST PASS ZP BOLT-M8X100MM-HX.HD ST PASS ZP
Baxi part no. 062570		 £3.40
82 Part number 062597, NUT-HEX-M8-PASS-ZNPD NUT-HEX-M8-PASS-ZNPD
Baxi part no. 062597		 £3.12
83   OBSOLETE WASHER PLAIN-M8 PASS ZNPD
Baxi part no. 062599
84   OBSOLETE BAFFLE - BOILER 100112 41-077-05 364-160
Baxi part no. 100112
86   KIT-DRAW BAR-BOILER SECURING
Baxi part no. 040890
87   OBSOLETE PLATE-BLR CLAMPING.WM-532RS
Baxi part no. 100113
89   OBSOLETE PLUG-1" BSPT-MI-RECESSED SPEC
Baxi part no. 042860
91 Part number 060058, KIT-INJECTOR-TEE-REPLACEMENT KIT-INJECTOR-TEE-REPLACEMENT
Baxi part no. 060058		 £93.05
92 Part number 062621, SPREADER-WATER-PLASTIC SPREADER-WATER-PLASTIC
Baxi part no. 062621		 £7.51
93   OBSOLETE FLUE TERMINAL KIT - 9 3/4IN TO 13 3/4IN 10
Baxi part no. 100139
95 Part number 100062, OBSOLETE KIT-WIRES-WM-551-OF OBSOLETE KIT-WIRES-WM-551-OF
Baxi part no. 100062
95   OBSOLETE TRIM - FLUE TERMINAL 100254 41-077-05 364
Baxi part no. 100254
95   OBSOLETE TAPPING SCREW ISO NO. 8AB X 25 SLOTTED PAN
Baxi part no. 409999
96   OBSOLETE GUARD - FLUE TERMINAL - TOWER FLUES 102127
Baxi part no. 102127
97   OBSOLETE FLUE TERMINAL KIT - 4IN TO 9IN 100097 41-0
Baxi part no. 100097
98   OBSOLETE FLUE TERMINAL KIT - 14IN TO 18IN 100096 41
Baxi part no. 100096
99   OBSOLETE PUMP HOUSING KIT 100157 41-077-05 364-207
Baxi part no. 100157
100   OBSOLETE KIT - INFIL MESH 100275 41-077-05 364-530
Baxi part no. 100275
